C5 mk2 2004 replacement seats

Post by chasqui »

I found a full leather interior and bought and fitted it to my car.

All was good and working till I sat on the driver seat. Although fitted correctly, there is a lot of play, so much so that when you pull away at a traffic light you rock back in the seat about 3/4 inch!

So I thought of removing the leather bottom cushion and leather back rest and fitting it to the seat chassis of the old seat as that is in better condition.

Does anyone have a diagram or a guide of how to remove the bottom cushion and back rest from the seat chassis please?

The vin number on my car is VF7**************[VIN obfuscated, can be read by forum staff]

The new seats have a switch and wiring for the heated element for which there is a plus in the wiring loom...I’m not fussed about this working or not.

Any suggestions gratefully accepted!
Thanking you in advance...
Top
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37333
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5722

Re: C5 mk2 2004 replacement seats

Post by GiveMeABreak »

The seats need to come out - all the underside clips and trim have to be removed.... I've put the stripping procedure here - just use what you need to do the job - but be mindful of the airbags - disconnect the battery and allow 15 minutes for the Airbag ECU to discharge before starting work on them.
Seat A.PNG
Seat B.PNG

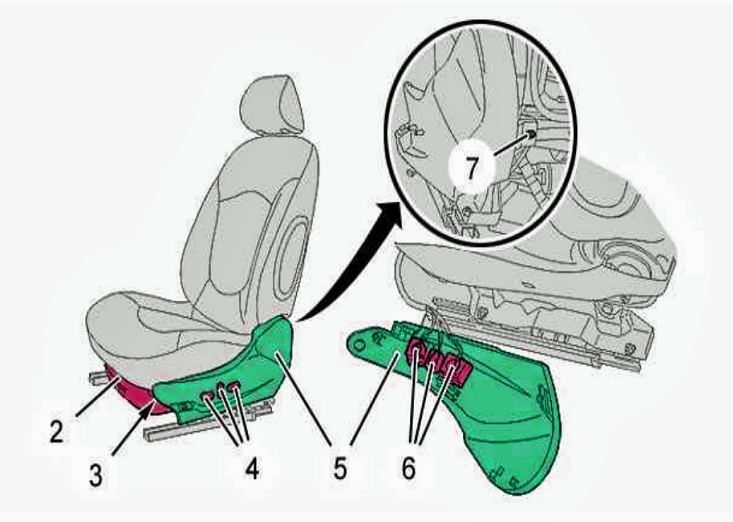

Remove the front seat.
Disengage the elastic holders , as "a".
Release the lower trim ( 1).		Remove:
  • The drawer under the seat ( 2)
  • The adjustment buttons (4)
  • The screws (3) and (7)
Disconnect the adjustment switches ( 6).
Remove the outer cover ( 5).
Seat C.PNG
Seat D.PNG

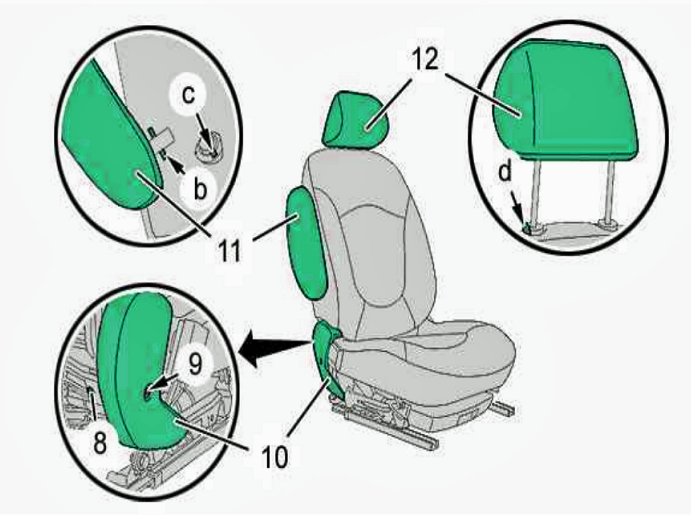

Remove:
  • The screws (8) and (9)
  • The lower seat cover (10)
  • Armrest (11) (press on the armrest and move it so as to align the lugs "b" and the notches "c")
  • The head restraint (12) (press at "d" and lift)

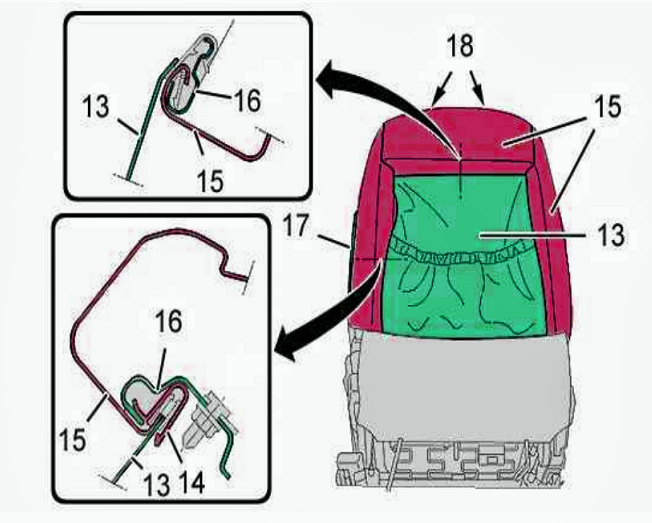

(13) Blind with map pocket.
(14) Trim profile.
(15) Seat backrest cover.
(16) Seat backrest frame.
(17) Side airbag .
(18) Head restraint guides.
Unclip:
  • Seat backrest cover ( 15)
  • The blind with map pocket (13)
Remove:
  • The blind with map pocket ( 13)
  • The side air bag (17) (see the relevant operation)
  • The head restraint guides (18) (rotate by 1/4 turn)
  • Seat backrest cover (15)
Seat E.PNG
(19) Seat cushion frame.
(20) Seat cushion cover.
" e" : Seat cover side clip.
" f" : Seat cover front clip.
Unclip the seat cushion cover ( 20) (at "e" and "g" on each side and at "f" on the front).
Remove the seat cushion cover ( 20).
