C5 Tourer 2009 Electronic Handbrake MOT issue

Post by NAM »

Hi All
It's been a while since I was on the forum but I could do with a bit of help. My 2009 C5 Tourer has failed its MOT as the handbrake is not doing its job properly.

The cable at the caliper end seems to be sticking too far out so when the unit engages there is insufficient pull.

The options discussed with me by the garage are to either replace the rear discs and pads which will take up some of the cable slack and therefore apply more pull when the parking brake is applied or to replace the unit including cables. There is a note on that the cable support to the caliper on one side is damaged.
The price for a replacement unit comes in around £780 plus fitting. So, as I don't want to spend that kind of money I wonder if anyone else has had similar or could recommend a cheaper price for a replacement unit.
The parking brake does hold the car on the drive but I need to sort this out in the next week or so to get a new MOT.

Look forward to your thoughts.
NEW 50 Shades of Grey C5 Tourer 2016 BlueHDi 2L VTR+
C4 (62) 1.6HDi VTR+ (Feb 2020)
Silver Dream Machine: C4 Hatchback, 1.6 SX HDi (07) (July 2013 - Feb 2020)
C5 Tourer Exclusive 09/2Ltr HDi (Oct 2012-Sept 2021 146K miles
Xantia Estate Mk2 1.8LX V-Reg/2000 173K miles.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by GiveMeABreak »

I think these are main dealer only unfortunately. I was going to suggest that the electronic handbrake unit be recallibrated to see if that will sort the issue out, but if you have been told the cable is damaged, I'm not sure there are any other options other than trying to get a replacement from a breakers and then having it coded / calibrated to the car. It may be a bit cheaper.
Please Don't PM Me For Technical Help

Marc
NAM
Posts: 154
Joined: 13 May 2008, 22:42
Location: Macclesfield, UK
My Cars:
x 2

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by NAM »

Thanks Marc. Is it easy to recalibrate or better if Citroen do it? I'm thinking it might be worth a go. The hand brake does hold the car on a reasonable slope so there is some braking.
NEW 50 Shades of Grey C5 Tourer 2016 BlueHDi 2L VTR+
C4 (62) 1.6HDi VTR+ (Feb 2020)
Silver Dream Machine: C4 Hatchback, 1.6 SX HDi (07) (July 2013 - Feb 2020)
C5 Tourer Exclusive 09/2Ltr HDi (Oct 2012-Sept 2021 146K miles
Xantia Estate Mk2 1.8LX V-Reg/2000 173K miles.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by GiveMeABreak »

There is a procedure completed with the bespoke Diagbox diagnostic system, but if you don't have this then it may be worth ringing Citroën (who do) to see what impact or likelihood that this will help.
Please Don't PM Me For Technical Help

Marc
NAM
Posts: 154
Joined: 13 May 2008, 22:42
Location: Macclesfield, UK
My Cars:
x 2

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by NAM »

Thanks Marc, I will have a chat with them in the morning.
NEW 50 Shades of Grey C5 Tourer 2016 BlueHDi 2L VTR+
C4 (62) 1.6HDi VTR+ (Feb 2020)
Silver Dream Machine: C4 Hatchback, 1.6 SX HDi (07) (July 2013 - Feb 2020)
C5 Tourer Exclusive 09/2Ltr HDi (Oct 2012-Sept 2021 146K miles
Xantia Estate Mk2 1.8LX V-Reg/2000 173K miles.
User avatar
petef
Posts: 193
Joined: 23 Jul 2006, 20:46
Location: Lochwinnoch,Scotland and Dordogne, France
My Cars: DS DS5, C4 Coupe, DS23 Pallas, Xantia Activa
x 11

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by petef »

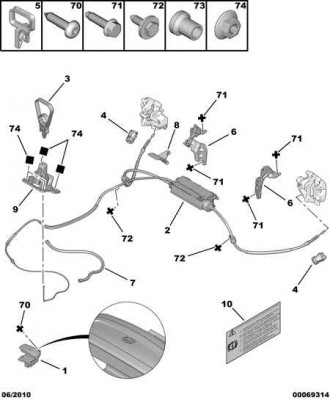

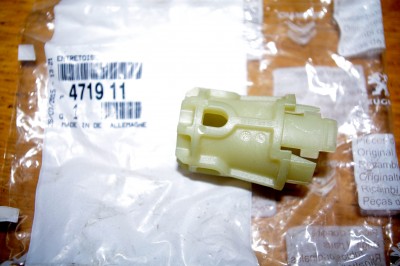

I had a similar problem two years ago with the MOT examiner saying that a part in the rear section of the handbrake cable on my 09 Tourer was starting to break up. He passed it because the handbrake still worked ok! When I had a look I could see that the spacer on the LH rear caliper - item 4 on the Citroen Service diagram - was actually broken in the middle but both ends were still on the cable. If one or both sections had disintegrated completely and fallen off, the spacing function would obviously have been completely lost and the inner cable would have become loose in the outer with consequent loss of function. As it was, I was able to araldite the two halves together and reseat the spacer. Two years on it is still ok. However, as a precaution, I did get two new spacers from the local Citroen dealer to fit if needed. Must be the cheapest items ever from Chez Citroen - £2.95 the pair, part number 471911.
If your spacers are starting to crack up maybe that could explain the loss of efficiency in your handbrake
Attachments
c5 handbrake spacer.jpg
c5 handbrake.jpg
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36828
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5600

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by GiveMeABreak »

Thanks for posting that info Pete, sounds a very important check all X7 owners with EPBs could do as a preventative measure!

Could you let us know what was involved in replacing them so we can determine what sort of technical skills are needed and how long it took you to undertake the repair? I'll then copy the topic to the hints and fixes section.
Please Don't PM Me For Technical Help

Marc
User avatar
petef
Posts: 193
Joined: 23 Jul 2006, 20:46
Location: Lochwinnoch,Scotland and Dordogne, France
My Cars: DS DS5, C4 Coupe, DS23 Pallas, Xantia Activa
x 11

Re: C5 Tourer 2009 Electronic Handbrake MOT issue

Post by petef »

Ok Marc,it's not a big job to check the cable spacer on the EPB. As I said I haven't actually replaced mine, but I've just had a quick look and should only take 10mins.

Procedure to inspect and replace EPB spacer C5 x7
1) Suspension to high ( hydractive model)
2) Chock front of car
3) Jack up and remove rear road wheel
4) Handbrake to off - Ignition on
- Foot on brake pedal
- Hand brake switch down
- Ignition off
Handbrake should stay off

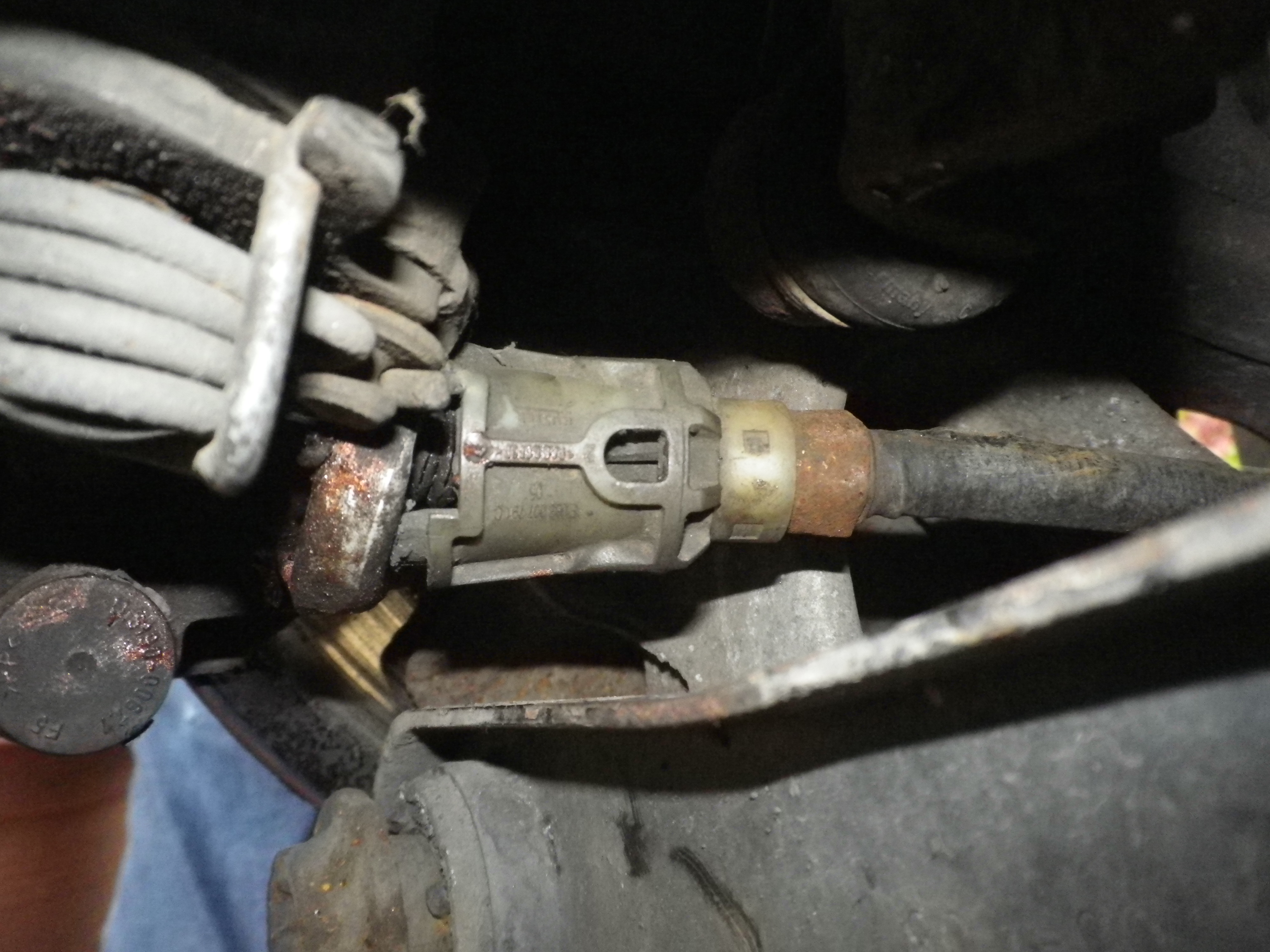

5) Inspect spacer (see photo) - also convoluted protective rubber cable cover - mine is shredding
