Important Information concerning access to PSA parts data

Forum News, Announcements and any issues you're having with the forum

Moderator: myglaren

User avatar
quintet
Donor 2021
Posts: 244
Joined: 14 Apr 2010, 21:51
x 14

Re: Important Information concerning access to PSA parts data

Post by quintet »

GiveMeABreak wrote:
15 May 2021, 14:14

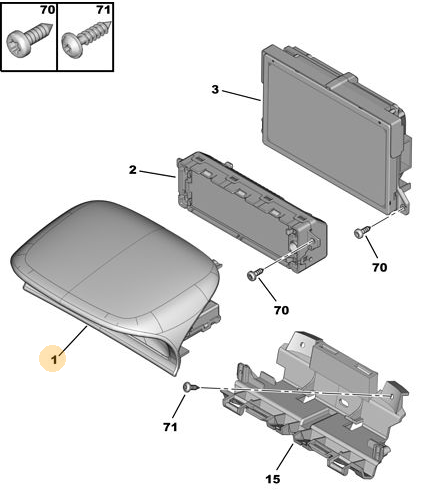

but has since been replaced with a newer part: 6564FA, costing £288.19. Item (1) below:

Prices from Peugeot correct as of today inclusive of VAT.
Oh, so does that mean you cant actually just buy the screen on it's own now? :( I knew they were expensive but i was kinda hoping i could find a new one on ebay going cheap, i'm guessing this one is not suitable though... https://www.ebay.co.uk/itm/133333267509 ... gIAMPD_BwE
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25104
Joined: 15 Sep 2015, 19:38
x 2770

Re: Important Information concerning access to PSA parts data

Post by GiveMeABreak »

That's not a compatible screen and the part number is not coming up anymore, so is probably an older one that has been superseded a while ago.

The screen is shown with some sort of shroud, but may be available without.

There are plenty coming up here:

https://www.ebay.co.uk/sch/i.html?_from ... A&_sacat=0
User avatar
quintet
Donor 2021
Posts: 244
Joined: 14 Apr 2010, 21:51
x 14

Re: Important Information concerning access to PSA parts data

Post by quintet »

I've just noticed the date on it and it is indeed an old one so it has definitely been superseded + the info states its suitable for C5-C8's too, they had a green screen, the 307 is orange, whilst it may work it's not ideal as a green screen wouldn't match the rest of the dash lighting, if i knew it'd work for a long time and was the right one i'd go for it but at that age i'm sceptical of it's longevity (obviously not the fault of the seller, just a production problem) so i'll give it a miss.

Those you sent a link for are all in europe, whilst i'm in no rush the time and costs of getting stuff from europe is not so good anymore. There is another "new" one on Ebay but it too is old stock and too expensive for it imo https://www.ebay.co.uk/itm/283611632761 ... SwHOVdeWRT So for now, with those part numbers to hand i'll keep my eye open for what looks to be a good second hand one.

Thanks for getting the part numbers so quickly for me, much appreciated.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25104
Joined: 15 Sep 2015, 19:38
x 2770

Re: Important Information concerning access to PSA parts data

Post by GiveMeABreak »

No worries.

The green screens are not at all compatible, They were first seen on the early C5s which had the old RB2 head units - they just won't work at all. The other long part number (non-PSA part number) is likely to be:

9652809977.

If you search on this, you'll see some more options - UK based:

https://www.ebay.co.uk/sch/i.html?_from ... dkw=6564FA
User avatar
quintet
Donor 2021
Posts: 244
Joined: 14 Apr 2010, 21:51
x 14

Re: Important Information concerning access to PSA parts data

Post by quintet »

Thanks for that, i've added it as a 'saved search' on ebay.
colinsunderland
Donor 2020
Posts: 47
Joined: 30 Apr 2020, 21:29
x 2

Re: Important Information concerning access to PSA parts data

Post by colinsunderland »

GiveMeABreak wrote:
15 May 2021, 23:13
No worries.
Hi Marc

Any chance you could get the part numbers for these please

Top drivers side engine mount
front wheel bearing

thanks very much
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25104
Joined: 15 Sep 2015, 19:38
x 2770

Re: Important Information concerning access to PSA parts data

Post by GiveMeABreak »

Ok
Wheel Hub Bearing
if Item (4) which is (B + (14)), which is the Front Hub Bearing, then part 1606623580 (£118.51)
Cheaper PSA alternative Part No: 1623948880 @ £41.60
Colin Sund Wheel Bearing.PNG
Engine Mount

Item (4) part no: 180944 @ £51.02
Colin Sund Engine Mount.PNG
If anything else, let me know Colin.
colinsunderland
Donor 2020
Posts: 47
Joined: 30 Apr 2020, 21:29
x 2

Re: Important Information concerning access to PSA parts data

Post by colinsunderland »

GiveMeABreak wrote:
14 Jun 2021, 18:43
Ok
Wheel Hub Bearing
if Item (4) which is (B + (14)), which is the Front Hub Bearing, then part 1606623580 (£118.51)
Cheaper PSA alternative Part No: 1623948880 @ £41.60


Engine Mount

Item (4) part no: 180944 @ £51.02


If anything else, let me know Colin.
Thanks for that Marc

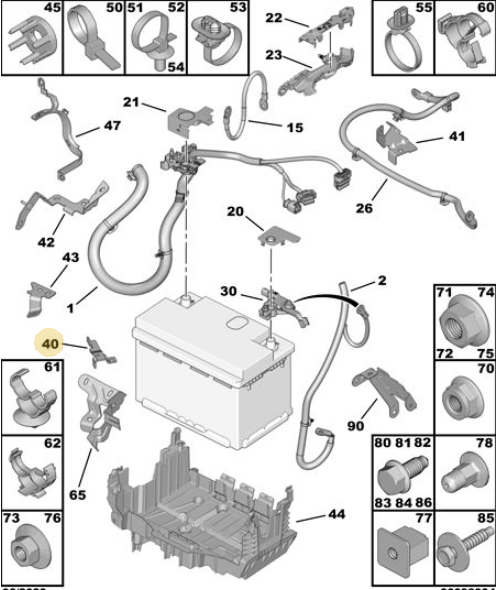

Hit a bit of a snag, when I was screwing bolt 73 in, the nut thing underneath came loose. I can't possibly get it on as can't get my fingers into where it needs to go. It's actually gone onto the bolt at a slight angle and although I can probably get it off, I know its going to drop.
Is there a part number for the exact nut the bolt screws into, or can I use any nut and bolt (similar size obviously)? Thanks very much
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25104
Joined: 15 Sep 2015, 19:38
x 2770

Re: Important Information concerning access to PSA parts data

Post by GiveMeABreak »

Hi Colin - from what I can see, there are no separate nuts shown on the diagram for these screws. Are you sure they aren't those self-locking type?
colinsunderland
Donor 2020
Posts: 47
Joined: 30 Apr 2020, 21:29
x 2

Re: Important Information concerning access to PSA parts data

Post by colinsunderland »

GiveMeABreak wrote:
20 Jun 2021, 21:49
Hi Colin - from what I can see, there are no separate nuts shown on the diagram for these screws. Are you sure they aren't those self-locking type?
I'm not sure, I can just about get my fingertips in, can't grip it or anything. I think they are actually attached underneath the hole and that one has came off, there's not even room to get a spanner in so it's going to be a fun job :D. I'll try to get a nut and bolt roughly the same size and see what I can do. Thanks for looking Marc :)
Zoolog
Donor 2021
Posts: 4
Joined: 08 Aug 2019, 16:57

Re: Important Information concerning access to PSA parts data

Post by Zoolog »

Hi Marc , It's not a part request per se and i might be in the wrong forum here, but i believe the OGRA number is accessible through the Citroen parts website so I'll ask here. Can someone please help me out with the OGRA (RP) number for my 99 Xantia? its not visible on the A pillar or under the paint code on drivers side bulkhead? The VIN is VF7**************[VIN obfuscated, can be read by forum staff].
User avatar
GiveMeABreak
Forum Admin Team
Posts: 25104
Joined: 15 Sep 2015, 19:38
x 2770

Re: Important Information concerning access to PSA parts data

Post by GiveMeABreak »

Sure, the RPO or build date code is 08249 (10th June 1999).
