Dear guys,
Can anyone describe me which cable for what? Thanks. This oxygen sensor is faulty i know but i want to look for termostat and voltage values.
Citroen C5 2.0 hdi Oxygen sensor circuit diagram
-
bahcekapili
- Posts: 27
- Joined: 08 Aug 2023, 12:25
- x 7
Citroen C5 2.0 hdi Oxygen sensor circuit diagram
- Attachments
-

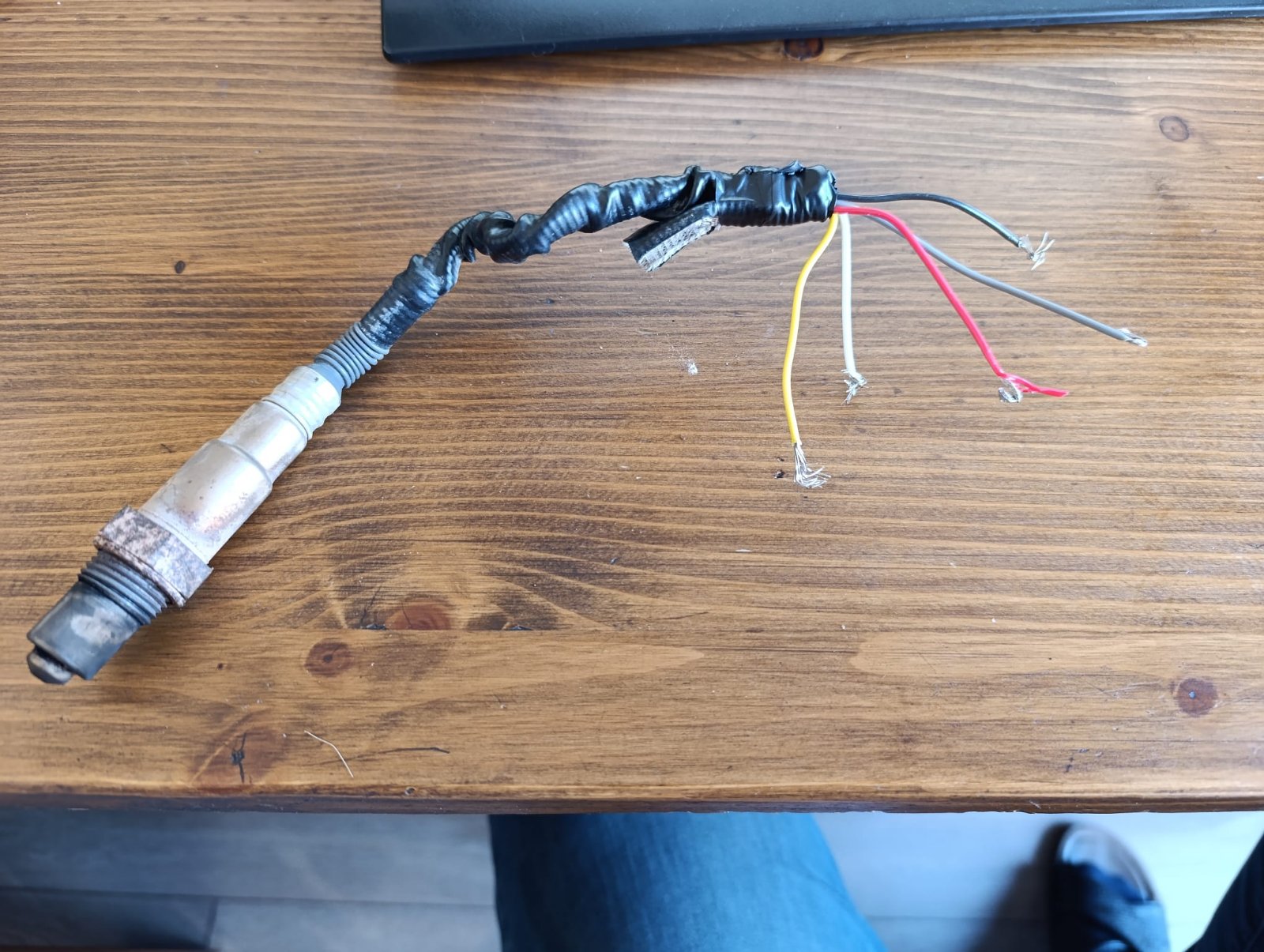

- oxygen sensor
-
steveclv
- Donor 2024
- Posts: 183
- Joined: 25 Apr 2024, 14:13
- x 34
Re: Citroen C5 2.0 hdi Oxygen sensor circuit diagram
I found this if it helps (Bosch)
1. RED - Pump+
2. BLACK - Sensor+
3. WHITE - Heater -
4. YELLOW - Pump-/Sensor-
5. GRAY - Heater+
1. RED - Pump+
2. BLACK - Sensor+
3. WHITE - Heater -
4. YELLOW - Pump-/Sensor-
5. GRAY - Heater+
