Citron, C3 EGR wiring

[malcolm6969]

Can anyone help me what the five wires on the EGR plug should be reading with the ignition on and the car not running or how to test them. Thank you

[GiveMeABreak]

I'll need your VIN to check the system you have. Please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff.

[malcolm6969]

VF7**************[VIN obfuscated, can be read by forum staff] firstly thank you for replying .it is a five wire conection and i would like to know what wires should read unconnected then connected or where i may get a service sheet for egr its a pierburg.its not just about bolting a knew one on i would like to test everything along the way if possible.ive watched many videos and loadsa googling but cannot find information i want.befrore removing the launch machine i used says egr valve open cycle ratio was -4.6 . when i striped egr off and took motor off motor would be jerky and when built up of the car but plugged in didnt seem to move the valve at all ,again i appreciate your help cheers

[GiveMeABreak]

Description	Minimum tolerance	Nominal value	Maximum tolerance
Electric motor supply voltage	10,5 V	13,5 V	16 V
Motor resistance	2,04 ohms	2,40 ohms	2,76 ohms
Supply voltage of the EGR valve sensor	4,75 V	5 V	5,25 V
Range for signal in closed position, of the EGR valve position copy sensor	0,95 V	1 V	1,05 V
Range for signal in open position, of the EGR valve position copy sensor	3,95 V	4 V	4,05 V
Supply voltage of the by-pass sensor/Exhaust gas recirculation heat exchanger	4,75 V	5 V	5,25 V
Range for signal in exchanger position, of the by-pass sensor/Exhaust gas recirculation heat exchanger	Above 0,5 V	-	Less than 1,5 v
Range for signal in by-pass position, of the by-pass sensor/Exhaust gas recirculation heat exchanger	Above 3,5 V	-	Less than 4,5 v

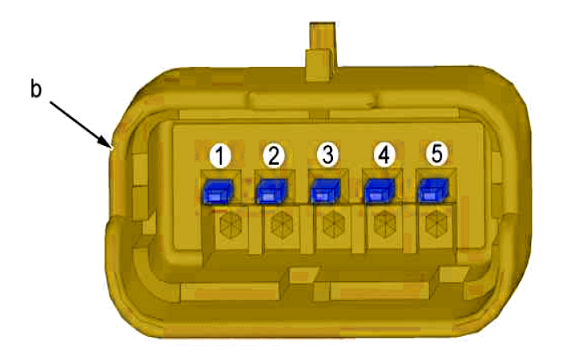

Connector: Exhaust gas recycling valve - "b" 5 way blue connector

Channel No.	Allocation of the tracks of the connector
1	Sensor + 5 V supply
2	Engine fuel system -
3	Earth
4	Engine fuel system +
5	Sensor signal

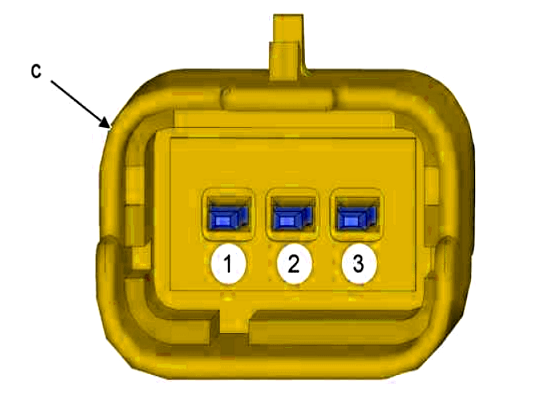

By-pass connector/Exhaust gas recirculation heat exchanger - "c" 3 way blue connector

Channel No.	Allocation of the tracks of the connector
1	Signal
2	Earth
3	Power supply +5 V

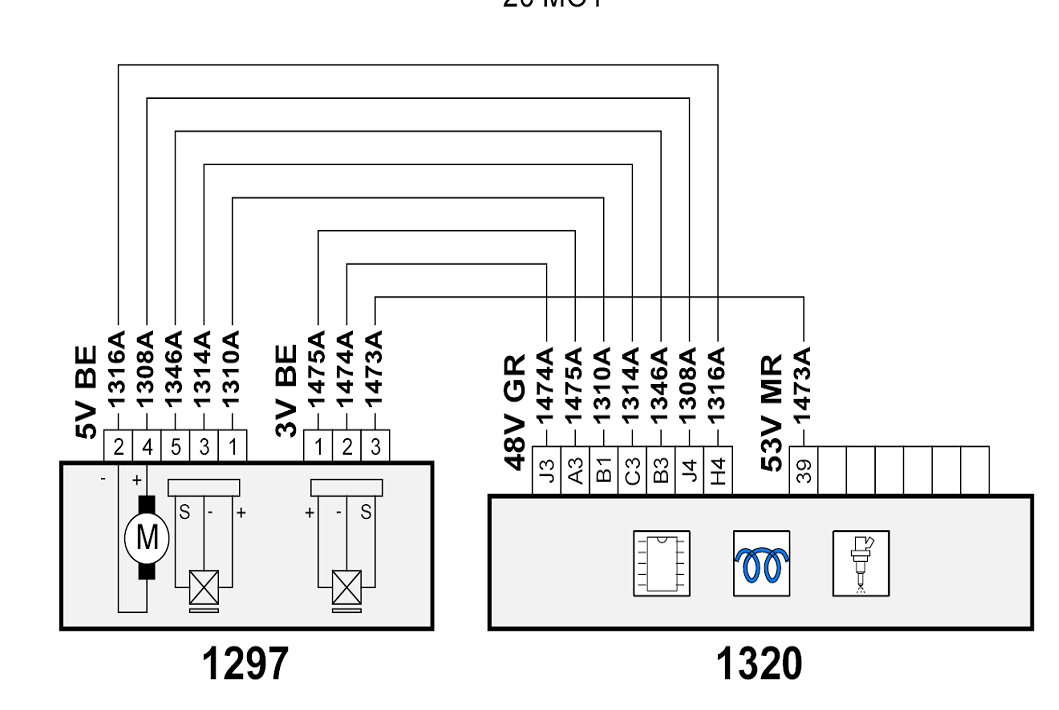

Pinout

1297 is your EGR, powered from the Engine ECU 1320
