Sat nav map update
Hi,for a long time i'm trying to update my sat navi map in my 508 from 2011. Soft updated without any problems but i can't finish job with map. I've pendrive fat32 formatted, good maps on. I do everything according procedures but when i try typ update UK map after na hour i get message "medium with data incomplete or damaged". I used 5 different pendrive's and resukts always the same. Thank's in advance for any help.
Kind Regards.
Kind Regards.
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5740
Re: Sat nav map update
It's very likely you have corrupted map software in that case.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Sat nav map update
i've used few different files with map and results is always the same.
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5740
Re: Sat nav map update
Pop your VIN up so I know what system you have
Please Don't PM Me For Technical Help
Marc
Marc
Re: Sat nav map update
VF3**************[VIN obfuscated, can be read by forum staff]
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5740
Re: Sat nav map update
Ok, so you had your VIN slightly wrong, but I've corrected it now. So you have the RT6 system.
Maps are stored on the internal flash memory card. Either you have a corrupt map source (download has become corrupt or the source is non-official) or you may have a fault on the internal SD card that is causing an issue.
Maps are stored on the internal flash memory card. Either you have a corrupt map source (download has become corrupt or the source is non-official) or you may have a fault on the internal SD card that is causing an issue.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Sat nav map update
it's likely a problem with SD card, the more so because despite the unsuccessful update the old UK maps have dissapeared. Thank you, i have to find any information how to change SD card and clone data to new one.
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5740
Re: Sat nav map update
There's a load of info on this thread:
viewtopic.php?t=63227
If you suspect a faulty Internal SD card, then you need to copy your user data from the correct partition as this holds the vehicle specific info like your parking assistance options etc. You'll need to use Mira Scripts to help you with this, so that you can copy the relevant parts back afterwards.
viewtopic.php?t=63227
If you suspect a faulty Internal SD card, then you need to copy your user data from the correct partition as this holds the vehicle specific info like your parking assistance options etc. You'll need to use Mira Scripts to help you with this, so that you can copy the relevant parts back afterwards.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Sat nav map update
Thank you. It's looks scary. Before i will decide do do i will try to one thing more.I got information that i should try to do pendrive format using smartphone. Probably android doesn't create "system volume information" files which can cause problems during map update. If it will be not helpful i will have no way.
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5740
Re: Sat nav map update
Just open notepad and copy the following text into it (make sure you have the 'Save as Type' set to ALL FILES first) and save the file on your desktop as:
Remove System Files.bat
Next, when you insert the USB drive, make a note of the drive letter that Windows assigns to it.
When you've copied all your map files over, just double click the 'Remove System Files.bat' you created and follow instructions. Just type in the drive letter of the USB Drive followed by the : and press enter. It will remove all the system files for you. Then remove the USB drive.
Remove System Files.bat
Code: Select all
@echo off
set /p DriveLetter=Enter Drive Letter and ":" to remove System Volume Information Files and Folders.
%DriveLetter%
attrib -a -r -h -s "System Volume Information"
Rmdir "System Volume Information" /q /s
pause
When you've copied all your map files over, just double click the 'Remove System Files.bat' you created and follow instructions. Just type in the drive letter of the USB Drive followed by the : and press enter. It will remove all the system files for you. Then remove the USB drive.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Sat nav map update
doesn't let me save, when i set to all files then i can't chose when is code select all, there is only ANSI, UTF-8, UTF-16LE,UTF-16BE,UTF-8BE
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5740
Re: Sat nav map update
You need to copy the text in the code window in my post.
You can do this by pressing the SELECT ALL option from the code window. This will copy the text to the windows clipboard.
Open Notepad on your PC
Paste the Code in.

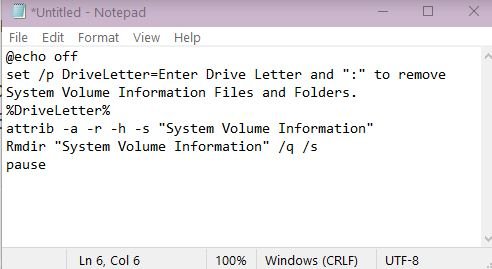

It should look like this:

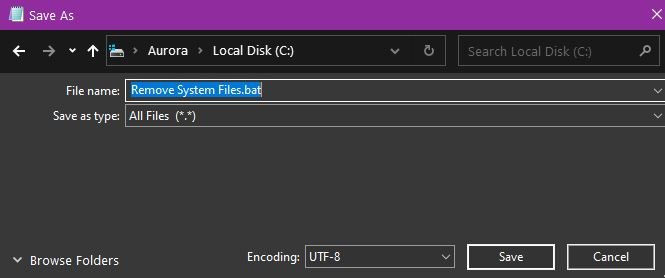

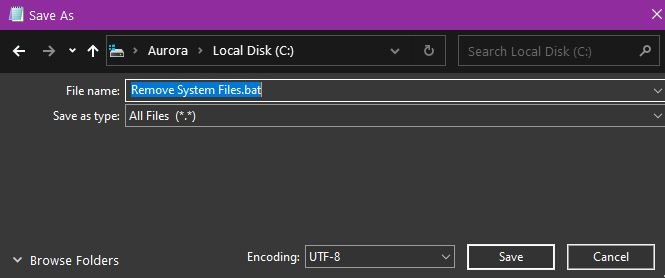

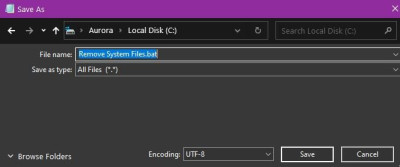

Then in Notepad, choose FILE, SAVE AS and then make sure the 'SAVE AS TYPE' dialogue box is set to ALL FILES (*.*) Just leave the ENCODING options as UTF-8, there's no need to change this.
Type the filename and save.
You can do this by pressing the SELECT ALL option from the code window. This will copy the text to the windows clipboard.
Open Notepad on your PC
Paste the Code in.
It should look like this:
Then in Notepad, choose FILE, SAVE AS and then make sure the 'SAVE AS TYPE' dialogue box is set to ALL FILES (*.*) Just leave the ENCODING options as UTF-8, there's no need to change this.
Type the filename and save.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Sat nav map update
Enter Drive Letter and ":" to remove System Volume Information Files and Folders.F":"
'F":"' is not recognized as an internal or external command,
operable program or batch file.
File not found - System Volume Information
I've no idea what did i wrong. Everything according your instruction
'F":"' is not recognized as an internal or external command,
operable program or batch file.
File not found - System Volume Information
I've no idea what did i wrong. Everything according your instruction
