Cd/HDD/mb cable

Post by osx »

Looking for the cable connecting the dvd/hard drive to the RT4 motherboard to repair a friend's unit. Are these sold separately? Would a laptop cable connecting only the disk work? Connection to motherboard looks similar.
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

Having had a closer look it is only that part between the HD and DVD that is damaged.
Theoretically it should work without the DVD as long as the disk connected is configured as Master. Question is if an external USB DVD drive can be used to reinstall 8.31 and maps.
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Cd/HDD/mb cable

Post by GiveMeABreak »

osx wrote: 05 Sep 2020, 17:02 Looking for the cable connecting the dvd/hard drive to the RT4 motherboard to repair a friend's unit. Are these sold separately? Would a laptop cable connecting only the disk work? Connection to motherboard looks similar.
It will use a standard PATA interface cable, but as far as your laptop goes, only if it is old enough to still have that interface. Most have been SATA for years now. If not, you’ll need a SATA to IDE converter which can be had quite cheaply.
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Cd/HDD/mb cable

Post by Hell Razor5543 »

James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

Got some parts from old laptops with pata interface but the connection to the mobo might differ if not zif.
If the only device connected is the disk it probably doesn't matter if it's configured as master or slave.
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Cd/HDD/mb cable

Post by GiveMeABreak »

Default connection in these is CD as Master and HDD as Slave for reference.
Please Don't PM Me For Technical Help

Marc
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

and is this determined by Cable Selection?
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

as it is not now possible to update the system to 8.31 with the CD, do i just have to burn an iso image to a usb stick?
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Cd/HDD/mb cable

Post by GiveMeABreak »

The original Hard Drive will have pins set to configure the HDD as 'Slave'. If this is set to Cable Select or Master it won't boot.

The RT4 is capable of running a USB cable (using 4 out of the 6 pins from the CD changer port). A USB cable can be ordered from the dealer (part 6574JH). A USB memory device can then be used to update system software and maps as if it were reading them from a CD ROM. So you should be able to extract the ISO software update disk files onto USB and update without having to faff with the hard drive. Just get an aftermarket cable to replace the knackered one at some point.

If going the USB port upgrade route, just mount the ISO to a PC and extract all files to USB.
Please Don't PM Me For Technical Help

Marc
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

That's interesting because having a cable that only allows devices to be connected in a particular order (CD at end of cable) would suggest that CS would be the default option.

Anyway, extracting the ISO onto the USB and booting ends up in a CRC loop with an error message at the end. Will try with a different stick.
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Cd/HDD/mb cable

Post by GiveMeABreak »

Using a copy of an original software update CD (8.31) can be fraught with issues, including CRC errors. It's why for those with RT4s without the issues you have on your friend's unit, I recommend buying an original CD from the dealer for a few £s to do the update, as this presents hardly any issues. I suspect it may have something to do with copy protection - but I can't verify that personally. I do know that others that went and bought an original Firmware 8.31 CD, Part Number: 9679242580, costing £7.93 inc. VAT as of today, had no issues.

I appreciate that this doesn't help you now, but worth mentioning for reference.

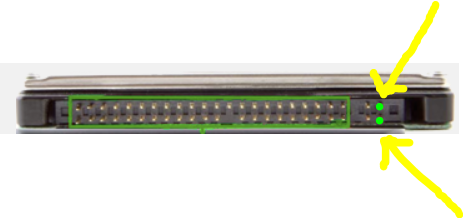

As for the HDD, there should be jumpered pins that set the HDD to slave to the far left that I have marked with green dots.
RT4 Pins.PNG
When these 2 pins are jumpered then the HDD should be set to Slave with the CD as Master for booting and emergency recovery / update reasons or in case of HDD failure where you need to replace the HDD and use the system firmware to repartition and install the OS.
Please Don't PM Me For Technical Help

Marc
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

I have the original CD and created an ISO image from that. I wouldn't expect firmware to be copyrighted. Think I will give it a try with an external USB cd reader as i think you are right about using copies of the CD (I am sure there is away around this as I prefer to use flash media rather than CD's for updates). The HDD solution works only if the hd has the 4 pins at the right.
C5 X7 Exclusive 2.0 HDi Auto
C5 X7 Exclusive 2.0 HDi Manual
User avatar
osx
(Donor 2022)
Posts: 761
Joined: 08 Jun 2013, 20:09
Location: Oxford
Lexia Available: Yes
My Cars: GSA X
BX 1.6
C5 X7 Auto
C5 X7x2 Manual
x 15

Re: Cd/HDD/mb cable

Post by osx »

Got a new cable and reconnected everything. The problem now is that the CD player does not grab and load the disk. There is no disk in the player but I could hear it power up when i connected the cable.
