Xantia Cooling Fans And AirCon Operation

Unread post by admiral51 »

Most of the following is based on what i have found on this forum and my own experiences of trying to get both systems working :)

The operation of the AirCon is linked directly to the correct operation of the 2 cooling fans which sit infront of the radiator under the bonnet :)

Both fans must run together at the same speed.

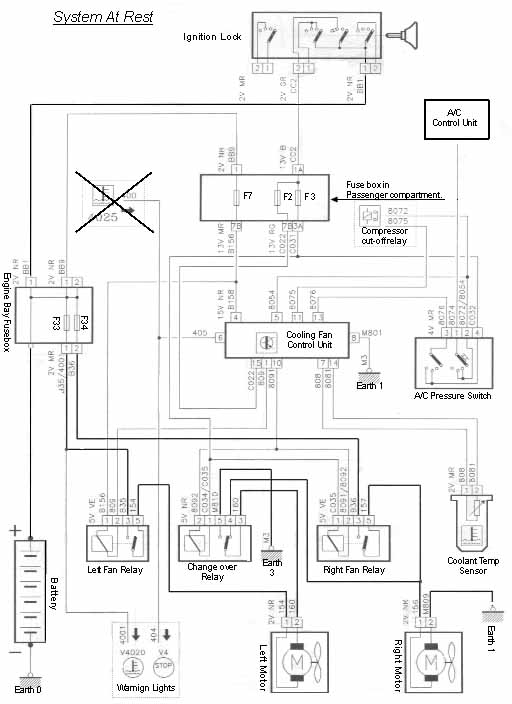

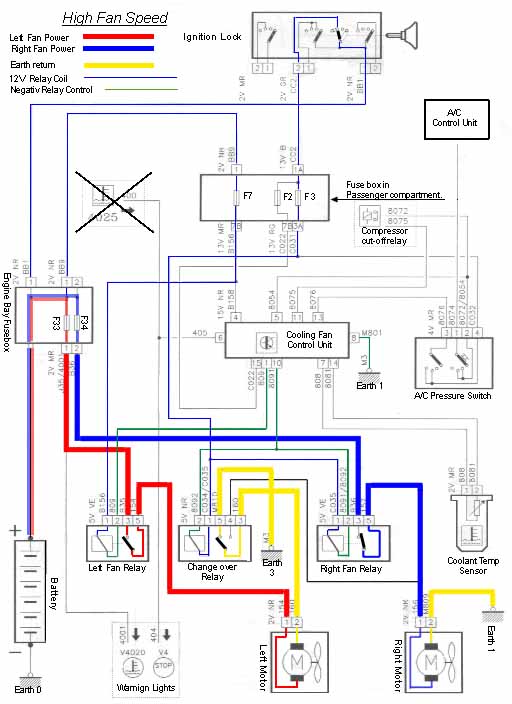

The fans run in parallel and courtesy of Clogzz here is the wiring diagram for the fans

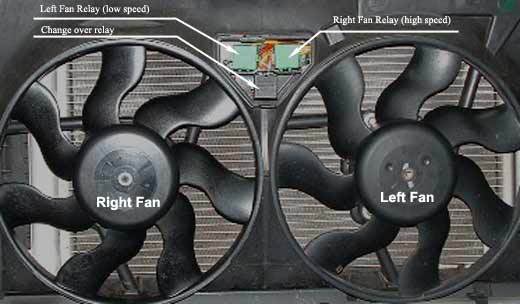

Also a picture to show the relay locations.

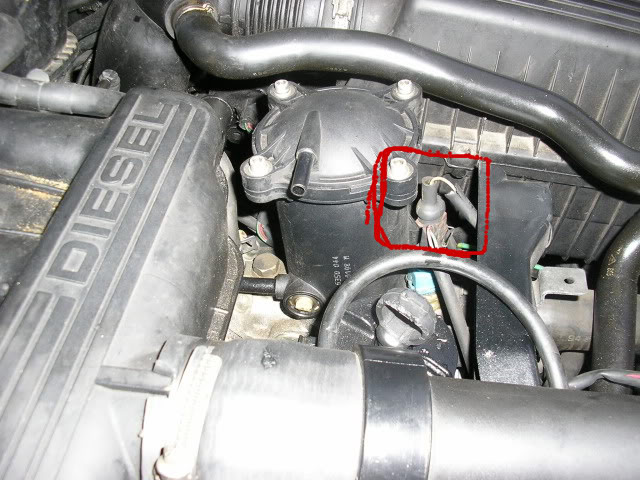

A simple test to determine whether the fans are working correctly is to have the engine running and remove the Brown sensor plug situated on top of the thermostat housing


When this sensor is unplugged both fans should run at slow speed for a few seconds before both go to high speed.
There is again more detail in This Topic

On to the AirCon :)

All the information for the system is sent/received via the Bitron Unit, which in my experience rarely goes wrong although it does tend to come in for some unfair blame.
The A/C system follows a set check list before it will start and i believe that the list is as follows with the engine running.

1. The A/C button is switched on. (On MK2 cars if the direction slider is set to Demist then the A/C will engage without the switch turned on provided that the blower is turned on)
2. The interior blower must be switched on or set to auto.
3. Both cooling fans must run at slow speed.
4. Power is then sent to the HP/LP Switch which is on the side of the Dryer Bottle as seen in the following photo


5. If HP or LP(Low on gas) is detected then the compressor will not receive any power.
6. If all is well then power will be sent to the compressor

If steps 1-3 are ok and the compressor will not start it is possible to check that the HP/LP switch is ok by shorting the contacts in the plug. The plug should have 4 wires going into it, 2 thick, 2 thin. With the engine running and steps 1-3 completed, if the 2 thin wire contacts are shorted after a few seconds both fans should go to full speed. This would happen in normal operating use if the system overheats(HP) as its a saftey feature.
By shorting the 2 thick(er) wire contacts this should engage the compressor. If the compressor does engage only run it for a second or so as running it low on gas(LP) and oil will cause serious damage to it.
It is possible to replace the switch itself, it just unscrews from the Dryer bottle. There should be no danger of any gas escaping as the valve is a Schraeder valve similar to that on a tyre.

Its not a full warts and all description of how both systems work but should be enough to help identify problems and narrow down the causes.
Thanks to those whose pictures/diagrams etc i have "borrowed" with special thanks to Cloggz :D

Colin
Levo
Posts: 2
Joined: 08 Feb 2025, 14:22

Re: Xantia Cooling Fans And AirCon Operation

Unread post by Levo »

I have xantia 2.0lt 16V petrol engine year 1999. I have overheating problem bcoz my cooling fans are not coming on even the engine is hot (90C). however when I remove the brown sensor plug, after a delay both fan goes to high speed. But as mentioned the fans dont go to low speed for a second or two. Would you pls help me how to solve this problem.
User avatar
myglaren
Forum Admin Team
Posts: 27360
Joined: 02 Mar 2008, 13:30
x 5304

Re: Xantia Cooling Fans And AirCon Operation

Unread post by myglaren »

Please don't make multiple posts of the same question, it just causes confusion.
Anyone responding to this pleas post in the alternative thread.
viewtopic.php?t=30803&start=30&p=829676#p829676

This thread locked.
