Xantia AL4 Autobox Wiring Diagrams

Unread post by CitroJim »

Posted by request but thought they may be appreciated by all owners of a Xantia with the AL4 automatic gearbox.

Gosh, it's complex!!!

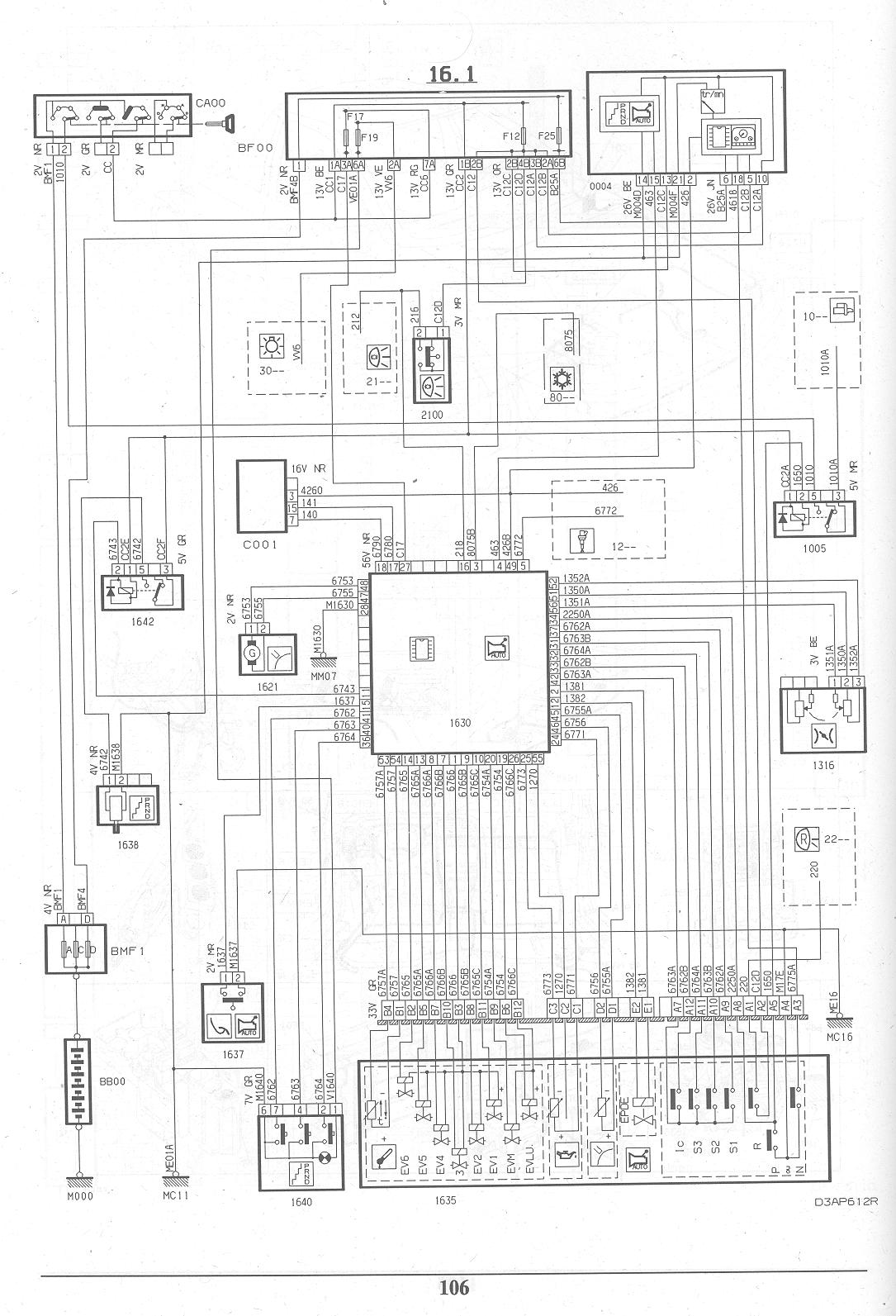

AL4 Circuit

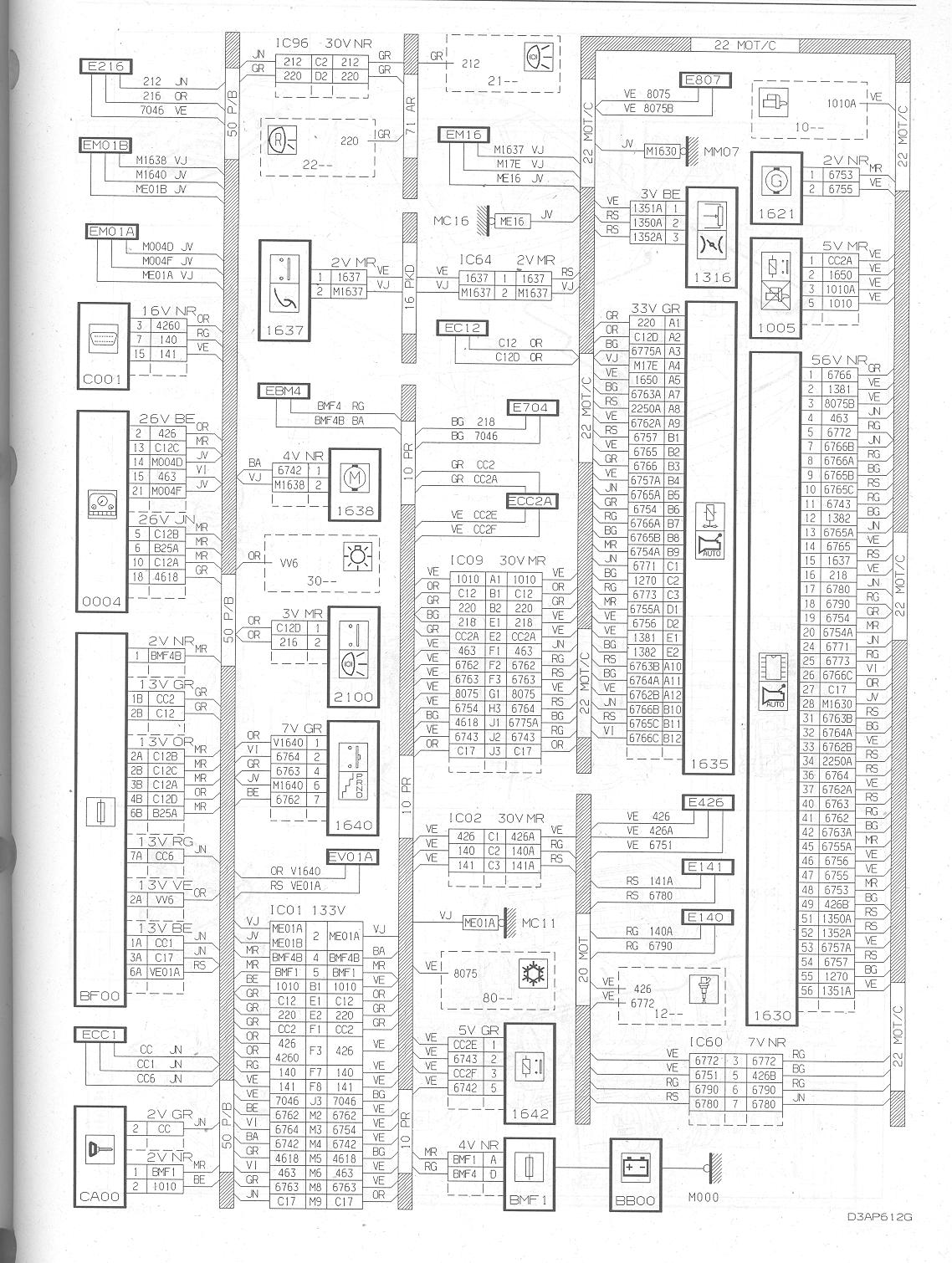

AL4 Harnesses

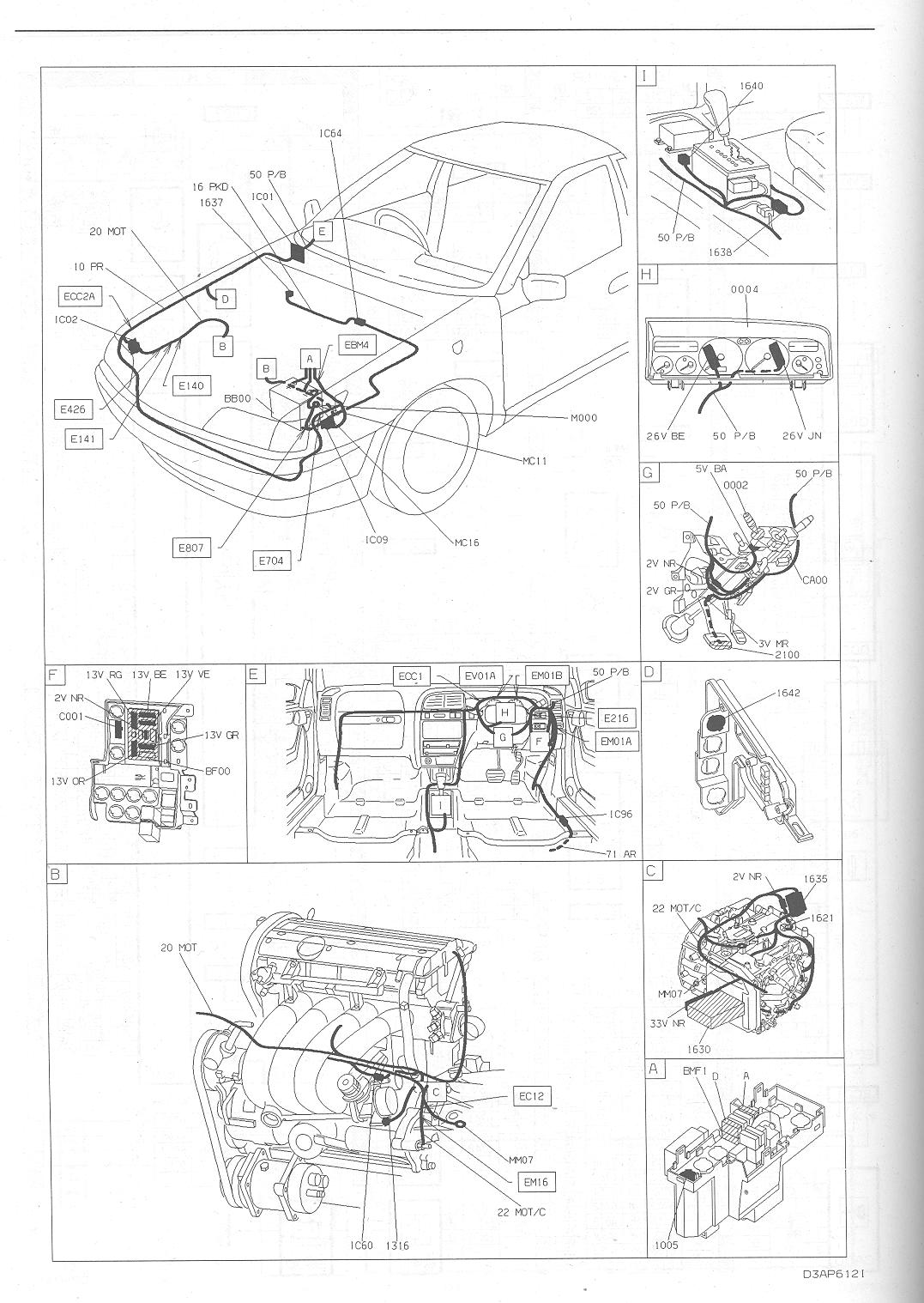

AL4 Component Locations

Sorry for the quality of the first two images. Later Xantia diagrams are printed on what appears to be recycled Andrex :twisted:
Last edited by xantia_v6 on 12 Oct 2024, 19:24, edited 1 time in total.
Reason: fixed links
Jim

Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Top
addo
Sara Watson's Stalker
Posts: 7098
Joined: 19 Aug 2008, 12:38
x 94

Unread post by addo »

Citro-pr0n! :twisted:

Gracias, señor!
Top
mark-nimbus-it-uk
Posts: 13
Joined: 27 Sep 2021, 21:59
x 2

Re: Xantia AL4 Autobox Wiring Diagrams

Unread post by mark-nimbus-it-uk »

Hi Jim,

All the links come back 404 for the AL4 gearbox diagrams ?

I have an AL4 that craps itself when it gets hot.

Mark.
Top
User avatar
xantia_v6
Forum Admin Team
Posts: 9955
Joined: 09 Nov 2005, 22:03
x 1054

Re: Xantia AL4 Autobox Wiring Diagrams

Unread post by xantia_v6 »

mark-nimbus-it-uk wrote: 12 Oct 2024, 19:08 Hi Jim,

All the links come back 404 for the AL4 gearbox diagrams ?

I have an AL4 that craps itself when it gets hot.

Mark.
I have fixed the links, they got broken several years ago when we moved Jim's site to a new server.
