Android Radio for C5 X7

This section is for information and posts relating to Audio Head Units, and Navigation Systems
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
x 29

Re: Android Radio for C5 X7

Unread post by Xantippa »

ExOduS442xb wrote: 16 Mar 2022, 20:01 Hi Marc, thanks for the advice, but I am afraid those guys wont help me much, I will try. I believe I will make it work, it will probably take some time, if I do I will add instructions on how I made it work.

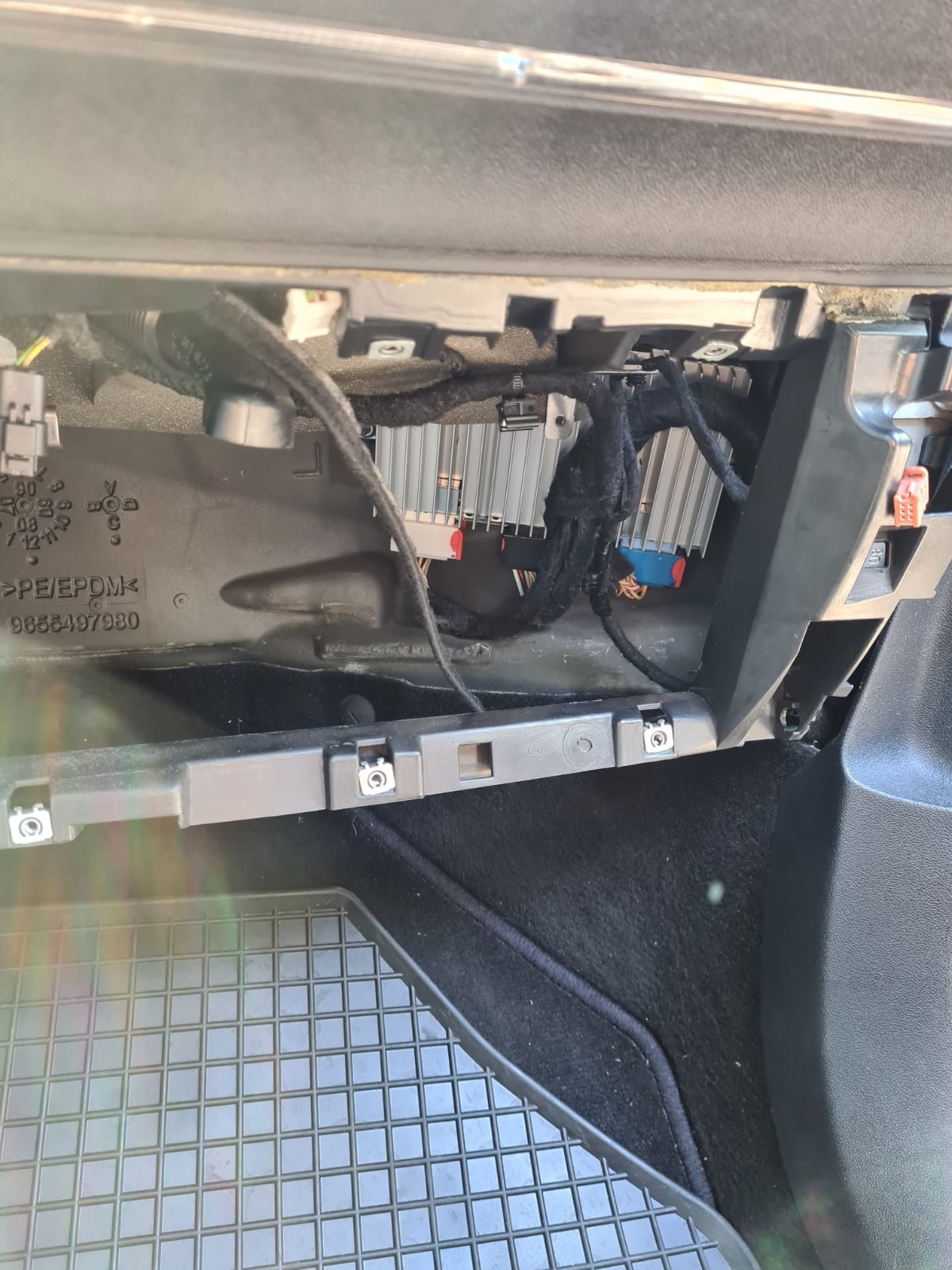

Is it possible to identify via photo which amplifier is this? I hope I attached it correctly. Or maybe via VIN number?

Thanks,
Mladen
It´s nearly impossible to use that standard amplifier with aftermarket HU. Best option is just to bypass it, but you loose subwoofer, and need to add crossover for front speakers. This also requires a little bit of modification for speaker wiring.
User avatar
ExOduS442xb
Posts: 16
Joined: 03 Mar 2020, 17:14

Re: Android Radio for C5 X7

Unread post by ExOduS442xb »

Hi guys, I asked the seller, I will copy the answer, hope you don't mind.
"Dear, put the power cord I marked, put the original car CD back, and use a multimeter to measure whether there is 12V voltage on this line when playing music, and there is no 12V voltage when no music is playing, it proves that this is the line, connect to our power supply The wire is marked ANT blue wire, thank you"

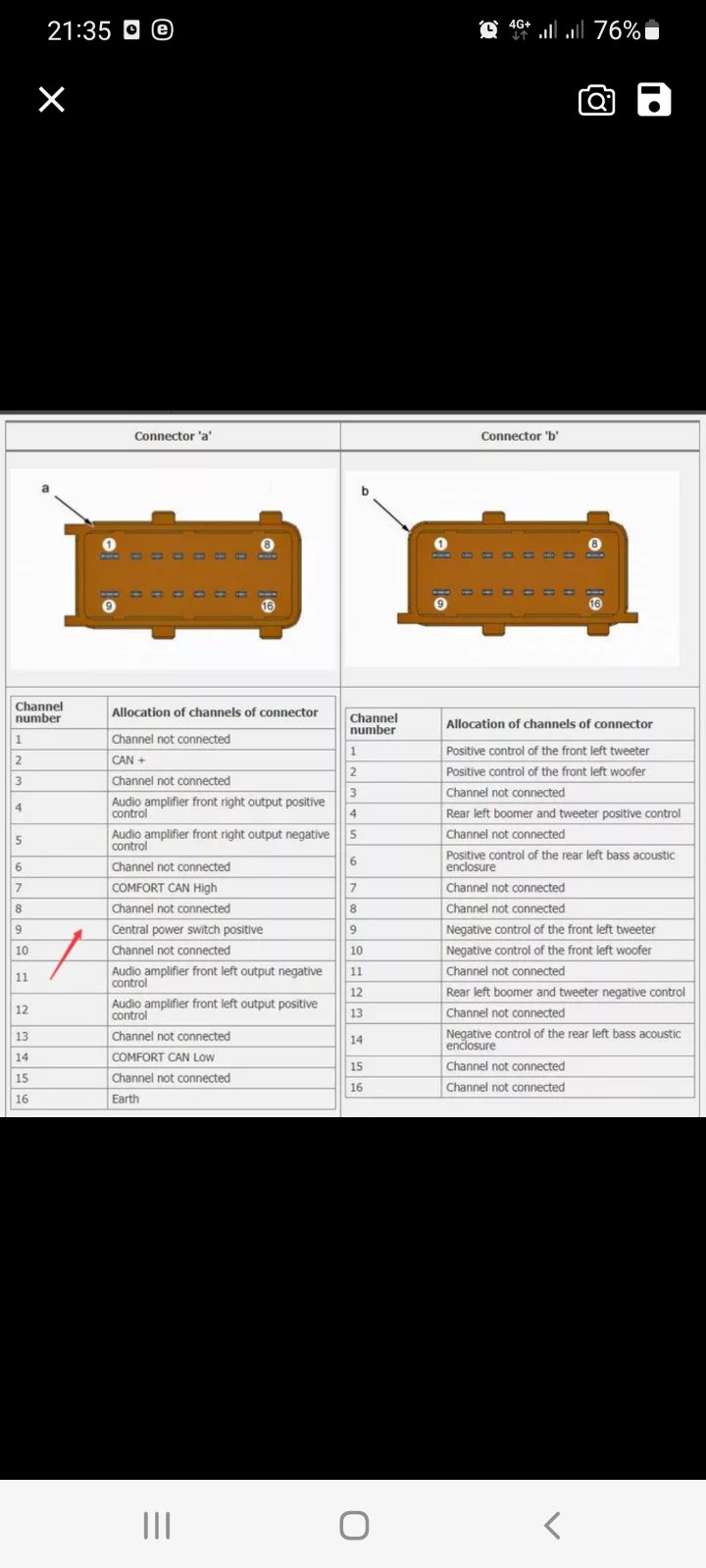

This connector is from RT4 (marked with "a") number 9. We are going to give it a try tomorrow, fingers crossed.

Mladen
Attachments
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
x 29

Re: Android Radio for C5 X7

Unread post by Xantippa »

Android Auto is now working wireless on my Joying without any additional hardware. Headunit Reloaded -software did the trick. Also 10" subwoofer finally installed. Sound setup also made, so ready for holiday trip.
vodnasol
Donor 2023
Posts: 24
Joined: 11 Jan 2022, 09:13
x 1

Re: Android Radio for C5 X7

Unread post by vodnasol »

Hi all ,
Has anyone with a non Joying unit managed to get AC info to show on the screen?
Also any way to adjust the flexible parking lines?
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
x 29

Re: Android Radio for C5 X7

Unread post by Xantippa »

vodnasol wrote: 21 Nov 2022, 09:50 Hi all ,
Has anyone with a non Joying unit managed to get AC info to show on the screen?
Also any way to adjust the flexible parking lines?
Yes AC-info is showing fine.

You can adjust parking lines when reverse is selected and parking lines are showing. Just click display then. Unfortunately on my unit those settings are not saved after reboot.
vodnasol
Donor 2023
Posts: 24
Joined: 11 Jan 2022, 09:13
x 1

Re: Android Radio for C5 X7

Unread post by vodnasol »

Xantippa wrote: 16 Dec 2022, 12:48
vodnasol wrote: 21 Nov 2022, 09:50 Hi all ,
Has anyone with a non Joying unit managed to get AC info to show on the screen?
Also any way to adjust the flexible parking lines?
Yes AC-info is showing fine.

You can adjust parking lines when reverse is selected and parking lines are showing. Just click display then. Unfortunately on my unit those settings are not saved after reboot.
What radio do you have? On my radio there are static and flexible parking lines and you can only adjust the static lines.
Xantippa
Posts: 490
Joined: 05 Feb 2012, 15:51
x 29

Re: Android Radio for C5 X7

Unread post by Xantippa »

407
Donor 2023
Posts: 205
Joined: 20 Apr 2021, 08:55
x 21

Re: Android Radio for C5 X7

Unread post by 407 »

Hi

looking for some help / data on how to get the steering controls working on a Android unit (ESSGOO 10.1 inch) I've fitted to my Citroen Aircross C4 2012.

It all works but for the self learning steering controls on the Android unit which I have not connected the wires yet

My understanding is the Citroen C4 / Mitsubishi ASX do not use canbus for the SWC, just resistors as per the pic (values may not be correct)

There is a Key 1 and Key 2 wire which need to go into the 8 pin connector on the back of the Android Unit, after which the unit can be taught to "learn" the buttons (based on the button resistance being set to the button you select).

I'm loathe to get a canbus decoder if the key 1 and key 2 wires be directly wired to the controls (I did the same on my Nissan Pathfinder as it works fine)
Attachments

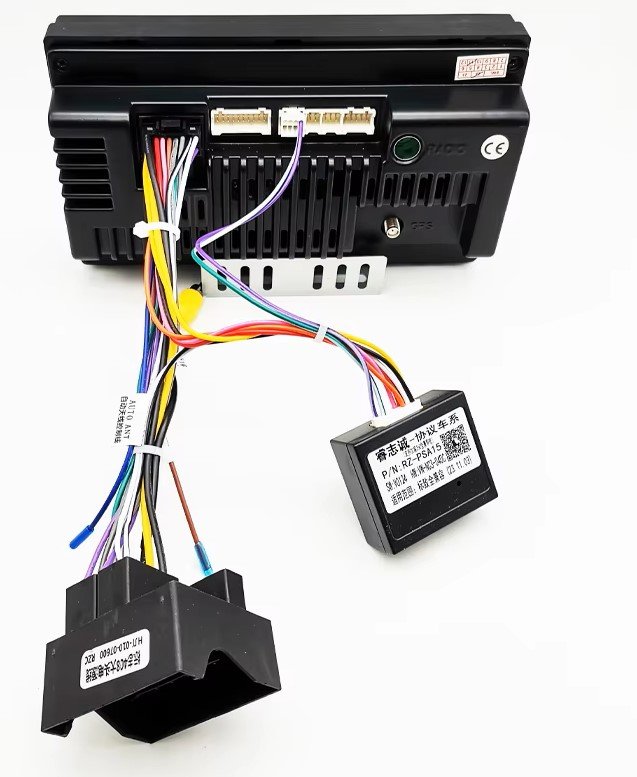

SWC decoder
SWC decoder

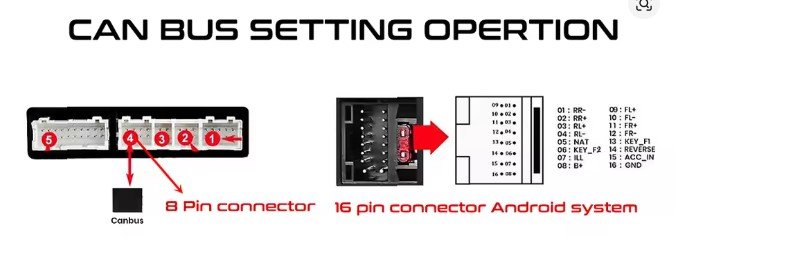

8 pin connector SWC to key 1 and key 2 wires
8 pin connector SWC to key 1 and key 2 wires
SWC resistor values
SWC resistor values

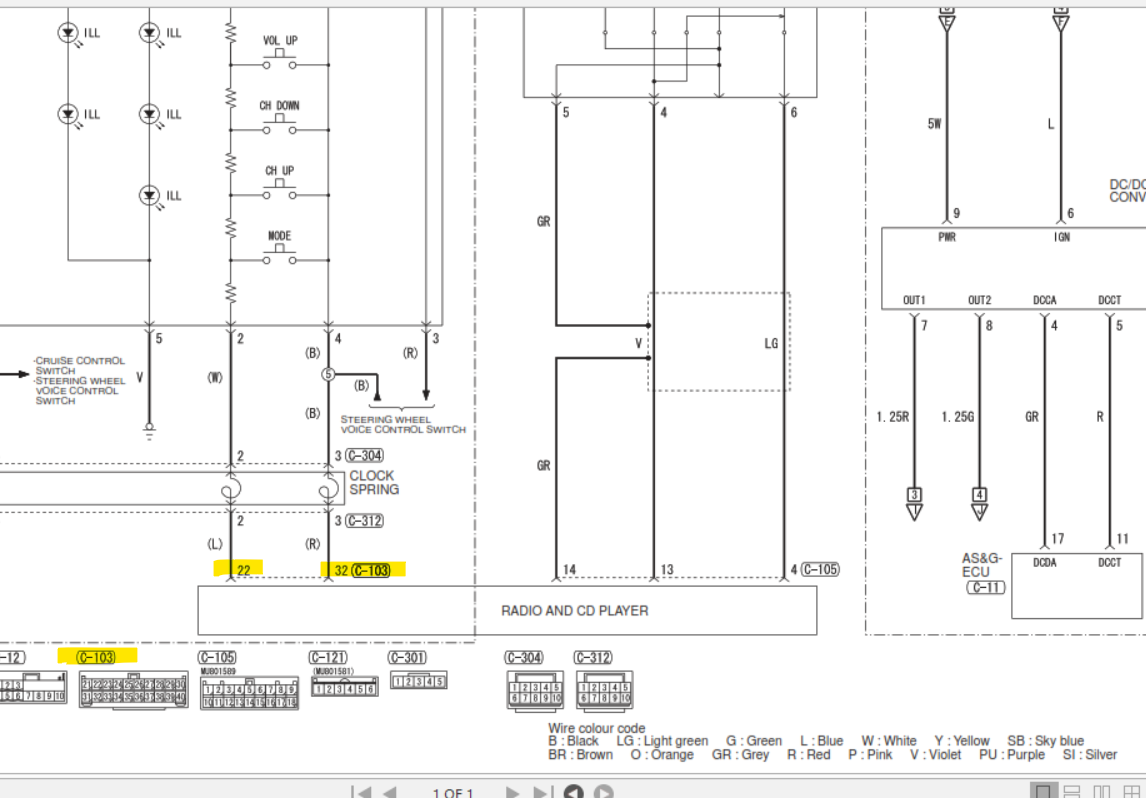

SWC circuit diagram
SWC circuit diagram
ESSGOO Android for Mitsubishi ASX aka Citroen C4 Aircross
ESSGOO Android for Mitsubishi ASX aka Citroen C4 Aircross
407
Donor 2023
Posts: 205
Joined: 20 Apr 2021, 08:55
x 21

Re: Android Radio for C5 X7

Unread post by 407 »

Issue solved

I had two Android ISO connector harness (one for another GPS for a Nissan car) and seems I had used the Nissan one and not the one that came with the Mitsubishi unit, mainly by tracing the harness wiring and working out that Key 1 and Key 1 were already connected in the Mitsubishi harness anyway (pins A6 Steering wheel 1 and A7 steering wheel 2) but where loose in the Nissan one

SWC / Steering wheel controls learning works and selected the keys when pressed (see pics). Interestingly you can assign different functions to the buttons if you want to.
I guess this also confirms that the Mitsubishi ASX / Citroen C4 Aircross is a resistive unit and not CANBUS (so don't need to buy a decoder).

It also meant that I could remove the ISO connector cable I bought and just directly plug the correct Android Mitsubishi harness into the Citroen car harness, which left one harness spare but which does not seem to do anything anyway (and looking at the wiring just seems to be duplicating the first one).

You also should install all the extra cables supplied with the Android unit (eg AV, USB, Rear camera etc) into the rear of the Android unit, as this seems to increase the bluetooth and wifi signal

Hope this helps
Attachments

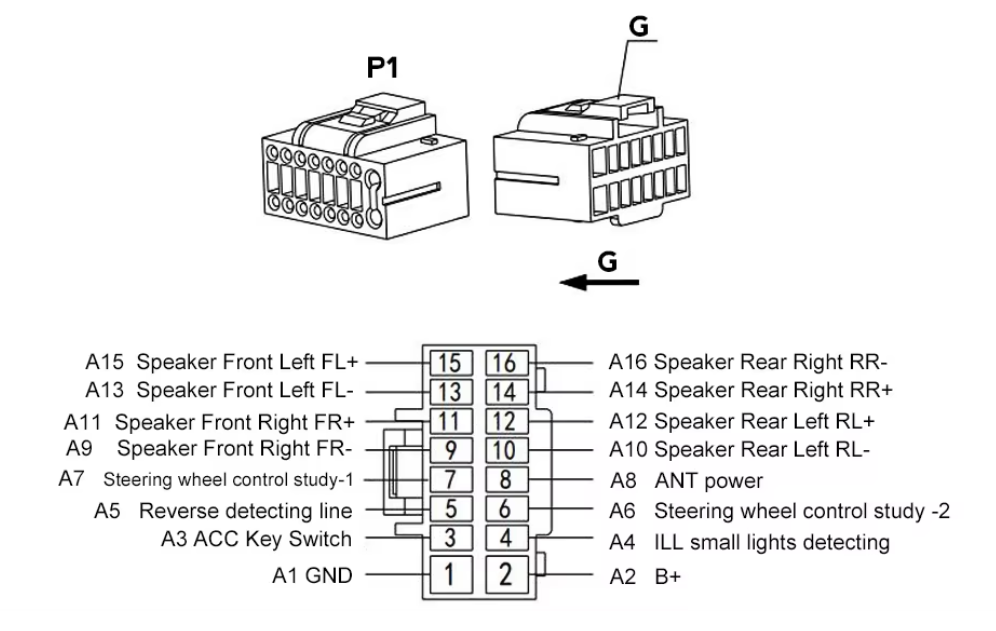

Android ISO connector pinout
Android ISO connector pinout

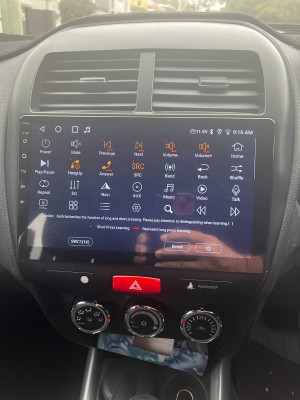

SWC learning
SWC learning

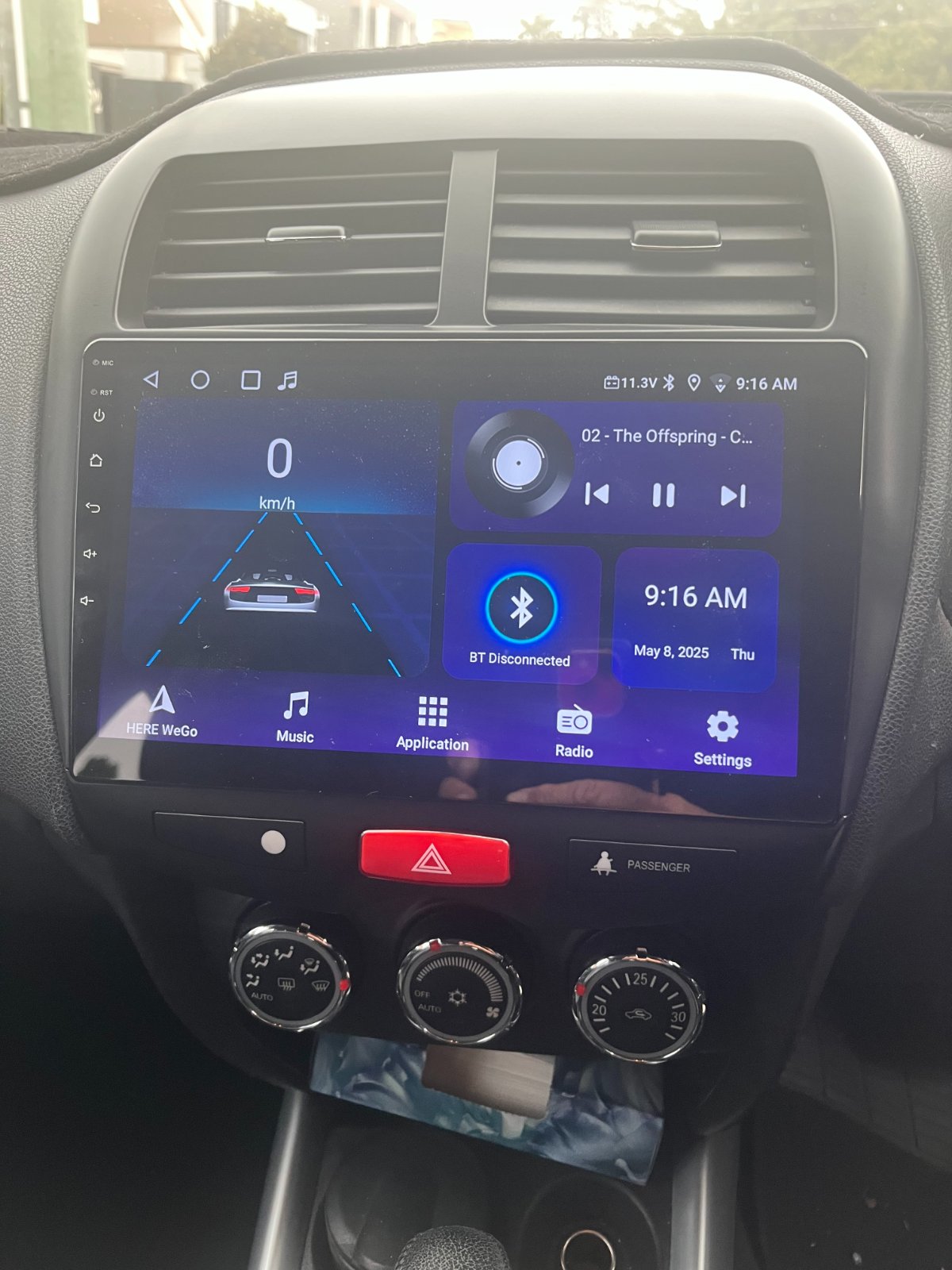

ESSGOO Unit installed
ESSGOO Unit installed
