PSA NAC RCC Updates

This is the Connected NAV system.
Main Features: It is a fully integrated Telematics System featuring CarPlay, Android Auto, Real Time Services, Voice Commands, High-Res Display, 3D Navigation, Bluetooth Hands Free & USB. 2 versions of the system are available NAC (Navigation Audio Connectée) and RCC (Radio Couleur Connectée) or Connected Colour Radio, which does not have the Integrated Navigation or Live Services.
Tetak
Posts: 2
Joined: 23 May 2025, 14:32

Re: PSA NAC RCC Updates

Unread post by Tetak »

GiveMeABreak wrote: 22 Dec 2024, 11:06 I've included both Russia and Europe Maps as I don't know which if any of these you require. Follow the instruction to update the firmware first. I have also included the specific vehicle licence for the firmware for this vehicle - which, although your vehicle has WiFi to authorise the firmware update, some people have had issues with connection to PSA in some countries, so you can use the licence file and extract it according to the folder (and correct naming of the folder) included in the instructions in the link below.

Firmware Version 44.07.33.32_NAC-r0

Tkchroc Licence File

Russia Map V 10

Europe Map V17

Instructions for Updating NAC or RCC Firmware, Maps & Licences
Is it necessary to update firmware to install these maps?
Dexter676
Posts: 7
Joined: 17 Mar 2025, 18:19

Re: PSA NAC RCC Updates

Unread post by Dexter676 »

Tomas1 wrote: 22 May 2025, 23:17
SterkeYerke wrote: 22 May 2025, 20:56 Still I do wonder if it involves removing the clock battery from the system in order to trick it into thinking it's still before november 2024.

Disconnecting the car battery resets the date (year 2007)
The update must be done with the BTA plug and GPS antenna removed from the NAC.

Will it work in Berlingo 2018/2019 and with assistance/sos button?

Can anyone confirm it?
vmguru
Posts: 19
Joined: 13 Jun 2024, 11:45

Re: PSA NAC RCC Updates

Unread post by vmguru »

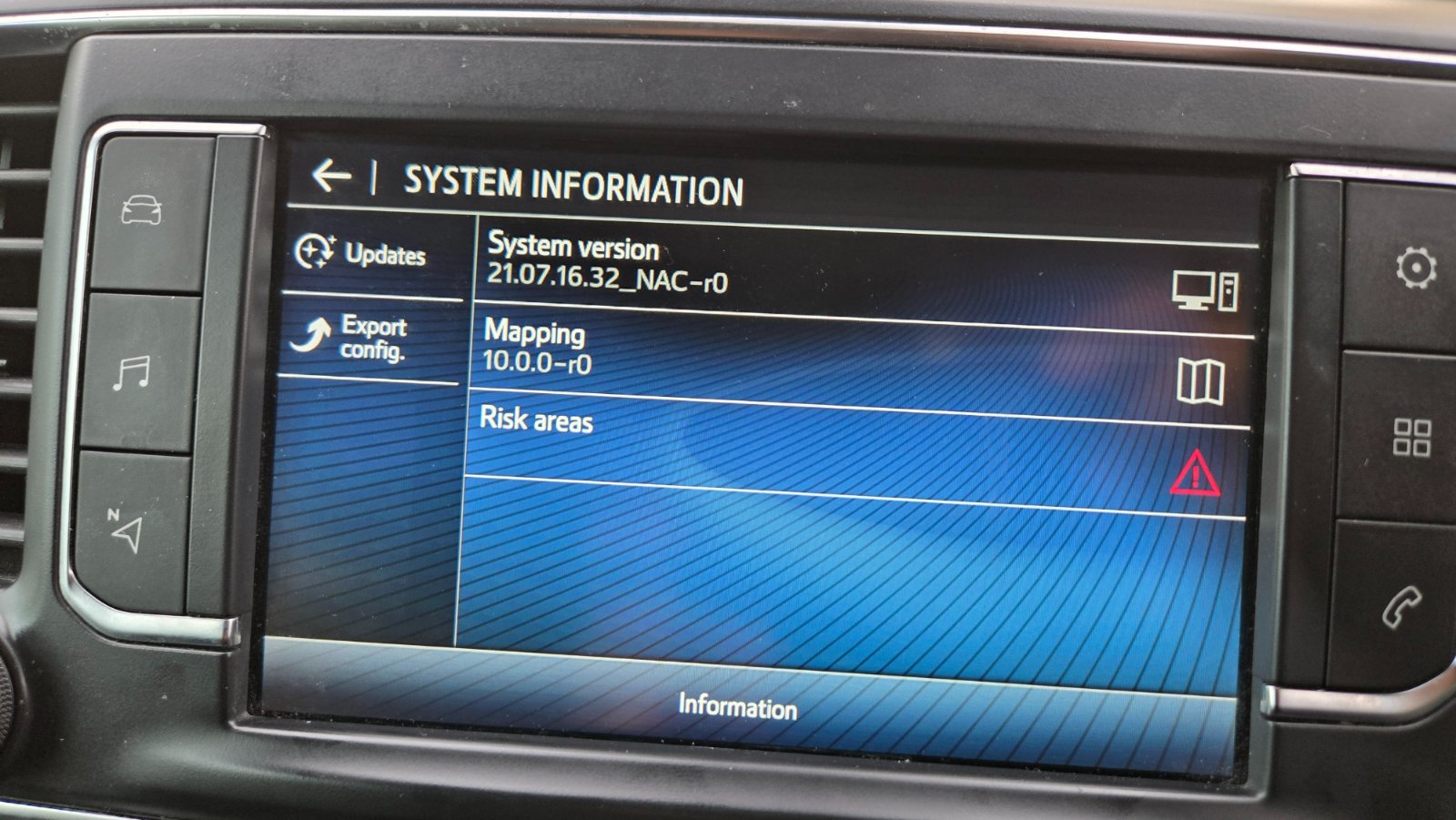

I have a Toyota Proace 2019 model which has this same head unit, currently on system version 21.07.16.32_NAC-r0 can I update this to the latest version Firmware Version 44.07.33.32_NAC-r0 ?
Attachments
User avatar
rui_saraiva
Posts: 27
Joined: 15 Feb 2023, 10:31
x 13

Re: PSA NAC RCC Updates

Unread post by rui_saraiva »

Dexter676 wrote: 24 May 2025, 11:01
Tomas1 wrote: 22 May 2025, 23:17
SterkeYerke wrote: 22 May 2025, 20:56 Still I do wonder if it involves removing the clock battery from the system in order to trick it into thinking it's still before november 2024.

Disconnecting the car battery resets the date (year 2007)
The update must be done with the BTA plug and GPS antenna removed from the NAC.

Will it work in Berlingo 2018/2019 and with assistance/sos button?

Can anyone confirm it?
@Tomas1: It isn't that easy. If you disconnect the BTA (which also has an internal clock), you need a valid license for that date (2007) - that's right, the license, just like the certificates, also has a valid date interval. And if you download one right now (from https://majestic-web.mpsa.com/mjf00-web ... seDownload...), it isn't valid for 2007. Both the license key file and the included signing certificate must be valid on the installation date.
Regards,
Rui Saraiva
All NAC, RCC, AIO & RCE updates: https://sites.google.com/view/nac-rcc
User avatar
rui_saraiva
Posts: 27
Joined: 15 Feb 2023, 10:31
x 13

Re: PSA NAC RCC Updates

Unread post by rui_saraiva »

vmguru wrote: 24 May 2025, 19:43 I have a Toyota Proace 2019 model which has this same head unit, currently on system version 21.07.16.32_NAC-r0 can I update this to the latest version Firmware Version 44.07.33.32_NAC-r0 ?
No, you have a NAC Wave 2 hardware, you can't install a firmware for a NAC Wave 4 hardware revision.
But you can install the 21.08.90.52_NAC-r0 version, the latest for that system.
Regards,
Rui Saraiva
All NAC, RCC, AIO & RCE updates: https://sites.google.com/view/nac-rcc
vmguru
Posts: 19
Joined: 13 Jun 2024, 11:45

Re: PSA NAC RCC Updates

Unread post by vmguru »

rui_saraiva wrote: 24 May 2025, 22:10
vmguru wrote: 24 May 2025, 19:43 I have a Toyota Proace 2019 model which has this same head unit, currently on system version 21.07.16.32_NAC-r0 can I update this to the latest version Firmware Version 44.07.33.32_NAC-r0 ?
No, you have a NAC Wave 2 hardware, you can't install a firmware for a NAC Wave 4 hardware revision.
But you can install the 21.08.90.52_NAC-r0 version, the latest for that system.
Thanks, I am trying to update this now with Waves 2 version 21.08.90.52_NAC-r0. I have created a license file from the Toyota website. These units are exactly the same as the Peugeot Citroen units.

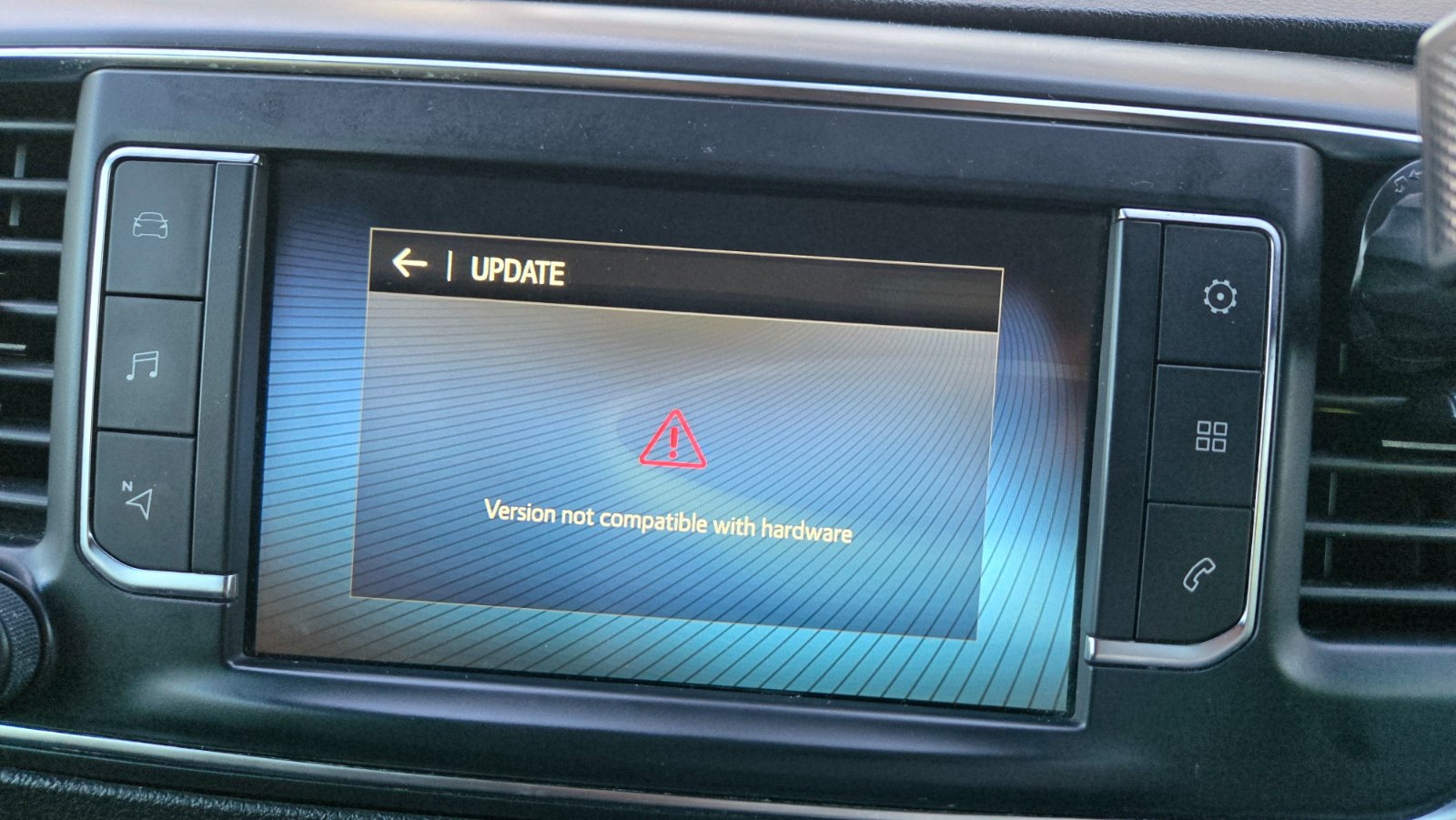

I am getting "Version not compatible with hardware" error message at the not sure what is causing this as I have the correct firmware and licence file on the USB memory stick.
Attachments
vmguru
Posts: 19
Joined: 13 Jun 2024, 11:45

Re: PSA NAC RCC Updates

Unread post by vmguru »

I have copied the following folders to the USB memory stick

license
SWL
Updateinfo.XML - is this needed??
risto bojchevski
Posts: 1
Joined: 06 Apr 2025, 22:21

Re: PSA NAC RCC Updates

Unread post by risto bojchevski »

Hi all,
I have a 2019 C4 Cactus with version 31.09.46.62_NAC-r0.
I would like to update to the latest system and map. I am from Skopje in North Macedonia.
Could you help me with this issue? Thanks in advance.
My VIN is VF7**************[VIN obfuscated, can be read by forum staff].
izzy99
Posts: 1
Joined: 25 May 2025, 18:43

Re: PSA NAC RCC Updates

Unread post by izzy99 »

Hi all,

I also have the "version incompatible with hardware". The Citroen update program says "PSA_ovip-int-firmware-version_42-03-33-42_NAC-r0_NAC_EUR_WAVE3" is the most recent update I need. My car has now version 30-05-50-42_NAC-r0_NAC_EUR_WAVE3. My VIN is VF7**************[VIN obfuscated, can be read by forum staff]. Please has anyone a suggestion?

Best regards,
User avatar
rui_saraiva
Posts: 27
Joined: 15 Feb 2023, 10:31
x 13

Re: PSA NAC RCC Updates

Unread post by rui_saraiva »

vmguru wrote: 25 May 2025, 10:38 I have copied the following folders to the USB memory stick

license
SWL
Updateinfo.XML - is this needed??
You only need the license key file in the USB flash drive if you cannot connect your car to the internet. And you can connect the car to the internet using:
- With the internal BTA (Boîtier Télématique Autonome) / ATB (Autonomous Telematics Box) unit, if your car has it. On the PSA/Stellantis group vehicles, if it has the eCall system (SOS and Assistance buttons), it does have that device. On Toyota, I'm not sure;
- Connect your car to a WiFi AP (Access Point);
- Tether your phone (share mobile data through Bluetooth).

With any of those connections, the firmware installation procedure will automatically verify the license. If you can't connect the car to the internet, you'll need the license key file, which is specific to your car (uin serial number, a 20-digit hex number) and to the firmware version (MediaVersion/UpdateID, an 18-digit number) that you're trying to install. For the 21.08.90.52_NAC-r0 version, the UpdateID is 001315031666020829, so the license you download must have the "license_xxxxxxxxxxxxxxxxxxxx_001315031666020829.key" filename.
Regards,
Rui Saraiva
All NAC, RCC, AIO & RCE updates: https://sites.google.com/view/nac-rcc
User avatar
rui_saraiva
Posts: 27
Joined: 15 Feb 2023, 10:31
x 13

Re: PSA NAC RCC Updates

Unread post by rui_saraiva »

risto bojchevski wrote: 25 May 2025, 15:24 Hi all,
I have a 2019 C4 Cactus with version 31.09.46.62_NAC-r0.
I would like to update to the latest system and map. I am from Skopje in North Macedonia.
Could you help me with this issue? Thanks in advance.
My VIN is VF7**************[VIN obfuscated, can be read by forum staff]**************[VIN obfuscated, can be read by forum staff].
izzy99 wrote: 25 May 2025, 18:53 Hi all,

I also have the "version incompatible with hardware". The Citroen update program says "PSA_ovip-int-firmware-version_42-03-33-42_NAC-r0_NAC_EUR_WAVE3" is the most recent update I need. My car has now version 30-05-50-42_NAC-r0_NAC_EUR_WAVE3. My VIN is VF7**************[VIN obfuscated, can be read by forum staff]**************[VIN obfuscated, can be read by forum staff]. Please has anyone a suggestion?

Best regards,
Both of you have a NAC Wave 3 infotainment system (firmware version 3x.xx.xx.xx), which is impossible to update at this moment (and in the last 6 months or so). This is not related to the license, but to the signing certificates (included in the firmware) that are expired/too old. Only PSA/Stellantis could fix this by issuing new certificates, signing their update with them (the private key), and releasing a new .tar file.
Regards,
Rui Saraiva
All NAC, RCC, AIO & RCE updates: https://sites.google.com/view/nac-rcc
sagor
Posts: 4
Joined: 29 May 2025, 20:00

Re: PSA NAC RCC Updates

Unread post by sagor »

Hi, is it possible to get a licence and firmware file for my citroen c3 2017 please? I only recently got it, but there is a problem when the phone is connected by cable it keeps disconnecting so the nav functiondoesn'twork properly. I was advised it will need a software update.

My VIN is: VF7**************[VIN obfuscated, can be read by forum staff]

System version: 072D
HMI version: 21.615.53.11.0
iMX version: x0101168_170308_16.1B104
V850 version: W2.1_16.1S704.3

Thanks
User avatar
rui_saraiva
Posts: 27
Joined: 15 Feb 2023, 10:31
x 13

Re: PSA NAC RCC Updates

Unread post by rui_saraiva »

@sagor: Did you try the official "Citroën Update" software?
For macOS: https://d1tik0o5ahgjm.cloudfront.net/ci ... Update.dmg
For Windows: https://d1tik0o5ahgjm.cloudfront.net/ci ... 0.1.24.exe

This should download the firmware and respective license for your RCC Wave 2 system and prepare the USB flash drive.

Edited:
But you won't be able to install it. The latest firmware version for the RCC Wave 2, 1_076_16.1B116.4, is already 6 years old and has expired signing certificates:

Code: Select all

> openssl smime -in rcc_update\Bosch.cms -pk7out | openssl pkcs7 -print_certs -text | head
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 7 (0x7)
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: C=FR, L=Paris, O=PSA Peugeot Citroen, OU=Certificate Authorities, OU=(c) PSA Peugeot Citroen - For authorized use only, OU=0002 319187308, CN=PSA - OVIP - Code signing - G1
        Validity
            Not Before: Apr  4 13:02:52 2019 GMT
            Not After : Apr  4 13:02:52 2022 GMT
Just like the NAC Wave 1 and Wave 3 systems, you'll need to wait for PSA/Stellantis to (unlikely) release a new firmware with valid certificates.
Last edited by rui_saraiva on 29 May 2025, 20:50, edited 1 time in total.
Regards,
Rui Saraiva
All NAC, RCC, AIO & RCE updates: https://sites.google.com/view/nac-rcc
sagor
Posts: 4
Joined: 29 May 2025, 20:00

Re: PSA NAC RCC Updates

Unread post by sagor »

Thank you for the quick response Rui.
sagor
Posts: 4
Joined: 29 May 2025, 20:00

Re: PSA NAC RCC Updates

Unread post by sagor »

I haven't tried anything via the official channels as I'm out of warranty so didn't think it would work, but will try the windows version, thanks.
