Trying to find oil leakage XUD9

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: Trying to find oil leakage XUD9

Post by CPtje »

Hi guys, is there a way to check the crankcase breather valve.
I took it off and could easily blow through it from both sides. Is this normally the way it should be?

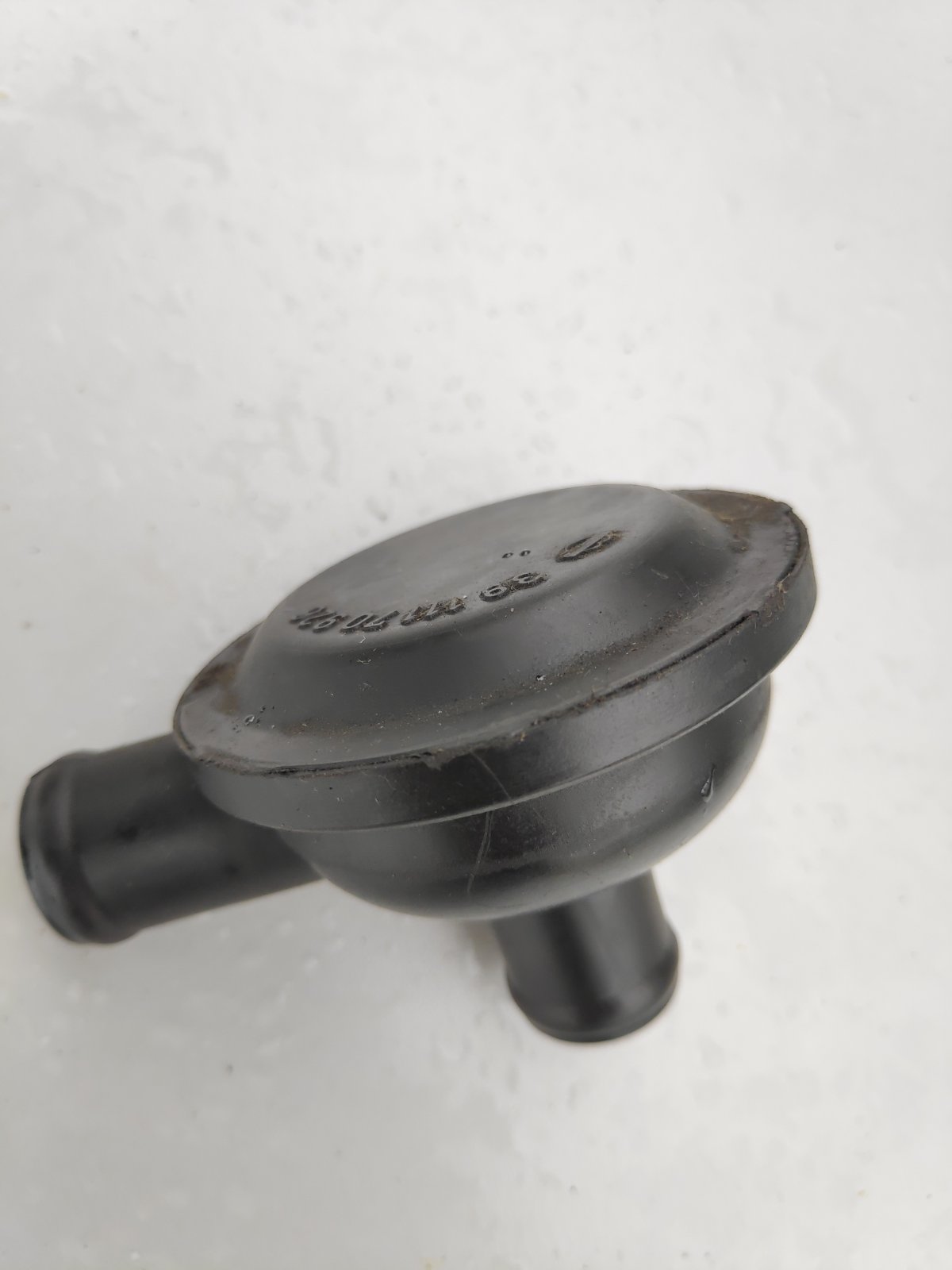

Just to be sure, guess it's this part.
crankcase breather valve
crankcase breather valve
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

I have a similar one on XM, which removes crankcase (oily) fumes from the rocker cover, and vents to intake duct (low suction). Have had ours leak oil, because of a poor O-ring seal where it slots into the intake duct, and a slightly sloppy fit.

Never investigated the inner workings, although a good few petrol ones explained on the web, where the flow through (usually rocker cover to high-vacuum inlet manifold) is variably metered according to engine revs. The diesel versions may be a whole lot simpler, and maybe even just a one-way valve (spring+diaphragm).

Someone here will surely know!
Chris
User avatar
moizeau
(Donor 2022)
Posts: 1579
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 314

Re: Trying to find oil leakage XUD9

Post by moizeau »

Mine on the BX blew both ways with a gauze filter in the middle
Pete
Notice the BX is still top the list but sadly gone
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

What went wrong? Did I overtighten?

Post by CPtje »

I had some leakage at the left side of the seal after 100km, so I tightened the left bolt. Everything looked good for about another 100km. Then things went terribly wrong and the cover seal was torn to pieces during my trip back home.
Did I overtighten the rocker cover?
Hopefully nothing more is broken as I drove about a km slowly while the oil lamp went on and off, before being able to park and refill oil. Then slowly home.

Will need to clean a lot.
Going to try to replace the seal again ASAP. How tight should be tight enough? Other advise?
Feeling embarrassed!
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

Bad luck. You'll need to replace that seal again, preferably with another new one.
You might be lucky and be able to clean it up though, and de-oil it.

Get hold of a tube of Hylomar Blue (it's on Amazon).
Clean all the surfaces with solvent (alcohol, petrol...) and apply the Blue thinly to all surfaces (small brush).
Allow to dry off (15-30mins).
You can then position the seal, and it will stay where you put it. Blue works like a post-it note: it stays put, but is separable and repositionable. Can be separated later, if needed.
Tighten down evenly, but don't overdo it.
Chris
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: Trying to find oil leakage XUD9

Post by CPtje »

Hi Chris,
I used Loctite si 5926 silicone blue. Is that also okay to use?
I only put a thin line on the head.
Then I positioned the seal on the cover without the Loctite.
Then I carefully placed the cover on the line of Loctite and tightened the 3 bolts.
I really did not have the idea that it was too tight but it looks like the cover cut completely through the seal. I know for sure when I remove it.
Really, I'm not that strong so I'm confused that this might be too tight.

Q's:
Is it okay to use the Loctite?
Should I put the silicon on both sides of the seal?
Should it be a thin line or just a very thin film (like putting it on with a finger)?
How do I know that the bolts are tight enough to not leak and not to tight to destroy the seal?
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

The tightening torque for the valve cover is stated in Haynes as 2Nm (1.5 lb.ft), so quite a low figure.
This is to avoid distortion and gasket 'squelch'.

I don't know that Loctite sealant, but it's a silicone one, with a 24hr curing time.
That suggests it remains fluid - and slippery - for a good while, which isn't helpful if there's a risk of the gasket slipping out from between the two surfaces.
The Loctite fluid is also recommended for metal-to-metal work (like cast some cast engine sumps), where gasket slip isn't a consideration.
Silicone products are also not usually good at staying adhered to hot/oily surfaces.

The advantage of the Hylomar Blue (and there may be other similar products) is that it goes from thick liquid to a tacky Post-It like surface quite quickly (eg 10-15 mins), and the grip available is useful in preventing flexible gaskets from 'slipping away'.
Chris
GoceKU
Posts: 25
Joined: 06 May 2020, 13:47
Location: Kumanovo, Macedonia
My Cars: Peugeot 607 2,7 HDI 150Kw
Peugeot 405 SR
Peugeot 405 GLD
Peugeot 405 Mi16x4
Peugeot 405 RWD
Peugeot 605 SRdt
Peugeot 605 V6 3.0 auto
Peugeot 605 2.1td
Peugeot 605 Sri
Peugeot 206 1.4i
Renault R19
Ranault Megane Coupe
Renault clio
Lada Niva 1600
Fiat 600
x 2

Re: Trying to find oil leakage XUD9

Post by GoceKU »

I've seen this before, it's caused by pressure build up in the crankcase, nothing scary, cheap or damp air filters cause it.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

Not sure about that. If the breather valve (in your photo) were stuck closed, it could allow pressure to build up in the crankcase, but a wet or blocky air filter would actually increase intake suction, and assist with crankcase fumes removal.
Chris
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: Trying to find oil leakage XUD9

Post by CPtje »

New seal placed. Let's hope this will hold for a while. Going to inspect during the upcoming weeks if there are other places that leak.
For now I checked the breather valve which was open to both sides. So no pressure build-up there.
Also took out the dip-stick with running engine and got a nice pumping air pressure there. Without the oil filler cap there was not much pressure with a warm idling engine so I guess there is no real pressure build up although I am not sure this is a good way of testing (I read somewhere of oil spraying out when pressure is too high?).

Just to get your opinion. Currently I am using GTX 10W40 oil, but probably a thinner engine oil (maybe too thin) was used for some time in this engine. If oil usage of the engine is too high would trying a thicker oil like 20W50 be advisable?
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

On the breather valves, I wonder whether there is more than one type of these - some with a simple wire mesh (catcher, drip-back), and others with some kind of one-way or pressure diaphragm ?

The pressure you're seeing at dipstick and filler openings sounds pretty much normal. Some oil throw-out when a rocker/cam-cover filler cap is removed is not unusual on many engines, as there is a fair bit of thrash going on there.

In my experience, the XUD will run more than happily on 20W/50 (in temperate climates). Our BX19RD went to 177k miles on it, with virtually no discernable engine wear, and minute oil usage. Not everyone's choice, though.
Chris
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: Trying to find oil leakage XUD9

Post by CPtje »

Hi guys,
I'm currently checking the rockercover seal while traveling a few hundred km. Let's hope it will hold this time.

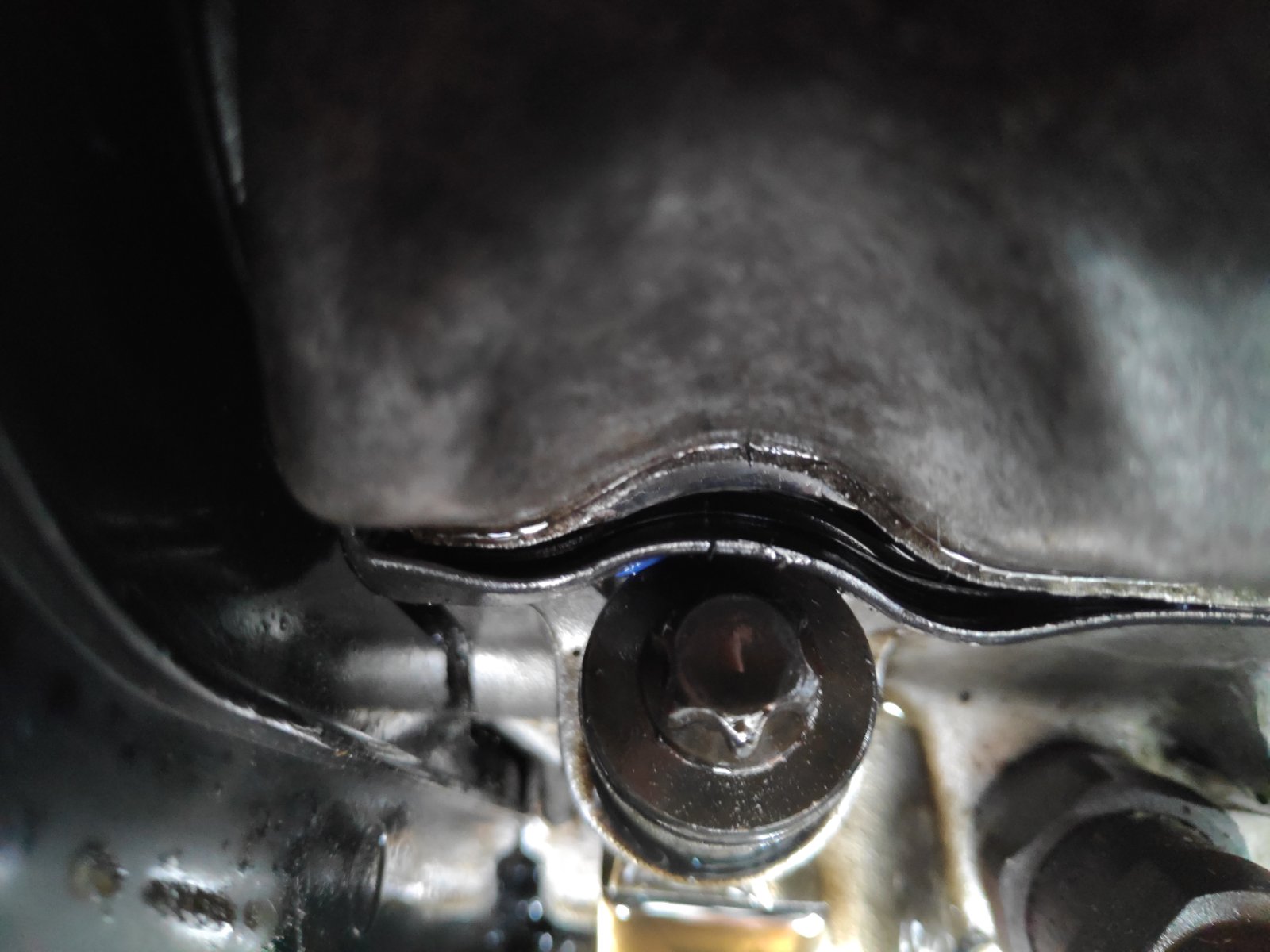

One more place where some oil is dripping is here at this bolt. Should I remove this and use some liquid seal? Or what else to do about this?
Attachments
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

Is that bolt the corner cylinder head bolt?
Just wondering (from memory, so maybe dodgy) whether it is in close proximity to the O-ring contained in the head gasket, which routes oil under pressure from block to camshaft/tappets. Could be that the O-ring is allowing a small oil leak to reach the bolt, and work its way upward.
Just guessing here. Someone who knows the layout better might say different.
Chris
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: Trying to find oil leakage XUD9

Post by CPtje »

Yes, it is one of the corner cylinder head bolts. Is there something I can do to prevent/minimise the oil leakage? Or just leave it this way?
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Trying to find oil leakage XUD9

Post by white exec »

With engine cold, would suggest you remove that one bolt, and take a look down into the bolt hole.
If it contains oil, then that would point towards what I suggested above.
Then clean out the hole, so it's free of oil, clean up the bolt, and replace and torque down to the recommended figure/angle.
Run the engine some more, and see whether the oil re-appears.

If it does, you could try sealing it off under the bolt head*, which may/may not be successful.
Alternative is to remove the cylinder head, replace the HG, and have the head checked for flatness.

* A bodge, but would suggest some polyurethane (not silicone) sealant, to fill the gap under the bolt head, and a little way down its length. Clean all surfaces with solvent before applying.
Chris
