Re: DPs Fault 1 hour before MoT.....
Thanks, I was under the impression both were the same......good catch ...thanks.
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: DPs Fault 1 hour before MoT.....
I think I am being thick....I cannot find the valve (found the EGR one)
Marc , do you have the step by step ?
Marc , do you have the step by step ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: DPs Fault 1 hour before MoT.....

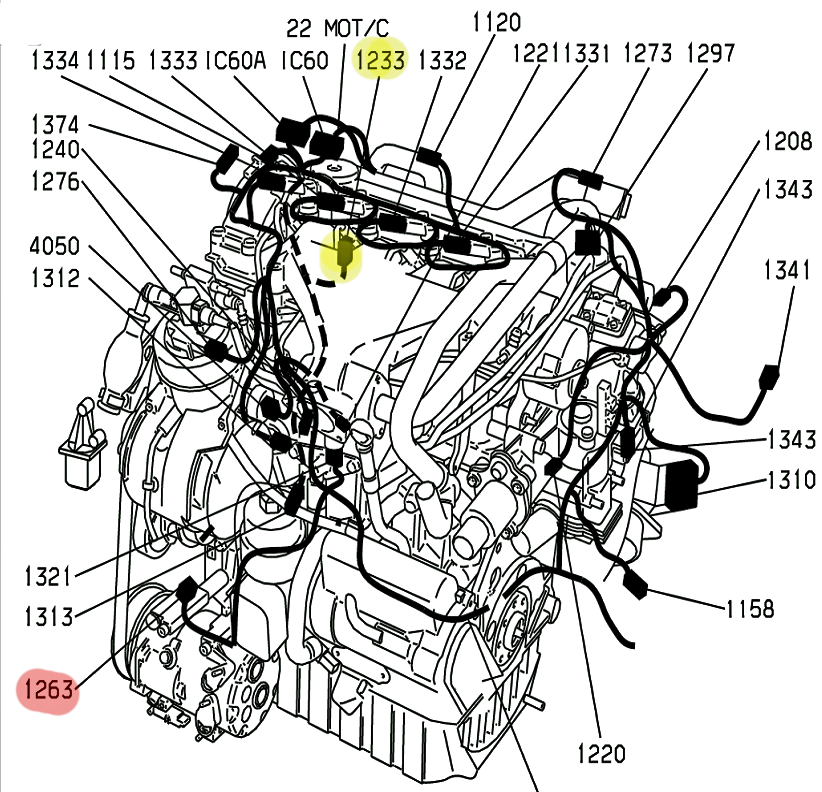

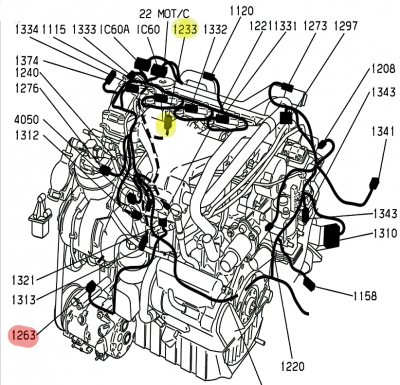

This might give you some idea of location:
1233 is the Turbo Solenoid electrical connection, which I've marked in yellow and for comparison the EGR solenoid is marked in red.
Here's a video of a 407 which would seem to agree with the location Alasdair:
1233 is the Turbo Solenoid electrical connection, which I've marked in yellow and for comparison the EGR solenoid is marked in red.
Here's a video of a 407 which would seem to agree with the location Alasdair:
Please Don't PM Me For Technical Help
Marc
Marc
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: DPs Fault 1 hour before MoT.....
Ahh cheers...was looking behind/on the right for some reason.

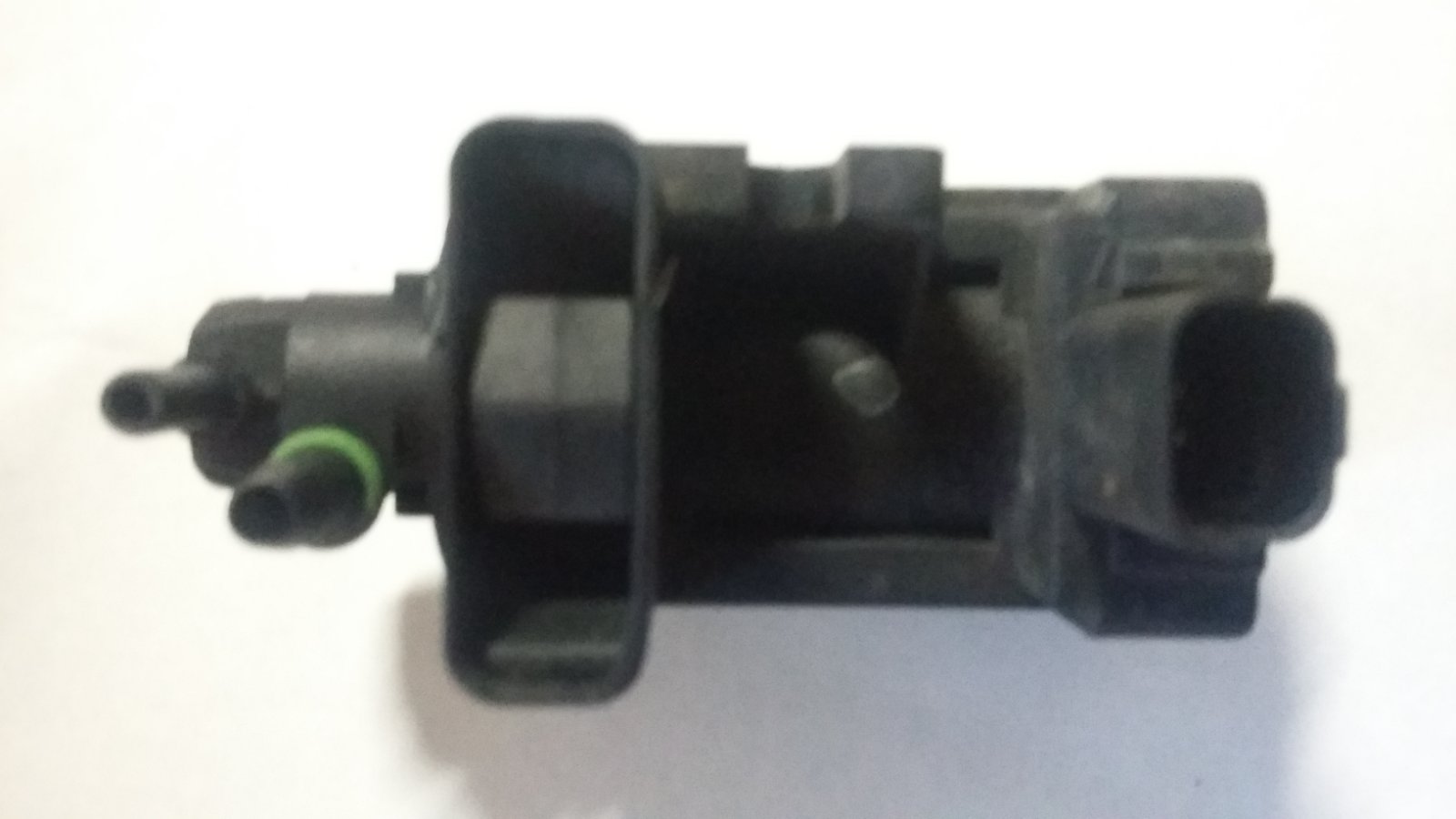

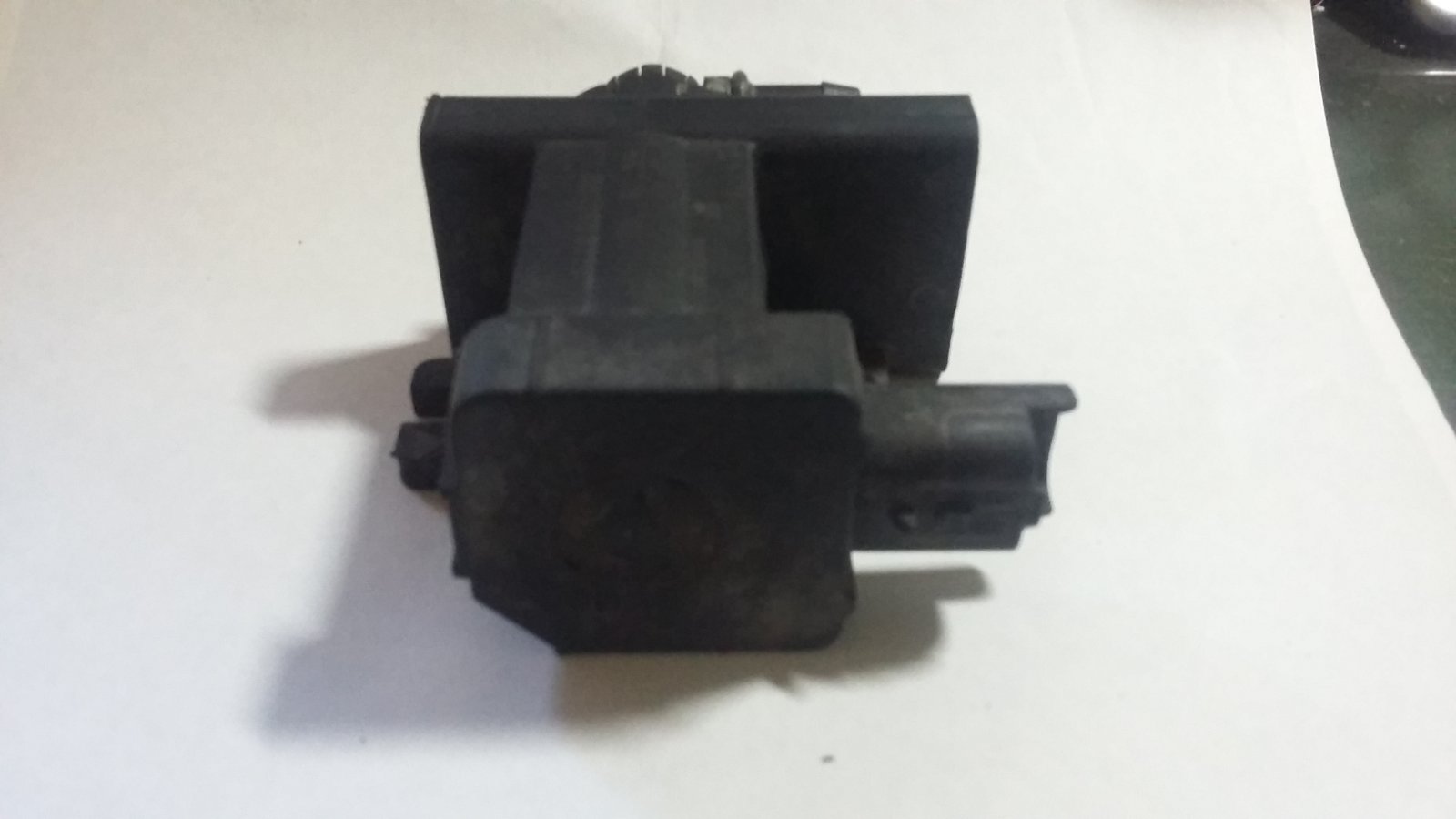

This is what I have....no filter.. CODE: 9660693180
This is what I have....no filter.. CODE: 9660693180
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: DPs Fault 1 hour before MoT.....

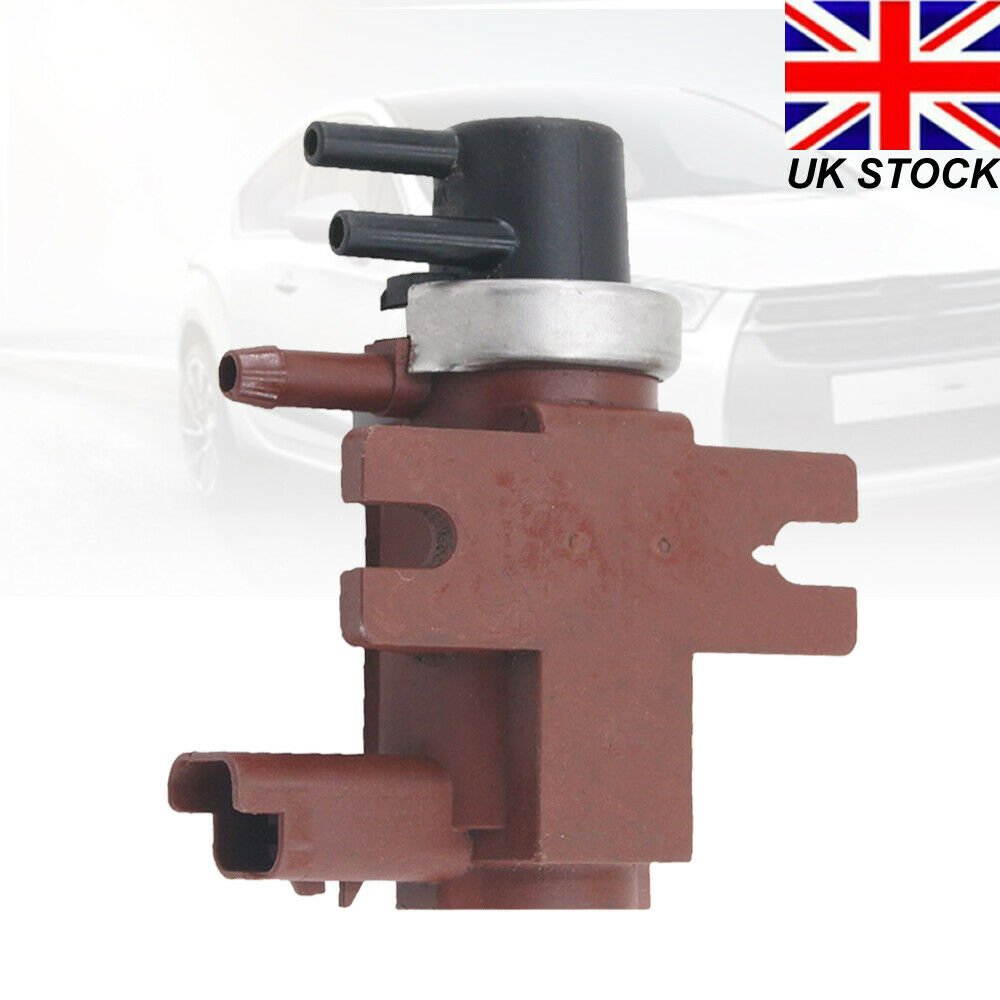

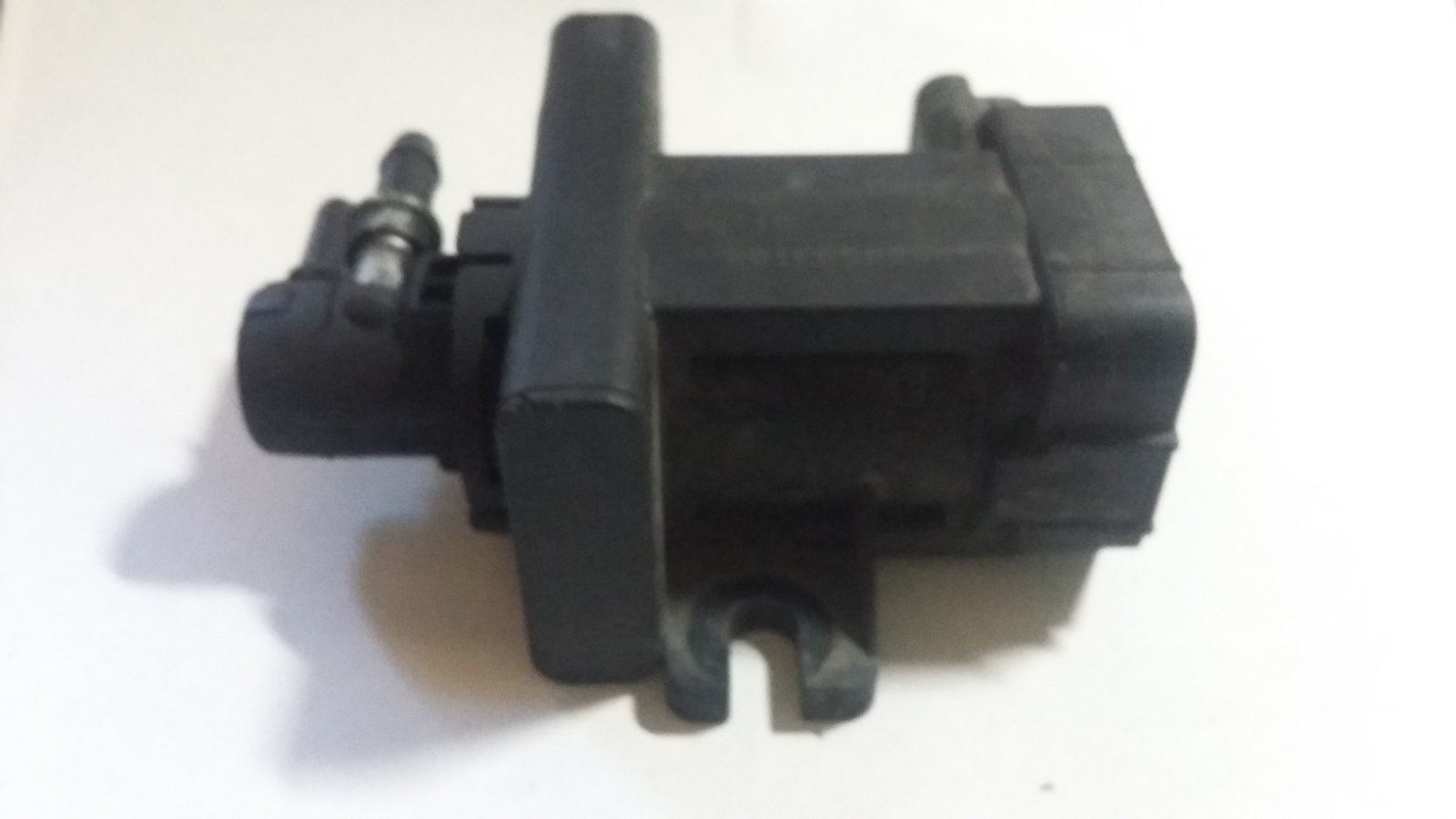

And (ordered before I took off the above) I am expecting delivery of this valve which showed it was compatible with 9660693180
RATS ...looks like the wrong one ....
(I can add a filter to the third pipe if that is what it is and it gets me out of the hole.)
RATS ...looks like the wrong one ....
(I can add a filter to the third pipe if that is what it is and it gets me out of the hole.)
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: DPs Fault 1 hour before MoT.....
I'd send it back and get the right one - as the internals / electrical may be different....
Please Don't PM Me For Technical Help
Marc
Marc
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: DPs Fault 1 hour before MoT.....
Other than a simple in/out solenoid what other electrics could be in there ?
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- xantia_v6
- Forum Admin Team
- Posts: 9053
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: DPs Fault 1 hour before MoT.....
It is a linear regulator, the controlled vacuum varies with the current applied, so they are (to some extent) calibrated, although in practice many of them only differ in the electrical and vacuum connections.
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: DPs Fault 1 hour before MoT.....
Okay i am totally confused here

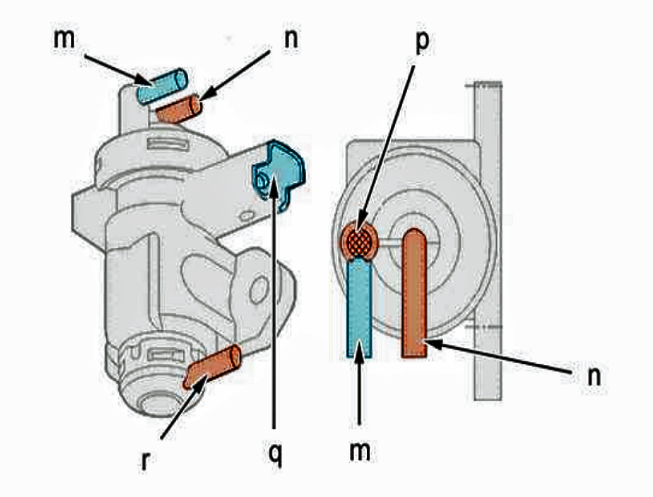

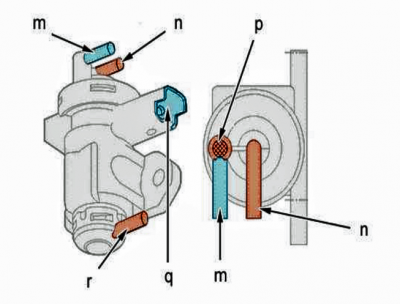

The original part number and diagrams for location and replacement are for the EGR valve, hence the external filter ?
The correct part number for the turbo solenoid valve should have an internal filter, a small foam disk that can be removed,cleaned and replaced?
Can a fault with both parts flag up the overboost/underboost faults logged ?
The original part number and diagrams for location and replacement are for the EGR valve, hence the external filter ?
The correct part number for the turbo solenoid valve should have an internal filter, a small foam disk that can be removed,cleaned and replaced?
Can a fault with both parts flag up the overboost/underboost faults logged ?
-
- Forum Treasurer
- Posts: 10814
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 984
Re: DPs Fault 1 hour before MoT.....
You are right, things have got well mixed up....
Sticky's original post with part no and drawing looks like the right one to me. Marc then posted a pic of it down the back of the engine (driver's side) with a short vent hose over the top of the rocker box.

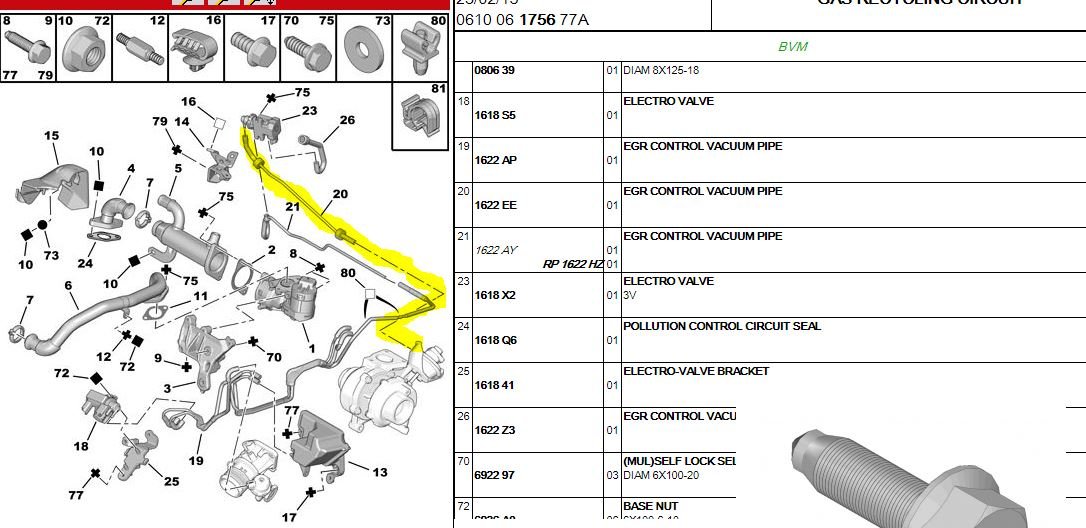

The last post of the 1st page is where it starts to go wrong I think - Marc posted the diagram, but has suggested that item 18 is the turbo solenoid on the front of the engine, whereas I am sure it is item 23, over the back (it shows the hose connecting to the turbo (my highlight)
Then Marc has posted the electrical diagram which shows the cable connector for the turbo solenoid over the back of the engine and the EGR on the front, but then a video that points at the valve on the front, but suggests it is the turbo solenoid.
Sticky has then removed a valve (probably the one on the front) - and then suggested the one he has ordered is not right. Which is not surprising, since the one he is holding in his hand is the EGR solenoid not the turbo one!!
So, put that one back Sticky, the take the one of the back of the engine, and it should match the one you have ordered....
Phew, I'm off for a sit down - and I haven't even had to take the damn thing off!!!
Sticky's original post with part no and drawing looks like the right one to me. Marc then posted a pic of it down the back of the engine (driver's side) with a short vent hose over the top of the rocker box.
The last post of the 1st page is where it starts to go wrong I think - Marc posted the diagram, but has suggested that item 18 is the turbo solenoid on the front of the engine, whereas I am sure it is item 23, over the back (it shows the hose connecting to the turbo (my highlight)
Then Marc has posted the electrical diagram which shows the cable connector for the turbo solenoid over the back of the engine and the EGR on the front, but then a video that points at the valve on the front, but suggests it is the turbo solenoid.
Sticky has then removed a valve (probably the one on the front) - and then suggested the one he has ordered is not right. Which is not surprising, since the one he is holding in his hand is the EGR solenoid not the turbo one!!
So, put that one back Sticky, the take the one of the back of the engine, and it should match the one you have ordered....
Phew, I'm off for a sit down - and I haven't even had to take the damn thing off!!!
Richard W
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: DPs Fault 1 hour before MoT.....

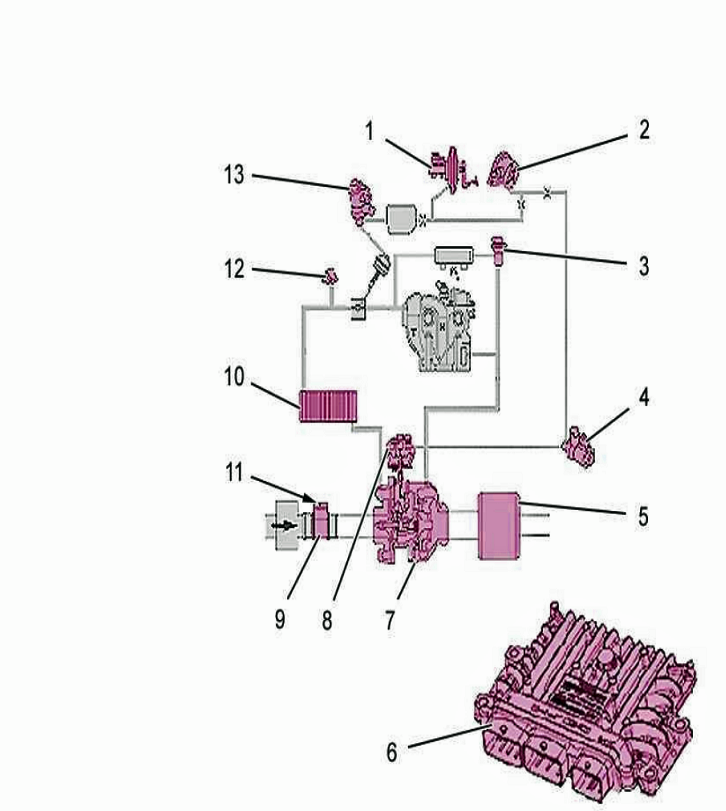

Right - here is the air supply for this engine on the X7:
Key:
Key:
Ref | Designation | Part Ref | Remarks |
1 | Master cylinder | - | - |
2 | (/) Vacuum pump | - | - |
3 | Exhaust gas recycling solenoid valve (EGR) | 1263 | - |
4 | Turbocharging pressure regulation solenoid valve | 1233 | - |
5 | Catalytic converter | - | - |
6 | Engine ECU | 1320 | Integrated atmospheric pressure sensor |
7 | Turbocharger | - | Vacuum-controlled |
8 | Boost pressure waste gate (WASTGATE) | - | Turbo position copy sensor |
9 | Air flow meter | 1310 | Integrated air temperature sensor |
10 | Turbocharger air cooler | - | - |
11 | Intake air temperature sensor | 1240 | - |
12 | Inlet air pressure sensor | 1312 | - |
13 | Mixer control electrovalve (with EGR) | 1297 | Vacuum-controlled |
Please Don't PM Me For Technical Help
Marc
Marc
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: DPs Fault 1 hour before MoT.....
Glad I did not open it up for a look inside then
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- Stickyfinger
- (Donor 2016)
- Posts: 10411
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1280
- Contact:
Re: DPs Fault 1 hour before MoT.....

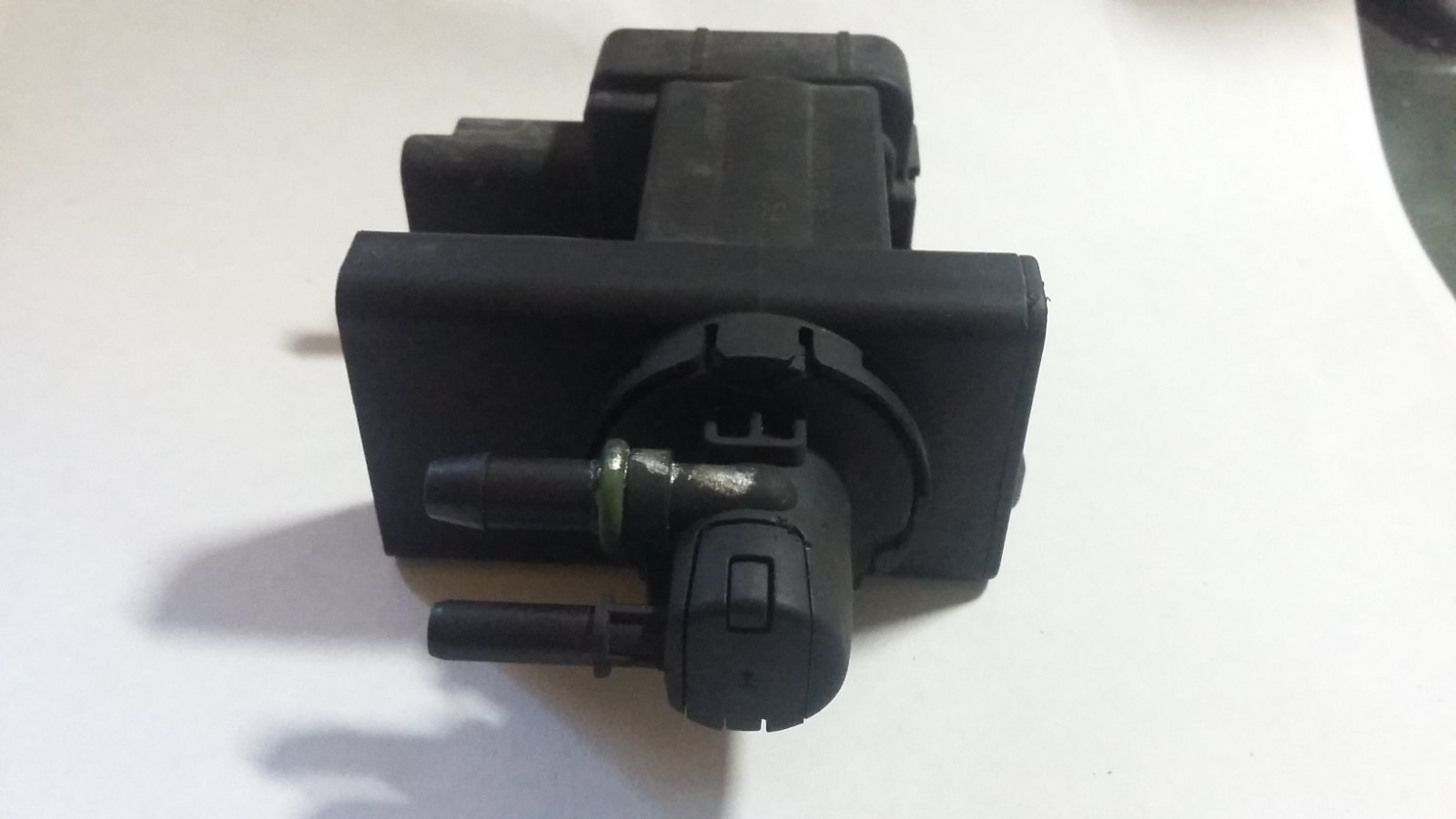

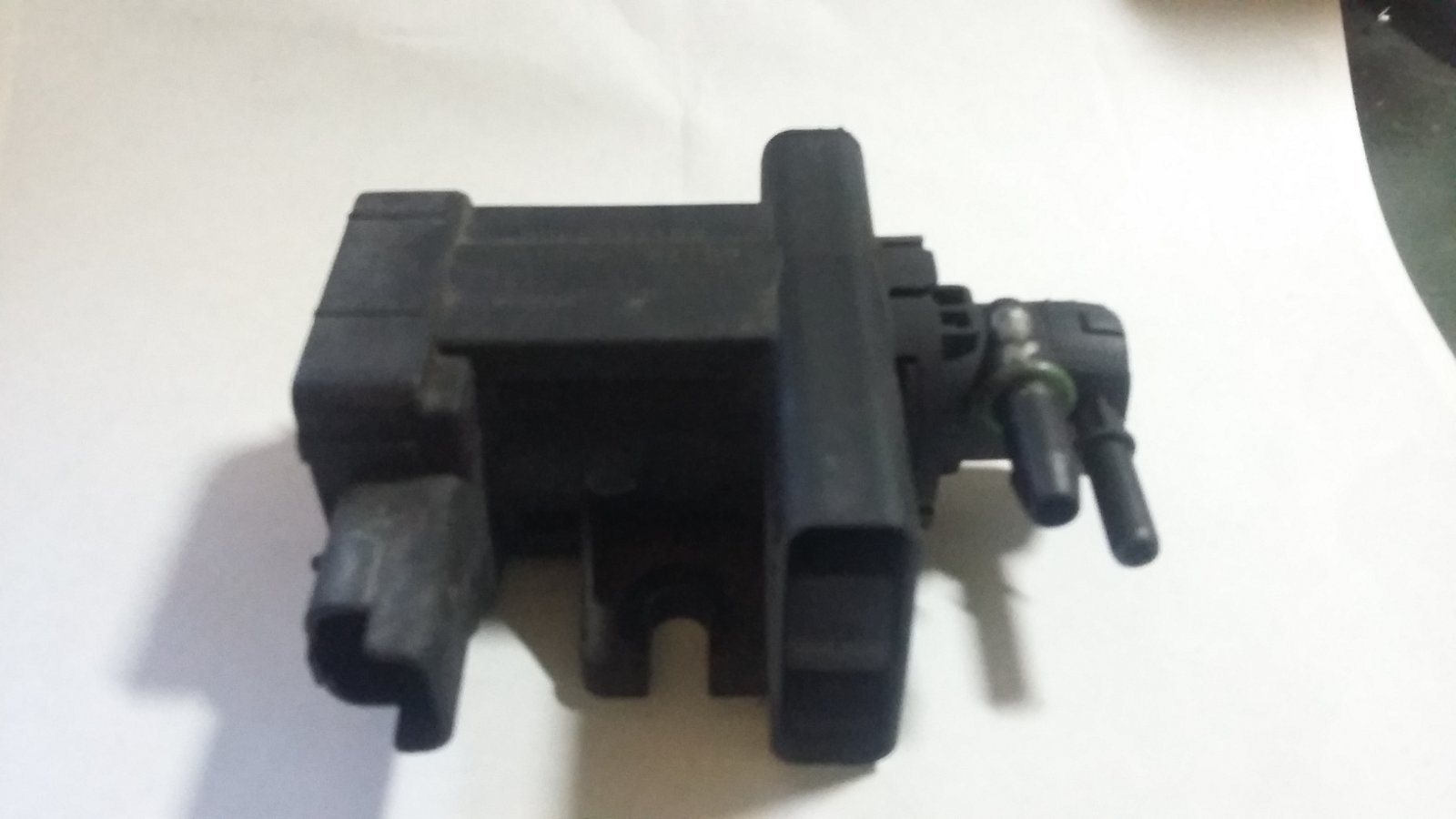

Well I put that one back on and I have removed the (?) faulty one.
I did notice a release of vacuum when I pulled the pipes off.....waiting delivery of the new one on Monday.
I have available a variable/digital voltage/amps output transformer......what would the method be for testing these solenoids ? as I have been given TWO 2nd hand ones today from a scraped 207.....
I did notice a release of vacuum when I pulled the pipes off.....waiting delivery of the new one on Monday.
I have available a variable/digital voltage/amps output transformer......what would the method be for testing these solenoids ? as I have been given TWO 2nd hand ones today from a scraped 207.....
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- GiveMeABreak
- Forum Admin Team
- Posts: 37014
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5648
Re: DPs Fault 1 hour before MoT.....
This is all I have on it - ECU controlled - variable voltage.
"m" Outlet to boost pressure waste gate (WASTGATE).
"n" Vacuum inlet (via the vacuum pump).
"p" White marking.
"q" Connector .
"r" Atmospheric pressure inlet.
The solenoid control is an OCR (Opening Cyclical Ratio) type control.
The proportional electrovalve controlled by an OCR voltage is connected to the following components:
Electrical special features
Engine management ECU control (earth).
Variable voltage control (OCR):
"m" Outlet to boost pressure waste gate (WASTGATE).
"n" Vacuum inlet (via the vacuum pump).
"p" White marking.
"q" Connector .
"r" Atmospheric pressure inlet.
The solenoid control is an OCR (Opening Cyclical Ratio) type control.
The proportional electrovalve controlled by an OCR voltage is connected to the following components:
- Atmospheric pressure
- Vacuum supplied by the vacuum pump
Electrical special features
Engine management ECU control (earth).
Variable voltage control (OCR):
- Full supply (maximum OCR) = Maximum vacuum
- No supply (minimum OCR) = No vacuum (atmospheric pressure)
Please Don't PM Me For Technical Help
Marc
Marc
