C5 X7 Lower Rear Bush Replace

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 X7 Lower Rear Bush Replace

Post by GiveMeABreak »

You are talking about 2 different things here:

1) If you want the wishbone as a complete part - that has a Citroen part number that you can use to purchase or use to source an aftermarket one.

In your case it is:

Complete Wishbone
  • Left: Part number: 9663980680 (Citroen Price, £160.48 inc. VAT)
  • Right: Part Number: 3521S4 (Citroen Price, £224.12 inc. VAT

Or use the above part numbers to search the web - i.e. enter Citroen 3521S4 as your search and not just the part number.

2) As said before they do not always sell bushes or some constituent parts separately. So we cannot get you numbers for parts that are not officially supplied by the manufacturer. There are parts made to counter this in the spare part market, but as to fitting it's pot luck as we have noting to go on.

Lastly - if you have wire coming out of the tyres then suspect your tracking - and if you then say you have had it done recently - my answer would be to go back to the place you had it done - it won't be the first time that an all singing. all dancing, Carlos Fandango laser tracking system has shafted a car. Mine included - had tyres replaced new and later tracked at ATS and 2 months later wires coming through the tyres. Went back and kicked up hell - turned out the bl**dy machine was not calibrated correctly and had an out of order sign on it. Suffice it to say I had new tyres from them and re-tracked elsewhere.
Please Don't PM Me For Technical Help

Marc
barryanto
Posts: 12
Joined: 06 Aug 2019, 12:12
Location: Dublin
My Cars: Peugeot 207
Citroen C5

Re: C5 X7 Lower Rear Bush Replace

Post by barryanto »

I appreciate all the help Marc

i was wondering is the left arm not 3520w1 as the number you quoted seems very long compared to the other one and the price seems mad too
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 X7 Lower Rear Bush Replace

Post by GiveMeABreak »

No problem.

As to your question, it was 3520W1, but has since been superseded by a later part number, which is always the one I will quote. So you have both numbers now, but the long number is the latest replacement. :wink:
Please Don't PM Me For Technical Help

Marc
barryanto
Posts: 12
Joined: 06 Aug 2019, 12:12
Location: Dublin
My Cars: Peugeot 207
Citroen C5

Re: C5 X7 Lower Rear Bush Replace

Post by barryanto »

sound jasus am making headway and when you buy them arms does them bushes am after come with them of are the a seperate item
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 X7 Lower Rear Bush Replace

Post by GiveMeABreak »

:rofl2:

I think I understood you there!

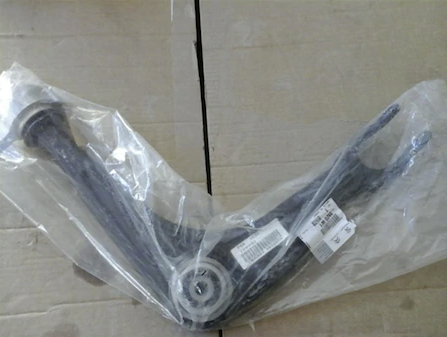

Yes, have a look at this picture which is a genuine wishbone from Citroen in the packing - if you look closely to the left of the photo, you can see the bush bracket I think you are after!
Wishbone Bushes.PNG
Please Don't PM Me For Technical Help

Marc
barryanto
Posts: 12
Joined: 06 Aug 2019, 12:12
Location: Dublin
My Cars: Peugeot 207
Citroen C5

Re: C5 X7 Lower Rear Bush Replace

Post by barryanto »

that's the part by the end of the year we will have it sorted lol
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 X7 Lower Rear Bush Replace

Post by GiveMeABreak »

Sometimes with parts like this it’s better to buy the whole flipping thing and save the faffing about trying to get the add on parts!
Please Don't PM Me For Technical Help

Marc
User avatar
myglaren
Forum Admin Team
Posts: 25362
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: C5 X7 Lower Rear Bush Replace

Post by myglaren »

My daughter had a similar problem with her Rover 75. It was cheaper and more accurate to replace the lot rather than faff around with bushes.
barryanto
Posts: 12
Joined: 06 Aug 2019, 12:12
Location: Dublin
My Cars: Peugeot 207
Citroen C5

Re: C5 X7 Lower Rear Bush Replace

Post by barryanto »

Hello guys a update on the situation i got the replacement parts MEYLE 11-14 610 0040 MCM0034
now i cant say these are a fit yet as the mechanic i had got to do the job is gone on two weeks holidays and with a difference of a few mm with some parts it's impossible to tell until the previous ones are out.
Anyway i have a question when putting the bush on the arm is there a particular degree to install them so there is no internal stress on the actual rubber part as when my last ones were replaced i don't think my mechanic followed this advice they only lasted two years compared to the OEM parts lasting 8 years.
I think there was too much torsional stress on the parts and they wore out before there time but then again the bush brand awaiting replacement are Firstline parts so that may explain some of the short lifespan.

Anyone have a opinion on this please feel free to educate me
thanks
rijndael
Posts: 25
Joined: 29 Nov 2019, 17:52
Location: Madrid
My Cars: C5 X7 3.0 HDI DT20C
Xantia Turbo CT 2.0
BX GTI 2.0
AX GT 1.5

Re: C5 X7 Lower Rear Bush Replace

Post by rijndael »

Hi there, guys,

Is there any way to know in advance (without unmounting one) what material (steel or aluminum) the wishbone front subframes are made of?
If I need to replace them, which ones should I buy, 3520W2 & 3521S5 or 3520X6 & 3521T7 ??

(Sorry if there are any grammar or spelling/ortographical mistakes, I'm not native english speaker :) )

Thank you for your help!
perrye
Donor 2023
Posts: 18
Joined: 01 Oct 2022, 08:55
Location: Finland
My Cars: Present: 508SW 2012 2.2 HDi DW12C, 207 2006 1.4 i 16v 90 KFU
Ex: 508 2011 2.0 HDi DW10CTED4, 407SW 2008 1.6 HDi DV6TED4, 406 2001 2.0 HDi 110 DW10ATED, 406 1996 1.8, 307 2001 1.4, 307 2003 1.6
x 6

Re: C5 X7 Lower Rear Bush Replace

Post by perrye »

rijndael wrote: 03 Mar 2023, 23:29 Hi there, guys,

Is there any way to know in advance (without unmounting one) what material (steel or aluminum) the wishbone front subframes are made of?
If I need to replace them, which ones should I buy, 3520W2 & 3521S5 or 3520X6 & 3521T7 ??

(Sorry if there are any grammar or spelling/ortographical mistakes, I'm not native english speaker :) )

Thank you for your help!
Hi
yes there is, depending your cars DAM/OPR number. For
C5 (X7) 3.0 HDI FAP

3520 W2 WISHBONE FRONT, LEFT Until OPR 11983
3521 S5 WISHBONE FRONT, RIGHT Until OPR 11983
3520 W2 WISHBONE FRONT, LEFT ALUMINIUM SUBFRAME WITH FRAME And Since OPR 11984
3520 X6 WISHBONE FRONT, LEFT STEEL SUBFRAME WITH FRAME And Since OPR 11984
3521 S5 WISHBONE FRONT, RIGHT ALUMINIUM SUBFRAME WITH FRAME And Since OPR 11984
3521 T7 WISHBONE FRONT, RIGHT STEEL SUBFRAME WITH FRAME And Since OPR 11984
rijndael
Posts: 25
Joined: 29 Nov 2019, 17:52
Location: Madrid
My Cars: C5 X7 3.0 HDI DT20C
Xantia Turbo CT 2.0
BX GTI 2.0
AX GT 1.5

Re: C5 X7 Lower Rear Bush Replace

Post by rijndael »

Hi!

Thanks for your quick reply.

I'm still confused...
You say:
3520 W2 WISHBONE FRONT, LEFT Until OPR 11983
3520 W2 WISHBONE FRONT, LEFT ALUMINIUM SUBFRAME WITH FRAME And Since OPR 11984

Same reference for both until 11983 and since 11984.

So, what's the criteria for chosing between 3520 W2 and 3520 X6 if both are "Since OPR 11984"?

Maybe I'm misunderstanding something...

Thank you!
Last edited by rijndael on 04 Mar 2023, 09:27, edited 1 time in total.
kantica
Posts: 5
Joined: 01 Jan 2020, 21:24
Location: Vienna
My Cars: C5 X7 2.0 HDI
x 2

Re: C5 X7 Lower Rear Bush Replace

Post by kantica »

front left:
3520W2 all subframes until OPR 11983
3520W2 aluminium subframe since OPR 11984
3520X6 steel subframe since OPR 11984

front right:
3521S5 all subframes until OPR 11983
3521S5 aluminium subframe since OPR 11984
3521T7 steel subframe since OPR 11984

btw. you can see differences here: https://catalogue.sidem.be/searchbycar. ... 39&lang=en
rijndael
Posts: 25
Joined: 29 Nov 2019, 17:52
Location: Madrid
My Cars: C5 X7 3.0 HDI DT20C
Xantia Turbo CT 2.0
BX GTI 2.0
AX GT 1.5

Re: C5 X7 Lower Rear Bush Replace

Post by rijndael »

Thank you for that info.

Which one should I choose for left side, between 3520 W2 and 3520 X6, if both are "Since OPR 11984"?
User avatar
MattBLancs
Donor 2024
Posts: 2454
Joined: 25 Apr 2022, 09:03
Location: Leyland, Lancashire, UK
My Cars: Citroen C5 Tourer 2.2 HDi Exclusive 173 6speed (daily family practical wagon),
Peugeot 406 Coupe SE 2.0 137 5speed (& originally auto), (former daily off the road for some TLC)
Peugeot 206 GTi-HDi 1.6 110 5speed (my wife's daily)
Peugeot 306 HDi Dturbo 2.0 90 5speed (long term project to reinstate inner wings, former daily. Too sentimental to let it go!)
x 1307

Re: C5 X7 Lower Rear Bush Replace

Post by MattBLancs »

kantica wrote: 04 Mar 2023, 09:51 btw. you can see differences here: https://catalogue.sidem.be/searchbycar. ... 39&lang=en
That is a really useful page! Thanks

Matt
