807 what colours in the mirror are for the outside temperture sender

Tell us your ongoing tales and experiences with your French car here. Post pictures of your car here as well.

Moderators: RichardW, myglaren

corlink
Posts: 1
Joined: 01 Dec 2019, 15:53

807 what colours in the mirror are for the outside temperture sender

Post by corlink » 03 Dec 2019, 10:20

:( Hi outside temp sender replacement sender to go in dvrs (uk) mirrror but what colours for the wiring as no such thing was there. OR is the right place?

Gibbo2286
Posts: 4054
Joined: 08 Jun 2011, 18:04
x 538

Re: 807 what colours in the mirror are for the outside temperture sender

Post by Gibbo2286 » 03 Dec 2019, 11:48

I think it's in the LH door mirror not the driver's side but don't take my word for it. It is on the C5s

User avatar
GiveMeABreak
Forum Admin Team
Posts: 17148
Joined: 15 Sep 2015, 19:38
x 1593

Re: 807 what colours in the mirror are for the outside temperture sender

Post by GiveMeABreak » 03 Dec 2019, 11:56

There are no colours specified - PSA sometimes did not specify colours for their wiring - you'll have to match up the connector wiring against your old one when you replace it. Even the Wiring diagrams are non-specific - but I'll need your VIN in order check against your model as there are several different ones depending on electrical architecture of your 807.

The temperature is on the left hand side (passenger) mirror on some and right hand side on other vehicles. On the 807 it is shown as being on the right hand mirror.

Hell Razor5543
NOT Alistair or Simon
Posts: 9619
Joined: 01 Apr 2012, 09:47
x 706

Re: 807 what colours in the mirror are for the outside temperture sender

Post by Hell Razor5543 » 03 Dec 2019, 12:18

While the PSA group do not have a fixed colour scheme they usually print a code on each wire, which could help (unless it has faded, of course).

User avatar
GiveMeABreak
Forum Admin Team
Posts: 17148
Joined: 15 Sep 2015, 19:38
x 1593

Re: 807 what colours in the mirror are for the outside temperture sender

Post by GiveMeABreak » 03 Dec 2019, 12:22

There are no codes on the sensor wire

Gibbo2286
Posts: 4054
Joined: 08 Jun 2011, 18:04
x 538

Re: 807 what colours in the mirror are for the outside temperture sender

Post by Gibbo2286 » 03 Dec 2019, 12:43

You really don't need a wiring diagram for this, there's a wire from the mirror into the door and it's plugged into a connector half way down behind the door card.

The simple fix is to snip it off at the mirror end and solder the new sensor on without the need to take the door card off.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 17148
Joined: 15 Sep 2015, 19:38
x 1593

Re: 807 what colours in the mirror are for the outside temperture sender

Post by GiveMeABreak » Yesterday, 12:39

Ok, it's a pretty easy job to do, but make sure you have some plastic trim removal tools similar to the ones below. You'll also need some heat shrink for the wiring once cut and spliced to repair the connection.
807 Tools.PNG
807 Tools.PNG (56.74 KiB) Viewed 8 times
807 A.PNG
Trim Removal Tools(1) Ambient temperature sensor on the right-hand
exterior rear view mirror.
Disconnect the battery.
Removing

807 B.PNG
807 C.PNG

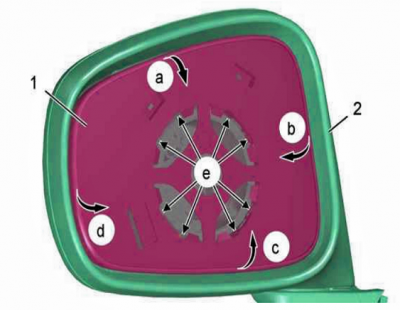

Remove the glass (2) of the right-hand exterior rear view mirror.

Angle the glass (1) of the exterior mirror (2)
(following the arrows "a", "b", "c", "d") to detach the glass (1)
from the exterior mirror (2)
( as "e") using trim tools.
Disconnect the exterior mirror
deicing harness (2) on the glass (1)
( as "f"), using trim tools.
807 E.PNG
807 F.PNG
Detach the shell of the rear view mirror (3)
(at "a") using trim tools.
Tilt the mirror (In the direction of the arrow "b").
Remove the rear trim (3).
CAUTION: Detach the exterior temperature sensor (1)
using trim tools (Against the frame (4)
and the plate at "c".
807 G.PNG
807 D.PNG
Detach the harness of the sensor (1) from the frame (4).
Cut the wires of the exterior temperature sensor (1) (at "d").
Note: "d" = 30 mm minimum from the sensor.
Remove the external temperature sensor (1).

Refitting
Restore the electrical connection of the
outside temperature sensor (1) (at "d")
using heat shrink sleeves.
Position the exterior temperature sensor (1) in its housing.
Refit:
  • The shell of the rear view mirror (3)
  • The glass (2) of the right-hand exterior rear view mirror.
Reconnect the exterior mirror deicing
harness (2) on the glass (1) ( as "f").
Note: At the same time clip the glass (1) on the motor (3) of the exterior mirror (2) ( as "e").
