Citroen, DS Automobiles and Peugeot Official Part Number Requests

[Timmycitroen]

I am am after a part number for the bleed pipe that extends between concentric cylinder to the bleeding pipe
[with metal push clip and bleed port]
Vin



VF7**************[VIN obfuscated, can be read by forum staff]


Thanks in advance

[mickthemaverick]

Morning Marc/Richard. I have now got my C4 Vin no VF7**************[VIN obfuscated, can be read by forum staff].
It had the driver's door replaced and has no door sticker for the paint code. I believe it is KGN but could you confirm or correct as necessary as I am in need of a touch up aerosol asap. Thanks

[GiveMeABreak]

Morning!

I’m looking for 2 part numbers for VIN VF7**************[VIN obfuscated, can be read by forum staff]

1. Passenger side wing mirror casing
2. Drivers side scuttle drain cover

Hope you can help!

Bryony

Let me know the item number as, there isn't a 'casing' as such.

If (1) the complete Mirror, then part: 1685330580, £484.46

(10) Cowl Air Itake Grille (A + (11) & (12)), part: 1627700380, £289.15

(13) Air Inlet Grille Closer, part: 1613446280, £32.03

[GiveMeABreak]

Morning Marc/Richard. I have now got my C4 Vin no VF7**************[VIN obfuscated, can be read by forum staff].
It had the driver's door replaced and has no door sticker for the paint code. I believe it is KGN but could you confirm or correct as necessary as I am in need of a touch up aerosol asap. Thanks

Hi Mick

Yes: KGN - BOURRASQUE PAINT

[GiveMeABreak]

I am am after a part number for the bleed pipe that extends between concentric cylinder to the bleeding pipe
[with metal push clip and bleed port]
Vin
VF7**************[VIN obfuscated, can be read by forum staff]
Thanks in advance

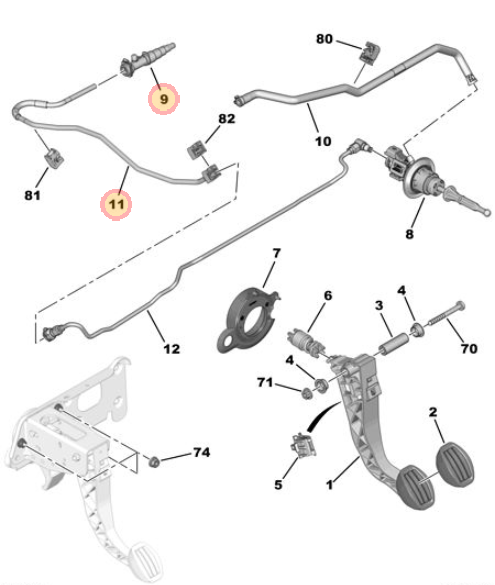

(9) Clutch Bleed Union, part: 9676664180, £44.27
(11) Declutching COntrol Pipe, part: 9806928280, £69.67
(81) Pipe Support, part: 9675689580, £4.28

If anything other, let me know.

[mickthemaverick]

Thanks Marc, a few more requests to come in a few days I suspect

[GiveMeABreak]

Thanks Marc, a few more requests to come in a few days I suspect

Just in case you need it for future ref., here's your build spec. sheet Mick:

Vehicle Characteristics
Vehicle family	C4
AS/RP N°	11792 88 1 0229
Warranty Start Date	24/03/2009
Engine serial number	10 JBBN 0031223
OPB	I5DP
BER	e2*2001/116*0302*13
P4A	9665084099
General Information
PRODUCT TYPE	PASSENGER CAR
COMMERCIAL MARQUE/COMPONENT TYPE	CITROEN
VEHICLE FAMILY	C4
SILHOUETTE	5 DOOR SALOON
TRIM LEVEL	VTR PACK
ENGINE	DIESEL TURBO DV6TED4 FAP
TRANSMISSION	6-SPEED CONTROLLED MANUAL GEARBOX
PAINT TYPE	METALLIC PAINTWORK
BODY COLOUR	KGN - BOURRASQUE PAINT
INTERIOR TRIM TYPE	WEAVE 3D XRAY + CLOTH SPRINT "SR"
UPHOLSTERY COLOUR	"FZ"
GEARBOX (CHARACTERISTICS)	MCD MANUAL GEARBOX
DEFINITION TO FOLLOW	RANGE ACTIVITY
ENGINE (TYPE)	DV TYPE ENGINE
OTHER BADGE, " MISC. "	WITHOUT FULLER BADGE
Vehicle Characteristics
TRIM LEVEL	VTR PACK
PAINT TYPE	METALLIC PAINTWORK
BODY COLOUR	KGN - BOURRASQUE PAINT
INTERIOR TRIM TYPE	WEAVE 3D XRAY + CLOTH SPRINT "SR"
UPHOLSTERY COLOUR	"FZ"
GEARBOX (CHARACTERISTICS)	MCD MANUAL GEARBOX
Fuel Supply-Engine
ENGINE	DIESEL TURBO DV6TED4 FAP
FUEL SUPPLY	DIRECT EXCHANGE TURBO INJECTION
DIESEL FILTER WATER DETECTOR	WITHOUT DIESEL FILTER WATER DETECTOR
CYLINDER BLOCK (MATERIAL)	CRANKCASE ALUMINIUM
FUEL	DIESEL GRADE DA/DE/DE+
EMISSIONS STANDARD (ENGINE)	EURO 4 ENGINE EMISSION CONTROL
ENGINE (TYPE)	DV TYPE ENGINE
CAPACITY	1600 CM3
OIL COOLER	MNTG WATER/OIL EXCHANGER ON ENGINE
COOLING MOTOR	RADIATOR TH : 27 - 21 DM2 BRAZED ALUMINIUM
CRANKCASE GAS CIRCUIT HEATING	W/O HEATER CASING GAS CIRCUIT
EOBD SELF-DIAGNOSIS SYSTEM	"EOBD" AUTO-DIAGNOSTIC WITHOUT ACCELEROMETER
VEHICLE TECHNICAL DEPOLLUTION	L5 VEHICLE TECHNICAL DEPOLLUTION
PARTICLE FILTER	WITH PARTICLE EMISSION FILTER
FAN	2 FANS , 2 RATES , IMPROVED 130WAERO
FUEL VAPOUR RETRIEVAL	WITHOUT PETROL VAPOUR RECUPERATION
INJECTION ASSOCIATED VARIANT	MOUNTING BOSCH
TANK FILTER	RESERVOIR FILTER INTERIOR
Gearbox Transmission
TRANSMISSION	6-SPEED CONTROLLED MANUAL GEARBOX
GEARBOX (CHARACTERISTICS)	MCD MANUAL GEARBOX
FINAL DRIVE RATIO	CP 19 X 71
WHEEL STYLE	RIBALTA 17 INCH WHEEL
CLUTCH	WITHOUT CLUTCH
DIFFERENTIAL (GEARBOX)	DIFFERENTIAL 77
TYRE (SIZE, TYPE)	205/50 R17 89W NON REINFORCED TYRE
WHEELS FITTED	6,5" RIM ROAD WHEELS
WHEEL (TYPE)	ALLOY WHEEL ASSEMBLY 2
INFLATION PRESSURE LOSS INDICATOR	WITHOUT TYRE DEFLATION INDICATOR
GEARBOX TYPE	MC MANUAL GEARBOX
Suspension-Steering-Brakes
REAR ANTI-ROLL BAR	REAR ANTI ROLL BAR DIAM 27
STEERING COLUMN	STEERING COLUMN REINFORCED MANUAL ADJUSTMENT
FRONT ANTI-ROLL BAR	FRONT ANTI-ROLL BAR DIAMETER 22.5
POWER STEERING FLUID COOLING SYSTEM	WITHOUT POWER STEERING OIL COOLING
SUSPENSION	NORMAL SUSPENSION
DYNAMIC STABILITY CONTROL SYSTEM	ELECTRONIC STABILITY PROGRAM
BRAKE ASSOCIATED VARIANT	8 1 BOSCH ESP
STEERING (OPERATION)	ASSISTED ELECTROHYDRAULIC STEERING
PEDAL BRACKET (TYPE)	PEDAL STANDARD
Body Fittings
HORNS	HORNS-HARMONY
AERIAL	SHORT ROOF AERIAL
REAR SPOILER	FITTING WITH RR UPPER DEFLECTOR
DECORATION (PAINTED)	SOLID COLOUR DECOR
SIDE MOULDINGS (TYPE)	LATERAL PROTECTOR MASS TINTED
SIDE MOULDINGS (DIMENSION)	WITHOUT LATERAL PROTECTORS
WHEEL EMBELLISHER (STYLE)	17 INCH CHROME CIRCLE
REVERSING LAMPS	WITH 1 REVERSING LAMP
SILL ILLUMINATION LAMP	WITHOUT SILL ILLUMINATION
ADDITIONAL SHIELD (UNDER ENGINE)	W/O ENGINE UNDERSHELDING
DRAUGHT EXCLUSION	BONNET WITHOUT SEAL
EXT. REARVIEW MIRROR COMP. FUNCTION	EXT MIRROR MANUAL-FOLD BACK
EXHAUST TAILPIPE TRIM	W/O EXHAUST OUTLET EMBELLISHER
ENGINE BAY SOUNDPROOFING	BONNET SOUNDPROOFING
WINDSCREEN WIPER	FRONT WIPER BLADE WITH RAIN SENSOR
REAR SCREEN WIPER	WITH REAR WIPER
HEADLAMP WIPER	W/O HEADLAMP WIPER
FRONT PANEL BLANK	WITHOUT FRONT BUMPER PLUG
ROOF GLASS	WITHOUT ROOF WINDOW
REAR TAILGATE GLASS	FIXED TAILGATE WINDOW
BUMPER	FR/RR BUMPER STD BODY COL+FOG LAMP TRIM CHROME
MUDFLAP	WITHOUT REAR MUDGUARD
NUMBER PLATE	WITHOUT LICENCE PLATE
LUGGAGE RACK	WITHOUT ROOF BARS
FRONT FOGLAMP	FRONT FOG LIGHTS
SPARE WHEEL	REDUCED STEEL WHEEL + NON STD TYRE
EXTERIOR ACCESSORIES	BODY COLOUR EXT HANDLE+RR CTRL+PILLAR+ MIRROR
EXT. REAR VIEW MIRROR (DRIVER SIDE RADIUS)	CURVED EXTERIOR MIRROR GLASS
SUN ROOF	FIXED ROOF
BUMPER TRIM	BODY COLOUR BUMPER STRIP
GLASS (APPEARANCE)	TINTED
WINDOW (TYPE)	ACOUSTIC LAMINATED W/SCRREN+TOUGHENED SIDE RR
HANDS FREE ACCESS AND STARTING	NO ACCES AND HANDSFREE STARTING
Interior Fittings
INTERIOR TRIM TYPE	WEAVE 3D XRAY + CLOTH SPRINT "SR"
ANTI-THEFT ALARM	WITHOUT THEFT PROTECTION ALARM
CIGAR LIGHTER	FRONT CIGAR-LIGHTER
REAR HEAD RESTRAINT	REAR HEADREST ADJUSTABLE
FRONT HEAD RESTRAINT	JOINTED FRONT HEADREST
REAR SEAT	SEPA FOLDING CUSHION + SEPA FOLDING SEAT BACK
REAR SEAT ARMREST	WITH REAR SEAT ARMREST
REAR SEATBELT	REAR 3-POINT 3 INERTIA REEL SEAT BELT
FRONT SEATBELT	PYROTECHNIC SEAT BELT WITH ALARM
CLIMATE (AMBIENT TEMP)	TEMPERATE COUNTRIES
CHILD LOCK	ELECTRIC REAR CHILD LOCK
SPEED GRADUATIONS	SPEED GRADUATION IN MPH
TACHOMETER	INTEGRATED DIGITAL REV COUNTER
DRIVING POSITION	RIGHT HAND DRIVE
ADDITIONAL HEATING	AUTOMATIC ADDITIONAL HEATING
DASHBOARD EQUIPMENT	FASCIA MULTICUB LOW CTRL PANEL+PEN HOLDER PAINTED
MISC. INT. LAMPS	3-POSITION FR COURTESY LAMP
DOOR TRIM	DOOR PANEL WITHOUT WOOD DECOR
LOUDSPEAKER	4 FR SPEAKERS (2 TW + 2 FR) + 2 RR SPEAKERS
RADIO CONTROLS	REMOTE RADIO CONTROL
PASSENGER COMPARTMENT SOUNDPROOFING	6 KG BULKHEAD SOUNDPR
SCREENING (BLIND, SIDE SUNBLIND, SUNROOF)	WITHOUT SUN VISOR SCREEN
FRONT PASSENGER SEAT HEIGHT CONTROL	WITHOUT FRONT PASSENGER SEAT HEIGHT ADJUSTMENT
DRIVER SEAT CONTROL	DRIVERS FRT SEAT MANUAL CNTROL
FRONT PASSENGER SEAT CONTROL	PASSENGER FRT SEAT MANUAL CNTR
DRIVER SEAT ADJUSTMENT	DRIVER’S LUMBAR SUPPORT
FRONT PASSENGER SEAT ADJUSTMENT	WITHOUT PASSENGER’S SIDE AND LUMBAR SUPPORTS
DRIVER’S SEAT FOLDING	W/O FOLDING DRIV FRONT SEATING
FRONT PASSENGER SEAT FOLDING	W/O FOLDING PASS FRONT SEATING
FRONT SEAT ARMREST	CENTRAL ARMREST
COMPACT DISC	WITHOUT COMPACT DISC
SATELLITE NAVIGATION SYSTEM	WITHOUT NAVIGATION SYSTEM
HEADLAMP BULBS	HALOGEN BULB
REAR WINDOW LIFT	SEQENT CONTR RR WINDOW LIFTER
TRAFFIC INFORMATION READER	WITHOUT LATERAL TRAJECTORY MONITORING
DISPLAY	DISPLAY (RADIO+CLOCK,T°,CD)
COURTESY MIRROR	DRIV OCCULT+PASS OCCULT W/O LIGHT
OIL GAUGE	STD OIL LEVEL INDICATOR
FITTING REAR HEAD RESTRAINT	MOUNT 3 REAR HEAD-REST
HEATING ELEMENT	NON HEATED SEAT
FRONT LATERAL AIRBAG	THORAX SIDE + CURTAIN AIRBAG
PASSENGER AIRBAG	PASSENGER AIRBAG
ELECTRIC WINDOW (OPERATION)	DRIVER’S + FRONT/REAR PASSENGER’S ANTI-PINCH
EQUIPMENT PACK	WITHOUT DRIVING SCHOOL EQUIPMENT PACK
EXTERIOR REAR VIEW MIRROR (HEATED)	NON HEATED DOOR MIRROR
AIRBAG DEACTIVATION	MANUAL AIRBAG DEACTIVATION
INTERIOR DOOR CONTROL (APPEARANCE)	SOFT MISTRAL APPEARANCE INTERIOR DOOR CONTROL
REAR LOAD FLOOR	WITHOUT REAR LOAD FLOOR
HEADLAMP HEIGHT ADJUSTER	REMOTE MANUAL HEADLAMP ADJUSTMENT
FRONT SEAT GUARD	WITHOUT CAB PROTECTION PANEL
FRONT SUN VISOR	DRIVER’S+PASSENGER’S SIDE WITHOUT INSCRIPTION
STORAGE (DRIVING POSITION)	CLOSED SIDE STORAGE COMPARTMENT WITHOUT BEZEL
RADIO RECEIVER	"RD4/MP3" RDS COMPACT DISC AUDIO SYSTEM
REFRIGERATION	SINGLE AIR CONDITIONING
CRUISE CONTROL	REGULATOR AND SPEED LIMIT
DRIVER’S SEAT HEIGHT CONTROL	PARALLEL DRV HEIGHT ADJ
INTERIOR REAR VIEW MIRROR	ELECTROCHROMATIC DAY-NIGHT INTERIOR MIRROR
CARPET COVER	W/O CARPETMAT
DRIVER AIRBAG	DRIVERS AIR BAG
EXT. REAR VIEW MIRROR (DRIVER SIDE RADIUS)	CURVED EXTERIOR MIRROR GLASS
LOAD SPACE STORAGE	W/O BOOT TIDY
CARPET	NEEDLED CARPET DILOUR F550
TUNER RADIO	MONO RADIO TUNER
OBSTACLE DETECTION SYSTEM	WITHOUT OBSTACLE DETECTOR
INFLATION PRESSURE LOSS INDICATOR	WITHOUT TYRE DEFLATION INDICATOR
TRIM ADAPTATION	GEAR LEVER KNOB CHROME INSERT
FLOOR MAT	W/O CARPETMAT
EQUALISER AMPLIFIER	WITHOUT EQUALISER AMPLIFIER
LOCKING CONTROL	DEADLOCKING + AUTOMATIC LOCKING
WINDOW (TYPE)	ACOUSTIC LAMINATED W/SCRREN+TOUGHENED SIDE RR
STEERING WHEEL	2 SPOKE LEATHER STEERING WHEEL WITH DECOR
FAN	2 FANS , 2 RATES , IMPROVED 130WAERO
CHILD OBSERVATION INTERIOR MIRROR	WITHOUT INTERIOR CHILD MONITORING MIRROR
AUDIO PACK AUXILIARY SOCKET	WITHOUT AUDIO PACK AUXILIARY SOCKET
TELEMATIC UNIT	WITHOUT TELEMATIC UNIT
Electrical
ALTERNATOR	ALTERNATOR 150 AMP
HORNS	HORNS-HARMONY
BATTERY	BATTERY L3 450
STARTER MOTOR	STARTER MOTOR CL 5
SPECIAL LIGHTING	AUTOMATIC HEADLAMP ILLUMINATION
REVERSING LAMPS	WITH 1 REVERSING LAMP
MISC. INT. LAMPS	3-POSITION FR COURTESY LAMP
SILL ILLUMINATION LAMP	WITHOUT SILL ILLUMINATION
EXT. REARVIEW MIRROR COMP. FUNCTION	EXT MIRROR MANUAL-FOLD BACK
CEN. LOCKING REM CONTROL FREQUENCY	LOCKING REMOTE CONTROL FREQUENCY 433.92 MHZ HETERODYNE
HEADLAMP BULBS	HALOGEN BULB
MULTIPLEXING	MULTIPLEXING ASSEMBLY CAN CAN
FRONT FOGLAMP	FRONT FOG LIGHTS
HEADLAMP HEIGHT ADJUSTER	REMOTE MANUAL HEADLAMP ADJUSTMENT
Component Manufacturers
BRAKE ASSOCIATED VARIANT	8 1 BOSCH ESP
INJECTION ASSOCIATED VARIANT	MOUNTING BOSCH
Miscellaneous
SPECIAL SPECIFICATION	STANDARD
ATMOSPHERIC CONDITIONS	NORMAL ATMOSPHERE
DRIVING POSITION	RIGHT HAND DRIVE
RADIO HEADPHONE SOCKET	WITH ACCESSORIES SOCKET
TRAFFIC SIDE	DRIVING ON THE LEFT-HAND SIDE
SIDE IMPACTS	DOOR WITHOUT REINFORCEMENT
SET OF KEYS	1 HF PLIP KEY + 1 SINGLE MAIN KEY
EMERGENCY EQUIPMENT	W/O HELP EQUIPMENT
SURFACE CONDITIONS	GOOD TERRAIN
EXTERIOR ACCESSORIES	BODY COLOUR EXT HANDLE+RR CTRL+PILLAR+ MIRROR
SLAVE CONTROL UNIT	BSI EVOLUTION
EMERGENCY WARNING TRIANGLE	WITHOUT WARNING TRIANGLE

[mickthemaverick]

Thanks very much for that Marc, not only will it be good info going forward but it will also save me relating what it has and has not got!!
However I have just given it a 50 mile shakedown cruise and I do need to replace the offside front strut top mount so a part number for that would be very helpful. Cheers

[GiveMeABreak]

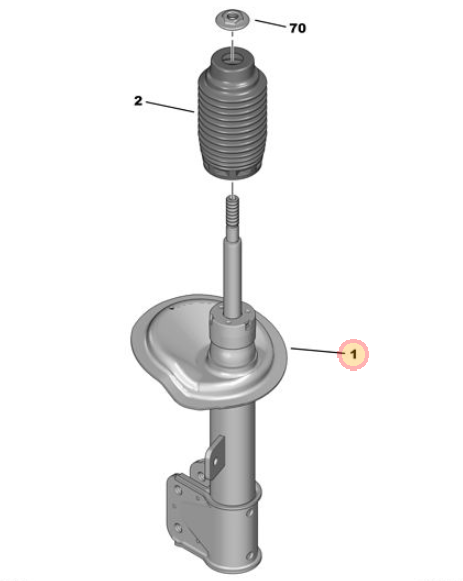

This is the strut with an integral mounting if this is what you mean:

(1) Front Right Strut
OEM, part: 5202WN, £86.66
PSA Alternative, part: 1674698480, £77.39

The other parts are under the spring:

(10) Front Shock Absorber Mounting (Includes all elements shown under (10) on diagram, part: 5031E9, £64.62
(3) Front Suspension Rest Cup, part: 503151, £30.90
(6) Front Bump Stop Cup, part: 503371, £17.89

[GORAX]

Hi Guys,

Can I get the part number for my BSI?

VF7**************[VIN obfuscated, can be read by forum staff]

[mickthemaverick]

Thanks again Marc, part now ordered.

[Bryonyolney]

Thanks Marc, amazingly helpful as always!

Re the mirror casing, it’s the plastic back of (1) that is damaged. I’ve found what I guess are after market replacements for the back of the mirror casing and bought a short arm one so hope there’s some way of removing the damaged bit and attaching the new part. I assume if they sell them, there is!

[RichardW]

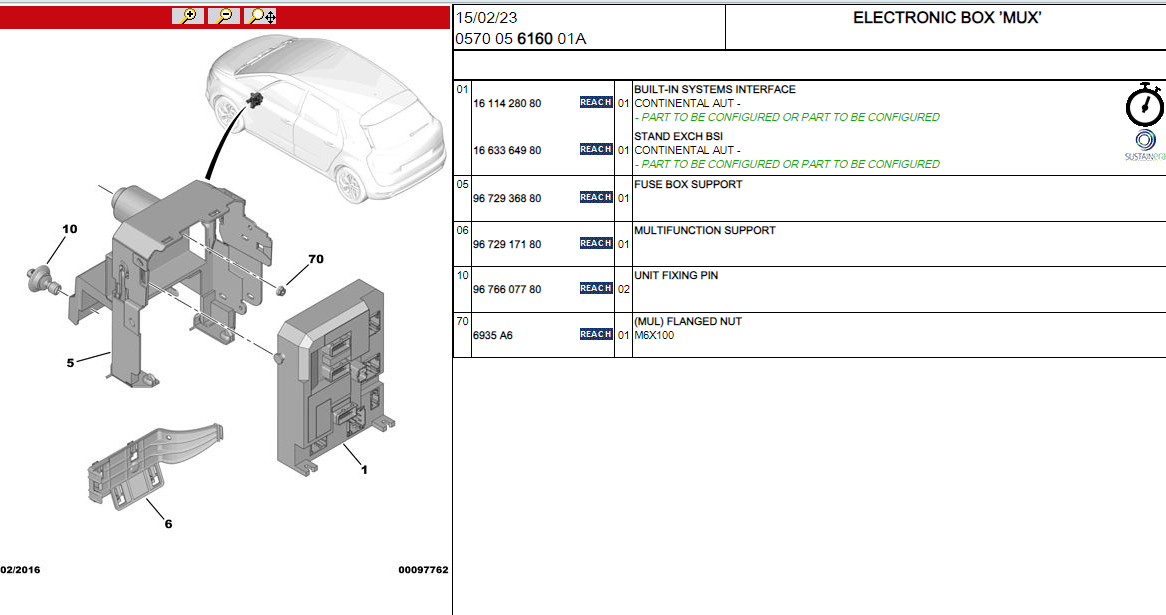

Hi Guys,

Can I get the part number for my BSI?

In the UK it's £519.44 new or £327.44 exchange. This is not plug and play, and needs coding.

[MattBLancs]

Good morning

Peugeot 308 SW 2.0 HDI
Vin VF3**************[VIN obfuscated, can be read by forum staff]

Could you confirm part numbers for the following please:

Right and left drive shafts, also if there's any supplementary info e.g. length etc that would help me confirm aftermarket options that will be good too.

Ah, update: I don't think the outer CV joints are listed separately but if they are part numbers for these too please

Is the start button listed as a separate part or part of the whole expensive switch unit? ( Mine is a bit worn)

Thank you

[RichardW]

Matt

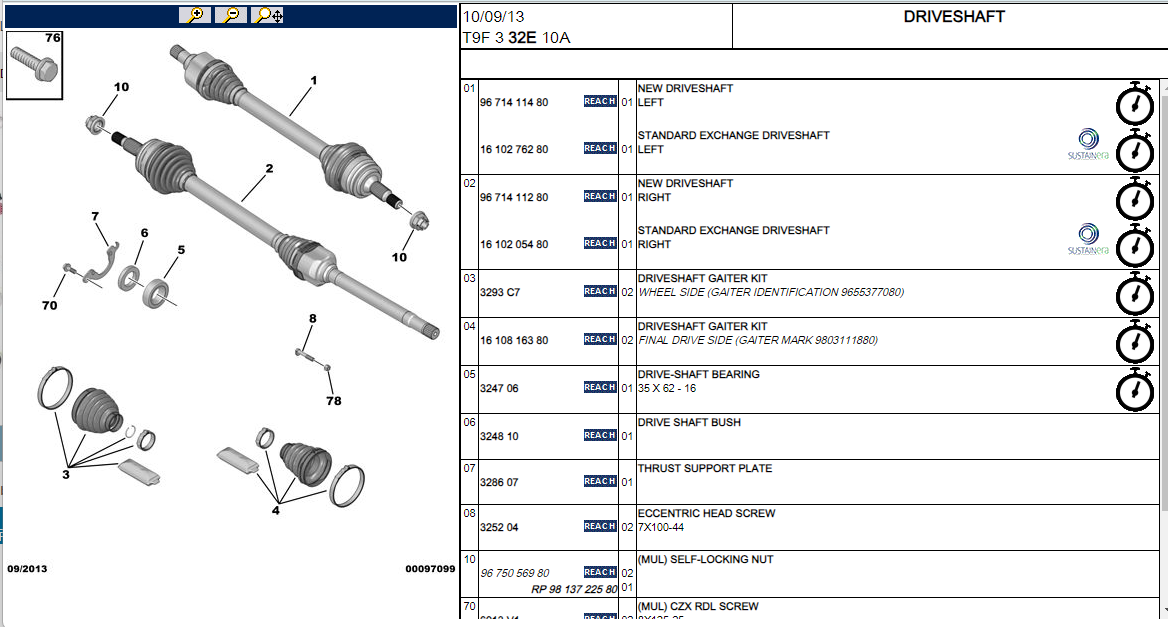

Driveshafts:

Prices

No sizing info. They appear to be specific to this car and gearbox combo.

Start button - £44.26:

Edit: button also used on 2008 and 208 which might widen the search for a 2nd hand one.
