Citroen, DS Automobiles and Peugeot Official Part Number Requests

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
GiveMeABreak
Forum Admin Team
Posts: 38161
Joined: 15 Sep 2015, 19:38
x 5924

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

Hi John. Thanks for your Forum donation.

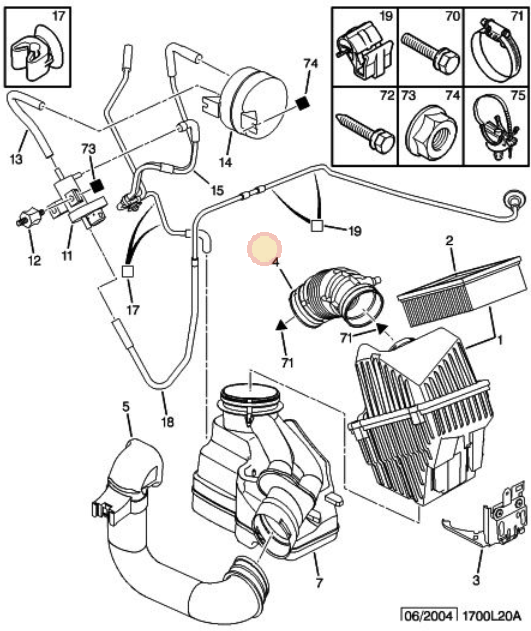

ohn air intake.png
If it's item (4)
(4) Intake Filter Air Hose, part: 143437 (NFP - no longer available from Citroen).

If any other let me know the item number from the above.
Please Don't PM Me For Technical Help

Marc
John77vts
Donor 2024
Posts: 10
Joined: 26 Aug 2019, 14:29

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by John77vts »

Hi Marc
Yes thats the part thank you i will now try to source one online.

Kind regards

John
BVL
Donor 2024
Posts: 23
Joined: 22 Jan 2024, 03:28
x 2

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by BVL »

Hi Marc,

Could you please provide me the following oe numbers ?

1. Camshaft pulley bolt
2. Crankshaft timing belt pulley bolt

Also need to know the tightening torques for the same.

Thanks,

Bart
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38161
Joined: 15 Sep 2015, 19:38
x 5924

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

bvl cam.png
I'm going out for an hour, let me know which items.
Please Don't PM Me For Technical Help

Marc
BVL
Donor 2024
Posts: 23
Joined: 22 Jan 2024, 03:28
x 2

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by BVL »

Hi Marc,

1st one is item no:10
2nd item is not in this exploded view, it is the bolt that fits the lower auxilery belt pulley to the Crankshaft.

And i need to know the tightening torques for the 2 items.

Thanks,

Bart
Last edited by BVL on 20 Feb 2024, 19:44, edited 1 time in total.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38161
Joined: 15 Sep 2015, 19:38
x 5924

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

bvl cam.png
(10) Camshaft Pulley Screw, part: 1682801980, £2.62

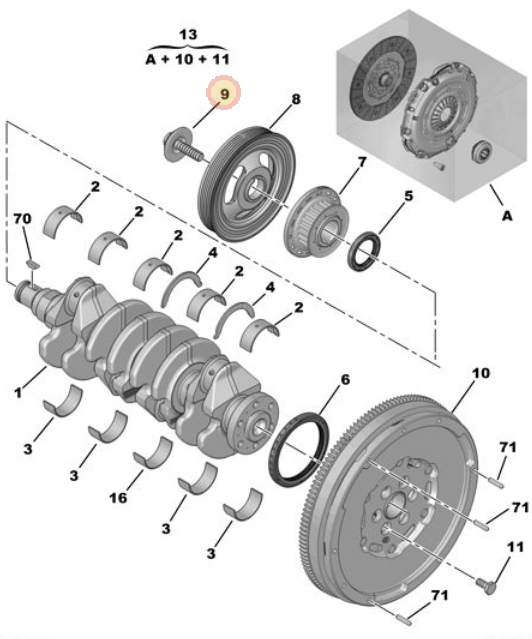

bvl crank.png
If it's (9), Crankshaft Pulley Screw, part: 1682800780, £8.65
Please Don't PM Me For Technical Help

Marc
BVL
Donor 2024
Posts: 23
Joined: 22 Jan 2024, 03:28
x 2

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by BVL »

Thanks Marc!
dylan26__
Donor 2024
Posts: 97
Joined: 02 Apr 2022, 12:51
x 20

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by dylan26__ »

Good morning! Could I have the part numbers for the front shock absorbers. I'm finding two different sizes of outer diameter for my car just need to make sure it's the right one

VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38161
Joined: 15 Sep 2015, 19:38
x 5924

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

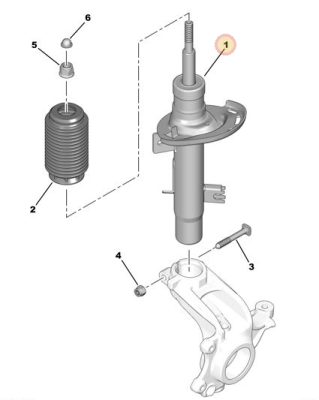

Dylan shocks.png
(1) Front Damper
OEM Left, part: 5208H1, £88.48
OEM Right, part: 5208H2, £88.148

Cheaper Alternative Left, part: 1635532080, £81.04
Cheaper Alternative Right, part: 1635530880, £71.93
Please Don't PM Me For Technical Help

Marc
howardaskew
Donor 2023
Posts: 74
Joined: 21 Jun 2007, 00:30
x 2

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by howardaskew »

Citroen C5 X7 Estate 2012 VTR+ 1.6HDI 110 Wishbone Part nos.
Post by howardaskew » Sat Feb 24, 2024 1:27 pm

Good morning.
I am looking to change the wishbones on both sides of our 2012 C5 X7 Estate 1.6HDI VTR+ DV6C 110 VIN VF7**************[VIN obfuscated, can be read by forum staff]
Would I be correct in stating that the part numbers would be the same as our 2010 C5 X7 Saloon 2.0HDI VTR+163 VIN VF7**************[VIN obfuscated, can be read by forum staff]

I am reading that there are more than one type of wishbone, would I be correct that around 2010 they changed the part?
I am always grateful for any help received on this forum.
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
x 378

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by admiral51 »

admiral51 wrote: 21 Dec 2023, 16:26 Hi Marc,

Could i have a part number for an engine oil dipstick for Vin VF3**************[VIN obfuscated, can be read by forum staff]**************[VIN obfuscated, can be read by forum staff] please. The yellow plastic puller has broken off.

thanks

Colin
Hi Marc,
Cannot edit my post to get the Vin and make a new post but could you have a look for what i believe is the indicator/wiper/ air bag assembly for the above Vin.
Has got issues with no indicators/lights and said something about the air bag as well.
If you can post the steering wheel assembly much appreciated.

Thanks

Colin
dylan26__
Donor 2024
Posts: 97
Joined: 02 Apr 2022, 12:51
x 20

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by dylan26__ »

GiveMeABreak wrote: 22 Feb 2024, 12:28 Image

(1) Front Damper
OEM Left, part: 5208H1, £88.48
OEM Right, part: 5208H2, £88.148

Cheaper Alternative Left, part: 1635532080, £81.04
Cheaper Alternative Right, part: 1635530880, £71.93
Does there happen to be a diagram showing the whole strut aswell? Seen some struts with a ribbed bowl sort of thing below the top mount and some don't have this. Just wanna check mine does and replace it if needed. Cheers
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38161
Joined: 15 Sep 2015, 19:38
x 5924

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

admiral51 wrote: 24 Feb 2024, 14:45
admiral51 wrote: 21 Dec 2023, 16:26 Hi Marc,

Could i have a part number for an engine oil dipstick for Vin VF3**************[VIN obfuscated, can be read by forum staff]**************[VIN obfuscated, can be read by forum staff] please. The yellow plastic puller has broken off.

thanks

Colin
Hi Marc,
Cannot edit my post to get the Vin and make a new post but could you have a look for what i believe is the indicator/wiper/ air bag assembly for the above Vin.
Has got issues with no indicators/lights and said something about the air bag as well.
If you can post the steering wheel assembly much appreciated.

Thanks

Colin
I need a VIN Colin - or tell me if it's the 2009 or 2010 X7 in your profile.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38161
Joined: 15 Sep 2015, 19:38
x 5924

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

dylan26__ wrote: 24 Feb 2024, 18:12 Does there happen to be a diagram showing the whole strut aswell? Seen some struts with a ribbed bowl sort of thing below the top mount and some don't have this. Just wanna check mine does and replace it if needed. Cheers

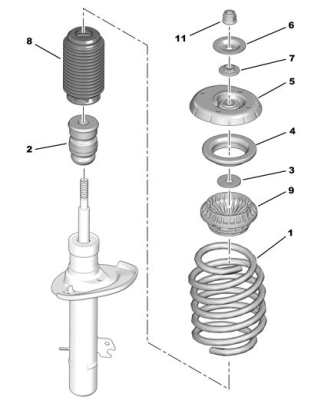

The Springs are on a separate diagram:
dylan springs.png
Let me know item numbers
Please Don't PM Me For Technical Help

Marc
howardaskew
Donor 2023
Posts: 74
Joined: 21 Jun 2007, 00:30
x 2

C5 X7 Wishbones are there different types?

Post by howardaskew »

Citroen C5 X7 Estate 2012 VTR+ 1.6HDI 110 Wishbone Part nos.
Post by howardaskew » Sat Feb 24, 2024 1:27 pm

Good morning.
I am looking to change the wishbones on both sides of our 2012 C5 X7 Estate 1.6HDI VTR+ DV6C 110 VIN VF7**************[VIN obfuscated, can be read by forum staff]
Would I be correct in stating that the part numbers would be the same as our 2010 C5 X7 Saloon 2.0HDI VTR+163 VIN VF7**************[VIN obfuscated, can be read by forum staff]

I am reading that there are more than one type of wishbone, would I be correct that around 2010 they changed the part?
I am always grateful for any help received on this forum.
Last edited by GiveMeABreak on 25 Feb 2024, 12:23, edited 1 time in total.
Reason: Post moved to the Parts thread
