307 clutch pedal vibration..?

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.
Slobo2712
Posts: 91
Joined: 21 Oct 2019, 07:08

307 clutch pedal vibration..?

Unread post by Slobo2712 »

Hello everyone,I have this issue for about 3-4 months.Clucth pedal is vibrating when it's pressed at half.You can her this vibration only inside car,not on engine.There is no vibration when switching off car or anything else,car is beheving like normal.Tnx in advance

User avatar
mickthemaverick
Donor 2024
Posts: 15112
Joined: 11 May 2019, 17:56
x 6496

Re: 307 clutch pedal vibration..?

Unread post by mickthemaverick »

I know nothing about Peugeot clutches but that sound to me is the sound of a dry release bearing. If the noise goes away as you press the clutch right in then that would be my guess!! :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
Slobo2712
Posts: 91
Joined: 21 Oct 2019, 07:08

Re: 307 clutch pedal vibration..?

Unread post by Slobo2712 »

Vibration stops when you move this cylinder by hand..?
User avatar
CitroJim
A very naughty boy
Posts: 51641
Joined: 30 Apr 2005, 23:33
x 6866

Re: 307 clutch pedal vibration..?

Unread post by CitroJim »

Check your bellhousing (engine to gearbox) bolts are tight...
Jim

Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
mickthemaverick
Donor 2024
Posts: 15112
Joined: 11 May 2019, 17:56
x 6496

Re: 307 clutch pedal vibration..?

Unread post by mickthemaverick »

You shouldn't be able to move that by hand I don't think. Check its mounting bolts and Jim advises checking the bellhousing bolts too. :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
Slobo2712
Posts: 91
Joined: 21 Oct 2019, 07:08

Re: 307 clutch pedal vibration..?

Unread post by Slobo2712 »

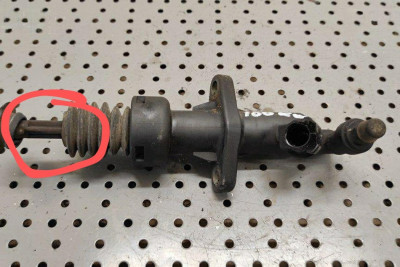

Not entire cylinder,I can move by hand just this part behind rubber.
User avatar
CitroJim
A very naughty boy
Posts: 51641
Joined: 30 Apr 2005, 23:33
x 6866

Re: 307 clutch pedal vibration..?

Unread post by CitroJim »

That's looking very much like a failing release bearing or a failing clutch diaphragm spring...
Jim

Runner, cyclist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
User avatar
mickthemaverick
Donor 2024
Posts: 15112
Joined: 11 May 2019, 17:56
x 6496

Re: 307 clutch pedal vibration..?

Unread post by mickthemaverick »

Does the clutch operating arm move with the cylinder rod or just the rod?
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
Slobo2712
Posts: 91
Joined: 21 Oct 2019, 07:08

Re: 307 clutch pedal vibration..?

Unread post by Slobo2712 »

mickthemaverick wrote: 03 Dec 2023, 08:48 Does the clutch operating arm move with the cylinder rod or just the rod?
Yes,everything is working as it should,no car vibrations shaking,nothing at all..
User avatar
mickthemaverick
Donor 2024
Posts: 15112
Joined: 11 May 2019, 17:56
x 6496

Re: 307 clutch pedal vibration..?

Unread post by mickthemaverick »

I meant when you move it by hand?
:)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
