Citroen, DS Automobiles and Peugeot Official Part Number Requests

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

dylan26__
Donor 2024
Posts: 102
Joined: 02 Apr 2022, 12:51
x 20

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by dylan26__ »

Heyo, happy bank holiday weekend.

I have lost the clamp for my dpf pressure sensor pipe.
Are you able to find that for me? It's a sort of u shape with a bolt that goes through it. It holds a metal line that goes from the dpf to the pressure sensor. Kind regards

VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38773
Joined: 15 Sep 2015, 19:38
x 6055

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

Let me know which item on Diag A or Diag B

Diag A
Dylan dpf a.png

Diag B
Dylan dpf b.png
Please Don't PM Me For Technical Help

Marc
dylan26__
Donor 2024
Posts: 102
Joined: 02 Apr 2022, 12:51
x 20

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by dylan26__ »

GiveMeABreak wrote: 05 May 2024, 14:13 Let me know which item on Diag A or Diag B

Diag B
Will be Diagram B 71&18
RichardW
Forum Treasurer
Posts: 11115
Joined: 07 Aug 2002, 17:12
x 1062

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by RichardW »

71 is bolt M6 x 1mm x 20mm (part no 692395 @ £1.46).
18 is the clamp, part no 1714R4 @ £10.73
Richard W
Dustysweeper
Donor 2023
Posts: 61
Joined: 29 Jan 2023, 17:26
x 6

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Dustysweeper »

Good evening. Looking for par numbers for Anti roll bar bushes and both control arms, may as well change the drop links too.

VF7**************[VIN obfuscated, can be read by forum staff]

Many thanks.

Duncan.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38773
Joined: 15 Sep 2015, 19:38
x 6055

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

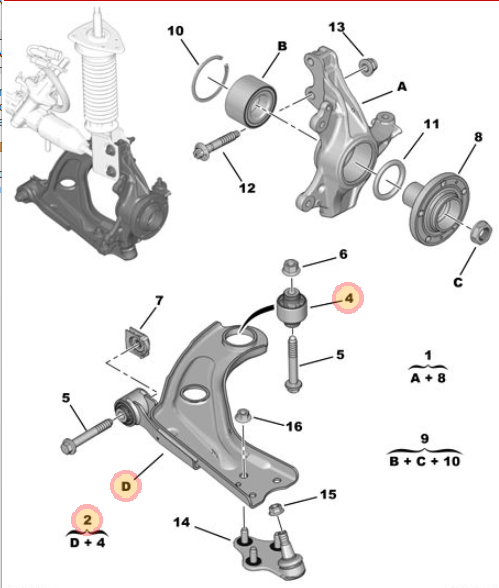

I can't get the OEM Drop Rod Links - they won't allow me to add, so there may be an issue, so these are the alternative and cheaper approved part:
dusty Drop Link.png
(1) Anti Roll Bar, part: 9802490980, £347.78
(2) Anti-Roll Bar rod, part: 1679755380, £19.78
(5) Nut, part: 9807710580, £0.76
dusty wish.png
(2) OEM Front Wishbone (Left), part: 9846329780, £121.45
Cheaper Version (Left), part: 1682729680, £40.56

OEM Wishbone (Right), part: 9846329280, £115.46
Cheaper Version (right), part: 1682729580, £47.40
Please Don't PM Me For Technical Help

Marc
DaveS
Donor 2024
Posts: 14
Joined: 10 Apr 2024, 23:35
x 1

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by DaveS »

Hi gang, can I please get the part numbers for:

aux belt
aux belt idler wheel (the one that bolts through the timing cover)
aux belts
the 3 bolts that hold the harmonic balancer to the end of the crank. Dont suppose you have access to torque specs for this also? Would be awesome if you did :)

vin is VF3**************[VIN obfuscated, can be read by forum staff]

Many thanks!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38773
Joined: 15 Sep 2015, 19:38
x 6055

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

They do a kit for this.

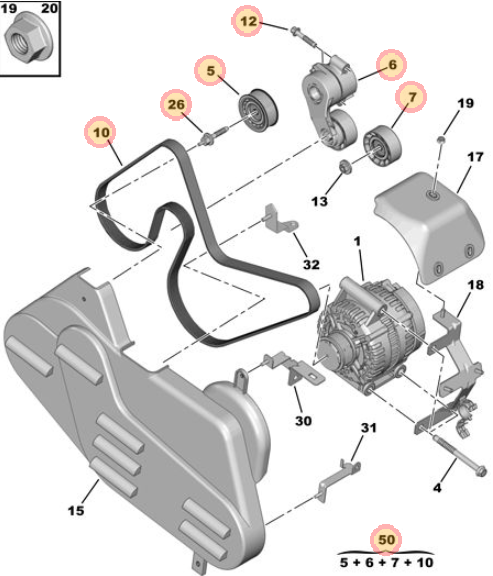

daves alt belt fixings.png
(50) Ancillary Belt Roller Kit (includes 5, 6, 7 & 10)

OEM, part: 1611281280, £185.14
Cheaper Peugeot Kit, part: 1687683080, £160.34

(1) Belt Alone, part: 9676553180, £48.96
(12) Flanged Bolt, part: 5703C0, £1.45
(26) Protector Screw, part: 1608981380, £4.08


The accessories drive pulley torque:

Pre-tighten to 4,5 daNm
Angular tightening to 120 ± 5°
Please Don't PM Me For Technical Help

Marc
DaveS
Donor 2024
Posts: 14
Joined: 10 Apr 2024, 23:35
x 1

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by DaveS »

Awesome, thanks Marc!

Would you have the part number for the bolts too please? I need a set of those.. lets just say there were disagreements during their initial extraction :)
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38773
Joined: 15 Sep 2015, 19:38
x 6055

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

I can't see any other than the ones listed at (12) and the screw at (26) - so which other bolts - the alternator (4)?
Please Don't PM Me For Technical Help

Marc
DaveS
Donor 2024
Posts: 14
Joined: 10 Apr 2024, 23:35
x 1

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by DaveS »

Sorry, dumb moment!

I meant the 3 bolts for the accessory drive pulley
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38773
Joined: 15 Sep 2015, 19:38
x 6055

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

(4) Alternator Fixing Bolts?, part: 1606365780.

If not then I don't know which other bolts you are referring to apart from the timing belt tensioner. There's nothing else I can see. :-k
Please Don't PM Me For Technical Help

Marc
Pete_D60
Donor 2024
Posts: 16
Joined: 26 Apr 2024, 09:39
x 2

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by Pete_D60 »

I’ll need to source the following for VF7**************[VIN obfuscated, can be read by forum staff] :

Cabin filter
Air filter
Fuel filter
Oil filter
Sump gasket (going to check and clean the oil pickup if necessary)
Sump plug washer

Thanks & regards,

Pete
Occasionally, I actually understand what I’m doing, however, now is not one of those times! #-o
User avatar
GiveMeABreak
Forum Admin Team
Posts: 38773
Joined: 15 Sep 2015, 19:38
x 6055

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by GiveMeABreak »

pete parts cabin.png
(11) Passenger Comp. Carbon Filter
OEM: Part: 647975, £50.96
Citroen Cheaper option, part: E146177, £19.31
Anti Allergenic Filter, part: 647941, £63.65
pete parts Fuel Filter.png
(6) Fuel Filter

OEM, part: 9809721080, £60.97
Citroen Cheaper Option, part: 1611659480, £36.05

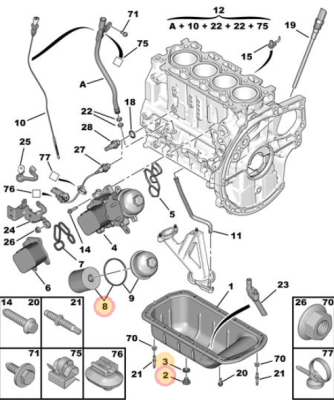

pete parts Oil Filter.png
(08) Oil Filter
OEM, part: 1109AY, £18.54
Citroen Cheaper Option, part: 1687120580, £9.40

(2) Engine Oil Drain Plug, part: 031129, £1.76
(3) Draining Plug Gasket, part: 1682801680, £1.48

The sump gasket is not showing available separately.
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 11115
Joined: 07 Aug 2002, 17:12
x 1062

Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

Post by RichardW »

No sump gasket, it's sealed with RTV silicone.
Richard W
