09 Citroen C5 Aux Belt routing and tensioner advice?

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
chunky2778
Posts: 24
Joined: 14 Mar 2022, 20:40
Location: Plymouth
My Cars: 2009 C5 VTR+ 110 HDi

09 Citroen C5 Aux Belt routing and tensioner advice?

Post by chunky2778 »

Hi all can anyone confirm this is the correct routing for the aux belt please and also that the tensioner is in the right place?

I bought it recently, tensioner body was worn and belt running wonky, replaced belt and tensioner and there's a keyway in back of tensioner that fits into block.

However there's still a vibration on start up and the tensioner looks like it's moving too much, I'd also say the tensioner looks too close to the pulley, does it look right please?
Attachments
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: 09 Citroen C5 Aux Belt routing and tensioner advice?

Post by wheeler »

Looks right, if the tensioner was fitted wrong i would expect the belt would have been either impossible to get on or flapping about.
Attachments
drive belt.png
chunky2778
Posts: 24
Joined: 14 Mar 2022, 20:40
Location: Plymouth
My Cars: 2009 C5 VTR+ 110 HDi

Re: 09 Citroen C5 Aux Belt routing and tensioner advice?

Post by chunky2778 »

Thanks Wheeler, I fitted it all the same way it came off, drew a diagram etc before replacing, replaced it with an FAI tensioner which normally is a reasonable manufacturer?

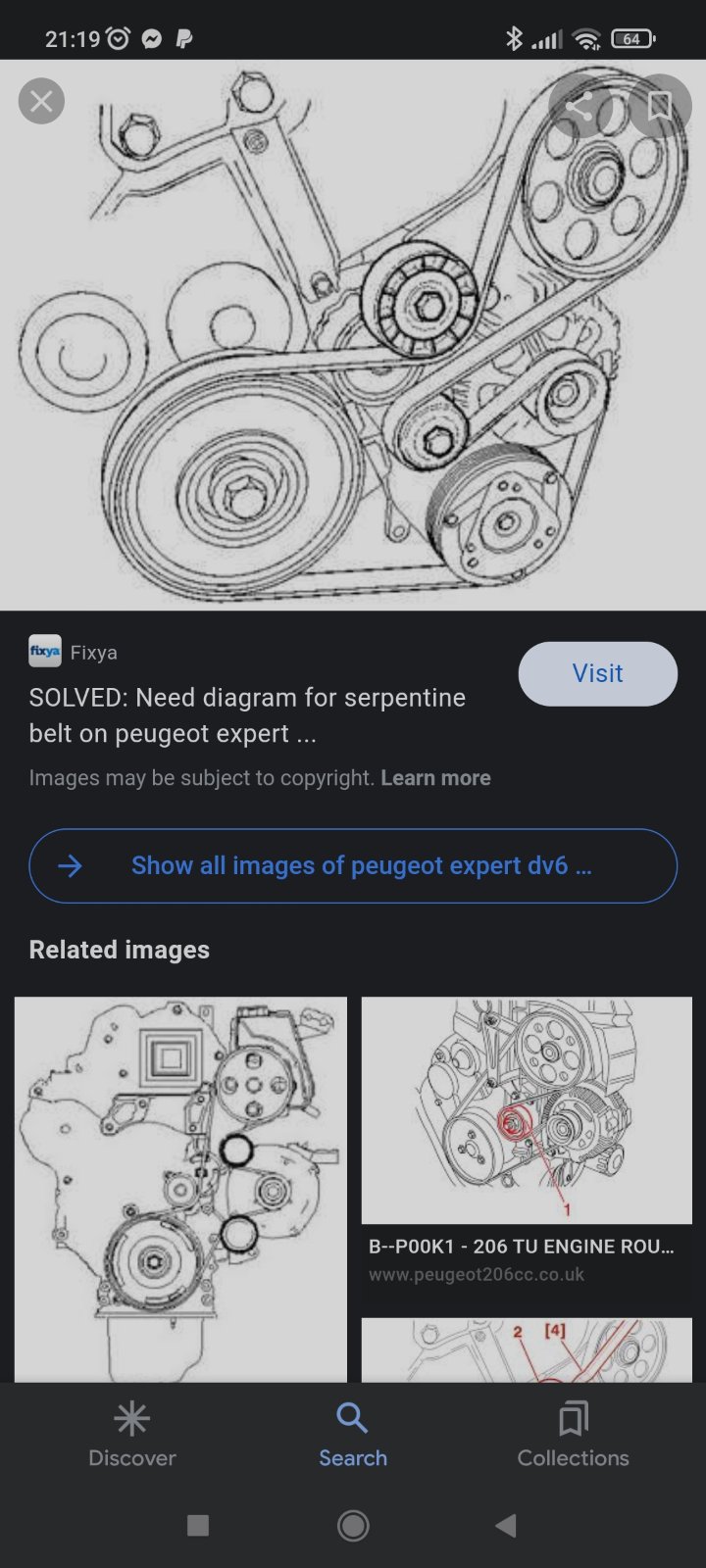

Just seems weird how it's tensioned so close to the crank pulley, I'd expected it to look something like this.....
Attachments
User avatar
Lenny
Posts: 194
Joined: 03 Jan 2013, 20:17
Location: North Lincolnshire
My Cars: 1986 2cv Charleston
1986 2cv Special
2010 C5 2.0HDi Exclusive Tourer Auto
1992 VW Corrado VR6
1970 Vw Beetle
x 38

Re: 09 Citroen C5 Aux Belt routing and tensioner advice?

Post by Lenny »

When my belt and tensioner were vibrating it turned out to be the clutch pulley on the alternator.
The new pulley was about £25 (but the tool to fit it was the same).
chunky2778
Posts: 24
Joined: 14 Mar 2022, 20:40
Location: Plymouth
My Cars: 2009 C5 VTR+ 110 HDi

Re: 09 Citroen C5 Aux Belt routing and tensioner advice?

Post by chunky2778 »

Lenny wrote: 14 May 2022, 20:55 When my belt and tensioner were vibrating it turned out to be the clutch pulley on the alternator.
The new pulley was about £25 (but the tool to fit it was the same).
Thanks Lenny, I logged back in to say I double checked the tensioner today and it's in the right place, when I spin the alternator the clutch is seized, you beat me to it :-D

I think I've found a tool for around £7 on eBay but do you have to take the alternator out or do it in place?
User avatar
Lenny
Posts: 194
Joined: 03 Jan 2013, 20:17
Location: North Lincolnshire
My Cars: 1986 2cv Charleston
1986 2cv Special
2010 C5 2.0HDi Exclusive Tourer Auto
1992 VW Corrado VR6
1970 Vw Beetle
x 38

Re: 09 Citroen C5 Aux Belt routing and tensioner advice?

Post by Lenny »

do you have to take the alternator out or do it in place?
Mine (2.0 HDi 160) was alternator off as there was no room to even get the tool in to try.

It wasn't a bad job though.

(It would've probably been an easy-ish couple of hours if I hadn't lost the strange expanding nut thing for one of the main bolts and had to visit the local scrappy the next day to get another :oops: )
Post Reply
