hi there.
i dont know that where i have to connect these yellow-green line wires!
they are the wires that are near oxygen sensor connector and feeding ecu +12 but where are they connected?
citroen xantia xu10jp4 ecu electric harness
Moderator: RichardW
Re: citroen xantia xu10jp4 ecu electric harness

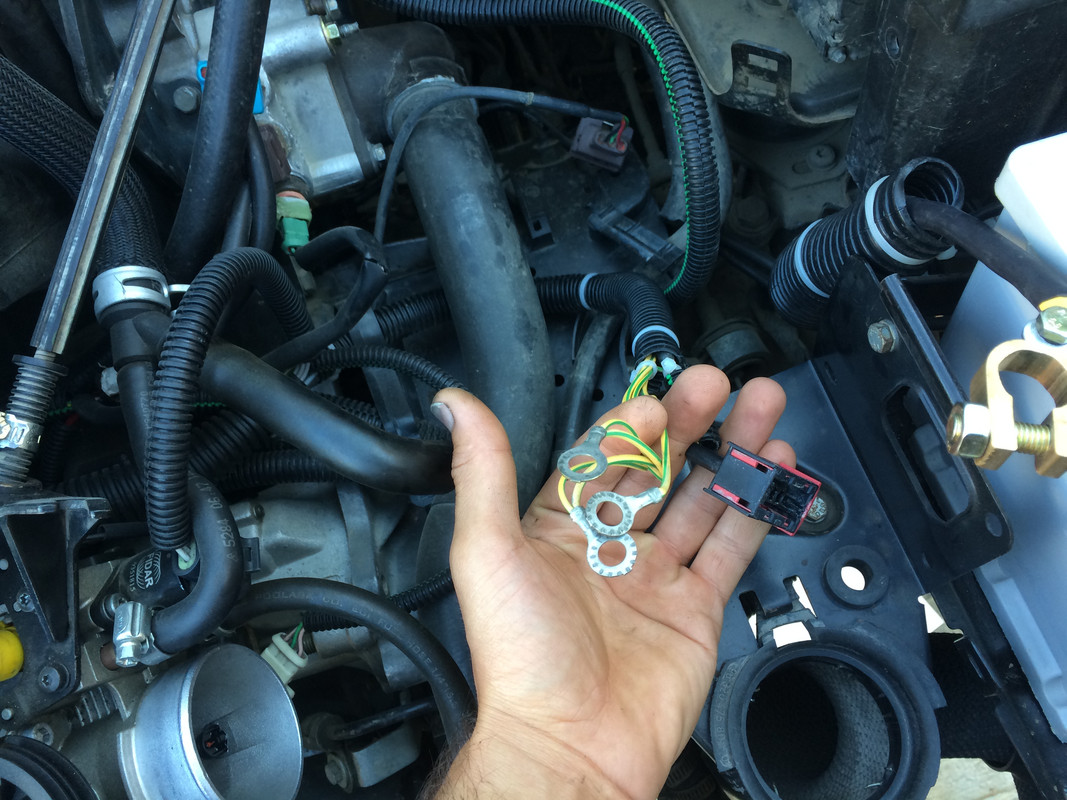

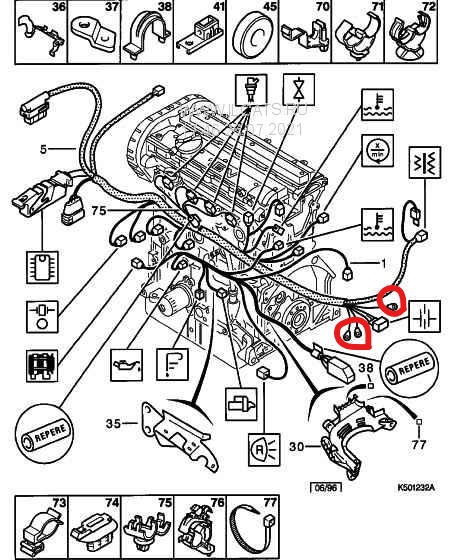

They are earths so its shouldnt really matter to much as long its a good clean earth. If its the ones im thinking of though the bolt straight onto the top of the gearbox.
Re: citroen xantia xu10jp4 ecu electric harness
yes i did that too. but car wont start and also ecu was not working(not connecting to diagbox and no check engine light + no crank on dashboard) then i checked the ecu input voltage i mean pin 18 on ecu connector. it was negative 12 volt while it have to be 12+
then i followed the wire of pin 18. it is ended on those yellow-green line wires so should i connect them to positive?
then i followed the wire of pin 18. it is ended on those yellow-green line wires so should i connect them to positive?
- xantia_v6
- Forum Admin Team
- Posts: 9053
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 825
Re: citroen xantia xu10jp4 ecu electric harness
Do not connect those terminals to +12V, it will destroy the ECU!
I think that you may have counted the pin numbers incorrectly on the connector.
Is this the original harness and ECU for the car?
I think that the XU10JP4 may have been fitted with more than one type of ECU that would require a different harness. If you post the VIN, we may be able to work out what should be fitted and find a correct wiring diagram.
I think that you may have counted the pin numbers incorrectly on the connector.
Is this the original harness and ECU for the car?
I think that the XU10JP4 may have been fitted with more than one type of ECU that would require a different harness. If you post the VIN, we may be able to work out what should be fitted and find a correct wiring diagram.
Re: citroen xantia xu10jp4 ecu electric harness
the harness is looking like the original of the car

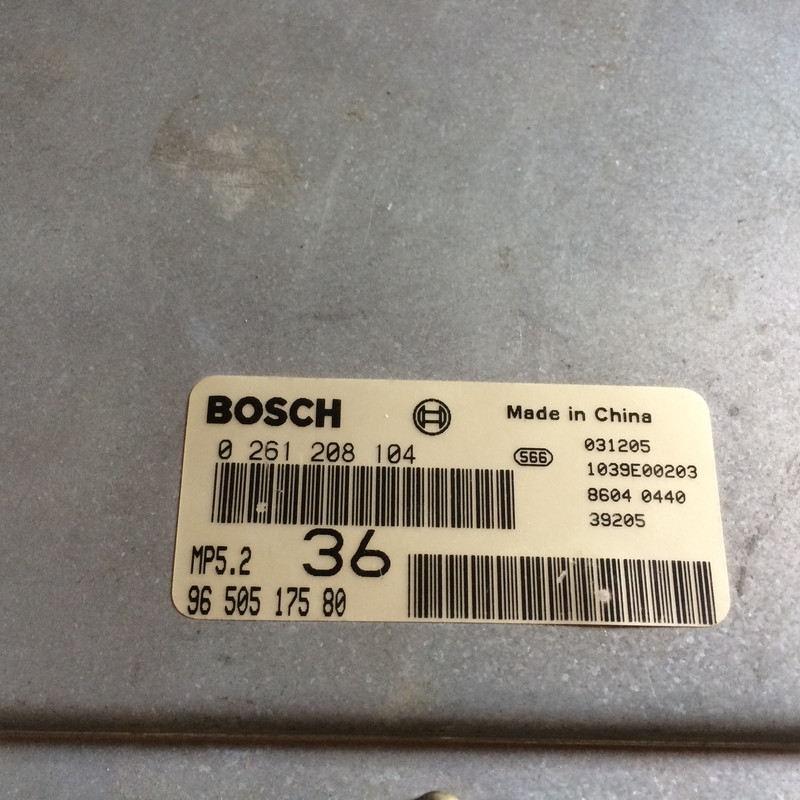

ecu is bosch mp5.2 and i know it is the original of the car (but ex-owner turned immo off)

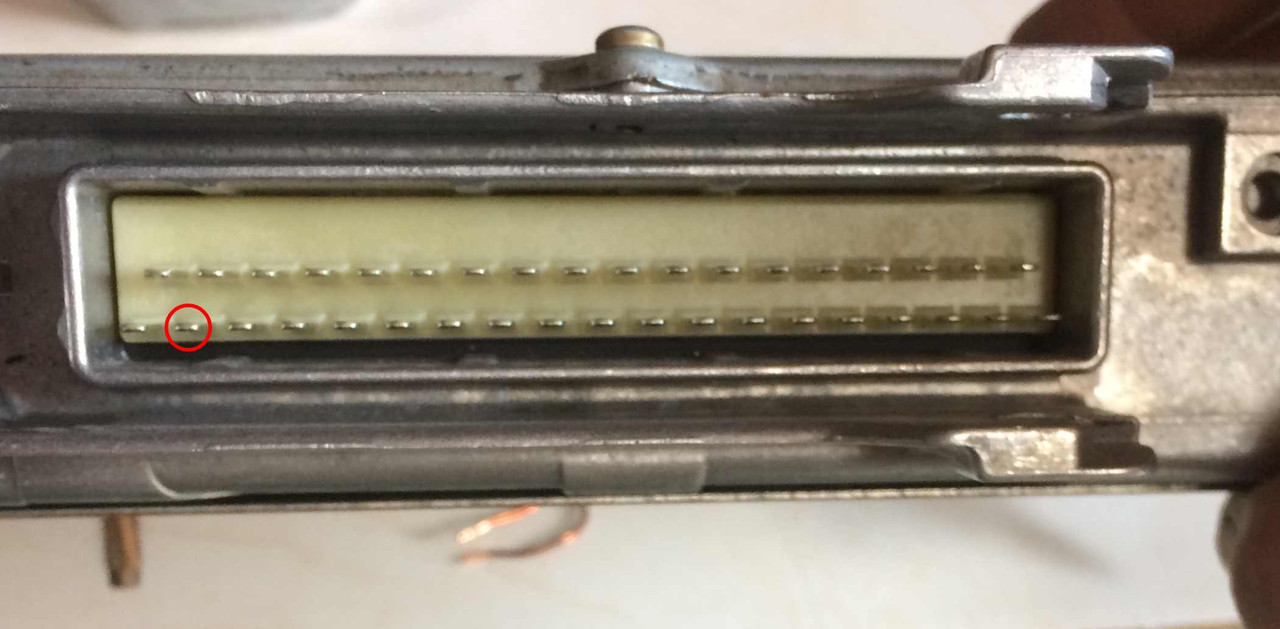

pin 18 on ecu marked with red

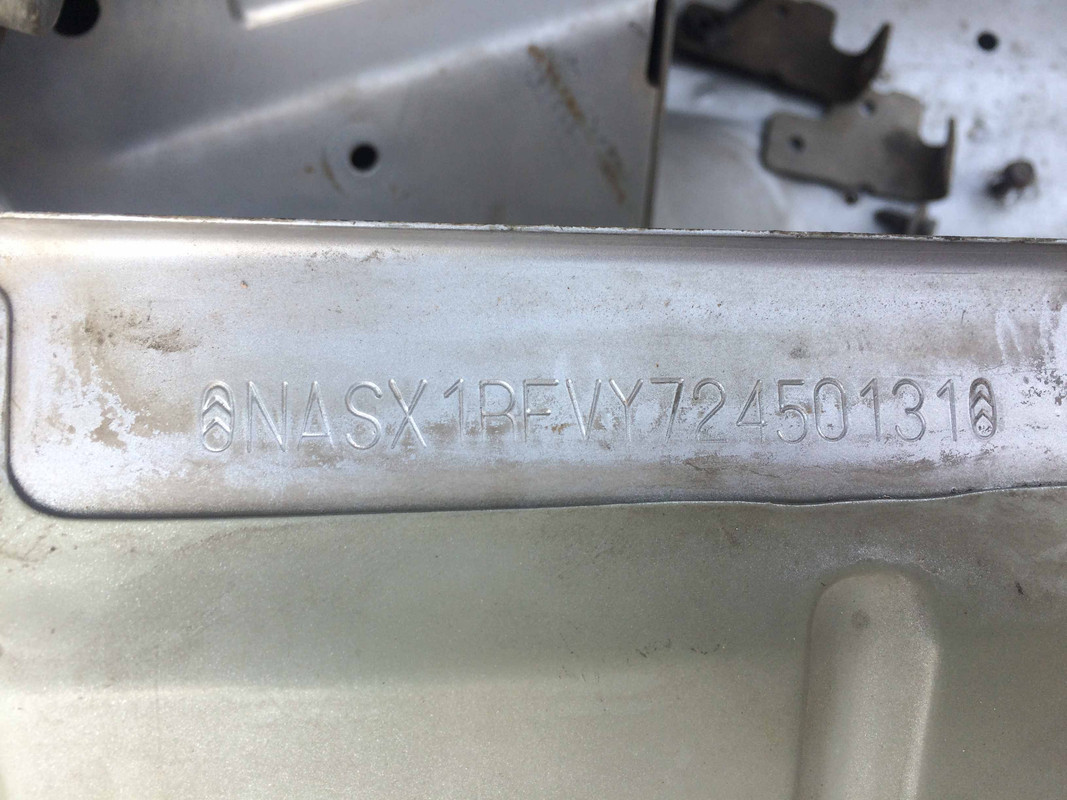

car VIN:
ecu is bosch mp5.2 and i know it is the original of the car (but ex-owner turned immo off)
pin 18 on ecu marked with red
car VIN:
Re: citroen xantia xu10jp4 ecu electric harness
guys can u help me?
Re: citroen xantia xu10jp4 ecu electric harness
thank you all for help.
i checked the ecu connector again and found that i counted the pins incorrectly. the pin that i was thinking it is 18, in fact was pin 2. and i connect the yellow-green line wires to ground on gearbox as like it was before.
but there wasn't any voltage in pin 18. so i checked fuses(f6 inside cabin and big fuses under hood) and they all had 12+ voltage.
so finally i followed the wire of pin 18 to find problem.

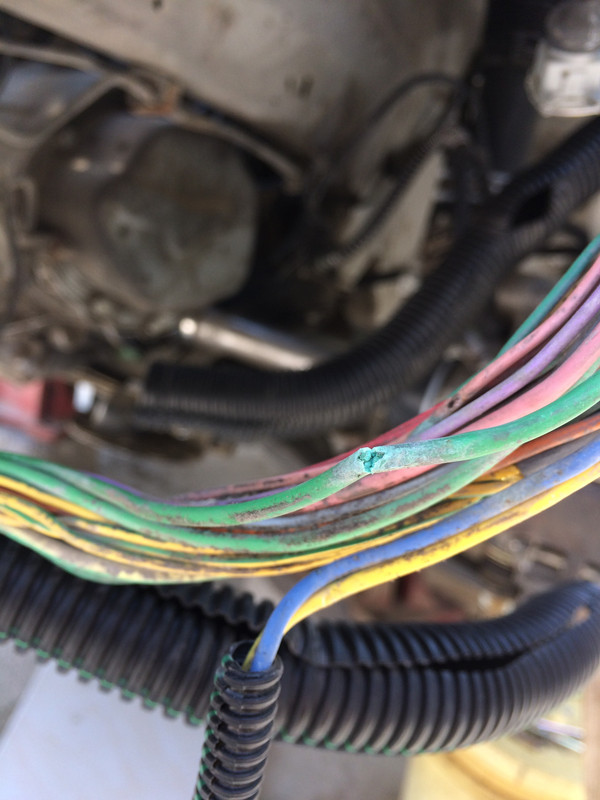

and i found it.
i checked the ecu connector again and found that i counted the pins incorrectly. the pin that i was thinking it is 18, in fact was pin 2. and i connect the yellow-green line wires to ground on gearbox as like it was before.
but there wasn't any voltage in pin 18. so i checked fuses(f6 inside cabin and big fuses under hood) and they all had 12+ voltage.
so finally i followed the wire of pin 18 to find problem.
and i found it.
