AX boot lock, maybe from Saxo

Post by djg »

Hi,

Chris convinced me to register with my question. Some of you might know me from before (Citroën BX DIY website, the -L mailing lists of yore, co-author of the Citroën Technical Guide)...

This time, it's about an AX in the family, now in the process of repairing what's needed to get through MOT. Although it's technically ours (actually, my mother's) but it was used by a friend who has, since, passed away, some small issues neglected. One outstanding problem is, as with so many AXs, with the boot lock (3-door, no central locking). The usual symptoms, spinning in place. As the AX lock was always of a very unfortunate design, I don't really intend to replace it with the same lock (not that it would be that easy to source one, actually). So, the idea of fitting a Saxo lock came up. It isn't a straight swap by any means, the bolts to secure it are different and there is no provision for it on the AX door, of course. Besides, being a single layer plastic door, it can't be done easily, either.

Hence my question. Does somebody have experience with this, knowing what lock can be made to fit and how?

Thanks for any suggestions or ideas.
Bye,
Gábor
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: AX boot lock, maybe from Saxo

Post by white exec »

Hi, Gabor, and a big welcome to FCF.
Hopefully your question will get some answers from the AX/Saxo experts.

Note
Must, in all fairness, point out that Gabor registered here on the condition that we made him Tea.
Neil, Mick...
You are hereby delegated to organise this. It was a rash promise, I know, and I hope (one day) to drink real tea with Our Man.
:wave1:
Chris
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: AX boot lock, maybe from Saxo

Post by xantia_v6 »

Welcome Gabor!

Maybe a few photos would help the discussion? as most of us have never seen an AX boot lock.
User avatar
djg
Posts: 5
Joined: 14 May 2021, 18:56
Location: Budapest, Hungary
My Cars: 1996 XM 2.5 Turbo D VSX (LHD, Bleu Mauritius)
1986 BX 19 TRI Break (LHD, Rouge Vallelunga) deceased
1996 AX 14 D (LHD, Alaska White) in family
Contact:

Re: AX boot lock, maybe from Saxo

Post by djg »

Well, those who never saw one will be unlikely to help then. I hope to find someone who did it, actually. :-)

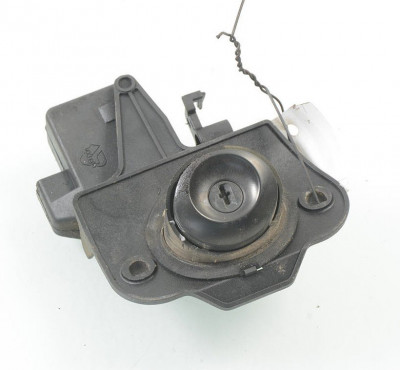

The whole setup looks like this:

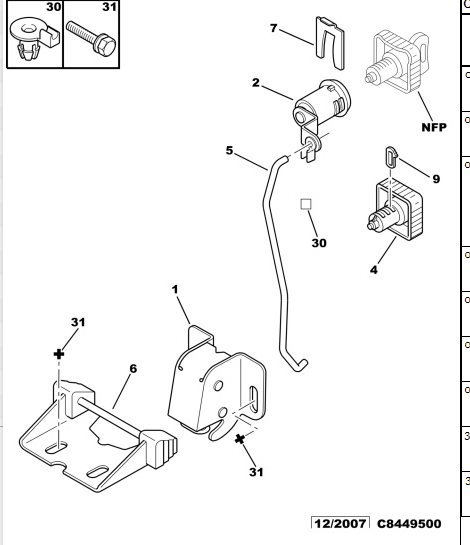

Being a one-layer plastic door, there is no real way to fix the lock with screws. They did it down with the latch where they found it inevitable but up with the lock, Citroën made the mistake of using a simple clip (7) to keep the lock in place. And, after a time, it does not.

I don't have a similar exploded look for the Saxo at hand but they did a much better job there:
Obviously, not a direct replacement, not even close. Still, the question remains whether somebody already solved the issue, found a way to fit this, anyway, or some other make, or maybe a way to fix the problems of the original design? Adding a central lock mechanism just to the boot door is also an option, but a more complicated one, of course, needing wiring and a way to actuate.
Bye,
Gábor
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: AX boot lock, maybe from Saxo

Post by wheeler »

Like you say the locks are not even close & both operate completely differently. The AX twists to unlock? (From memory, its a long time since i touched an AX lock) but the Saxo pushes to unlock and is also bolted on rather than a clip.

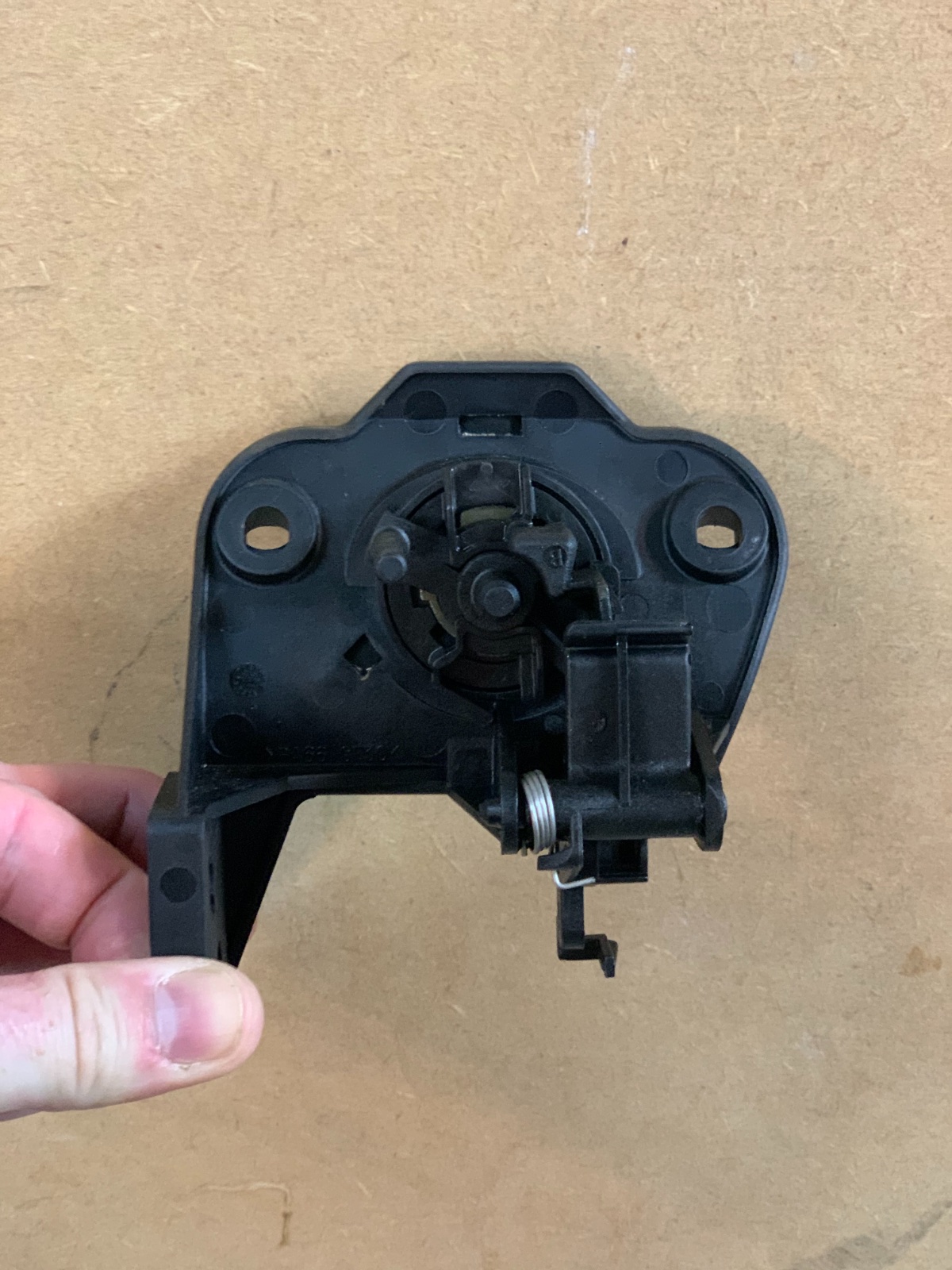

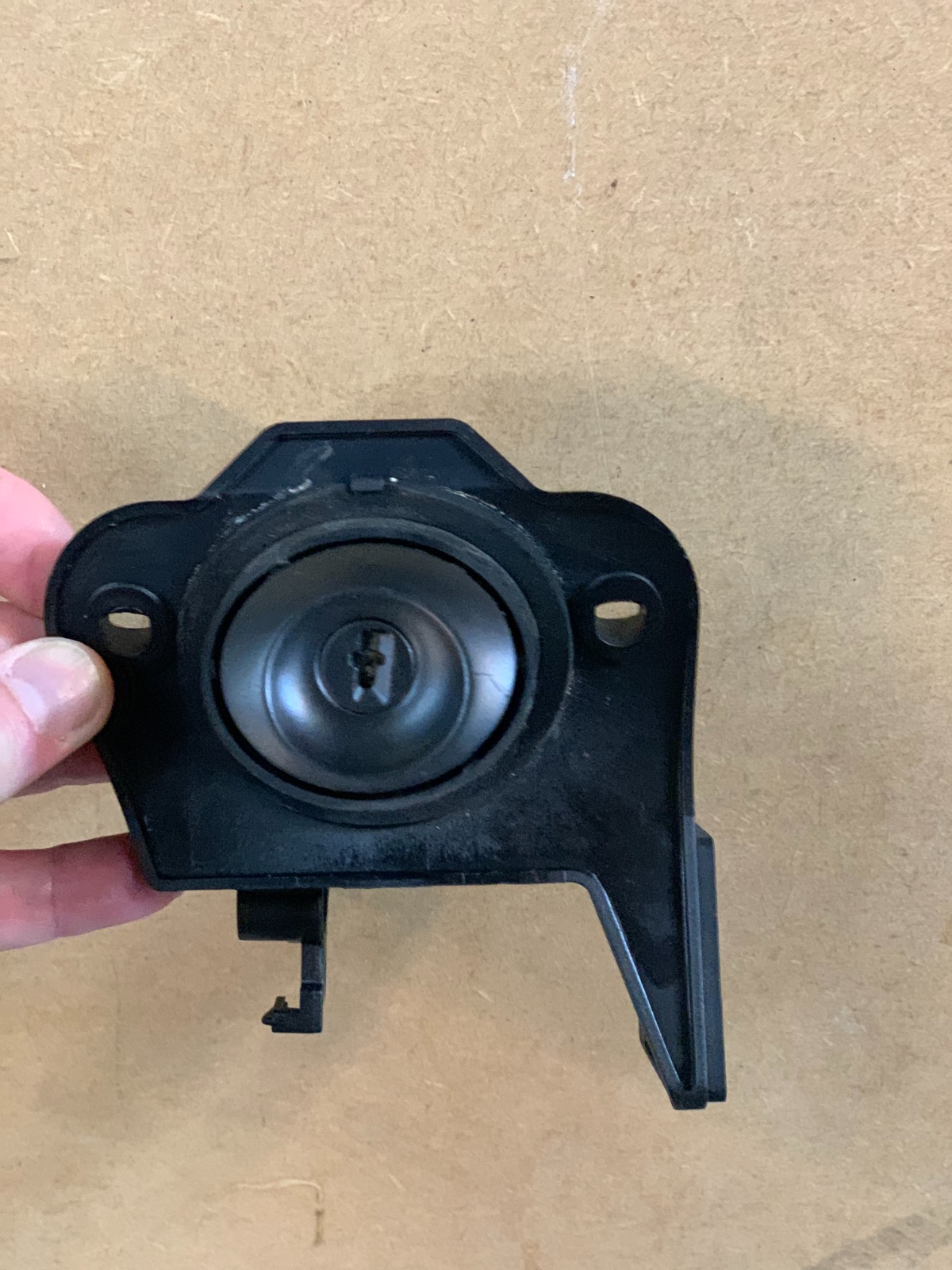

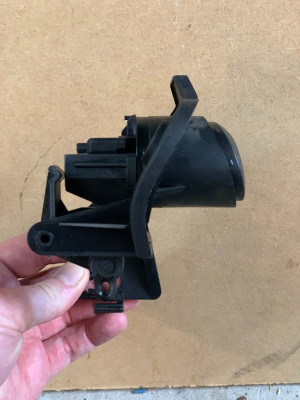

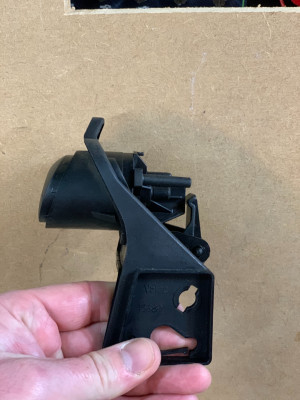

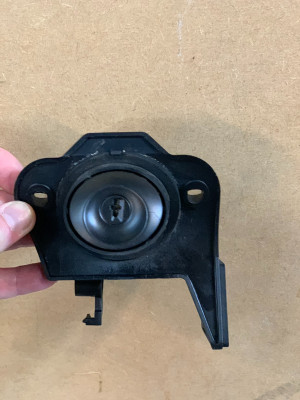

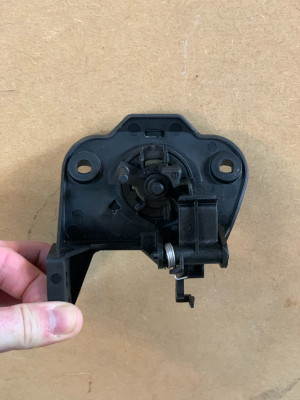

I have a Saxo boot lock here so here are some pics from different angles.
If i was unable to repair the original lock i would probably consider doing away with it & fitting a universal solenoid release with either a remote or hidden button.
Attachments
User avatar
djg
Posts: 5
Joined: 14 May 2021, 18:56
Location: Budapest, Hungary
My Cars: 1996 XM 2.5 Turbo D VSX (LHD, Bleu Mauritius)
1986 BX 19 TRI Break (LHD, Rouge Vallelunga) deceased
1996 AX 14 D (LHD, Alaska White) in family
Contact:

Re: AX boot lock, maybe from Saxo

Post by djg »

Thanks, these pictures were of real help. The car is at my mechanic, he will decide on the final solution. Seeing how the rod can actually be attached helped. A solenoid is still possible but attaching the solenoid would be simple, finding the way to operate it would be more daunting.
Bye,
Gábor
User avatar
djg
Posts: 5
Joined: 14 May 2021, 18:56
Location: Budapest, Hungary
My Cars: 1996 XM 2.5 Turbo D VSX (LHD, Bleu Mauritius)
1986 BX 19 TRI Break (LHD, Rouge Vallelunga) deceased
1996 AX 14 D (LHD, Alaska White) in family
Contact:

Re: AX boot lock, maybe from Saxo

Post by djg »

The problem is still not solved, we abandoned the Saxo idea and would be most happy with an original, broken or new AX lock. I tried Le Bon Coin and found one or two but the sellers simply won't respond to questions about delivery to these parts of the world (asked in French, of course)...
Bye,
Gábor
Online
User avatar
moizeau
(Donor 2022)
Posts: 1579
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 314

Re: AX boot lock, maybe from Saxo

Post by moizeau »

Hi Gabor, if you can find one in France I'd be willing to get it for you and post it on. Are all AX boot locks the same? What pieces of your original do you still have?
Pete
Notice the BX is still top the list but sadly gone
User avatar
djg
Posts: 5
Joined: 14 May 2021, 18:56
Location: Budapest, Hungary
My Cars: 1996 XM 2.5 Turbo D VSX (LHD, Bleu Mauritius)
1986 BX 19 TRI Break (LHD, Rouge Vallelunga) deceased
1996 AX 14 D (LHD, Alaska White) in family
Contact:

Re: AX boot lock, maybe from Saxo

Post by djg »

Pete, thanks, that would be very nice of you, thank you. My mechanic has just called me that there is a potential AX with probably the lock still there in a yard, he asked for it and expects to get the answer back next week. If that doesn't turn out to be available, I'll gladly take you up on it. :-))

I found more than one on leboncoin, I think they are the same, the parts to be seen on the diagram above, the rectangular surround (4) and the barrel that goes inside (2), that's all. Probably with the retaining spring (7) but this is the one that tends to fail over time, so we might find another way to secure the lock in place. Gluing it in place is tempting but not necessarily the best solution :-)
