C5 x7 v6 TTD Engine overheating
Moderator: RichardW
-
- (Donor 2021)
- Posts: 30
- Joined: 04 Apr 2016, 02:08
- Location: Coffs Harbour
- My Cars: Citroen C5 2010 Exclusive 3.0 L V6 DTT
- x 4
C5 x7 v6 TTD Engine overheating
Is there a valve in the cooling system that can be faulty and shut off the coolant to flow all the way through the engine ????
- GiveMeABreak
- Forum Admin Team
- Posts: 37295
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5710
Re: C5 x7 v6 TTD Engine overheating
What are the faults / symptoms? There was a modification to the cooling outlet housing on Euro 5 vehicles, relating to incidents with the engine coolant temperature sensor.
See my illustrated post here:
viewtopic.php?p=640455#p640455
See my illustrated post here:
viewtopic.php?p=640455#p640455
Please Don't PM Me For Technical Help
Marc
Marc
- xantia_v6
- Forum Admin Team
- Posts: 9080
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 833
Re: C5 x7 v6 TTD Engine overheating
That post is for the EP engines, I think not relavent here.GiveMeABreak wrote: ↑11 May 2021, 08:43 What are the faults / symptoms? There was a modification to the cooling outlet housing on Euro 5 vehicles, relating to incidents with the engine coolant temperature sensor.
See my illustrated post here:
viewtopic.php?p=640455#p640455
- GiveMeABreak
- Forum Admin Team
- Posts: 37295
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5710
Re: C5 x7 v6 TTD Engine overheating
I just rechecked and it does refer to the EP engines you are correct -so ignore that one.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 30
- Joined: 04 Apr 2016, 02:08
- Location: Coffs Harbour
- My Cars: Citroen C5 2010 Exclusive 3.0 L V6 DTT
- x 4
Re: C5 x7 v6 TTD Engine overheating
My wife phoned me from 5 klms away and said a warning sign had come up on the instrument , STOP ENGINE OVERHEATING .
I said drive home slowly and I will look for problem .
I had to add 5 litres of coolant to the tank after engine cooled , which seems a lot as it holds about 10 litres full .
I couldn't see a leak and today after a shopping trip I checked again and the plastic tank was empty . I thought the worse that a head gasket may have gone and the coolant was blowing out the exhaust !!
Decided to do an engine oil change as it was due at 170000 klm . Upon removing the large plastic tray under the engine I noticed cooling fluid on tray and now ran onto the garage floor .
Has anyone had a leak from their C5 X7 V6 3.0 L around the rear ?? of the engine as I have not found the source yet ??
I said drive home slowly and I will look for problem .
I had to add 5 litres of coolant to the tank after engine cooled , which seems a lot as it holds about 10 litres full .
I couldn't see a leak and today after a shopping trip I checked again and the plastic tank was empty . I thought the worse that a head gasket may have gone and the coolant was blowing out the exhaust !!
Decided to do an engine oil change as it was due at 170000 klm . Upon removing the large plastic tray under the engine I noticed cooling fluid on tray and now ran onto the garage floor .
Has anyone had a leak from their C5 X7 V6 3.0 L around the rear ?? of the engine as I have not found the source yet ??
- GiveMeABreak
- Forum Admin Team
- Posts: 37295
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5710
Re: C5 x7 v6 TTD Engine overheating

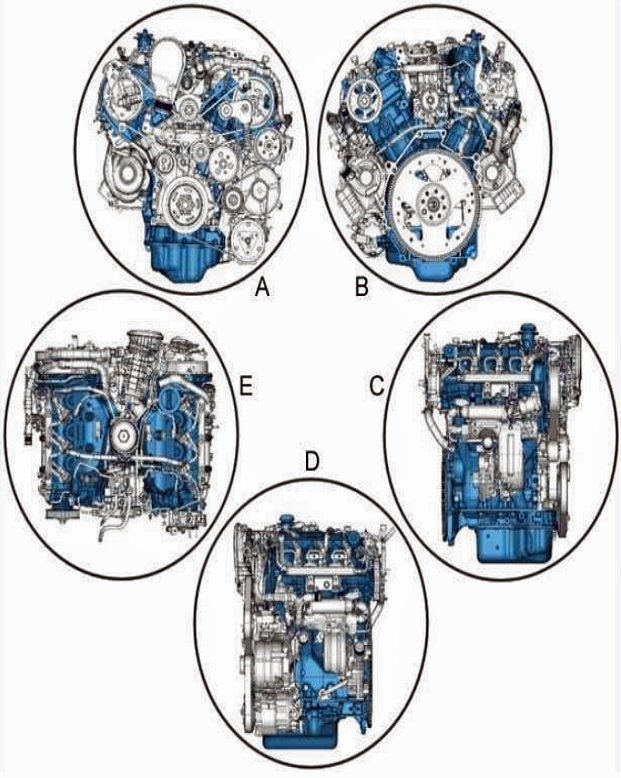

Have a look at the diagram below Hayden. Let me know which suspected area 'A' to 'E' the leak is coming from, bearing in mind gravity - so the source of the leak. You may need to take a few pics, dry the area up, then watch for the leak again to get the source.
Click Image to Zoom
Click Image to Zoom
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 30
- Joined: 04 Apr 2016, 02:08
- Location: Coffs Harbour
- My Cars: Citroen C5 2010 Exclusive 3.0 L V6 DTT
- x 4
Re: C5 x7 v6 TTD Engine overheating
Thanks for the drawings Marc ,

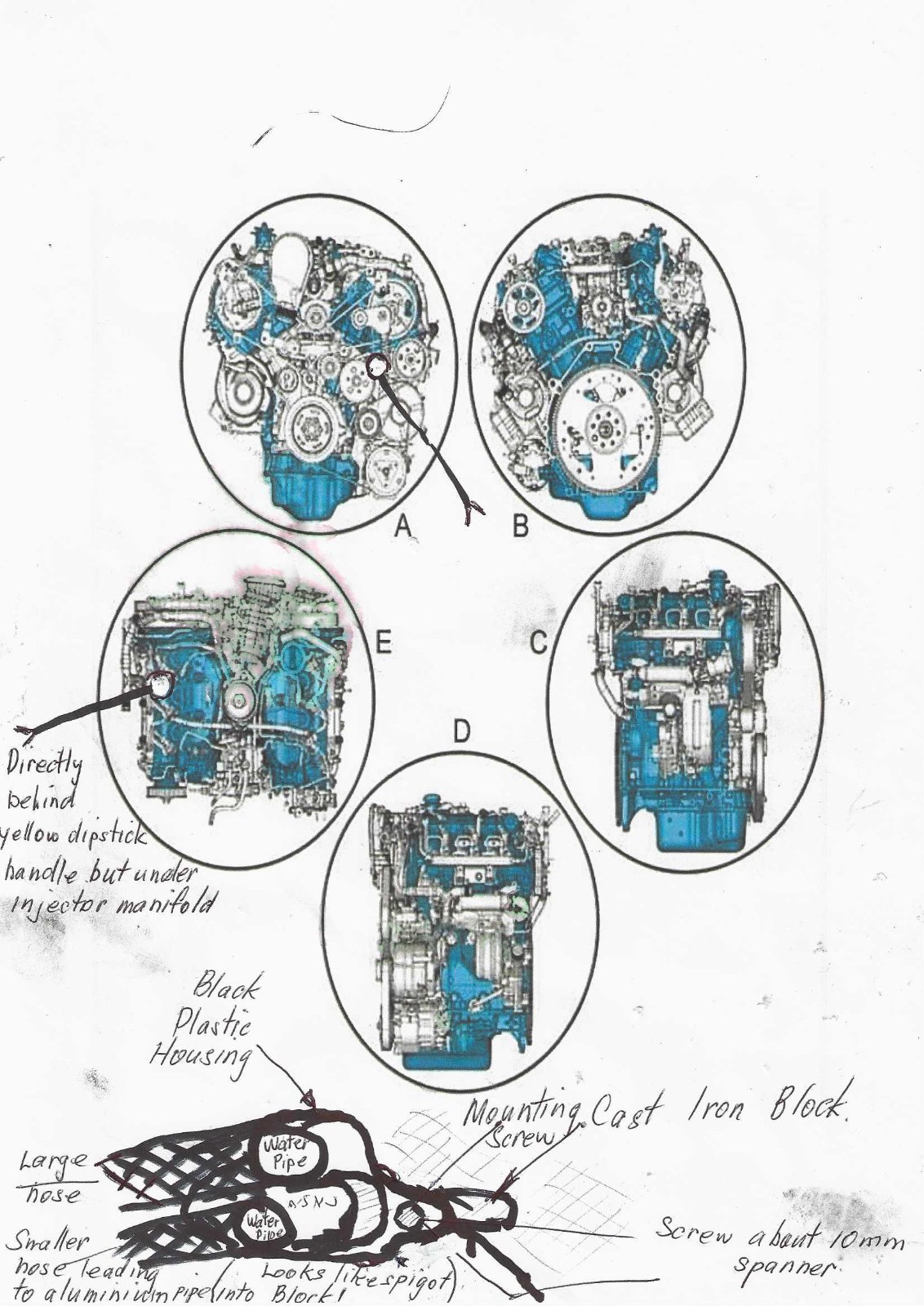

I have found the leak and it is in a very hard to access position . I will try and attach photos and the rough sketch I did .

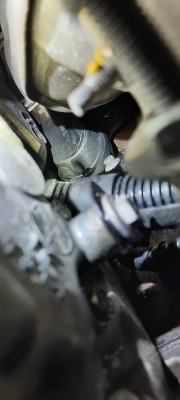

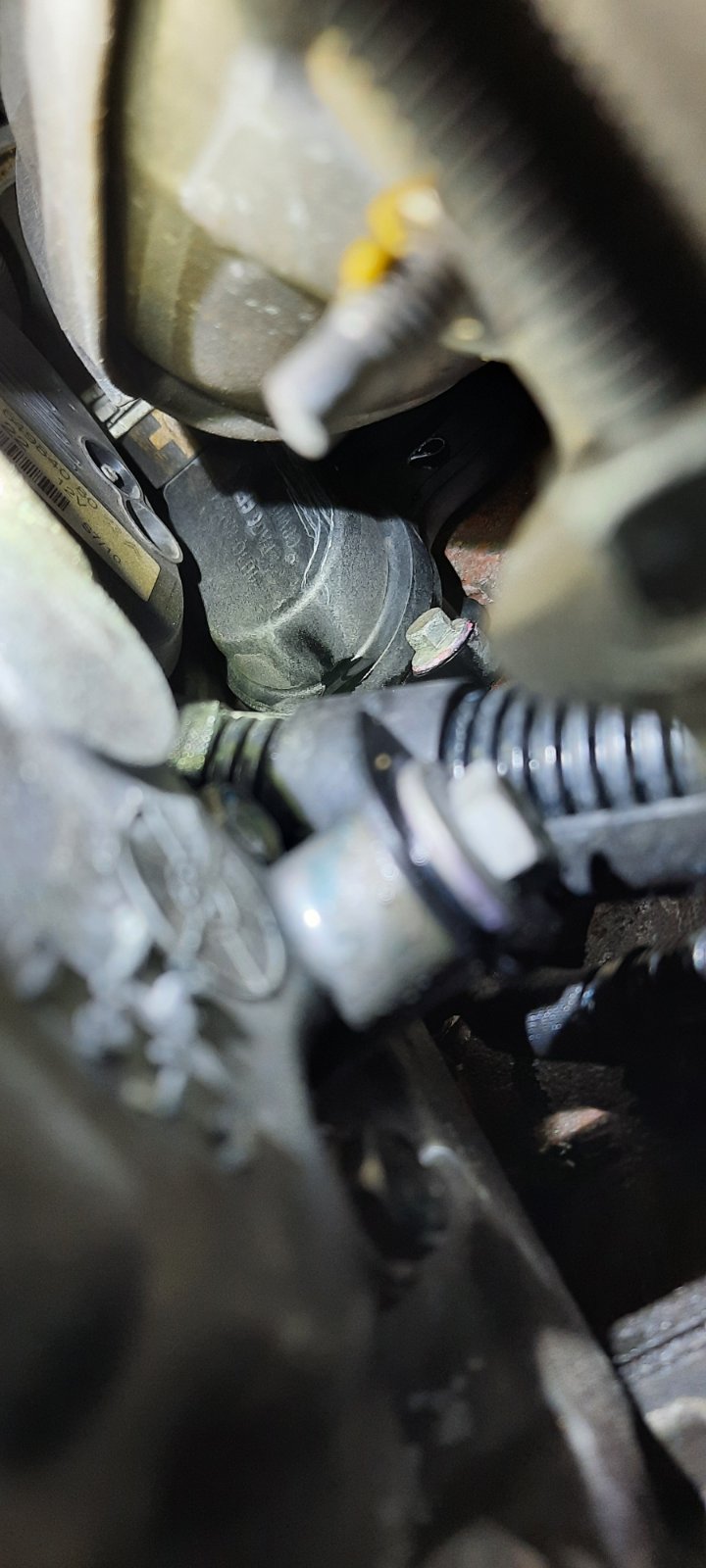

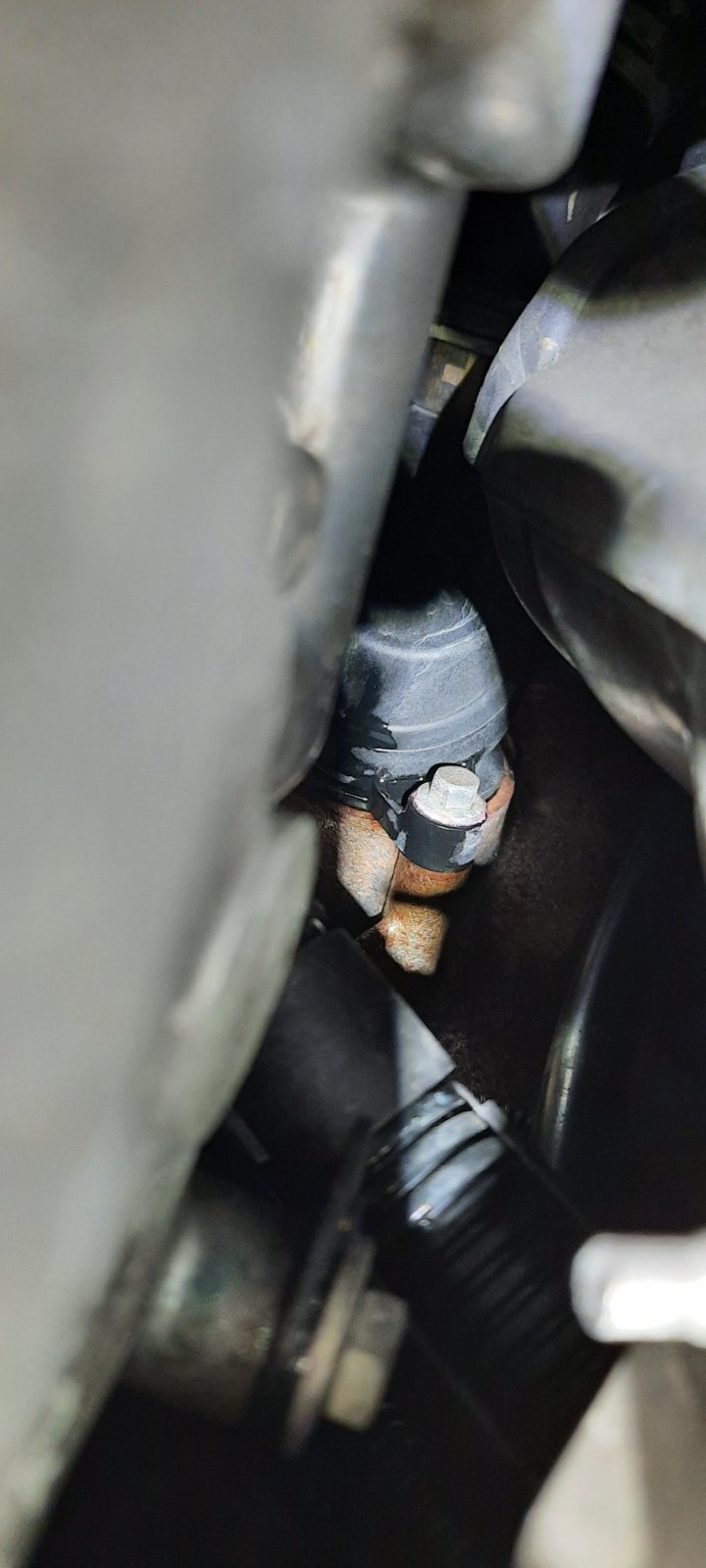

It appears to be leaking from a black plastic housing position under the front injection manifold and directly behind the yellow handle of dip stick .
The cooling fluid was dripping from the lower mounting screw head , there are two hoses connected , the smaller one leads forward to an aluminium pipe . I think this housing may be located into the cast iron block with a spigot !!!?? this may be where it is leaking . The housing is above the air con compressor ! I don't know what to remove to get at this black housing . It would be unlikely that the screw needs tightening , which would be extremely hard without removing something . Hope you have some ideas please !!
I have found the leak and it is in a very hard to access position . I will try and attach photos and the rough sketch I did .
It appears to be leaking from a black plastic housing position under the front injection manifold and directly behind the yellow handle of dip stick .
The cooling fluid was dripping from the lower mounting screw head , there are two hoses connected , the smaller one leads forward to an aluminium pipe . I think this housing may be located into the cast iron block with a spigot !!!?? this may be where it is leaking . The housing is above the air con compressor ! I don't know what to remove to get at this black housing . It would be unlikely that the screw needs tightening , which would be extremely hard without removing something . Hope you have some ideas please !!
-
- (Donor 2021)
- Posts: 30
- Joined: 04 Apr 2016, 02:08
- Location: Coffs Harbour
- My Cars: Citroen C5 2010 Exclusive 3.0 L V6 DTT
- x 4
- GiveMeABreak
- Forum Admin Team
- Posts: 37295
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5710
Re: C5 x7 v6 TTD Engine overheating

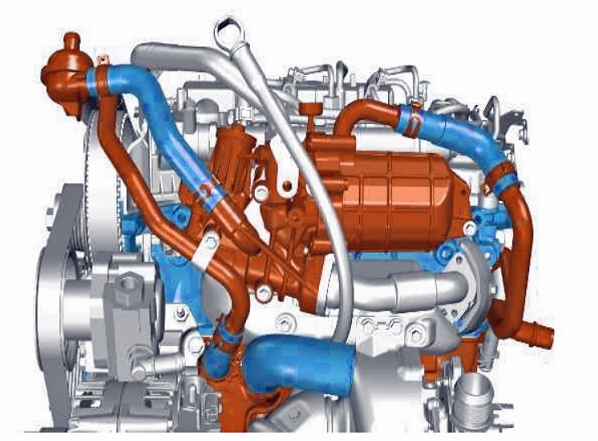

Here? - This is the EGR exchanger coolant inlet and outlet pipes...

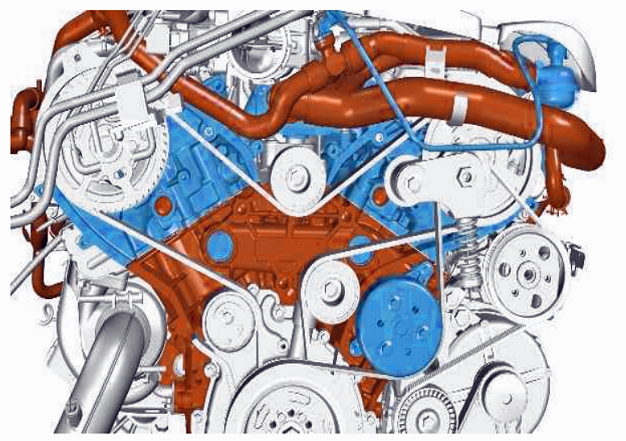

or on the Timing Face here:
... or none of the above
or on the Timing Face here:
... or none of the above
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 30
- Joined: 04 Apr 2016, 02:08
- Location: Coffs Harbour
- My Cars: Citroen C5 2010 Exclusive 3.0 L V6 DTT
- x 4
Re: C5 x7 v6 TTD Engine overheating
Thanks Marc,
Is it shown in the timing side view as brown hoses at top of drawing ? There are two hoses connected and how do I get it out please ?
Is it shown in the timing side view as brown hoses at top of drawing ? There are two hoses connected and how do I get it out please ?
- GiveMeABreak
- Forum Admin Team
- Posts: 37295
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5710
Re: C5 x7 v6 TTD Engine overheating

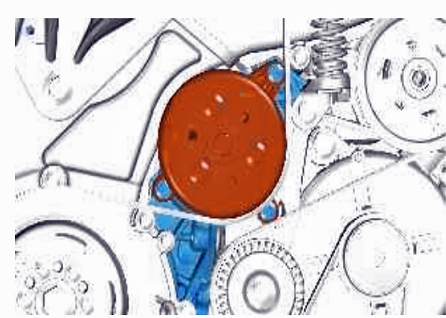

Ok, so if it is on the timing face, the likely culprit can be the water pump tot he Cylinder block.
Information
Sealing
Possible Causes
Repair
Information
Sealing
- Detachable seal
- 3 bolts
Possible Causes
- Incorrect tightening of the fixing bolts
- Gasket sealing fault
- No seal
- Cracks
Repair
- Replace the seal (If there is a leak localised at the seal)
- Replace the water pump (If there are cracks)
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2021)
- Posts: 30
- Joined: 04 Apr 2016, 02:08
- Location: Coffs Harbour
- My Cars: Citroen C5 2010 Exclusive 3.0 L V6 DTT
- x 4
Re: C5 x7 v6 TTD Engine overheating
Thanks for this info and help Marc but I think it is really tucked in behind the EGR exchanger . It is black plastic sort of oval shape and I can only see one mounting screw looking up from the ground as shown in the photo . It must have a name which would show in a proper manual !
Can you recommend a workshop manual for this vehicle as there are various companies selling paper and online manuals .
Thanks
Hayden
Can you recommend a workshop manual for this vehicle as there are various companies selling paper and online manuals .
Thanks
Hayden
- GiveMeABreak
- Forum Admin Team
- Posts: 37295
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5710
Re: C5 x7 v6 TTD Engine overheating
The problem is trying to localise it and then I can provide some likely leak suspects areas around those places.
I can put up some parts diagrams of the various areas, but we ask for a min. £10 Forum donation for this as we are charged by PSA. But it will cover you for parts info requests for up to 2 years if interested. Details below:
If this would be of use, follow the links in the table and then pop your VIN up here (automasked on post submission), then I can get some parts diagrams up on the cooling and EGR exchanger.
I can put up some parts diagrams of the various areas, but we ask for a min. £10 Forum donation for this as we are charged by PSA. But it will cover you for parts info requests for up to 2 years if interested. Details below:
A response to your question by a Forum Admin will require detailed vehicle information that requires you to have made a current contribution to the Forum. |
Donate Further Information |
Please Don't PM Me For Technical Help
Marc
Marc
- xantia_v6
- Forum Admin Team
- Posts: 9080
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 833
Re: C5 x7 v6 TTD Engine overheating
It sounds like the leak is from the front EGR cooler.
-
- Posts: 143
- Joined: 29 Aug 2020, 18:29
- Location: Edinburgh
- My Cars: 59 C6 2.7 Red
56 C6 2.7 Blue
55 C5 II Blue
Plus many MG's from 58 to 97
Oh and a Jag XK8! - x 39
Re: C5 x7 v6 TTD Engine overheating
Not sure if the same applies to the 3.0 but I guess it will...

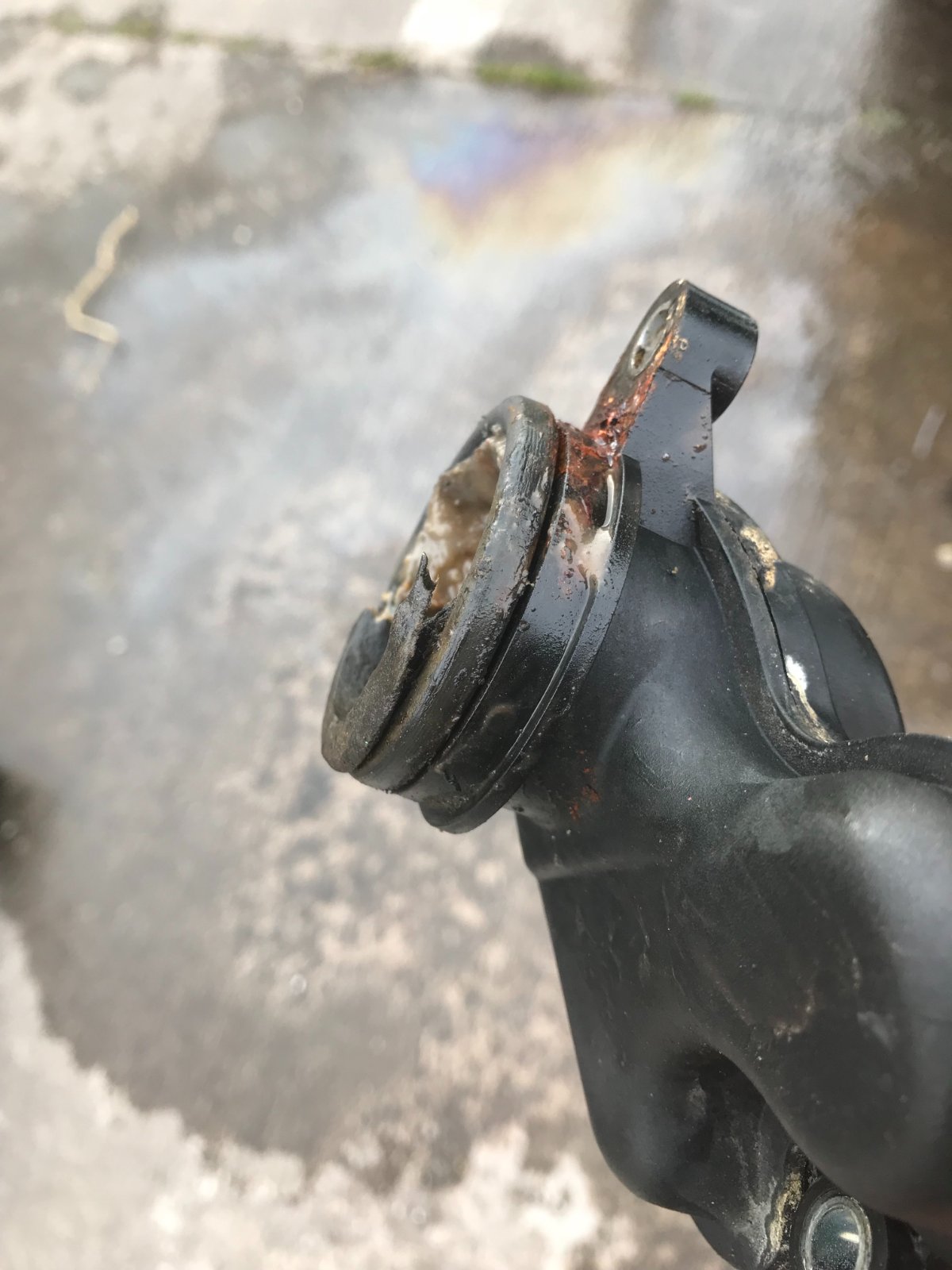

On a 2.7 in the area below the EGR and above the alternator (where you have drawn) is the water inlet manifold.
A common fault on the 2.7 at around 8-10 years old along with the thermostat housing on the top of the engine.
If you haven't renewed either I would recommend doing both at the same time.
I am however assuming the X7 is the same as the C6!
On a 2.7 in the area below the EGR and above the alternator (where you have drawn) is the water inlet manifold.
A common fault on the 2.7 at around 8-10 years old along with the thermostat housing on the top of the engine.
If you haven't renewed either I would recommend doing both at the same time.
I am however assuming the X7 is the same as the C6!
