Rear Wiper Woes

Post by Argos69 »

Hi all,

I'm having a problem with the rear wiper on my C5 X7 2012 Tourer. It started as an intermittent issue (my Wife told me about it, but when I tried it, it worked, so I didn't believe her! :? ), but it now seems permanent.

The rear wiper doesn't work and I've got this far (see below), but would appreciate any hints before I start suspecting the loom over the tailgate.

Tried the washer, which works fine.
The wiper motor unit itself doesn't appear to be seized and isn't corroded.
I've stripped out the rear trim and disconnected the motor multiplug. I have a good earth on Green/Yellow, Nothing on Pink and 12V+ on the thin blue, regardless of the stalk switch position.
The fuse F1 in fuse box C is ok too.

Are there any relays etc lurking around for me to check?

Don't know if it helps, but when I select the "rear wiping when in reverse gear" under the menu system, it ticks the box for a second, then the tick disappears.....

Any advice warmly welcomed...
2013 Citroen C5 Tourer 2.2HDi Exclusive
2017 Citroen Berlingo Multispace Flair 120 --- Gone!
2012 Citroen C5 Tourer 1.6HDi 6 Speed (sort of auto!) --- Gone!
2012 Citroen Berlingo Enterprise 1.6HDi Van --- Gone!
2001 Range Rover 4.6 Vogue (Yes, really!) --- Gone!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Rear Wiper Woes

Post by GiveMeABreak »

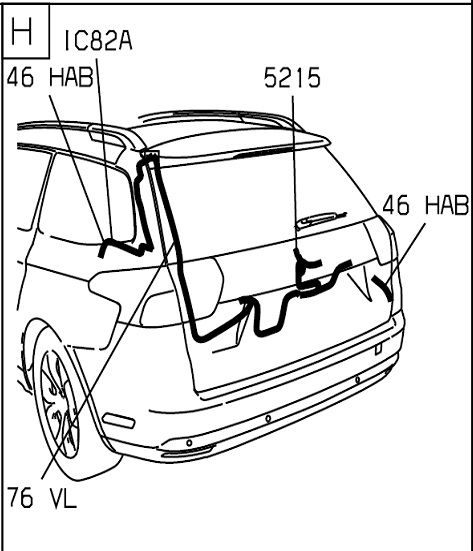

Check the wiring loom as it enter the tailgate (top rear left corner as shown): There can be failures on the wiring (strains / cracks) where the loom enters the tailgate and check the earthing too. If all seems fine then likely to be the motor - but to be sure you need a diagnostic really. That will be able to detect any fault codes and also check the activation of the motor most likely. You'll need somebody with Diagbox ideally.
