Gear box panel removal

Post by xrocker2002 »

Dear team,

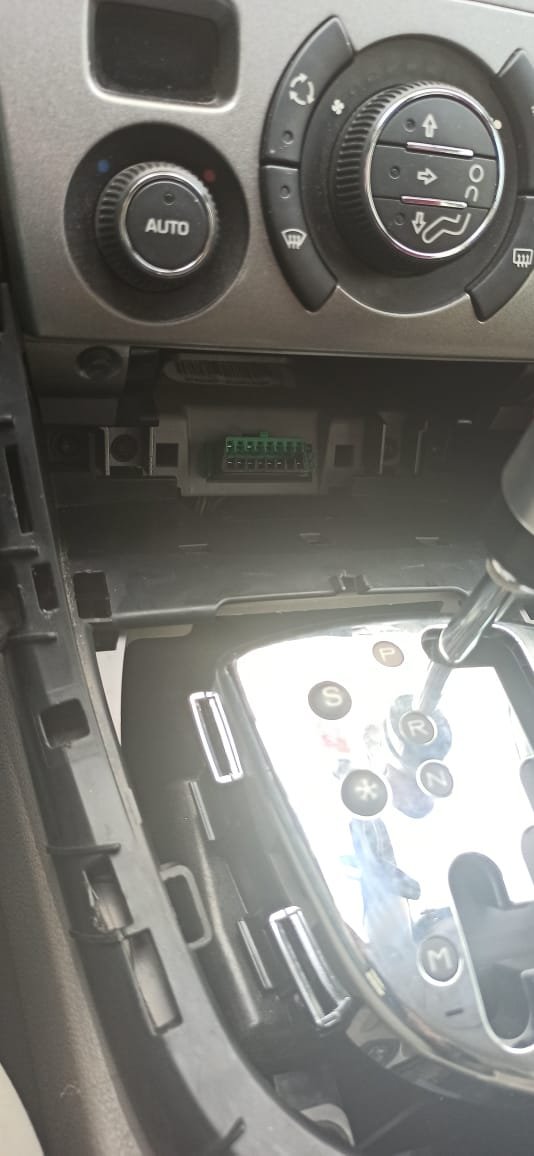

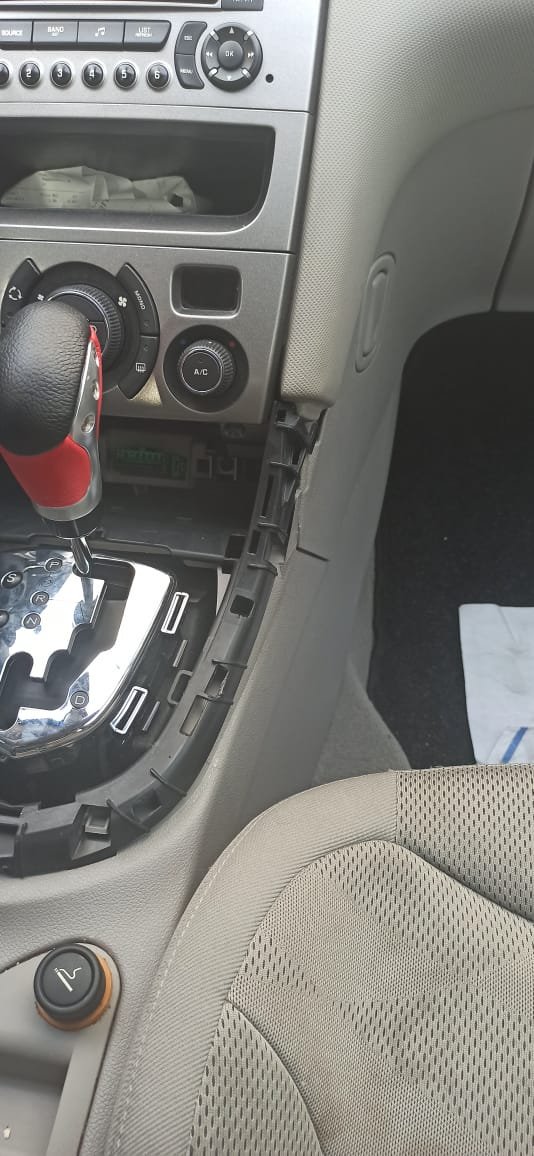

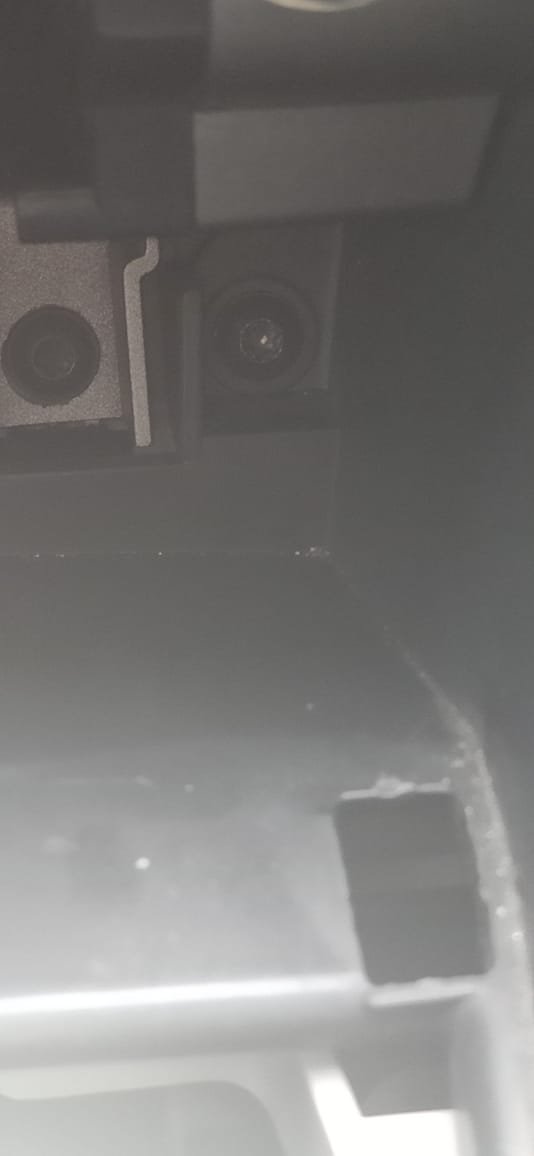

Yesterday, I accidentally dropped my OBD scanner through the hole below the OBD scanner port. It landed near the gearbox lever which I can see. I tried to put my hand inside but I can't pass through. Please advise me what to remove to take it back?? I removed some of the parts from the gear panel. still, I'm not sure what else to remove?? attached pics for your reference.
Is it possible to remove side panel ie. hook has attached??

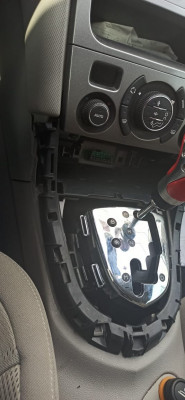

WhatsApp Image 2020-07-14 at 8.56.55 AM (3).jpeg
WhatsApp Image 2020-07-14 at 8.56.55 AM (2).jpeg
WhatsApp Image 2020-07-14 at 8.56.55 AM (1).jpeg
WhatsApp Image 2020-07-14 at 8.56.55 AM.jpeg
Last edited by GiveMeABreak on 14 Jul 2020, 11:45, edited 1 time in total.
Reason: Sorted pictures into a table
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36993
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Gear box panel removal

Post by GiveMeABreak »

Here you go, this is how to remove the central console.

Make sure you disconnect the battery following the guide: (BSI Reset / Battery Disconnect / Reconnect Procedure)

Move the front seats back as far as you can.
308 console A.PNG
308 console B.PNG

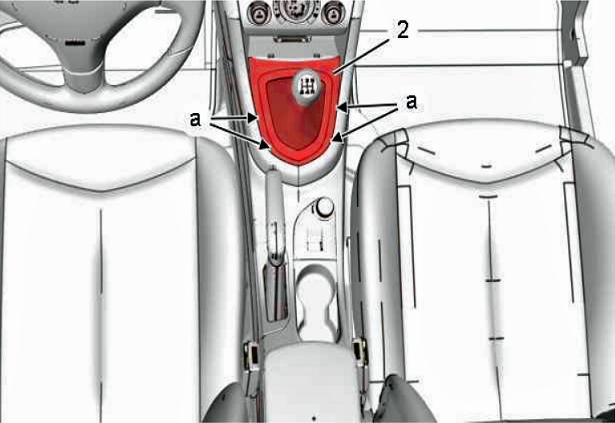

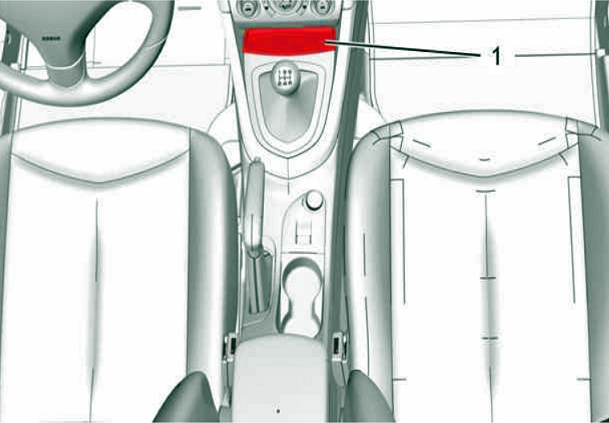

Remove the lining from the bottom of the oddments tray (1).Unclip the gear lever gaiter (2) (at "a") using trim tools.
Disengage the gear lever (2) gaiter .
308 console C.PNG
308 console D.PNG

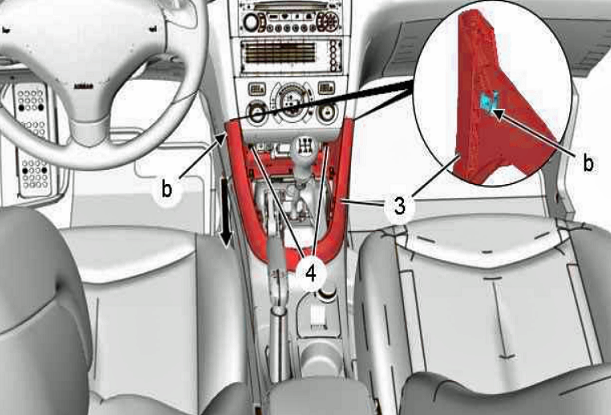

Remove the bolts (4).
Unclip: The trim (3) of the centre console (at "b") using trim tools.
Remove: The trim (3) of the centre console
(In the direction of the arrow - By pulling towards you).

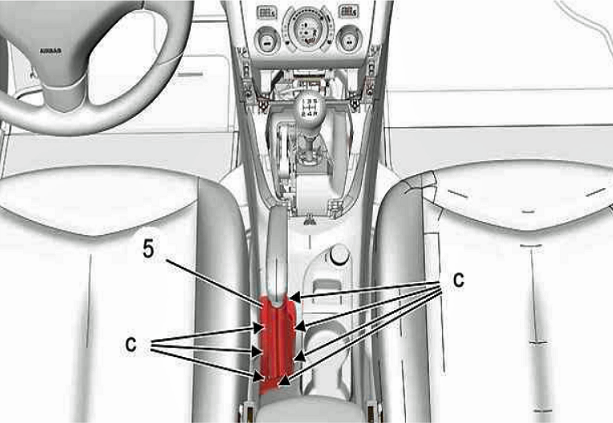

Unclip: The handbrake gaiter (5) ( as "c") using trim tools.
Remove: The handbrake gaiter (5).
308 console E.PNG
308 console F.PNG
Unclip: The bezel (6) (at "d") using trim tools.
Detach: The bezel (6) (At "e").
Disconnect the connectors.
Remove: The bezel (6).
(8) Central console.
Remove the bolts (7).
308 console G.PNG
308 console H.PNG
Open the central armrest (according to equipment).
Unclip: The centre console unit (9) (at "f")
(according to equipment) using trim tools.
Remove: The centre console unit (9).

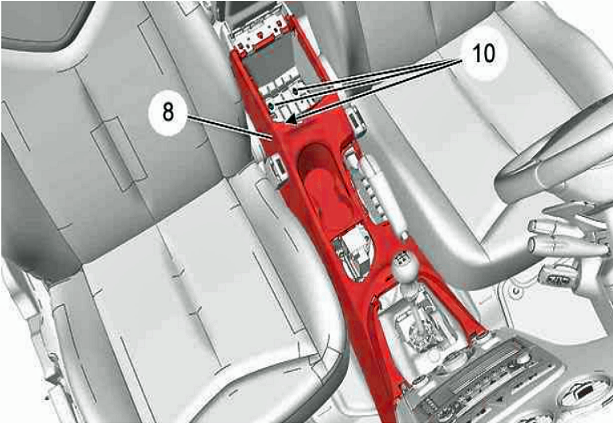

Remove the bolts (10).
308 console I.PNG
Pull the handbrake up.
Remove: The centre console (8) (At "g", "h").
Please Don't PM Me For Technical Help

Marc
xrocker2002
Posts: 18
Joined: 05 Jul 2020, 06:18
Location: United arab emirates
My Cars: Peugeot 308 2009 model is my car. Petrol turbo engine hatchback design

Re: Gear box panel removal

Post by xrocker2002 »

Thanks... waiting for you reply..
xrocker2002
Posts: 18
Joined: 05 Jul 2020, 06:18
Location: United arab emirates
My Cars: Peugeot 308 2009 model is my car. Petrol turbo engine hatchback design

Re: Gear box panel removal

Post by xrocker2002 »

Thanks for the description. It helped me a lot
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36993
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Gear box panel removal

Post by GiveMeABreak »

You're welcome. :)
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Gear box panel removal

Post by Hell Razor5543 »

Might I suggest that (if there is a suitable hole in the casing) you thread through a decent length of nylon cord? I can almost guarantee you will drop it again, and the cord should make it possible to retrieve it.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
