Egr diagbox?

Post by Slobo2712 »

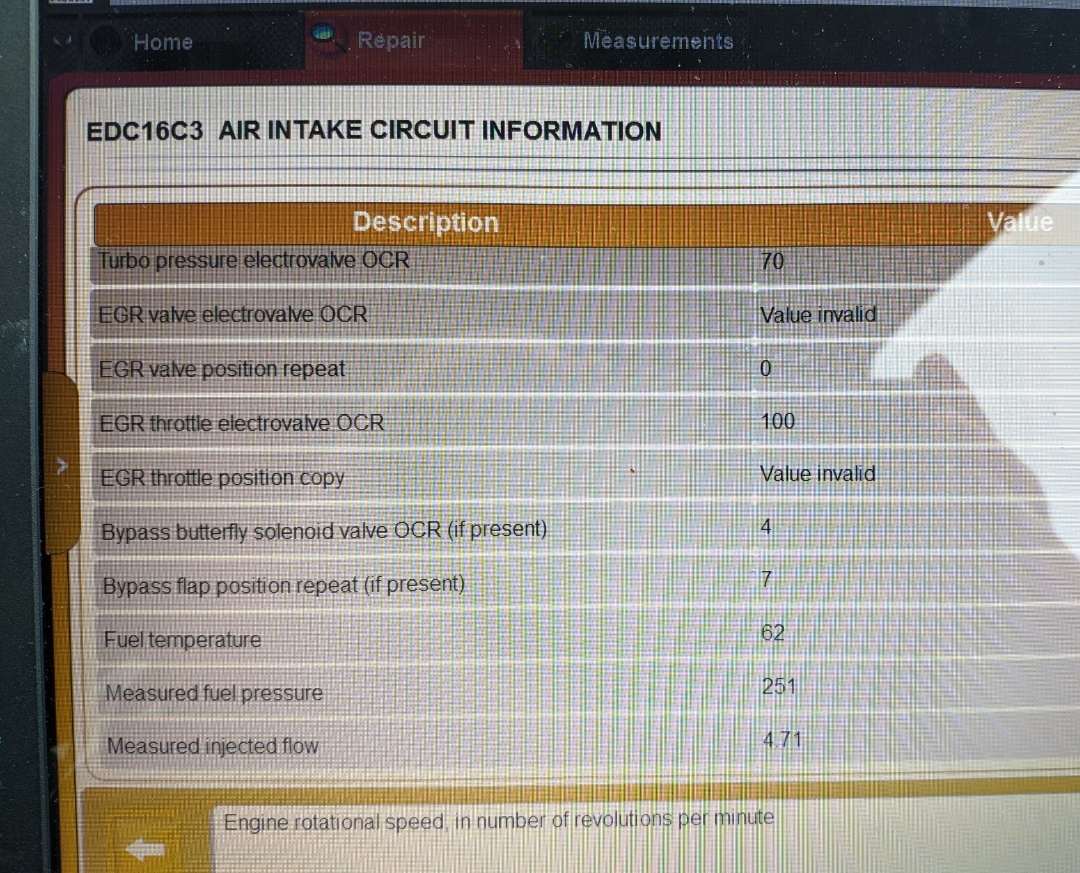

Hi.How i can know is my egr valve good or bad?Here are shots from diagbox.
Car is going
Car idling
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Egr diagbox?

Post by RichardW »

The first one looks OK as requested position and reported position match, but in the second one the reported position is listed as invalid. You can't really tell from a static shot - you need to watch the two figures as you rev the engine up and down - they should follow each other closely, and the reported position should stay steady if you hold the revs steady.
Richard W
Slobo2712
Posts: 89
Joined: 21 Oct 2019, 07:08
Location: Banja Luka
My Cars: Peugeot 307 1.6 80kw

Re: Egr diagbox?

Post by Slobo2712 »

RichardW wrote: 02 Mar 2020, 07:18 The first one looks OK as requested position and reported position match, but in the second one the reported position is listed as invalid. You can't really tell from a static shot - you need to watch the two figures as you rev the engine up and down - they should follow each other closely, and the reported position should stay steady if you hold the revs steady.
Tnx,than I should record a video with parameters engine off,idling,going and post here?
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Egr diagbox?

Post by RichardW »

Yes, dynamic data is always more useful than static!
Richard W
User avatar
south74
Posts: 27
Joined: 06 Nov 2013, 21:42
Location:
My Cars:
x 1

Re: Egr diagbox?

Post by south74 »

Where is the EGR data within Diagbox? I am having trouble finding it. Which menu/option do I need to get live values?
Thanks in advance
Last edited by south74 on 15 Apr 2022, 12:04, edited 1 time in total.
Currently... Xantia MkII 3.0 V6, C8 2.2Hdi Excl, SM 2.7 ...and waiting for some TLC a DS23 Pallas efi. Times gone by... Xantia Mk1 2.1TD, ZX 2.0 16v, BX 16v, BX 19D.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Egr diagbox?

Post by GiveMeABreak »

You need to look in the engine ECU live parameters IIRC.
Please Don't PM Me For Technical Help

Marc
User avatar
south74
Posts: 27
Joined: 06 Nov 2013, 21:42
Location:
My Cars:
x 1

Re: Egr diagbox?

Post by south74 »

Thanks for the quick reply. (I am a bit thick though… sorry!)
Which menu is that under?
Repair >> ?
Fault finding >> ?
Maintenance >> ?

The screens shots above come from the repair section, but I can’t seem to find anything that takes me to live parameters.

Thanks for your help.
Currently... Xantia MkII 3.0 V6, C8 2.2Hdi Excl, SM 2.7 ...and waiting for some TLC a DS23 Pallas efi. Times gone by... Xantia Mk1 2.1TD, ZX 2.0 16v, BX 16v, BX 19D.
User avatar
south74
Posts: 27
Joined: 06 Nov 2013, 21:42
Location:
My Cars:
x 1

Re: Egr diagbox?

Post by south74 »

Found it.

Fault finding >> expert >> injection/ignition >> standard parameter measurement >> air intake

EGR test:
Fault finding >> expert >> injection/ignition >> actuator tests >> misc tests >> EGR valve

Live graph test:
Fault finding >> expert >> injection/ignition >> actuator tests >> personalised parameter measurements >> EGR valve
