wonder if I could piggy back on this thread?
I have a 2014 C5 estate. It is low spec but has a/c and air blower system operates through central controls next to radio/cd the temp range runs lo 14 ..........28 hi Not a temp gauge but 'comfort level' 22 is toasty and soon gets too warm but below that level it runs cold so cannot moderate heat to satisfactory level. Spotted a faulty cell and replaced battery but no change. Was heading down the replace blower motor resister so checked here earlier and completed the BSI reset but problem remains. Any suggestions as to problem/solution. thanks Wo5
C5 X7 Blower Temperature Issues
Moderator: RichardW
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: C5 X7 Blower Temperature Issues
We will need your VIN to determine exactly which system you have first of all.
Please Don't PM Me For Technical Help
Marc
Marc
Re: C5 X7 Blower Temperature Issues
Thanks Marc,
VF7**************[VIN obfuscated, can be read by forum staff]
recent picture
VF7**************[VIN obfuscated, can be read by forum staff]
recent picture
- GiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: C5 X7 Blower Temperature Issues
I've moved this to a separate thread as it is for a C5 with a different system.
So you have the Monozone system. This operates on the following basis:
The temperature required is obtained by mixing:
If you are getting a good source of heat, then I'm not sure that the heater matrix will be responsible - if this was blocked up, you wouldn't be getting much heat (if any) apart from the air heating resistance unit for the cabin, and that really only comes on at startup to help the cabin warm up and aid with demisting until the engine warms up.
What happens if you turn it up to full heat (when the car has warmed up) - if you are getting full-on heat, then I would say the heater matrix is dong its job. It may be possible that the air mixing motor is only partially operating.

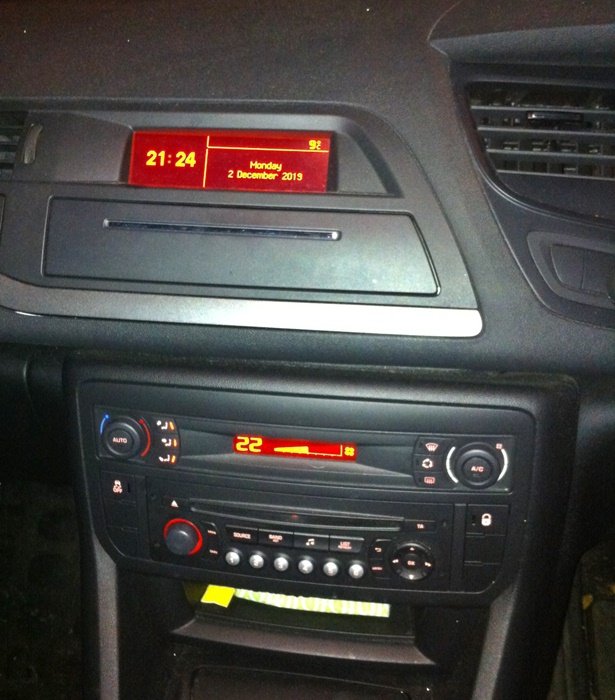

If there was a fault with the temperature it would go into a backup mode - in this case the display would stick at either 21°C or 70°F (depending on your units). Any change on the dial won't have any effect. I can see from your picture that this is not the case though.
Apart from the air mixing stepper motor being at fault - another possibility is the actual A/C control panel itself. So what you could do before spending any cash it to check the connector - specifically the 26 way connector - channels 6, 7, 8 & 9, as these control the air mixing stepper motor. I would clean the connector pins with some electrical contact cleaner - has to be worth a shot.
So you have the Monozone system. This operates on the following basis:
The temperature required is obtained by mixing:
- The hot air provided by the engine cooling system heater matrix
- The cold air produced by a conventional air conditioning system by means of an evaporator
- The air flow provided by a direct current motor (Air blower )
- The distribution, the air intake and the mixing controlled by flaps controlled by stepper motors
Different displays possible | |
Degrees Celsius (°C) | Degrees Fahrenheit (°F) |
LO | LO |
14 | 56 |
15 | 58 |
16 | 60 |
17 | 62 |
18 | 64 |
18,5 | 65 |
19 | 66 |
19,5 | 67 |
20 | 68 |
20,5 | 69 |
21 | 70 |
21,5 | 71 |
22 | 72 |
22,5 | 73 |
23 | 74 |
23,5 | 75 |
24 | 76 |
25 | 78 |
26 | 80 |
27 | 82 |
28 | 84 |
HI | HI |
What happens if you turn it up to full heat (when the car has warmed up) - if you are getting full-on heat, then I would say the heater matrix is dong its job. It may be possible that the air mixing motor is only partially operating.
If there was a fault with the temperature it would go into a backup mode - in this case the display would stick at either 21°C or 70°F (depending on your units). Any change on the dial won't have any effect. I can see from your picture that this is not the case though.
Apart from the air mixing stepper motor being at fault - another possibility is the actual A/C control panel itself. So what you could do before spending any cash it to check the connector - specifically the 26 way connector - channels 6, 7, 8 & 9, as these control the air mixing stepper motor. I would clean the connector pins with some electrical contact cleaner - has to be worth a shot.

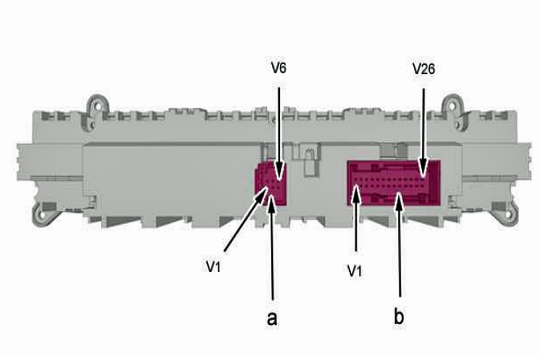

"a" 6-way black connector. "b" 26-way yellow connector. The automatic air conditioning control panel consists of 2 connectors:
|
