Xsara II 2.0 HDI 90 Fuelling Issues

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Xsara II 2.0 HDI 90 Fuelling Issues

Post by dave_xsara »

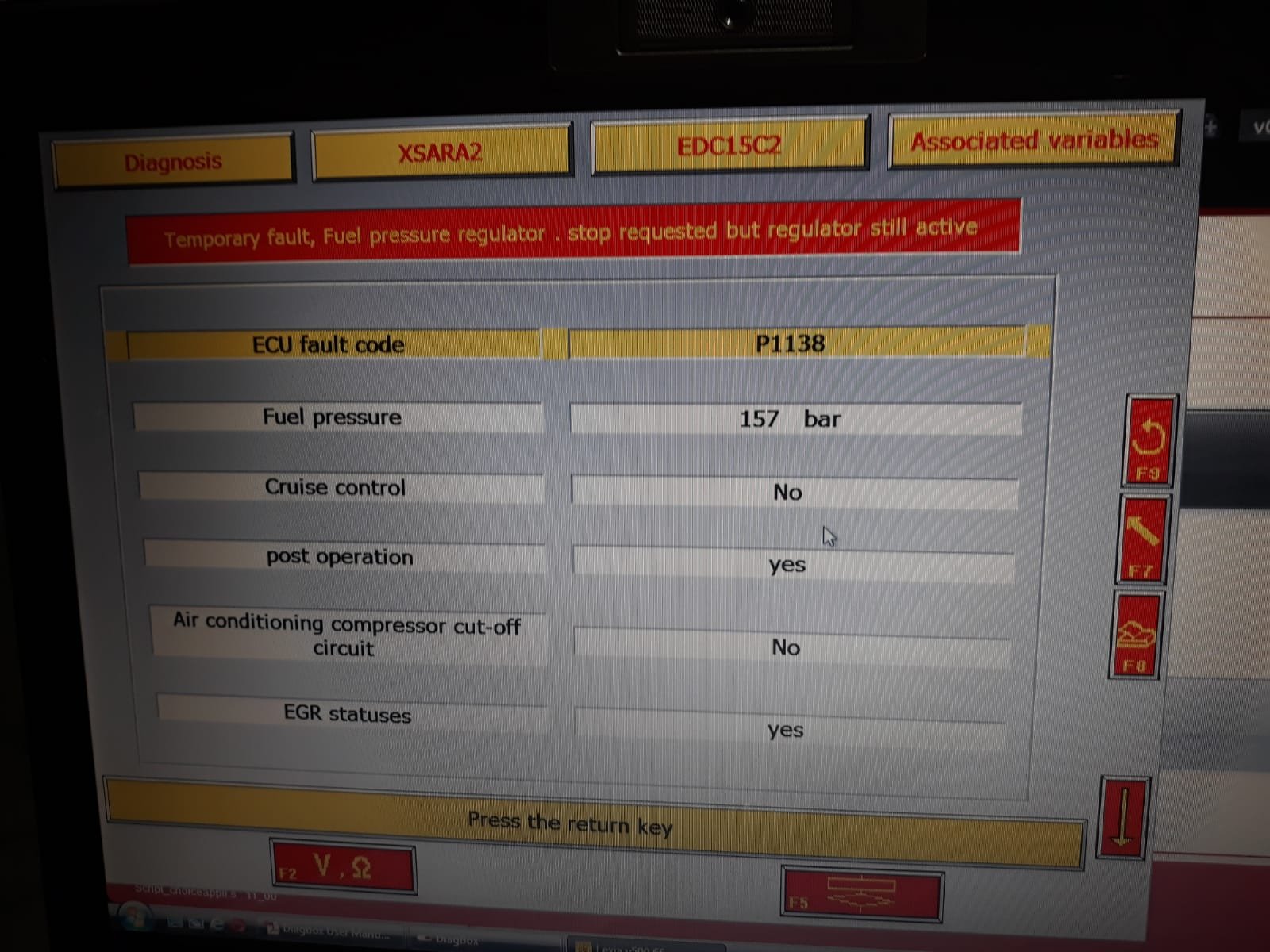

P1138
P0571
P0110

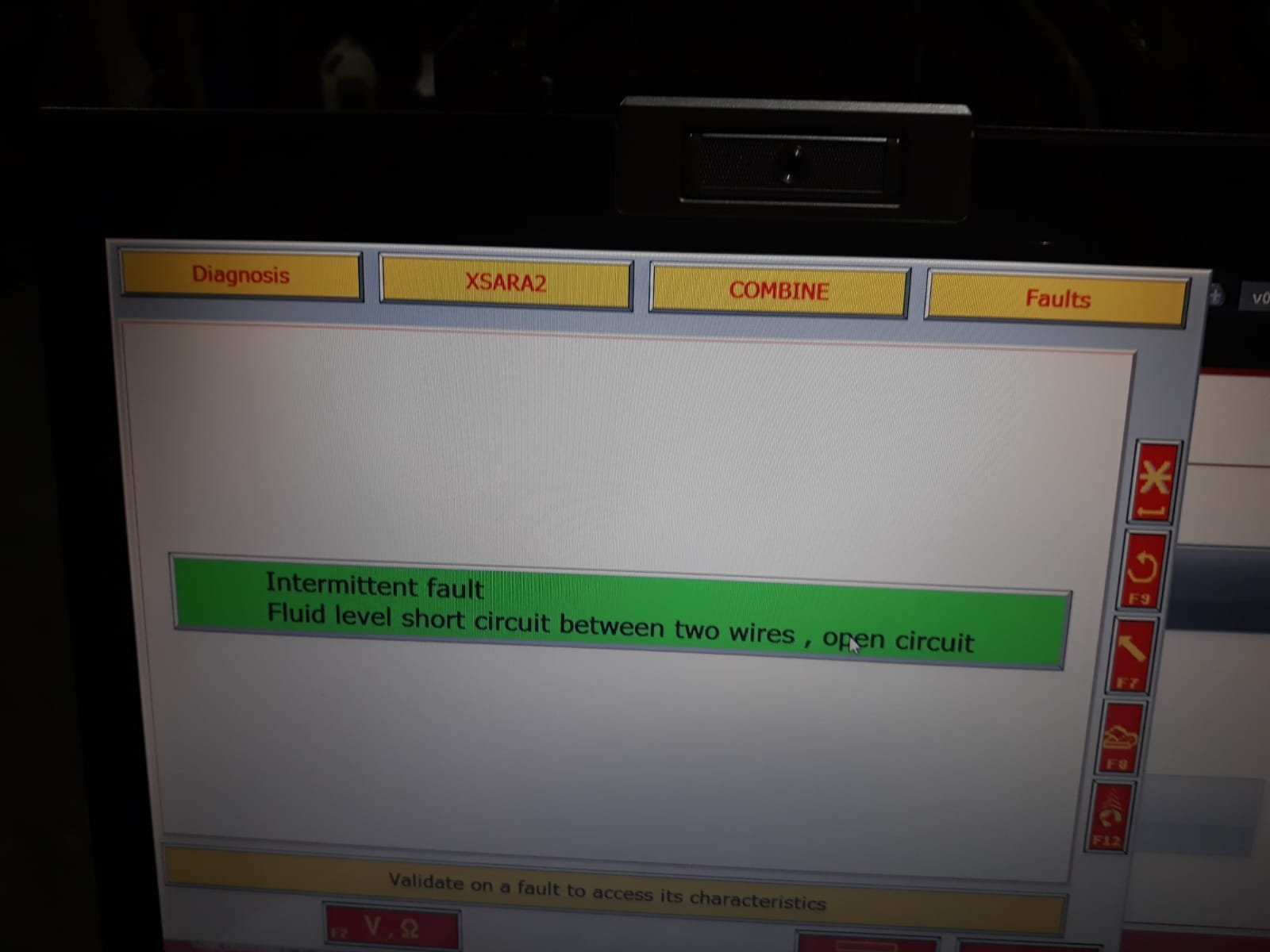

Got some others which did not return a code. Good only knows how is some of them are. I could not see a timestamp.
The pressure regulator was only changed a few months ago, so I hope that is not a new fault.

I'm not sure which of these faults caused it to go into limp mode a few weeks ago. All faults are still in the system. None have been cleared down yet.
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Lexia install problem

Post by GiveMeABreak »

Make a note of the codes (which you have done), then read and clear each one, then run a Global Test and see what comes back.

Some of these are temporary faults and will clear when conditions allow.
Please Don't PM Me For Technical Help

Marc
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Lexia install problem

Post by dave_xsara »

Yeah. I didn't get time tonight as I was just using it for first time.
I take it I can't monitor pressures at the injectors etc with lexia?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Lexia install problem

Post by GiveMeABreak »

Yes, no problems, you should be able to read that data no problem - this sort of thing from a C5 MK II (2005) that also uses Lexia from another user below.

You just select the injection ECU from the global test, and confirm. From there you will have access to other menus and one will be Parameters or Standard Parameter measurements or similar. Pick what you want and it will start measuring.

Engine speed: 288 rpm
Cam crank synchronization: yes
Fuel pressure reference: 251 bars
Fuel pressure measured: 94 bars
Open cycle ratio Pressure regulator: 48%
Open cycle ratio flow regulator: 40%
Injected flow measure: 12.34 mg/stroke
injector flow correction, cylinder 1: 93.33%
injector flow correction, cylinder 2: 93.33%
injector flow correction, cylinder 3: 97.25%
injector flow correction, cylinder 4: 116.08%
Pre injection advance: -0
main injection advance: -0
injection time: 1.03ms
Engine coolant temperature: 100 degree celcius
fuel temperature: 81 degree celcius
measured air flow: 322 mg/cp
atm pressure: 788 mbar
turbo pressure: 788 mbar
egr valve open cycle ratio : 0%
egr throttle electrovalve open cycle ratio: 10%
Please Don't PM Me For Technical Help

Marc
User avatar
Doo
(Donor 2022)
Posts: 459
Joined: 09 Sep 2019, 16:53
Location: Inverness
My Cars: 2000 Range Rover V8 4.0
2004 Jaguar XK8 4.2
2007 Citroen C4 1.6hdi SX
2012 Berlingo Multispace e-hdi XTR (nice drive :-)
2016 Suzuki Burgman AN650 Executive
I miss my Renault 5 Gordini Turbo....
x 116

Re: Lexia install problem

Post by Doo »

Two things I found with my install was the launch takes ages. It opens a box, then disappears for a while, then it appears and starts to do it's thing. My laptop is oldish, but it does work beautifully.

Our car is a 2007 C4 and DiagBox works on it.

I await my computer guy to install both DVD's on a different computer so I can do old & new stuff in time.

Anyway, I received excellent help from the guys on here, trust in them and you'll be fine 8-)

Good luck Dave :)
Has anyone seen the plot? :?
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Lexia install problem

Post by dave_xsara »

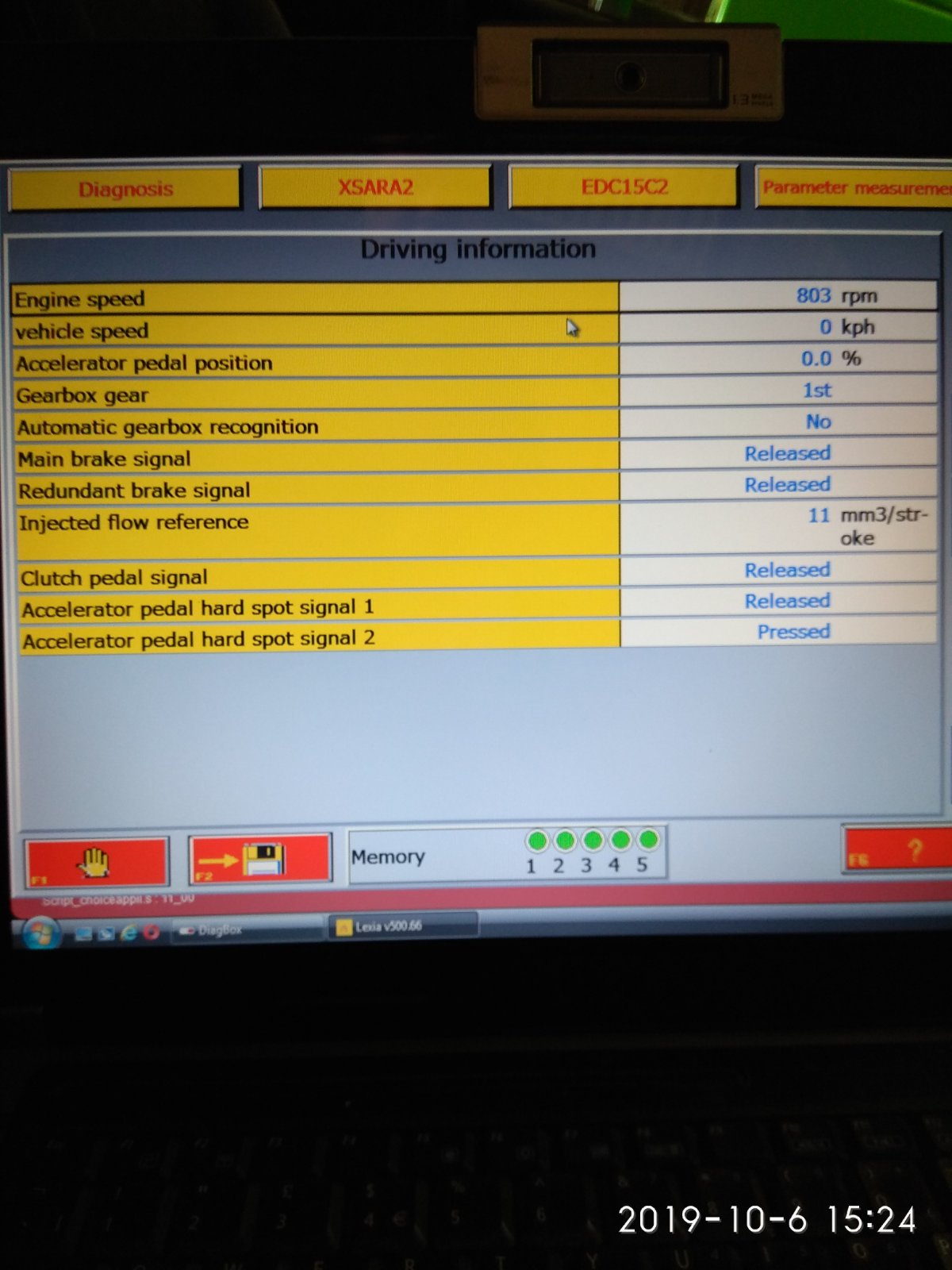

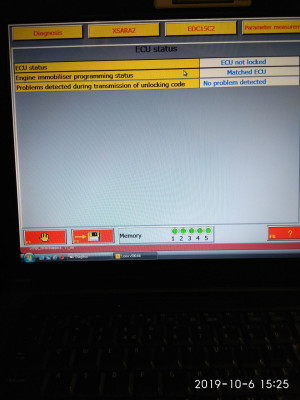

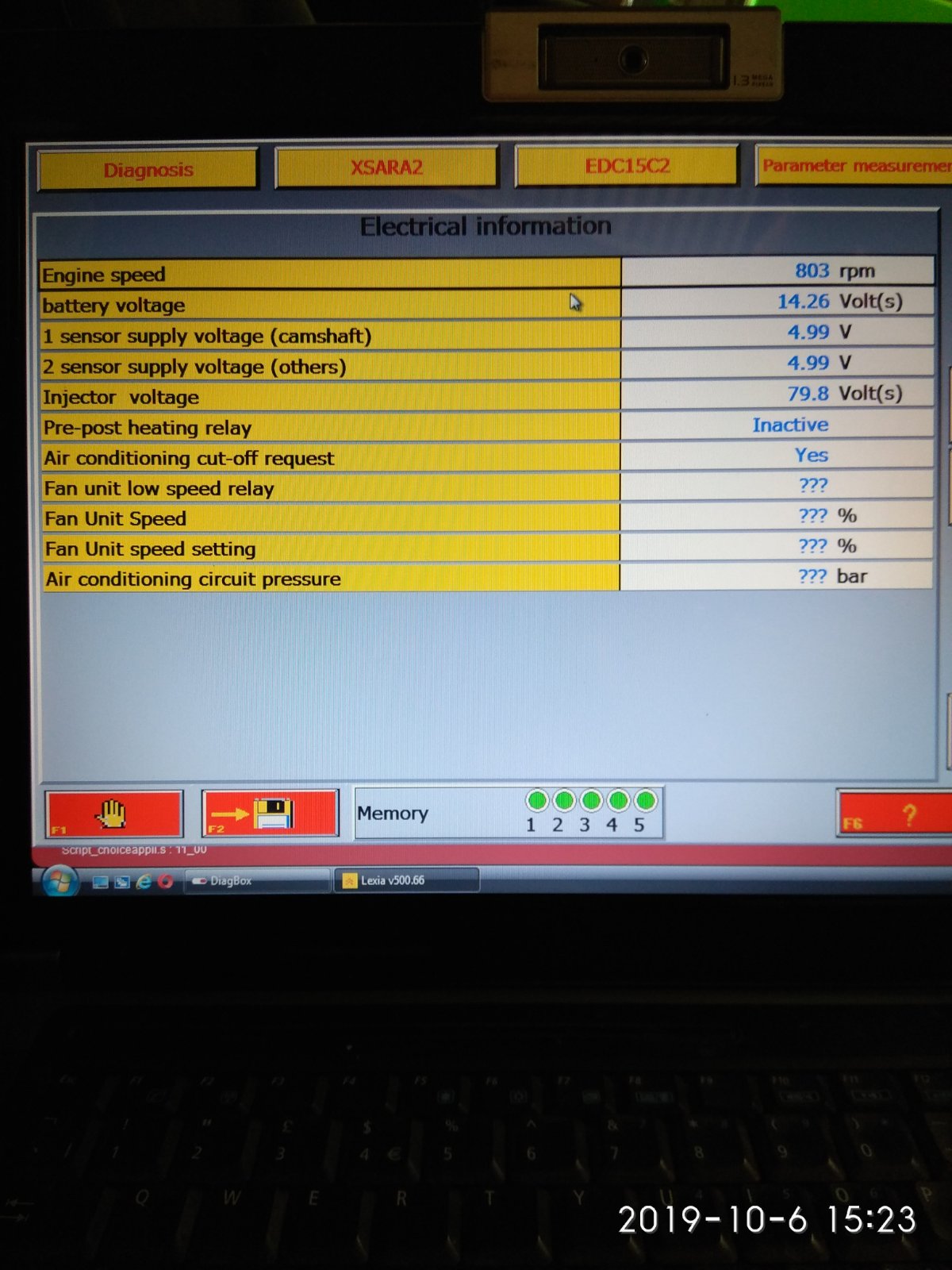

Okay so I've now run the tests again and I've now only got one coded fault and a bsi fault.

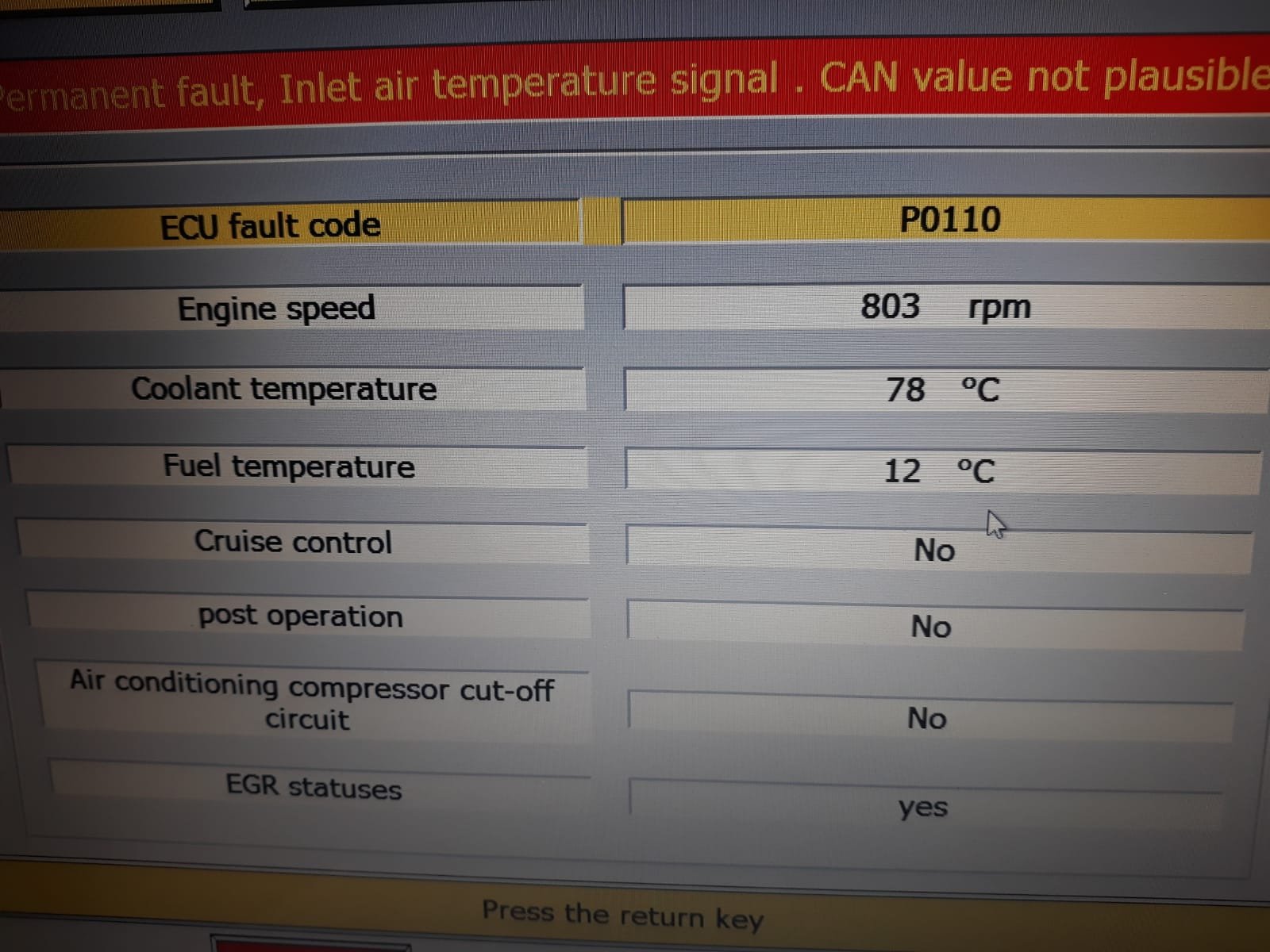

P0110
Permanent fault, inlet air temperature signal. CAN value not plausible.
Note that the values presented are now different to that in in the previous post above from Sunday.

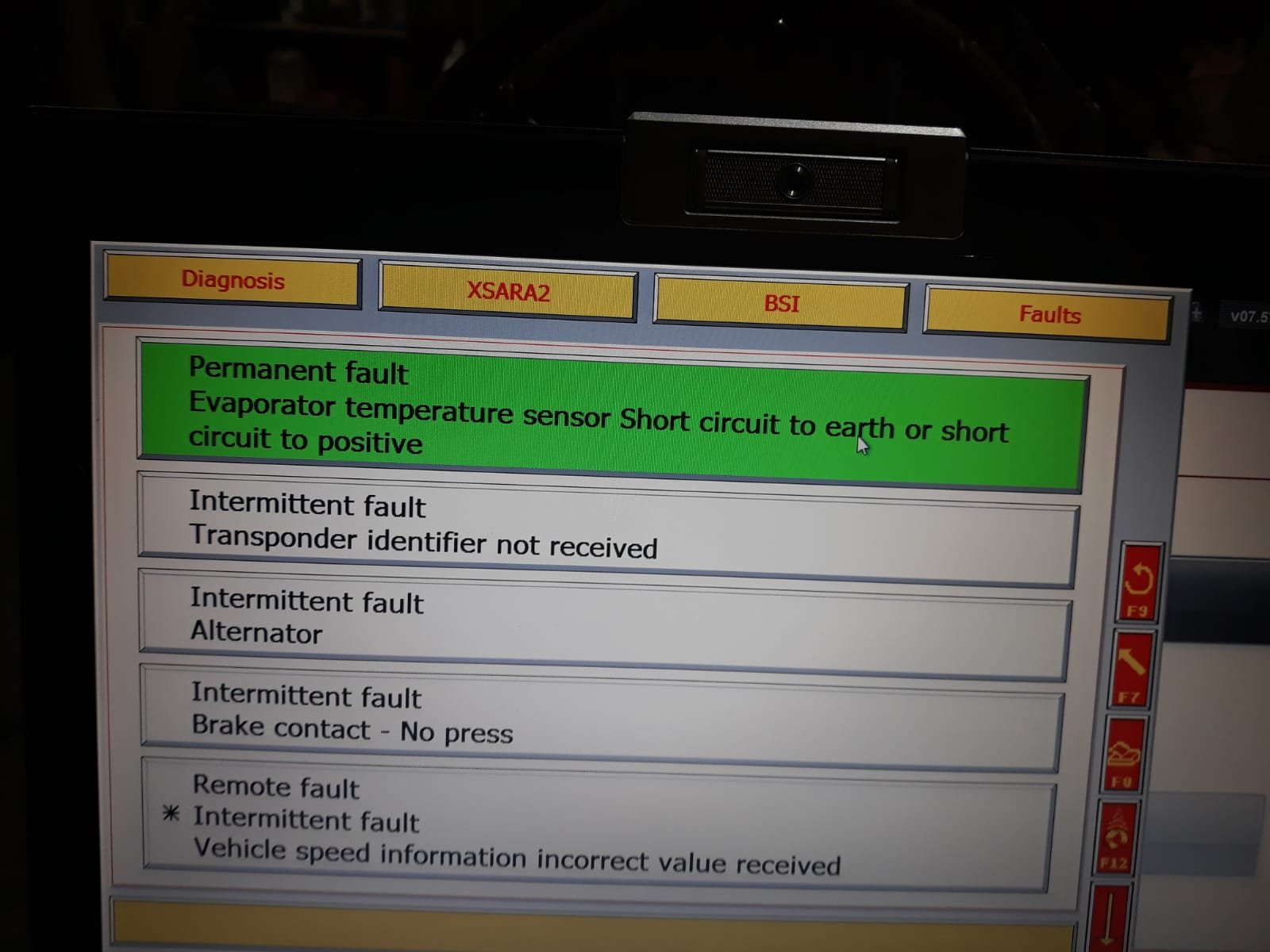

Non coded bsi fault
Evaporator temperature sensor sorry circuit to earth or short circuit to positive.
Note that this car has no air con.


Any suggestions? Looks like a new MAF is required.
Attachments
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Lexia install problem

Post by dave_xsara »

When I cleared down the BSI faults it redeclared two faults which were specific to the previous ECU.
Why would it still be holding on to them after clearing them down twice?

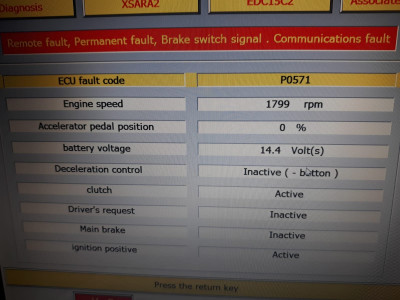

Specifically related to the brake switch fault P0571 was that more likely to be a ghost fault due to another issue or an intermittent fault with the brake switch itself (i.e. brake switch is on its way out).

The MAF was replaced a few years ago by Citroen dealer and I believe that it is a combined IAT/MAF component. A bit crap this it is FUBAR already given the price of it. With this fault do I need to validate the wiring on the from the connector back to wherever it goes (I assume into the ECU)?
Is there a way to verify the operation of the IAT using a multimeter?
User avatar
Doo
(Donor 2022)
Posts: 459
Joined: 09 Sep 2019, 16:53
Location: Inverness
My Cars: 2000 Range Rover V8 4.0
2004 Jaguar XK8 4.2
2007 Citroen C4 1.6hdi SX
2012 Berlingo Multispace e-hdi XTR (nice drive :-)
2016 Suzuki Burgman AN650 Executive
I miss my Renault 5 Gordini Turbo....
x 116

Re: Lexia install problem

Post by Doo »

You "could" remove the MAF and spray it with switch cleaner to clean the sensor. Brake cleaner is exactly the same stuff and usually cheaper BTW :wink:

See if that helps the MAF. I have to do that to our wee Smart For Four as it conks out intermittently and usually in rush hour traffic :roll:

Failing that, buy a replacement MAF and fit it yourself for the cost of the part. The dealer is charging about £100PH :o
Has anyone seen the plot? :?
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Lexia install problem

Post by Hell Razor5543 »

Make sure, if you ARE going to clean the MAF, you are very careful. There may be a sensor wire that is hair thin, and if it was hit by a jet of cleaning fluid it could break.

Some switch cleaners also have a lubricant which would also stop the MAF working, as it would leave a layer of lubricant behind, replacing any dirt that was removed! :D
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Lexia install problem

Post by dave_xsara »

I've cleaned it using proper MAF cleaner yesterday and took it out for a drive. Will try it on the diagnostics later and report back.
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Lexia install problem

Post by dave_xsara »

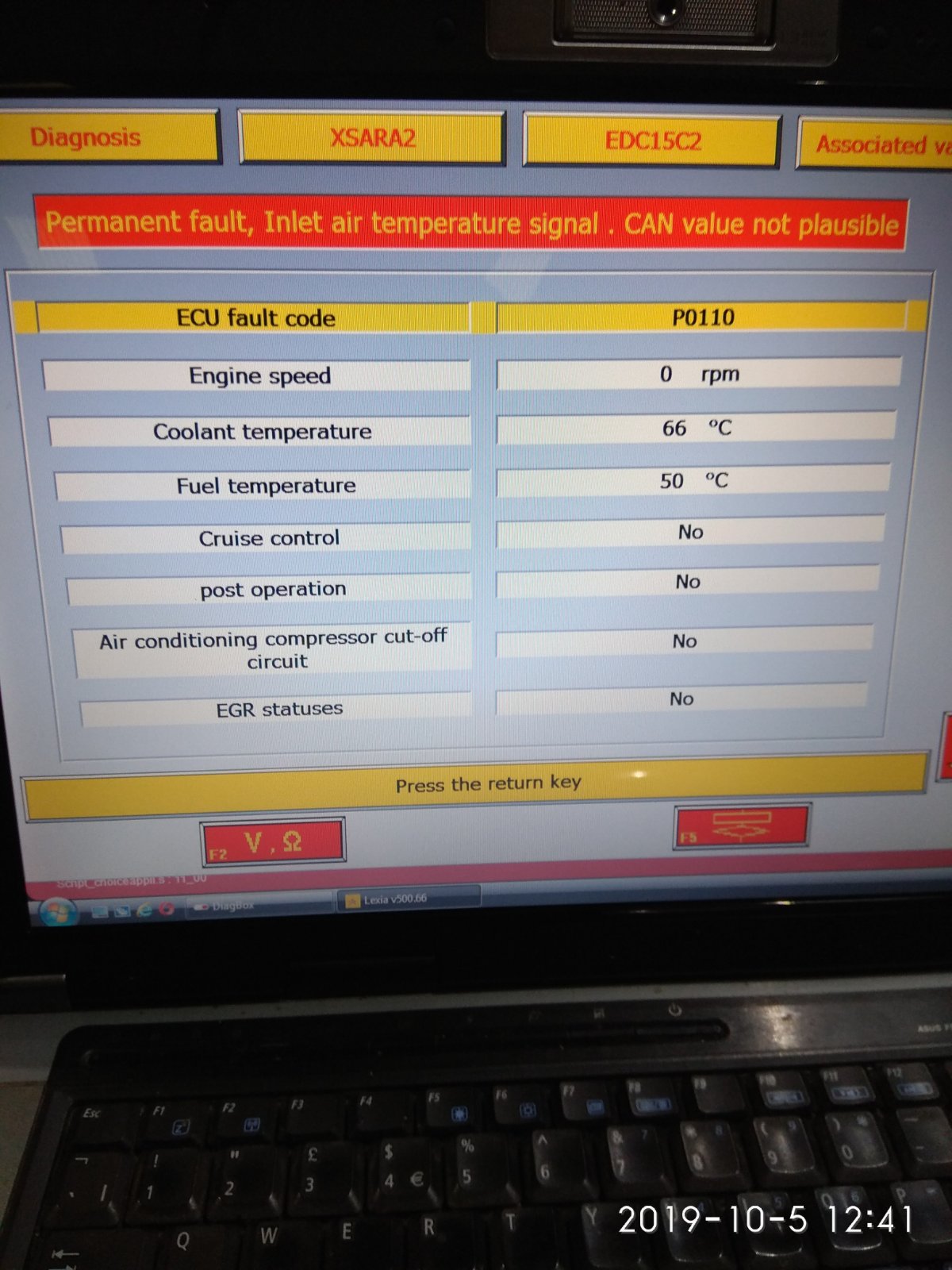

Fault P0110 still there. Old faults relating to a previous ECU are still being declared desipte being deleted numerous times. When I delete them and rescan they dissapear. However, when I subsequently open a fresh session they are back again.
