Drivers door window
I need to replace the driver's door glass on my 2010 Citroen Relay Enterprise.
I wondered if anyone knows of an instructional video which covers this?
I have removed the door trim and can see the electric motor for the window but can't see how to remove the glass.
I would be grateful for any information.
Thank you.
Benita
I wondered if anyone knows of an instructional video which covers this?
I have removed the door trim and can see the electric motor for the window but can't see how to remove the glass.
I would be grateful for any information.
Thank you.
Benita
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Drivers door window
Post your VIN up for me and I'll see what I have, as there are numerous body types and configurations of these vans.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 46
- Joined: 10 Aug 2016, 20:31
- Location: Northumberland
- My Cars: Citroen Relay Enterprise
- x 4
Re: Drivers door window
Hi Marc
Thanks for the reply.
Vin no. VF7**************[VIN obfuscated, can be read by forum staff]
First registered 12 - 11 - 2010
Thank you
Benita
Thanks for the reply.
Vin no. VF7**************[VIN obfuscated, can be read by forum staff]
First registered 12 - 11 - 2010
Thank you
Benita
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Drivers door window

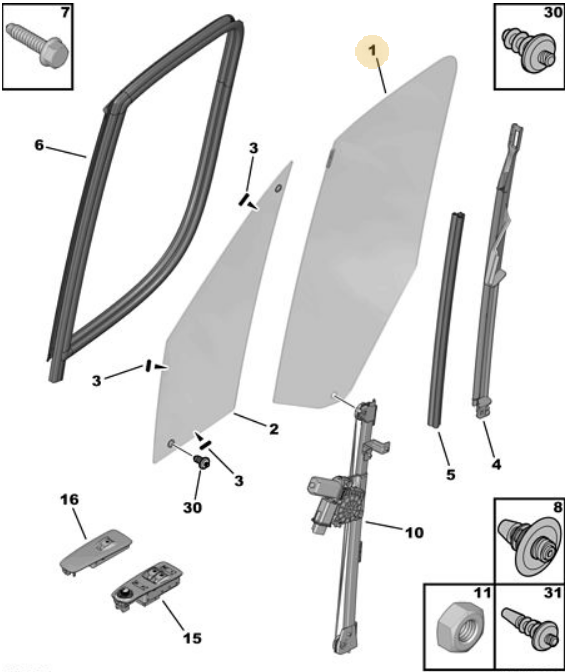

There's the window and the fixed glass.
If it's (1), the window, then the right hand side is part: 9202N6 and the left side 9201N6
If it's (1), the window, then the right hand side is part: 9202N6 and the left side 9201N6
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 46
- Joined: 10 Aug 2016, 20:31
- Location: Northumberland
- My Cars: Citroen Relay Enterprise
- x 4
Re: Drivers door window
Hi Marc
Thank you for the instruction sheet.
Unfortunately it doesn't explain any procedure to replace the glass.
Thanks anyway
Benita
Thank you for the instruction sheet.
Unfortunately it doesn't explain any procedure to replace the glass.
Thanks anyway
Benita
-
- Donor 2023
- Posts: 2625
- Joined: 24 May 2007, 10:11
- Location: poole dorset uk
- Lexia Available: Yes
- My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff] - x 378
Re: Drivers door window
You may need to look at the procedure to replace the window winder mechanism, as i guess this may show some more detail.
My guess is that the winder mechanism needs to be disconnected from the glass itself so may give clearer details, but i think the glass itself will need to be removed/replaced at an angle and then fed into the window channels
My guess is that the winder mechanism needs to be disconnected from the glass itself so may give clearer details, but i think the glass itself will need to be removed/replaced at an angle and then fed into the window channels
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Drivers door window
I almost forgot! I'll put up a procedure shortly... Edit: won't be shortly, as the whole door needs to be stripped to get to the winder mechanism, so will probably be tomorrow now as I won't have time to do it this evening.
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Drivers door window
This is part of the door stripping routine - at least enough to get the window out.
Door Stripping
This should be enough for you to get in and remove the window.
Door Stripping
Remove:

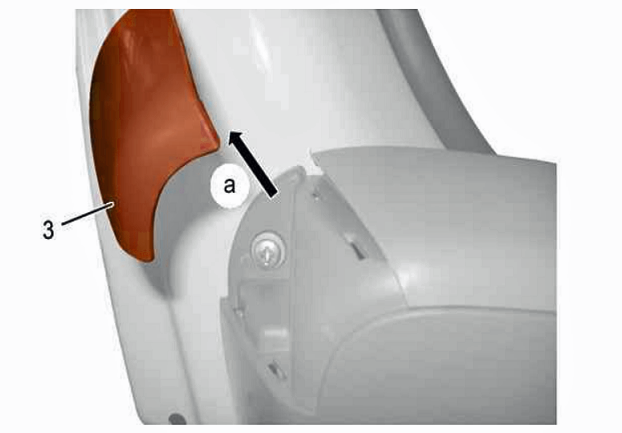

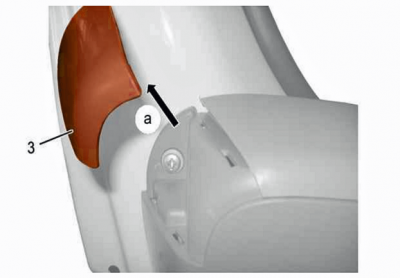

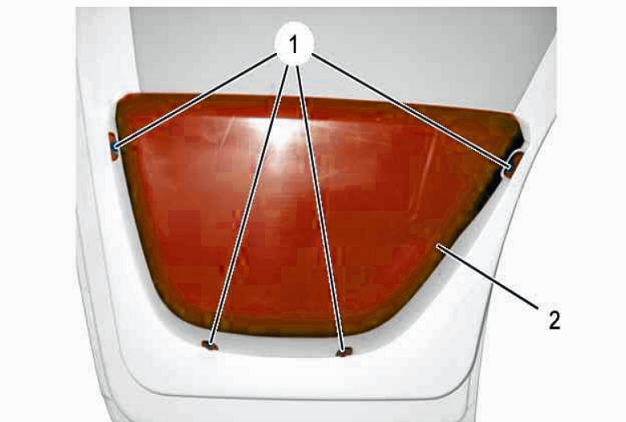

| Unclip the upper cover (3) (following "a"). |

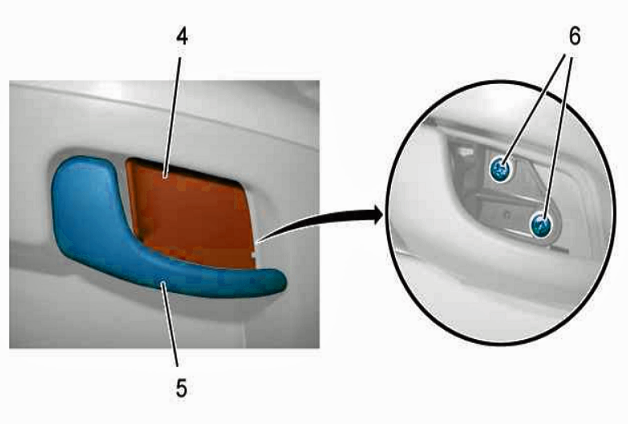

Unclip the door opening control handle (5) finisher (4). Remove:

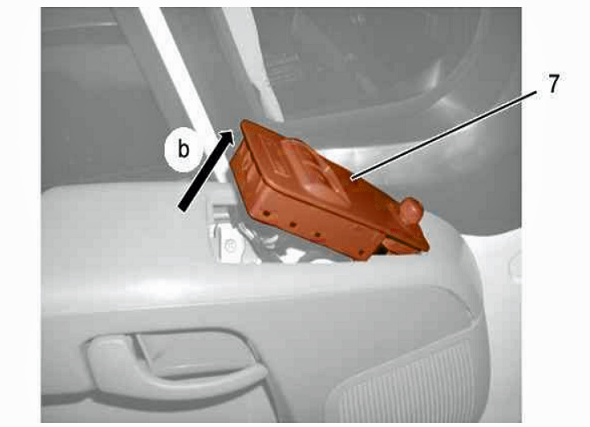

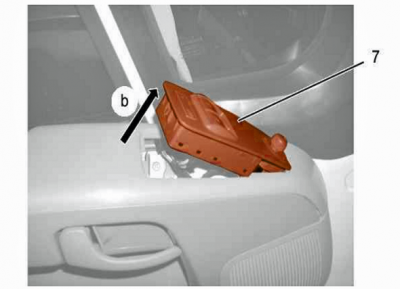

| Detach the electric window control (7) (following "b"). |

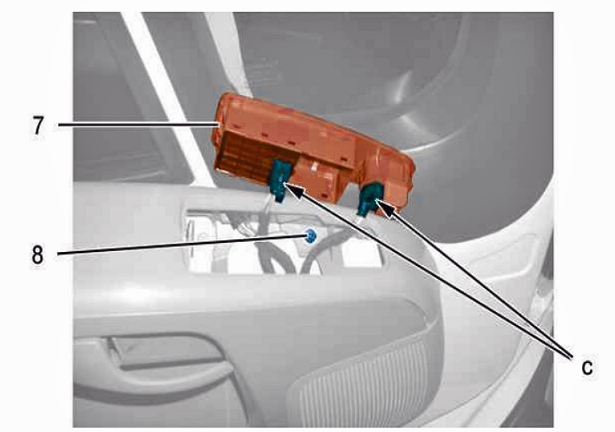

Disconnect the 2 connectors (at "c"). Remove:

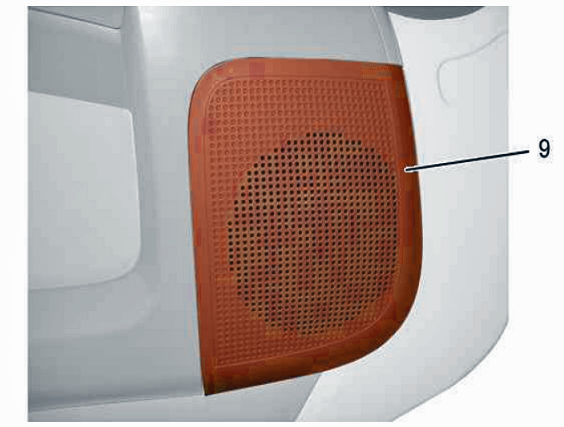

| Unclip and remove the speaker grille (9). |

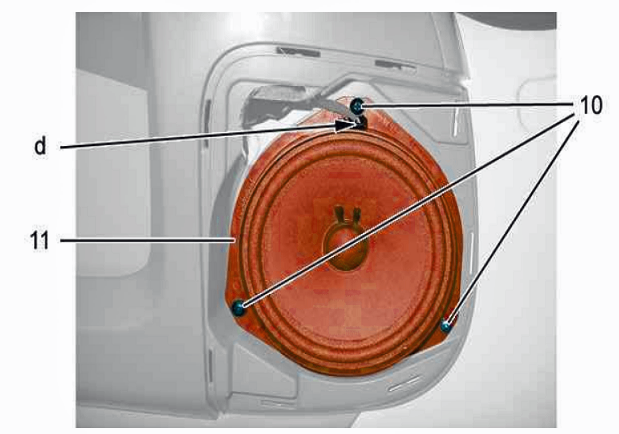

Remove the bolts (10). Detach the speaker (11). Disconnect the connector (at "d"). Remove the speaker (11). | Unclip: The armrest upper trim (12) (at "e") (following the arrow ). Remove: The armrest upper trim (12). |

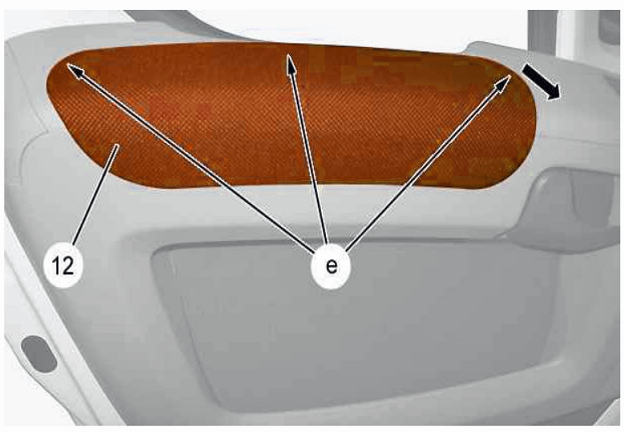

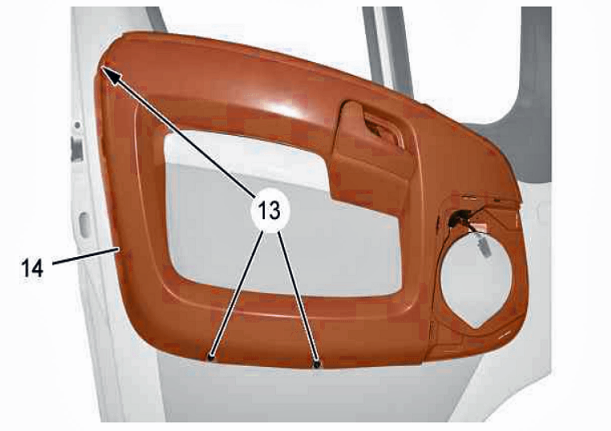

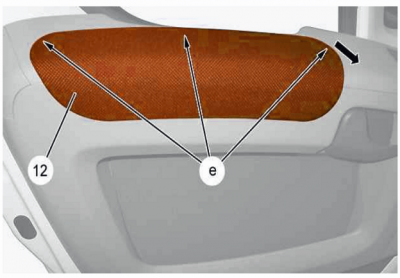

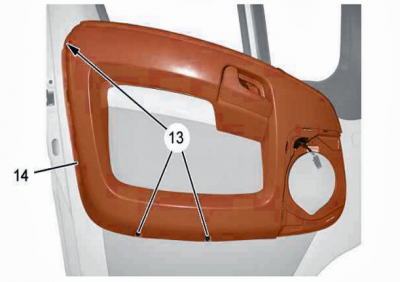

Remove the armrest (14) bolts (13). Partially detach the armrest (14). | Detach:
|

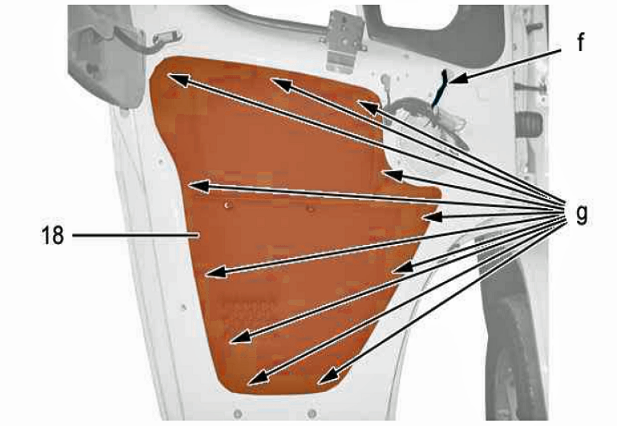

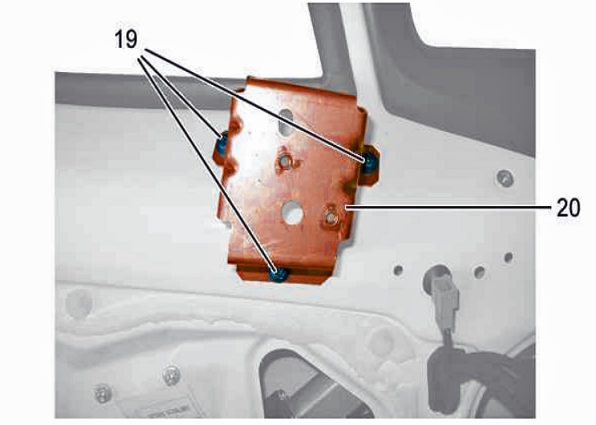

Unclip the clips (at "g"). Remove the panel with liner (18). Disconnect the exterior mirror connector (at "f"). | Remove:
|
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 46
- Joined: 10 Aug 2016, 20:31
- Location: Northumberland
- My Cars: Citroen Relay Enterprise
- x 4
Re: Drivers door window
Thanks Marc
I will give that a try when I can.
Unfortunately it might not be for a while as I have to go into hospital for an operation.
But thanks anyway
Benita
I will give that a try when I can.
Unfortunately it might not be for a while as I have to go into hospital for an operation.
But thanks anyway
Benita
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Drivers door window
No problems, good luck with the Op. I hope it all goes
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 46
- Joined: 10 Aug 2016, 20:31
- Location: Northumberland
- My Cars: Citroen Relay Enterprise
- x 4
Re: Drivers door window
Hello again, had the op and back home.
Thanks for the info Marc, as it turns out I don't need it.
I had ordered a secondhand door to replace the damaged driver's door.
I was told it was "bare", no glass etc etc.
When it came it had the glass plus lots of other bits but no trim.
I can reuse my old trim but a lot of the plastic fasteners/buttons? are useless.
Can anyone suggest a source of supply other than Citroen agents?
Thanks again to you all for all your input.
Benita
Thanks for the info Marc, as it turns out I don't need it.
I had ordered a secondhand door to replace the damaged driver's door.
I was told it was "bare", no glass etc etc.
When it came it had the glass plus lots of other bits but no trim.
I can reuse my old trim but a lot of the plastic fasteners/buttons? are useless.
Can anyone suggest a source of supply other than Citroen agents?
Thanks again to you all for all your input.
Benita
- GiveMeABreak
- Forum Admin Team
- Posts: 37339
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5723
Re: Drivers door window

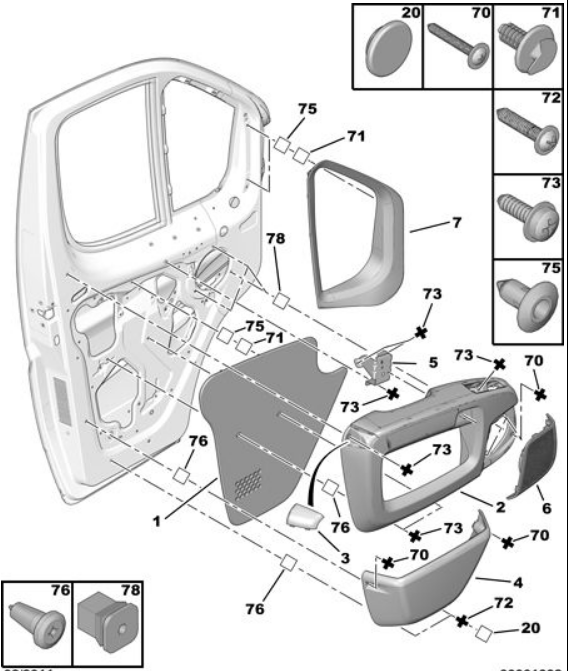

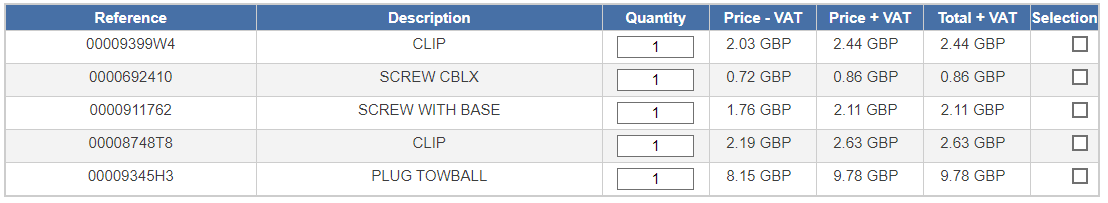

Here are the official clips and trim fixings for the door and the Citroen prices (although pack quantity is not mentioned), so we don't know how many of each you will get.
(71) 9399 W4 - UPHOLSTERY FASTENER CLIP
(72) 6924 10 - (MUL) CBLX SCREW (DIAM 4,5X20)
(73) 9117 62 - (MUL) FLANGED SCREW
(75) 8748 T8 - UPHOLSTERY FASTENER CLIP
(20) 9345 H3 - (MUL) CLOSER
(71) 9399 W4 - UPHOLSTERY FASTENER CLIP
(72) 6924 10 - (MUL) CBLX SCREW (DIAM 4,5X20)
(73) 9117 62 - (MUL) FLANGED SCREW
(75) 8748 T8 - UPHOLSTERY FASTENER CLIP
(20) 9345 H3 - (MUL) CLOSER
