Can I have a wiring diagram please ! Xantia

Post by zs&tas »

Hi, my car has gone back to being silly to start , immobilizer spazing out and the like . I would like to run a fresh 12v across the car to the ECU , and maybe that double relay .
Obviously there's a bundle of wires over there , many the same colour I'd rather try not to probe them all to work this out ! Lol
So an ECU pin out wire colour diagram and double relay system diagram would be great If someone has this , cars a 1.8 8v 1996 auto.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Can I have a wiring diagram please ! Xantia

Post by GiveMeABreak »

You'll need to pop a VIN up as there is other info we may need.
Please Don't PM Me For Technical Help

Marc
zs&tas
Posts: 260
Joined: 18 Mar 2013, 16:07
Location: Cambridgeshire
My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate
x 16

Re: Can I have a wiring diagram please ! Xantia

Post by zs&tas »

Ok thanks :

VF7**************[VIN obfuscated, can be read by forum staff]
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Can I have a wiring diagram please ! Xantia

Post by GiveMeABreak »

I'll ask Chris to see if he has anything as I don't have anything on the MK I We may have some separate docs though.
Please Don't PM Me For Technical Help

Marc
zs&tas
Posts: 260
Joined: 18 Mar 2013, 16:07
Location: Cambridgeshire
My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate
x 16

Re: Can I have a wiring diagram please ! Xantia

Post by zs&tas »

I appreciate it thanks !
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Can I have a wiring diagram please ! Xantia

Post by GiveMeABreak »

I've sent him a message with a link to this thread - but he may not be on the forum at present, so bear that in mind if he doesn't respond straight away.
Please Don't PM Me For Technical Help

Marc
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Can I have a wiring diagram please ! Xantia

Post by xantia_v6 »

Is it an XU7JP4 or XU7JP4S engine? or something else?
zs&tas
Posts: 260
Joined: 18 Mar 2013, 16:07
Location: Cambridgeshire
My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate
x 16

Re: Can I have a wiring diagram please ! Xantia

Post by zs&tas »

Hi not sure how would I know ?

It's 1.8 8v petrol from '96
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Can I have a wiring diagram please ! Xantia

Post by white exec »

Hi zs...

Thanks for the VIN number.
Have looked up the earliest Xantia wiring diagrams I have here for your car:

Xantia 5dr 1.8i 8v 103, auto BVA4 4HP14, engine XU7JP (LFY)
RP (production) number 6801 = mfg.date of 23 June 1995

These diagrams are from the earliest set I have (dates March 1977), but are for your engine.
They cover injection-ignition...

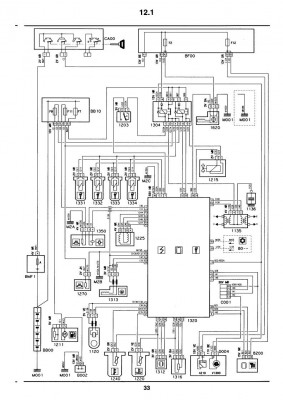

XU7JP inj-ign 1.jpg

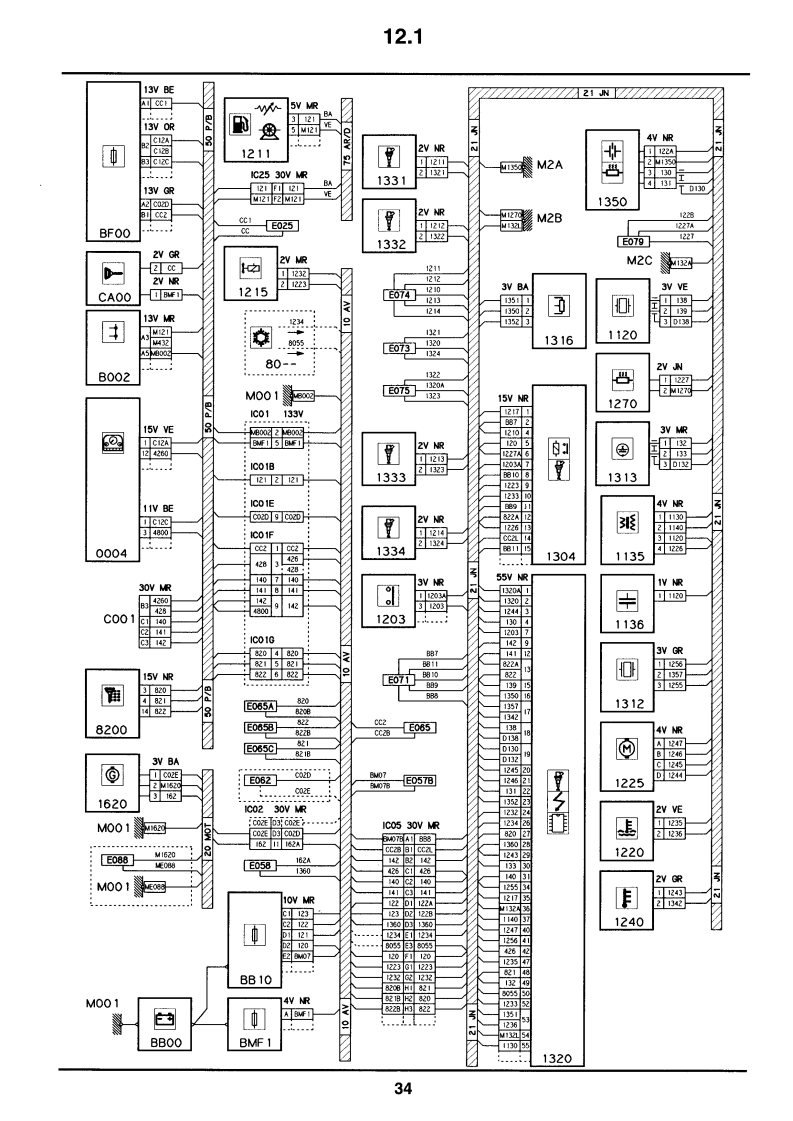

XU7JP inj-ign 2.jpg
XU7JP inj-ign 3.jpg
Hope they are helpful.
I can only post these images here as JPG images. Click on each to enlarge.
The originals are high-quality PDFs, which I can e-mail to you if you PM me your e-mail address.
Last edited by xantia_v6 on 20 Sep 2019, 20:19, edited 1 time in total.
Reason: removed note to me
Chris
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Can I have a wiring diagram please ! Xantia

Post by xantia_v6 »

I have found these, which are apparently 1996, but I don't have the index for the book they came from so can't be sure...



zs&tas
Posts: 260
Joined: 18 Mar 2013, 16:07
Location: Cambridgeshire
My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate
x 16

Re: Can I have a wiring diagram please ! Xantia

Post by zs&tas »

Awww that's awesome thanks ! I'll have a look after work , have a great day !
zs&tas
Posts: 260
Joined: 18 Mar 2013, 16:07
Location: Cambridgeshire
My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate
x 16

Re: Can I have a wiring diagram please ! Xantia

Post by zs&tas »

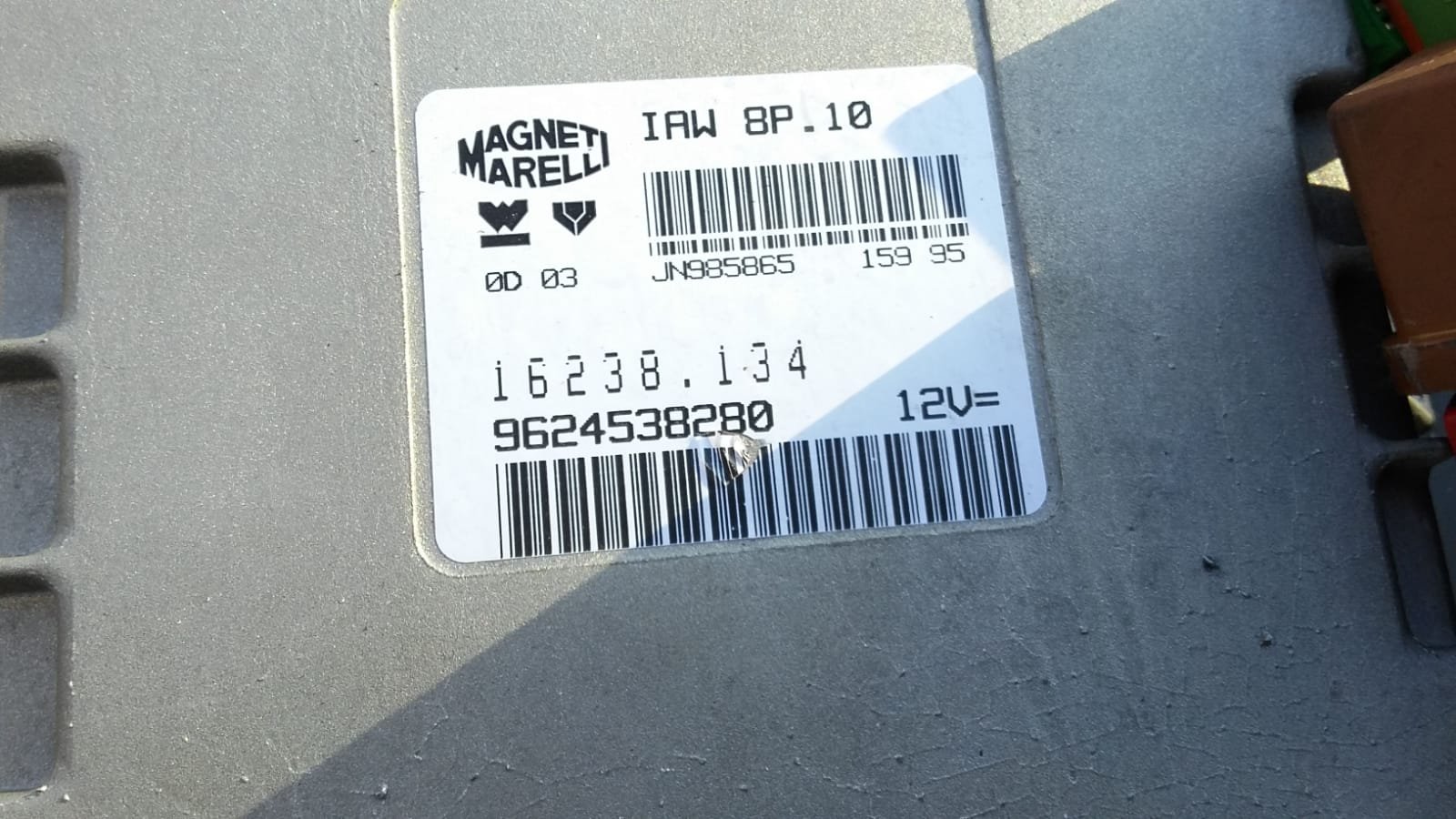

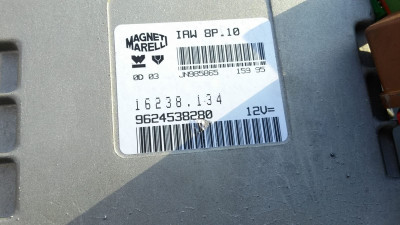

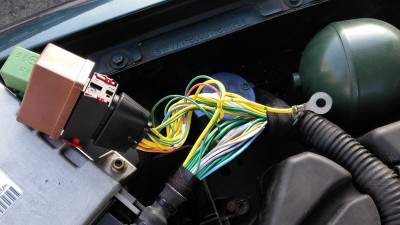

Right, checking some wiring today for silly slow starting fault . Firstly how do I get the big body connetor behind the drivers head light out ? (Pic) also could slow starting have anything to do with the ignition switch maybe ? Thinking of things I can check , also I'm prob being stupid but I can't see how the starter is switched on ? Lol there's two wires ones neg and positive with the car sat here doing nothing ?
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Can I have a wiring diagram please ! Xantia

Post by white exec »

Hi zs,

Starting diagrams (for petrol auto) as follows:

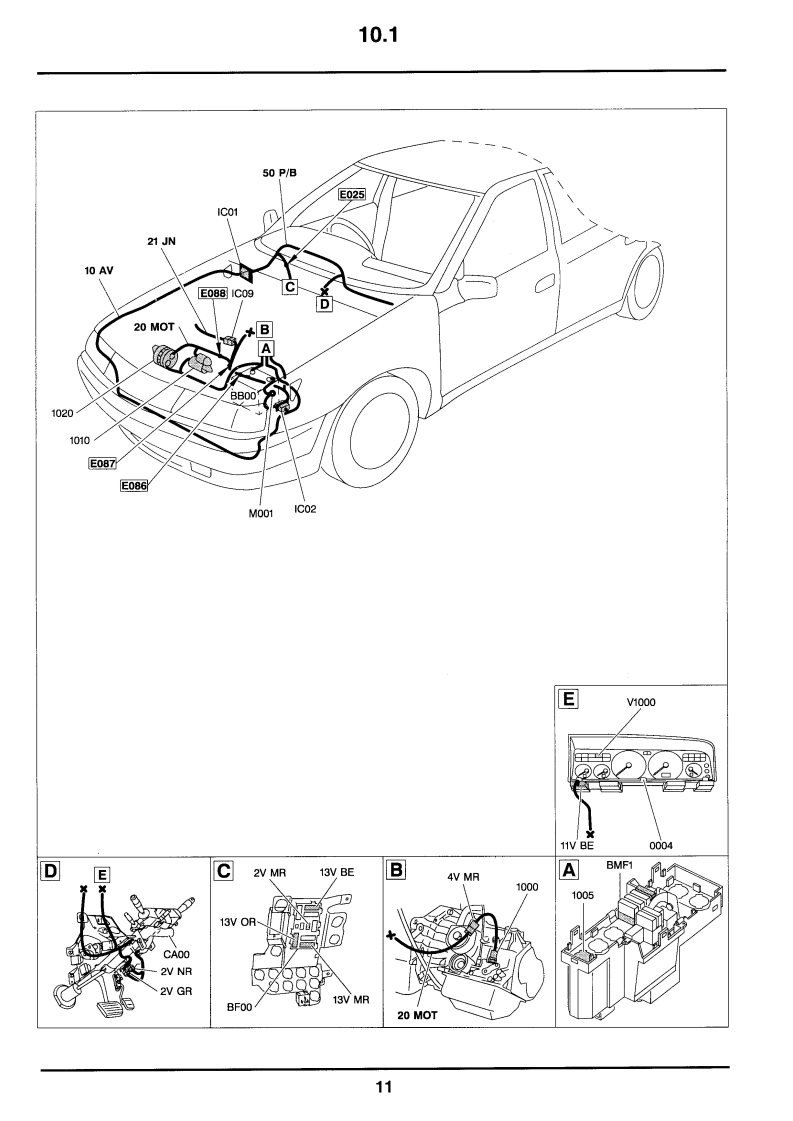

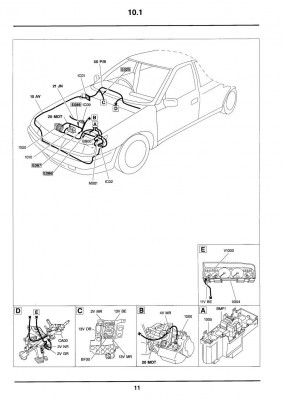

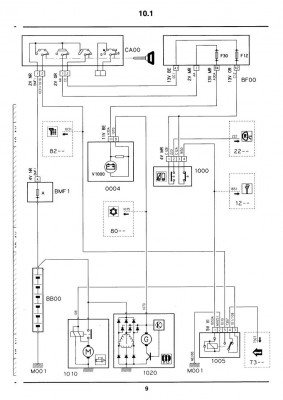

XU7JP starting_1.jpg
XU7JP starting_2.jpg
XU7JP starting_3.jpg
If you have slow/sluggish cranking with a well-charged battery, also check the main battery connectors, and clean up the contact surfaces.
If either main battery connector gets at all warm after a bit of cranking, the connectors are best renewed. The original lead (Pb) lump connectors develop internal resistance with age, and lose their grip on the cable. To replace, cut off the old connector, and clean up the copper multistrands back to bright metal. Solid brass connectors are the best bet.

I can't help with advice on the connector behind the headlight, but someone else here surely will.
Chris
zs&tas
Posts: 260
Joined: 18 Mar 2013, 16:07
Location: Cambridgeshire
My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate
x 16

Re: Can I have a wiring diagram please ! Xantia

Post by zs&tas »

White exec thanks for your help, I replaced the battery terminal connectors and chopped 1" off each lead and soldered the ends before the summer , luckily all's been well all summer but now the issue is back , I have just found under starting that the double relay nr the ECU gets 10.5v when cranking , the battery doesn't get that low so I think I will run a new wire across . It might not be my issue but it surely can't hurt
User avatar
ksanturion10
Posts: 228
Joined: 14 Oct 2018, 21:59
Location: Sofia, Bulgaria
My Cars: Xantia Estate X1 1.8i, 16v
x 19

Re: Can I have a wiring diagram please ! Xantia

Post by ksanturion10 »

Hi,
zs&tas wrote: 23 Sep 2019, 09:58 Firstly how do I get the big body connetor behind the drivers head light out ? (Pic)
If you didn't do it already, you must push upwards the grey plastic part over the brown plug and simultaniously pull it to the back. Becareful, as it is fragile, first try to make it move freely upwards and after that try, little by little, to pull it. Actually this is a 30 pin brown connector with locking. You should have similar one at the opposite side of the engine.
zs&tas wrote: 23 Sep 2019, 10:50 I have just found under starting that the double relay nr the ECU gets 10.5v when cranking , the battery doesn't get that low so I think I will run a new wire across . It might not be my issue but it surely can't hurt
10,5 V at cold starting I think is not that bad.
Can you tell me, where the main engine earth strap is mounted over the gear box? Is it at one of the bolts for the starter motor or somewhere else?
And also, can you tell me if you have serrated washers for the main + and - cables, and how are they placed in respect to the cable ends - under (touching the base metal) or over each cable end?

BR
Martin
Only himself the stupid makes wrong, many are being confused by the clever :P
