C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 10:31

Hello there. First of all, I apologize for my bad English. I have a radiator fan problem in my vehicle. The fan does not operate when it reaches 90 degrees. When it is 100 degrees, all the overheating lights on the console are lit and a warning sound is heard. That's not always the case. Sometimes it works. When it works, it works at fast speed. I tested the fan relay in the photo, it works. But the fan usually does not work. I can not take the test because it is too expensive new radiator fan in Turkey. Is there a method I can test?

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 10:48

Post your VIN up so we know exactly what you have.

canbulatemre
Posts: 12
Joined: 07 Sep 2019, 07:43

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 11:15

What exactly is VIN? :rofl2:

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 11:19

Your vehicle identification number.

You can find it on the outside lower corner of the windscreen in the little window cut out. It will begin VF7**************[VIN obfuscated, can be read by forum staff] and is 17 alphanumeric in length.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 11:23

Here

canbulatemre
Posts: 12
Joined: 07 Sep 2019, 07:43

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 13:42

Here.

VF7**************[VIN obfuscated, can be read by forum staff]

User avatar
Paul-R
Posts: 3405
Joined: 07 May 2009, 16:24
x 231

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by Paul-R » 07 Sep 2019, 13:47

Marc will need the full VIN including numbers.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 14:40

Just type the full code here - it will be masked automatically from public view.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 16:24

Ok, so I've deleted all the unnecessary info and replaced the image with the complete VIN from the last 8 digits you supplied.

So you have the C3 5 DOOR SALOON 1.4i 75 (TU3JP) 4-SPEED AUTOMATIC GEARBOX.

I'll take a look at the fan system shortly.

canbulatemre
Posts: 12
Joined: 07 Sep 2019, 07:43

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 16:26

thank you so much

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 17:05

Ok, so here is the information regarding the cooling system fitted to the C3 MK I with AL4 Automatic box:

So the fan on this vehicle is the 300 Watt version as you have Air Conditioning. It is also a variable speed fan (chopper). On slow speed, the fan will start when the engine temperature reaches 96 ° C. The speed will increase as needed, but will reach maximum speed at 105 ° C. So the fan won't start at 90° C as you said - that is normal. So the fan should start working on slow speed if you have the air conditioning switched on.

Do a test - when the engine has been off and is cool, start the car and switch the A/C OFF - the fan should not be working. Then switch the A/C on - it should start on slow speed. If that works, so far so good. You have already said it works on fast speed - so it is unlikely to be the relay.

I would suspect the Thermostatic Water Temperature Sensor is bad, so try replacing that.

Item 2 is the electric Relay for the fan. Citroen Part number: 6555VL (45 Amp, Grey)
C3 Cooling Data Relay.PNG

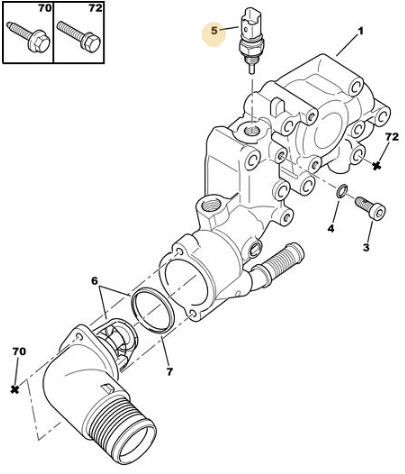

Item 5 Is the Water Temperature Sensor
Part Number: 9636777180
C3 Cooling Data Thermo.PNG
Cooling System Circuit
C3 Cooling Data.PNG
Key:

(1) Expansion Chamber.
(2) Coolant Pump.
( 3) Heater Matrix Bleed Screw.
(4) Heater Matrix Unit.
(5) Coolant Outlet Housing (BSE).
(6) Coolant Outlet Housing Bleed Screw.
(7) Thermostat.
(8) Cooling Radiator.
(9) Heat Exchanger (automatic gearbox).

SensorTemperature sensor
InformationEngine coolant temperature: Computer
Connector colourBlue
Ring colourYellow
Tightening torque1,7 ± 0,2 daNm
Warning temperature118 °C
Engine Cooling System
Total capacity of circuit7 litres
Calibration of the thermostat:-
Start of opening of the thermostatic regulator89 °C
Complete opening101 °C
Fan
Electric Cooling Fan Unit100 Watts (vehicle without air conditioning)
Electric Cooling Fan Unit300 Watts (vehicle with air conditioning)

canbulatemre
Posts: 12
Joined: 07 Sep 2019, 07:43

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 17:29

I tested the fan relay and it works. Engine water reaches 100 degrees. I checked it with the OBD. The relay is activated when the fan should run, but the fan does not start. I put the relay in and out a couple of times. He's working. This doesn't always work.
Attachments
radiator fan.jpg

canbulatemre
Posts: 12
Joined: 07 Sep 2019, 07:43

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 18:10

GiveMeABreak wrote:
07 Sep 2019, 17:05
Ok, so here is the information regarding the cooling system fitted to the C3 MK I with AL4 Automatic box:

So the fan on this vehicle is the 300 Watt version as you have Air Conditioning. It is also a variable speed fan (chopper). On slow speed, the fan will start when the engine temperature reaches 96 ° C. The speed will increase as needed, but will reach maximum speed at 105 ° C. So the fan won't start at 90° C as you said - that is normal. So the fan should start working on slow speed if you have the air conditioning switched on.

Do a test - when the engine has been off and is cool, start the car and switch the A/C OFF - the fan should not be working. Then switch the A/C on - it should start on slow speed. If that works, so far so good. You have already said it works on fast speed - so it is unlikely to be the relay.

I would suspect the Thermostatic Water Temperature Sensor is bad, so try replacing that.

Item 2 is the electric Relay for the fan. Citroen Part number: 6555VL (45 Amp, Grey)


Item 5 Is the Water Temperature Sensor
Part Number: 9636777180


Cooling System Circuit

Key:

(1) Expansion Chamber.
(2) Coolant Pump.
( 3) Heater Matrix Bleed Screw.
(4) Heater Matrix Unit.
(5) Coolant Outlet Housing (BSE).
(6) Coolant Outlet Housing Bleed Screw.
(7) Thermostat.
(8) Cooling Radiator.
(9) Heat Exchanger (automatic gearbox).

SensorTemperature sensor
InformationEngine coolant temperature: Computer
Connector colourBlue
Ring colourYellow
Tightening torque1,7 ± 0,2 daNm
Warning temperature118 °C
Engine Cooling System
Total capacity of circuit7 litres
Calibration of the thermostat:-
Start of opening of the thermostatic regulator89 °C
Complete opening101 °C
Fan
Electric Cooling Fan Unit100 Watts (vehicle without air conditioning)
Electric Cooling Fan Unit300 Watts (vehicle with air conditioning)
I will replace and test the Thermostatic Water Temperature Sensor as soon as possible. Thank you very much for your help.

User avatar
GiveMeABreak
Forum Admin Team
Posts: 16409
Joined: 15 Sep 2015, 19:38
x 1532

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by GiveMeABreak » 07 Sep 2019, 18:23

It's going to be a matter of eliminating and testing - but check the wiring connections to the fan motor itself (but warning - be aware that the fan can suddenly start with the engine not running - in order to cool the engine - so watch your fingers!). Sometimes there can be a break in a wire that corrodes over time giving an intermittent signal.

canbulatemre
Posts: 12
Joined: 07 Sep 2019, 07:43

Re: C3 - 2005 - SX - Radiator Fan Problem

Post by canbulatemre » 07 Sep 2019, 19:22

I will be very careful during the tests. Thank you for the warnings.
