Adjusting dipped lights

Post by dave_xsara »

Just had MOT failure for lights. Passed last year and were not adjusted since, so I forgot to recheck them :roll:

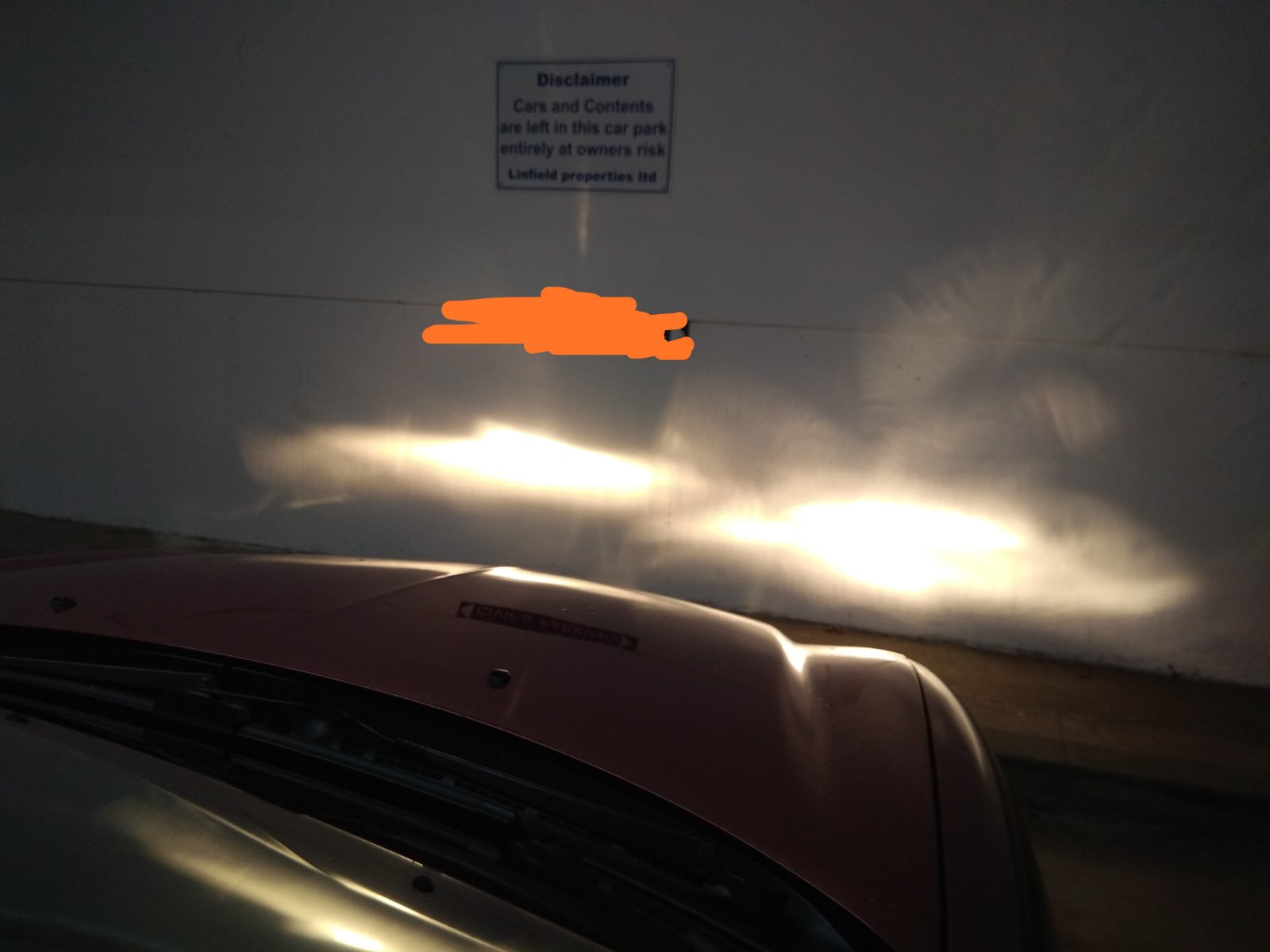

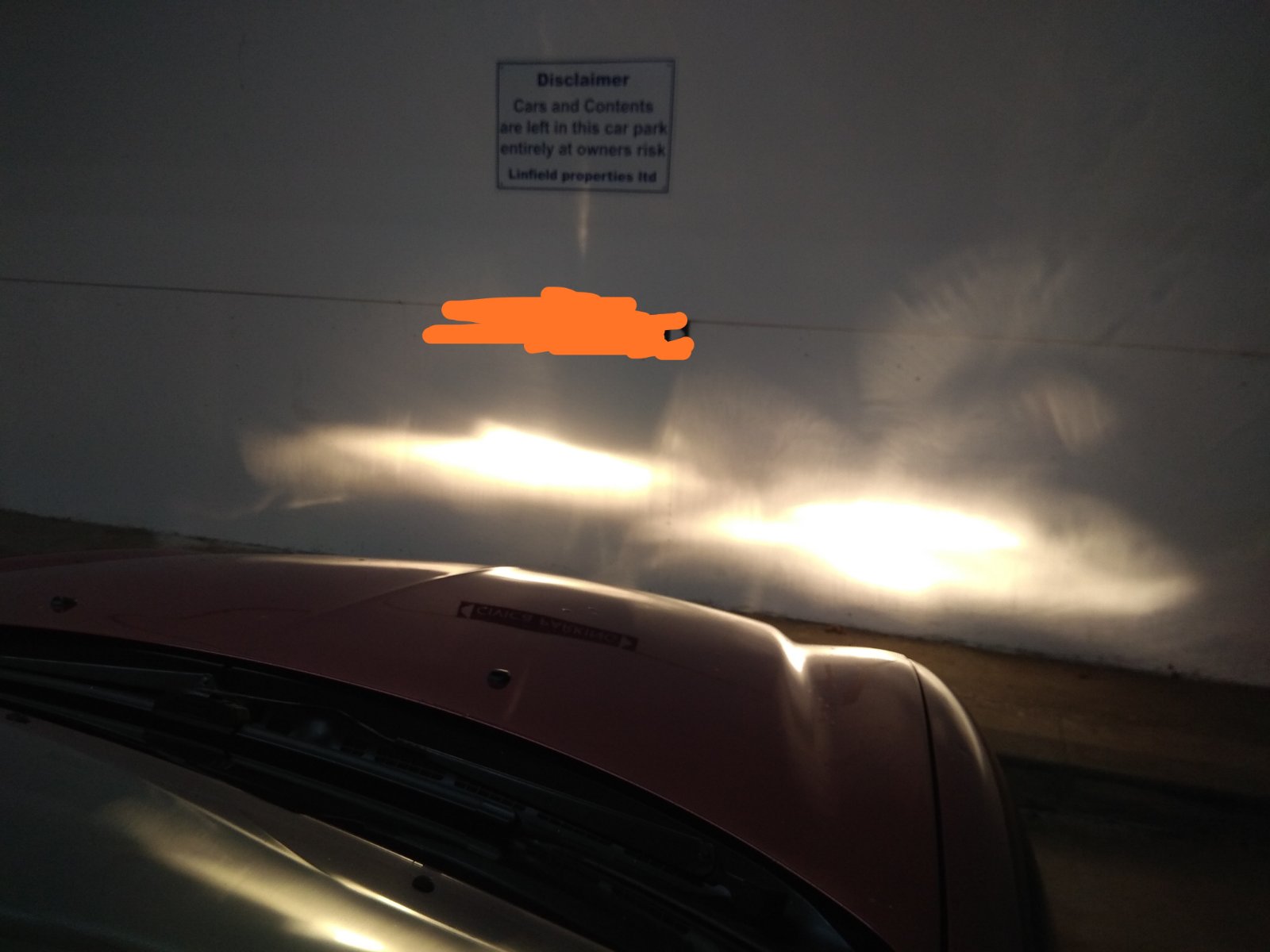

See attached image. Can this be adjusted easily at home without the test machine?
Not sure what has happened. I believe that the bulb is seated correctly.

Failed for the o/s incase is not obvious from the image!
Attachments
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 982

Re: Adjusting dipped lights

Post by RichardW »

Unless you've bumped it, there should be no need to adjust the lights.... I would re-check the bulb as the image is all wrong. Is there an internal reflector that is bent? Is the bulb in upside down?
Richard W
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Adjusting dipped lights

Post by GiveMeABreak »

Unless you’ve accidentally turned a headlight adjustment screw.... I’ve seen people do this mistakingly thonkingnit was a trim removal screw!
Please Don't PM Me For Technical Help

Marc
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: Adjusting dipped lights

Post by bobins »

GiveMeABreak wrote: 02 Sep 2019, 12:43 Unless you’ve accidentally turned a headlight adjustment screw.... I’ve seen people do this mistakingly thonkingnit was a trim removal screw!

What a great username that would be :lol:
Sadly no longer a C5 owner :(
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Adjusting dipped lights

Post by dave_xsara »

RichardW wrote: 02 Sep 2019, 12:24 Unless you've bumped it, there should be no need to adjust the lights.... I would re-check the bulb as the image is all wrong. Is there an internal reflector that is bent? Is the bulb in upside down?
Internal reflectors have not been touched and look fine. Bulb has not been moved since last year and it passed then so I can't see it having rotated in 180deg in the last year. I did notice that there were black scuffs where someone had side swiped the front of my car in a car park, but I didn't think it would affect the lights.
GiveMeABreak wrote: 02 Sep 2019, 12:43 Unless you’ve accidentally turned a headlight adjustment screw.... I’ve seen people do this mistakingly thonkingnit was a trim removal screw!
Again, I've not knowingly been near these. However, I'll take a look and see what happens.

Firstly, I'll take a look at how the bulb is fitted when it stops raining.
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 982

Re: Adjusting dipped lights

Post by RichardW »

What was the failure - beam too high, or beam image incorrect? Presume this is a Mk2 with the bubble headlights? Are they badly yellowed - if so you might just need to polish them to remove the haze and restore the beam pattern.
Richard W
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Adjusting dipped lights

Post by GiveMeABreak »

Do the bulb position fitting check first, but if not that you’ll probably need them to be set properly. Most MOT people will make any minor adjustment for you
Please Don't PM Me For Technical Help

Marc
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Adjusting dipped lights

Post by dave_xsara »

RichardW wrote: 02 Sep 2019, 13:33 What was the failure - beam too high, or beam image incorrect? Presume this is a Mk2 with the bubble headlights? Are they badly yellowed - if so you might just need to polish them to remove the haze and restore the beam pattern.
I'll re-check the sheet. It is a MkII. Lens not yellowed as I've done them with a cleaning kit (viewtopic.php?t=59229&start=15).
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Adjusting dipped lights

Post by dave_xsara »

GiveMeABreak wrote: 02 Sep 2019, 13:34 Do the bulb position fitting check first, but if not that you’ll probably need them to be set properly. Most MOT people will make any minor adjustment for you
Failed on parking brake too despite it being adjusted it up yesterday. Was 2% below limit. Not much more I can do there, so I might just drag the handbrake whilst going in to clean down the disc and back it off a bit as it was rock solid at 4 clicks. It was a wet day here, but still. This car has always had issues with the parking brake efficiency test.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Adjusting dipped lights

Post by white exec »

Might be worth just thowing in a new pair of good quality headlight bulbs, like Philips or Osram.
Filaments going out of position (as they age) have been known on cheap bulbs.
Chris
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Adjusting dipped lights

Post by dave_xsara »

RichardW wrote: 02 Sep 2019, 13:33 What was the failure - beam too high, or beam image incorrect? Presume this is a Mk2 with the bubble headlights? Are they badly yellowed - if so you might just need to polish them to remove the haze and restore the beam pattern.
O/S beam too low.
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 982

Re: Adjusting dipped lights

Post by RichardW »

You can check the lights flat surface with a wall at the end. Drive up close as in your picture, then mark the wall where the centre of the lights falls. Drive straight back about 10 ft and you will see the beams on the wall, they should stay just about on the marks you have made. To me that pic looks like the beam patter is not right, rather than too low - see the NS beam has a clear defined line with a kick up at the LH end? The OS should look the same, whereas it just looks like a blob!! I would stick a new bulb in the OS and see what it looks like. These lights have electric levellers, and if this goes kaput, then it's possible the light will point in the wrong direction.
Richard W
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Adjusting dipped lights

Post by dave_xsara »

Sorted. Took the bulb it and then reseated it.
Looks okay now. I completely forgot to check alignment. Just checked they were working. Never thought it would be out of alignment :roll: .
Glad it didn't just fail on this.

I'll back of the handbrake until I get 5 clicks and then go for the retest.
Attachments

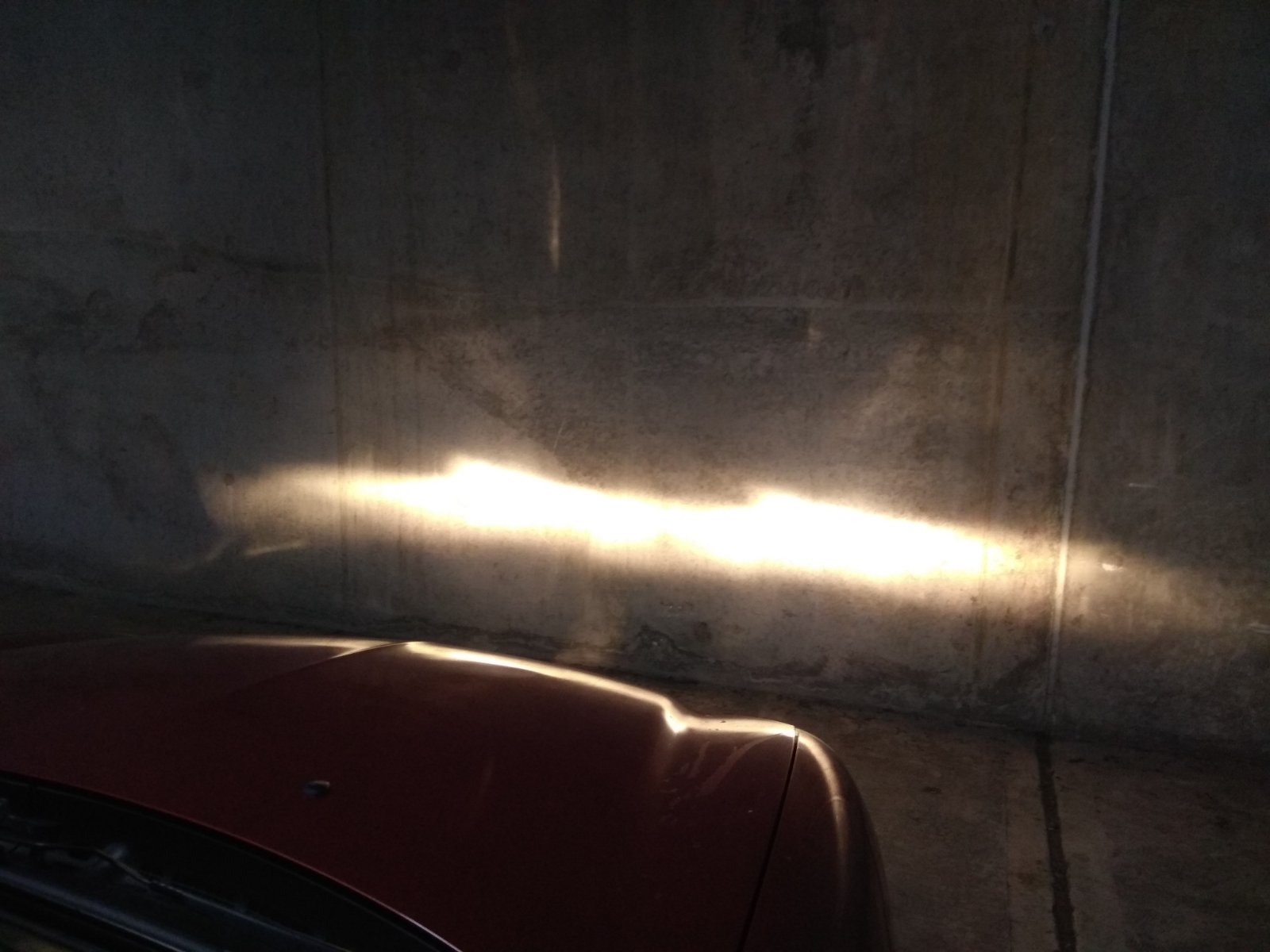

After reseating
After reseating

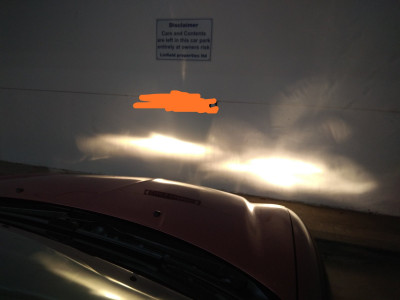

Prior to reseating
Prior to reseating
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 982

Re: Adjusting dipped lights

Post by RichardW »

=D>

That looks better :-D

It probably needs new handbrake cables if it appears to be tight, and yet the efficiency is low - presume the service break on the rear comes up OK, which means the pads and discs are OK?
Richard W
dave_xsara
(Donor 2021)
Posts: 338
Joined: 24 Nov 2010, 21:35
Location: In the garage!
My Cars: Xsara 2.0HDi 90
x 10

Re: Adjusting dipped lights

Post by dave_xsara »

I got the cable adjustment tightened up yesterday, but it might have been overtightened as to get to the 4th click takes a bit of effort. I noticed that the tester might only have got 3 clicks and that combined with the wet weather might have been enough for sufficient slip for it to fail the test.
New disks and pads in February (plus N/S caliper - viewtopic.php?p=600038#p600038).
