C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Moderator: RichardW
-
- Donor 2024
- Posts: 34
- Joined: 27 Aug 2019, 07:50
- Location: Somerset
- My Cars: Citroen C4 Picasso Exclusive 2014
- x 2
C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Good afternoon all
First thing I must say, is what a brilliant site this is
Onto my issue that I hope some very technically based people will be able to help me with
On my 2014 C4 Pic (new shape) I have an issue with the cabin/air con heater fan unit.
Basically no matter what setting I have the speed on (from off to full tilt) the fan stays at the same speed.
When I turn up or down the temperature the fan stays the same speed.
Also when I unlock the car the fan starts running.
When I lock the car, the fan keeps running for a few minutes after locking.
I suspect its some kind of relay problem.
Can anyone assist in showing a schematic of where and/or how to remove/replace the resistor.
Or other any other advise into what is going on.
Many thanks
Zane
First thing I must say, is what a brilliant site this is
Onto my issue that I hope some very technically based people will be able to help me with
On my 2014 C4 Pic (new shape) I have an issue with the cabin/air con heater fan unit.
Basically no matter what setting I have the speed on (from off to full tilt) the fan stays at the same speed.
When I turn up or down the temperature the fan stays the same speed.
Also when I unlock the car the fan starts running.
When I lock the car, the fan keeps running for a few minutes after locking.
I suspect its some kind of relay problem.
Can anyone assist in showing a schematic of where and/or how to remove/replace the resistor.
Or other any other advise into what is going on.
Many thanks
Zane
-
OnlinePaul-R
- Donor 2023
- Posts: 6939
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
It's definitely the fan for the heater/aircon you mean? Not the radiator cooling fan?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
- Donor 2024
- Posts: 34
- Joined: 27 Aug 2019, 07:50
- Location: Somerset
- My Cars: Citroen C4 Picasso Exclusive 2014
- x 2
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Hi Paul,
Yep definitely the aircon/heater fan.
I had the bonnet open and checked whilst the fan was running.
Plus the fan noise was coming from the bulk head area of the engine bay.
Cheers
Zane
Yep definitely the aircon/heater fan.
I had the bonnet open and checked whilst the fan was running.
Plus the fan noise was coming from the bulk head area of the engine bay.
Cheers
Zane
-
- Donor 2024
- Posts: 34
- Joined: 27 Aug 2019, 07:50
- Location: Somerset
- My Cars: Citroen C4 Picasso Exclusive 2014
- x 2
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
just wondering if anyone has further they could assist me with please
- xantia_v6
- Forum Admin Team
- Posts: 9090
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 835
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
You say the fan runs at a constant speed, is running fast or slow?
It is quite likely the speed controller module that has failed, but a better description might help us.
It is quite likely the speed controller module that has failed, but a better description might help us.
-
- Forum Treasurer
- Posts: 10890
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 1002
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
The fan appears to be in the driver's footwell, so it seems a bit unlikely that you can hear it with the bonnet open....
The controller is next to the blower unit, I suspect that getting to it on a RHD car might be a bit of a challenge!!
The controller is next to the blower unit, I suspect that getting to it on a RHD car might be a bit of a challenge!!
Richard W
-
- Donor 2024
- Posts: 34
- Joined: 27 Aug 2019, 07:50
- Location: Somerset
- My Cars: Citroen C4 Picasso Exclusive 2014
- x 2
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Hi guys....
So...
It’s definitely the air con/heater fan
It can be heard on the out side and is definitely at the back of the engine bay
The speed of the fan is at constant fast speed
No matter what what speed or temperature I set on the touch screen air con page the fan stays at the same high speed.
Would any one have a diagram of the heat unit or any instruction on how to access said area.
I really appreciate all of your inputs
Cheers
So...
It’s definitely the air con/heater fan
It can be heard on the out side and is definitely at the back of the engine bay
The speed of the fan is at constant fast speed
No matter what what speed or temperature I set on the touch screen air con page the fan stays at the same high speed.
Would any one have a diagram of the heat unit or any instruction on how to access said area.
I really appreciate all of your inputs
Cheers
- GiveMeABreak
- Forum Admin Team
- Posts: 37401
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Not you've said it is running constantly on fast speed, that would very likely be the lower Control Module.
Pop your VIN up for further details so we know the exact system you have.
Pop your VIN up for further details so we know the exact system you have.
Please Don't PM Me For Technical Help
Marc
Marc
- xantia_v6
- Forum Admin Team
- Posts: 9090
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 835
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Time to get a new keyboard Marc?GiveMeABreak wrote: ↑28 Aug 2019, 10:23 Not you've said it is running constantly on fast speed, that would very likely be the lower Control Module.
Pop your VIN up for further details so we know the exact system you have.
- GiveMeABreak
- Forum Admin Team
- Posts: 37401
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Indeed! Blower not Lower^
Autocorrect getting it wrong as usual!
Autocorrect getting it wrong as usual!
Please Don't PM Me For Technical Help
Marc
Marc
- myglaren
- Forum Admin Team
- Posts: 25474
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4922
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
Now, not Not tooGiveMeABreak wrote: ↑28 Aug 2019, 10:41 Indeed! Blower not Lower^
Autocorrect getting it wrong as usual!
You would be shocked at the amount of red squiggly lines I get, usually additional or missing letters but often words spelled completely back to front.
Sometimes the spellcheck suggestions are hilarious - I don't have autocorrect, fortunately.
- GiveMeABreak
- Forum Admin Team
- Posts: 37401
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
It's worse when using any of the iPads or iPhones - on the PC it's just me! - But I do cycle through 3 keyboards depending on the RSI factor.
Please Don't PM Me For Technical Help
Marc
Marc
- myglaren
- Forum Admin Team
- Posts: 25474
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4922
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
I don't use tablets, don't like them at all and my phone is too thick to use on t'internet. Too small too, I can barely see to text.
-
- Forum Treasurer
- Posts: 10890
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 1002
Re: C4 Picasso 2014 Exclusive - Air Con Fan Issue (new Shape)
There looks to be only 1 type of blower and controller for all Mk2 cars.

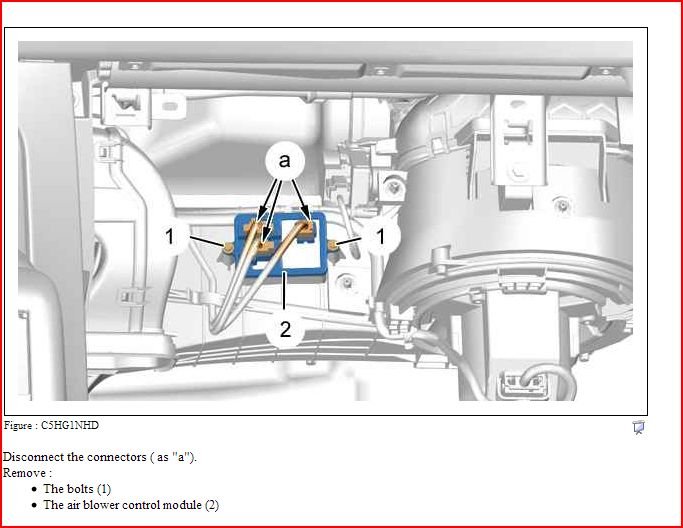

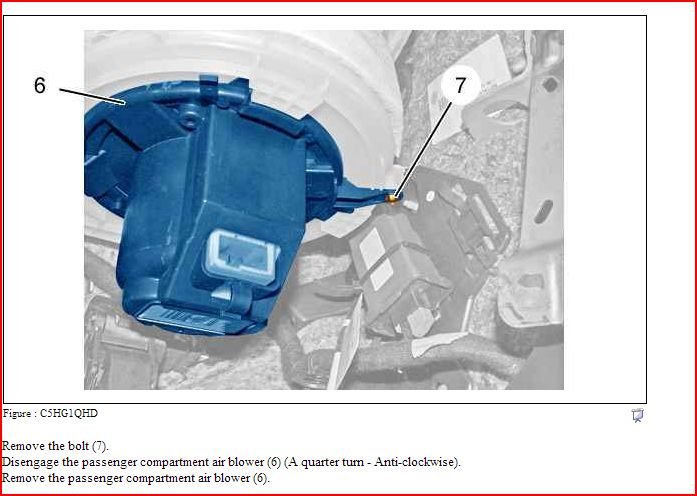

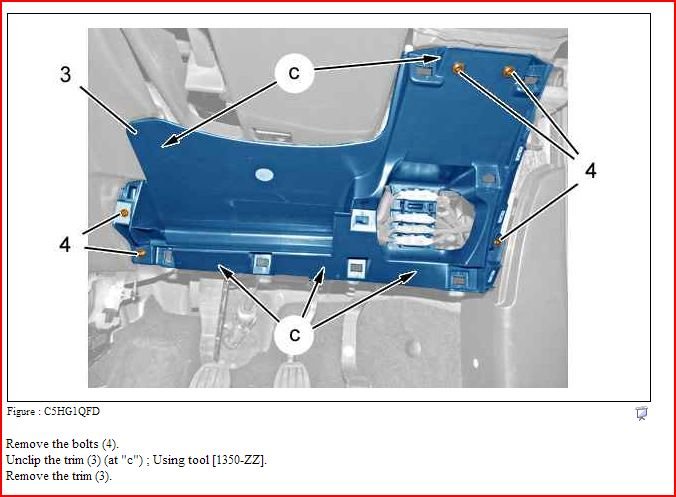

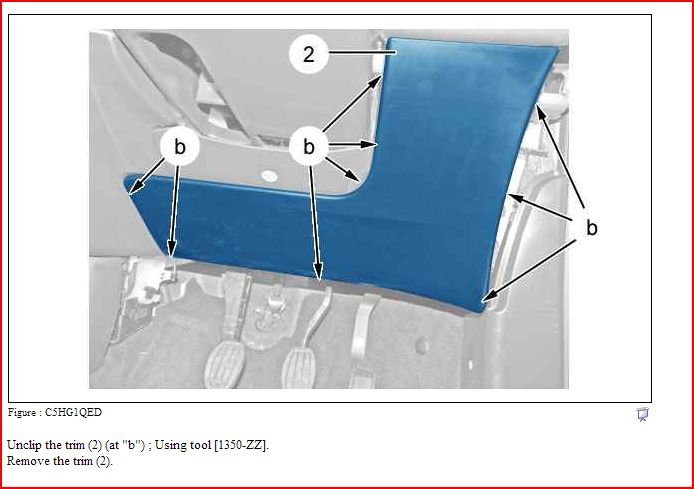

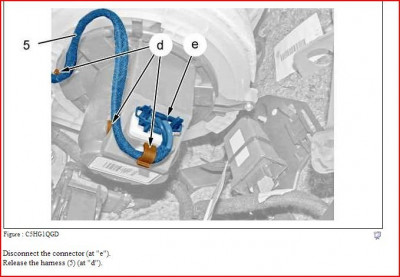

Blower removal
