I had to take a few parts out to install some new brake pipes and (rather stupidly) I didn't take pictures of where everything went. Everything is back together now but I can't find where to the vacuum pipe that comes out of the back of the vacuum tank goes. It is the pipe on it's own that points towards the back of the engine bay. Can anyone tell me where it attaches please? I can't see it anywhere
I have a 2002 Mk2 Citroen Berlingo 1.9D
Where does the vacuum pipe go??
Moderator: RichardW
-
- Forum Treasurer
- Posts: 10890
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 1002
Re: Where does the vacuum pipe go??
Welcome
Hopefully this is the right one. Post your VIN and we can confirm (it will hide itself).

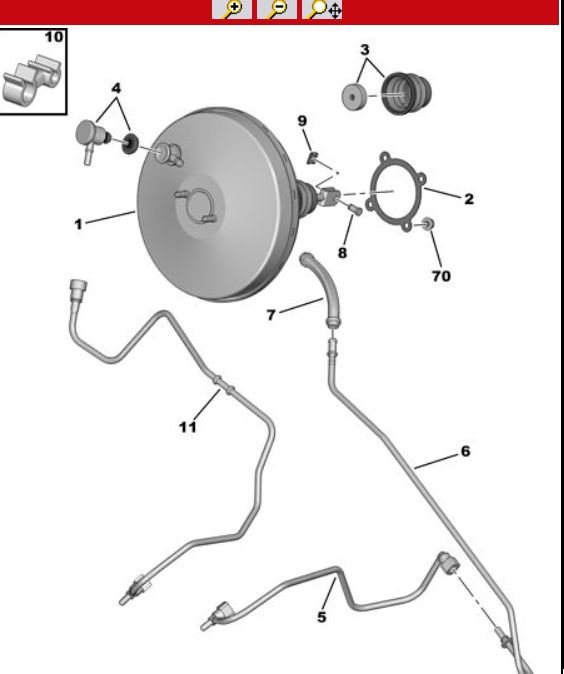

Brake vacuum
Emissions control vac
Hopefully this is the right one. Post your VIN and we can confirm (it will hide itself).
Brake vacuum
Emissions control vac
Richard W
Re: Where does the vacuum pipe go??

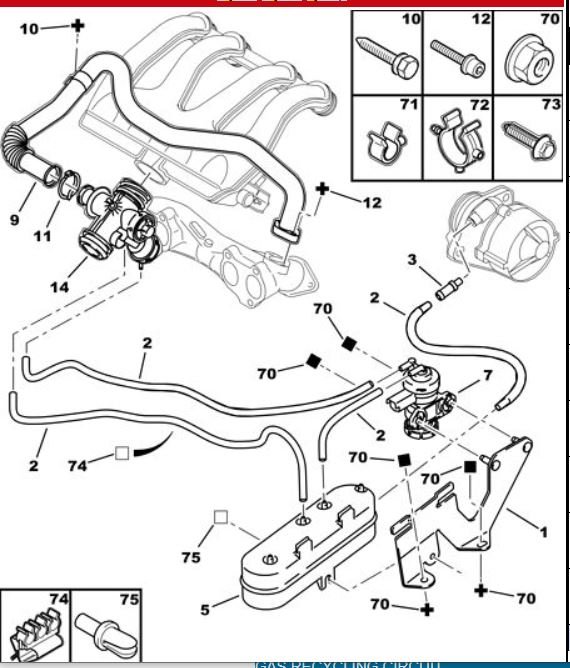

Thank you so much for that. It's the S shaped pipe on the bottom picture with the number 3 connector. Do you have a diagram of the pipes from the fuel filter housing?
Vin Number is VF7**************[VIN obfuscated, can be read by forum staff]
Is there any way I can post pictures?
Vin Number is VF7**************[VIN obfuscated, can be read by forum staff]
Is there any way I can post pictures?
-
- Forum Treasurer
- Posts: 10890
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 1002
Re: Where does the vacuum pipe go??
Fuel pipes...
Pictures - select the Full Editor and Preview button, then below the text input window, click on the attachments tab, then add files. Once uploaded, just click place in line and they will put themselves in where the cursor is.
Pictures - select the Full Editor and Preview button, then below the text input window, click on the attachments tab, then add files. Once uploaded, just click place in line and they will put themselves in where the cursor is.
Richard W
Re: Where does the vacuum pipe go??

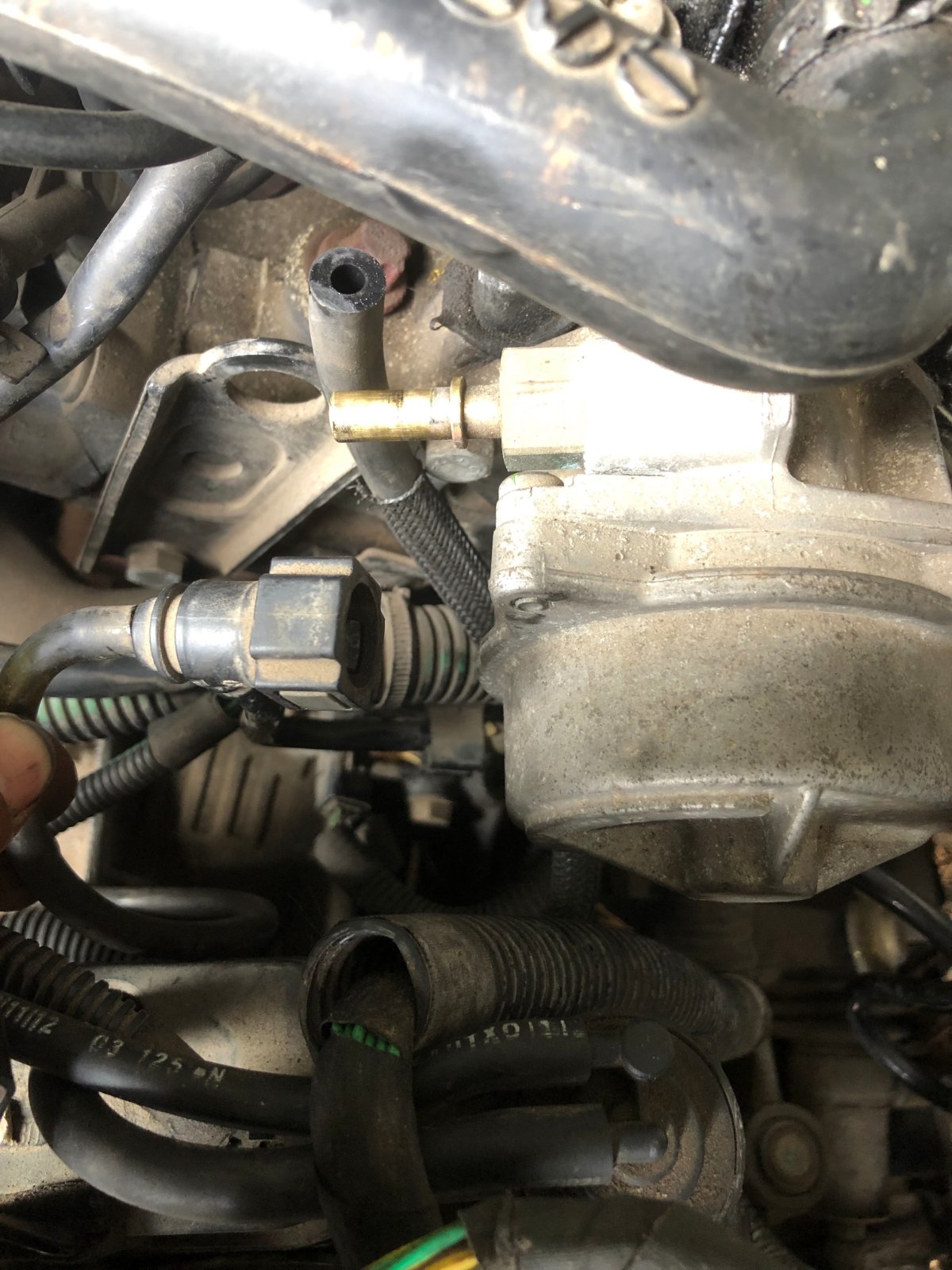

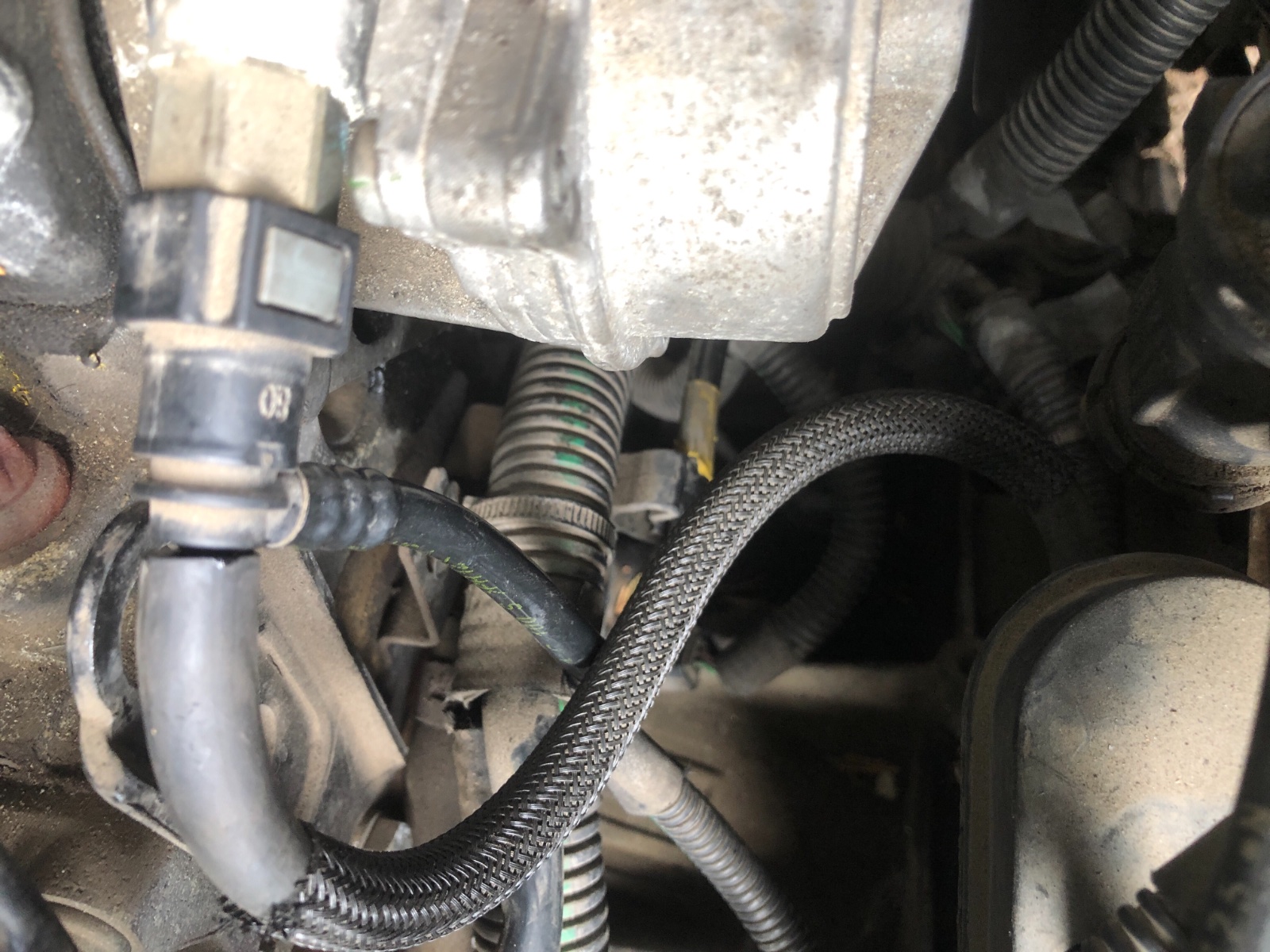

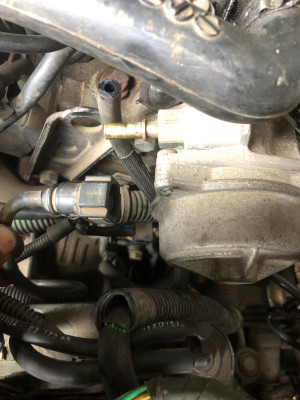

Thanks again for the quick reply. The Pipes in my fingers come from the fuel filter housing and the pipe on its own is the vacuum pipe in question
Re: Where does the vacuum pipe go??

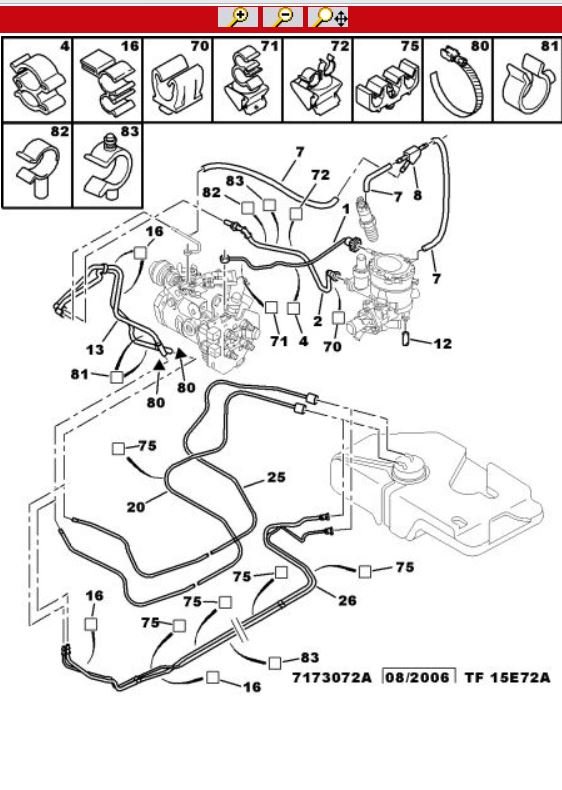

The pipe with the clip appears to be number 12 on the fuel diagram
Re: Where does the vacuum pipe go??
I now know that the pipe I had connected to the clip is the drainage pipe. I was deceived as it fits very snug on the clip.
My final question is:
Does the vacuum pipe have a clip / cable tie to keep it in place? It seems very loose.
