Master IV, 2,3DCi fault code CDT038015 SOLVED!

Post by Orchid70 »

Hi
The van is from 2011. (VIN VF1**************[VIN obfuscated, can be read by forum staff] )
Fault code 038015 Pre heating diagnosis connector open ciruite - appeared.
I was a bit fast and changed the plugs - it has run over 200000 km.
After that I started to check the voltage at the plugs - its constant ~5V.
So I changed the relay.
Still same.
Does someone have an idea to where to start looking next?
Thank you!
Last edited by Orchid70 on 26 Nov 2021, 16:59, edited 1 time in total.
User avatar
Orchid70
(Donor 2021)
Posts: 56
Joined: 30 Dec 2019, 14:54
Location: Sweden
My Cars: Citroen C5 2011
x 5

Re: Master IV, 2,3DCi fault code CDT038015

Post by Orchid70 »

Its too cold outside at the moment. But I have checked this:
There is 12V into both red wires.
There is 3,5V on all the three other small wires with ignition on - untill the throttle body turns silent, then voltage drops to 0.
Does someone know how to test these relays? Perhaps have a wiring diagram for them?
The relay I got is used. So there is a possibility it is faulty. There is no glow plug light on this van, as far as I can see, so if you dont read the fault codes, you dont know something is wrong.
Tomorrow I will try to activate the relay with the computer and measure.
I would be very thankfull if someone had the wiring diagram for this engine/glow plug relay.
User avatar
Orchid70
(Donor 2021)
Posts: 56
Joined: 30 Dec 2019, 14:54
Location: Sweden
My Cars: Citroen C5 2011
x 5

Re: Master IV, 2,3DCi fault code CDT038015

Post by Orchid70 »

The problem is solved!

When I realised there are TWO relays for glow plugs, that is, when I found the other relay - I found the problem.
The fault code 038013 is for the smaller relay (with only one connector, with a blue locking mechanism), behind the Plus pole for charging the battery. The part number is: 110678071R
The big realy (two connectors) has part number: 8200558438A

Well, the realy was ok, in the end, but when I removed the connector I happened to notise a small, small kind of damage. It only looked a bit dodgy, thats it. When I scrathed the surface with my nail, it looked like there was no wires inside. It was the grey/greyish, thinnest wire. 0,5 or thinner. Almost at the pin it self.
I removed the yellow locking plate and removed the female pin. And managed to repair it with a small piece of wire and crimps.
Everything back together and the fault code for "diagnose connection to pre heating realy" - gone.
It started to rain so didnt get any pictures.

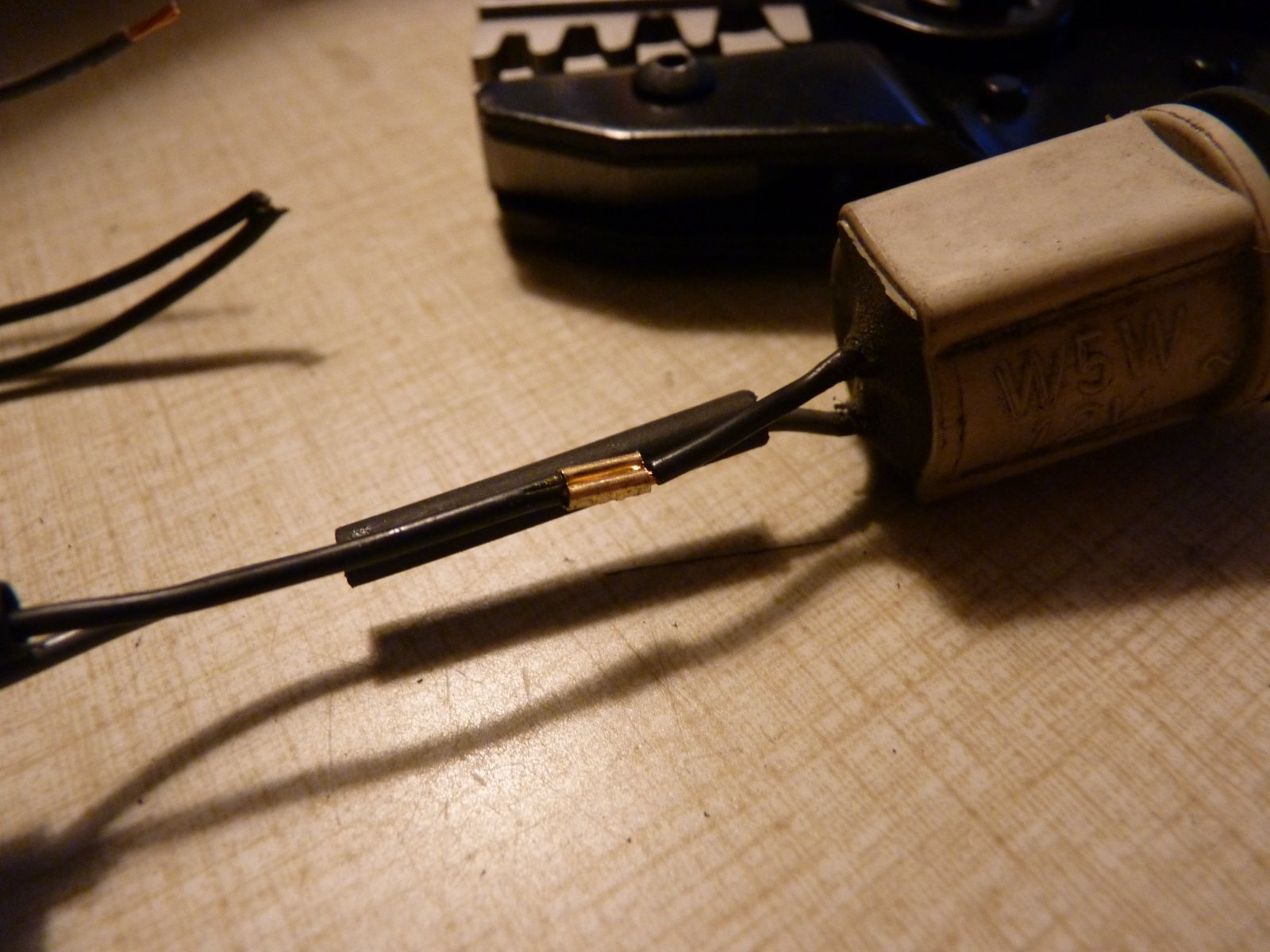

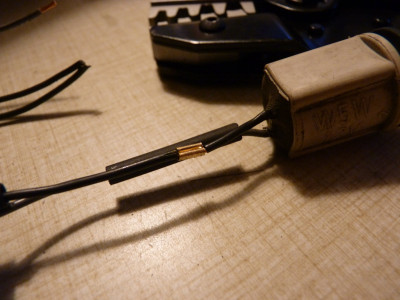

When I repair wires on any car, I use these crimps (from an other repair):
