C4 Pic 2014 Exclusive (B87) - Rear Light Unit Removal & Replace

Post by zane2g2 »

Afternoon all,

I was wondering if some one could advise on the removal and replacement of the rear light unit (fixed to the boot) on a C4 Pic 2014 Exclusive (B87) please.

This is the standard 5 door version NOT the Grand Picasso version.

Many thnaks
Zane
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C4 Pic 2014 Exclusive (B87) - Rear Light Unit Removal & Replace

Post by GiveMeABreak »

No problem...

You'll need some trim removal tools to help. They recommend disconnecting the battery first (follow this guide BSI Reset / Battery Disconnect / Reconnect Procedure)

Removal
C4 Tail A.PNG

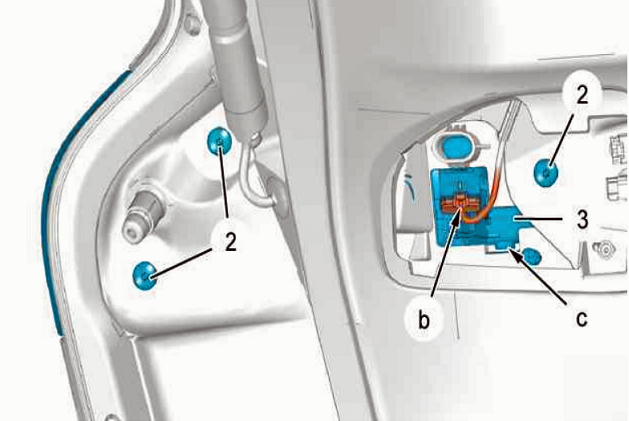

C4 Tail B.PNG
Unclip the cover (1) ( at "a") using trim tools.
Remove the cover (1).
Remove the bolts (2).
Disconnect the connector (at "b").
Unclip the tail lamp (3) (at "c").
Detach the rear lamp unit (3).
C4 Tail C.PNG
Remove the rear lamp (3) (In the direction of the arrow ).
Refitting

Proceed in the reverse order to removal.
Reconnect the ancillaries battery (refer to reconnection part of previous procedure).
Check the operation of the equipment.
Please Don't PM Me For Technical Help

Marc
zane2g2
Donor 2024
Posts: 34
Joined: 27 Aug 2019, 07:50
Location: Somerset
My Cars: Citroen C4 Picasso Exclusive 2014
x 2

Re: C4 Pic 2014 Exclusive (B87) - Rear Light Unit Removal & Replace

Post by zane2g2 »

Cheers @GiveMeABreak spot on job :-)
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C4 Pic 2014 Exclusive (B87) - Rear Light Unit Removal & Replace

Post by GiveMeABreak »

No problem, glad you have it sorted.
