Citroen AX 1.1 water temp gauge

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Brendan
Posts: 4
Joined: 04 Sep 2019, 20:07

Citroen AX 1.1 water temp gauge

Unread post by Brendan »

Hi,

I'd like to fit a water temperature gauge to my Citroen AX.
Would one fit in the same hole as the Overheating Light sender ?
Thanks.

User avatar
mickthemaverick
Donor 2019
Posts: 2852
Joined: 11 May 2019, 17:56
x 859

Re: Citroen AX 1.1 water temp gauge

Unread post by mickthemaverick »

Hello and welcome to the forum. Assuming you already have the guage in mind that you wish to use then all you will need is a temperature sensor screwed into the radiator, quite possibley in the existing overheating sensor's hole. You can get sensors in various sizes, see
https://www.ebay.co.uk/itm/Aftermarket- ... qtxO3xSAVw
as an example. Just take out yours and measure it and away you go. Good luck :)

Brendan
Posts: 4
Joined: 04 Sep 2019, 20:07

Re: Citroen AX 1.1 water temp gauge

Unread post by Brendan »

Thanks for that.

Brendan

User avatar
xantia_v6
Forum Admin Team
Posts: 7273
Joined: 09 Nov 2005, 23:03
x 388

Re: Citroen AX 1.1 water temp gauge

Unread post by xantia_v6 »

The existing overheating sensor won't be fitted to the radiator (as it would be useless in the event of a loss of coolant). There is a good chance that the engine already has a hole for a gauge sensor, as the same engine would have been fitted to cars with temperature gauges.

If someone can pull up the correct parts listing diagram, all should become obvious.

User avatar
white exec
Moderating Team
Posts: 5972
Joined: 21 Dec 2015, 13:46
x 983

Re: Citroen AX 1.1 water temp gauge

Unread post by white exec »

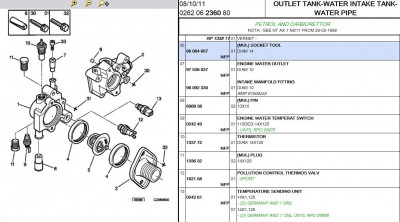

AX water outlet+sensors.JPG
click to enlarge

This diagram is for carburettor AX, where both gauge sender (#10) and temp warning switch (#9) are fitted. The monopoint injection arrangement is similar.

Do post your VIN, and I might be able to hit exactly the right parts diagram.

User avatar
xantia_v6
Forum Admin Team
Posts: 7273
Joined: 09 Nov 2005, 23:03
x 388

Re: Citroen AX 1.1 water temp gauge

Unread post by xantia_v6 »

What you are looking for is either of the #11 in the diagram (there are 2 shown), they are blanking plugs that can be removed to fit a standard threaded sensor.

Brendan
Posts: 4
Joined: 04 Sep 2019, 20:07

Re: Citroen AX 1.1 water temp gauge

Unread post by Brendan »

Thanks for the diagram - it says it all!

The voltage changes according to the load (headlamps, heater blower, etc.)
Will this affect the temperature reading on the gauge ?

Thanks

Brendan

User avatar
mickthemaverick
Donor 2019
Posts: 2852
Joined: 11 May 2019, 17:56
x 859

Re: Citroen AX 1.1 water temp gauge

Unread post by mickthemaverick »

The temperature sensor is a thermister which is simply a device whose resistance changes with temperature. The car's voltage does not change significantly with load, it is the current drawn which increases with loading so the voltage across the thermister will be pretty constant, assuming the battery and alternator are in good health, then as the thermister warms up its resistance drops to allow an increased current flow in the guage circuit. This increased current causes a bigger deflection on the guage and thus shows a higher reading. If you have an electronic guage then its internals will convert the measured current changes to alter the reading. :)

Brendan
Posts: 4
Joined: 04 Sep 2019, 20:07

Re: Citroen AX 1.1 water temp gauge

Unread post by Brendan »

Thanks, MTM.
