Citroen C5 2009 EGR valve

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

doctle
Posts: 947
Joined: 16 Oct 2014, 12:17
Location: Meath Ireland
My Cars: 2008 Laguna 1.5 DCi
x 235

Re: Citroen C5 2009 EGR valve

Post by doctle »

Thats a primer under the bonnet, AFAIK there should be a pump in the tank
Oh buggle
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

We really need the VIN, not all the 1.6 diesels have a pump in the tank, just a sender gauge.
Please Don't PM Me For Technical Help

Marc
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Try to post the VIN number soon as possible, but the engine code is 9HZ
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

That will be a 1.6 HDi 110 particle emission filter with (DV6TED4) engine - and these do not have a pump in the fuel tank - just a sender.
Please Don't PM Me For Technical Help

Marc
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Then? I still don’t know how to bleed the fuel lines. 😂
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

I know that there is a screw on the top op the fuel filter, but so I have to pump, and then open the screw?
Or open the screw first and then pump til it’s coming clear fuel from the pipe on the fuel filter?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

Follow the procedure here for bleeding (illustrated) - this is what you need to do if you were changing the fuel filter on this engine specifically:

https://www.frenchcarforum.co.uk/forum/ ... 97#p529497

You will need some of the tools shown.
Please Don't PM Me For Technical Help

Marc
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Thanks for good help.
Difficult prosess, think I have to leave this one for workers.
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

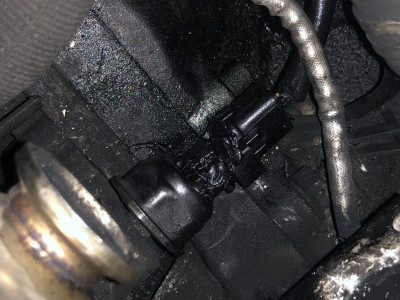

Find this little plug under the EGR , the fuels lines is going in to this. Old EGR valve melted this part. Someone know what this is for?
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

If it's the 5 pin black plug then it's the EGR solenoid valve plug - controls the solenoid and throttle motor commands etc.
Please Don't PM Me For Technical Help

Marc
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Don’t know how many pins it is, but when I run diagnostic, it’s no fault codes about that. Only something about glow plugs. Still not possible to start the car
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

This is the fuel rail pressure sensor. Weird that the diagnostic dosent show this problem. Can someone help me with the oem part number for this part?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

The EGR won't be near the rail - the rail fuel pressure sensor is on the end of the rail here on the right hand side - item (1)
Your photo is hard to identify what you are looking at as it's too close in.

Citroen only sell the complete rail with sensor.
Please Don't PM Me For Technical Help

Marc
Sufii
Posts: 81
Joined: 12 Nov 2018, 23:01
Location: Norway
My Cars: Citroen c5 2009
x 3

Re: Citroen C5 2009 EGR valve

Post by Sufii »

Here can you see that the sensor is right under the egr valve
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen C5 2009 EGR valve

Post by GiveMeABreak »

The part for the fuel rail (with sensor) is 1570G2:
You can get the sensors on their own from aftermarket suppliers.
Please Don't PM Me For Technical Help

Marc
Post Reply
