Getting fed up!

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Getting fed up!

Post by Gibbo2286 »

of my C5, all running sweetly for the last 250 miles since the fuel failure problem, had a lunch outing booked for yesterday two miles from home smoke from under the bonnet, took a look and the top of the engine is swimming in diesel.

Drove it back home and used the Corsa instead,

Just been out and mopped up the spillings, started the engine and diesel is squirting from the injector up the thread of the connector boss, took it out and replaced the alloy washer, reduced the spray to a seep so I've coated the threads with silicone sealer to see it that will cure it but I think only an injector is going to be a complete cure.

This car is becoming a pain in the bum. :(
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
NewcastleFalcon
Posts: 24563
Joined: 25 Feb 2009, 10:40
Location:
My Cars:
x 6866

Re: Getting fed up!

Post by NewcastleFalcon »

Gibbo2286 wrote: 07 Oct 2019, 10:03 This car is becoming a pain in the bum. :(
Most are! and they also choose their moments! I went back to the days days of working in a muddy puddle under a car last week when after 10,000 miles of "put petrol in and go" motoring, the starter motor of my £100 Micra decided it was time to go kaput. Just as the drizzle monsoon hit Northumberland!

As ever you find you need a car to keep you mobile especially out in the Country, so I reinsured my back up Corsa for a year. Probably cheaper than hiring a car should I have the need again. I literally detest having to hire a car, with all its terms and conditions excesses and damage assessments!

Regards Neil
Only One AA Box left
687 Trinity, Jersey
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Getting fed up!

Post by Gibbo2286 »

So I got a new injector and fitted it but now need to code it, the WoW scanner can do it but the codes on the top of the injectors are not very clear.
any advice?
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Getting fed up!

Post by GiveMeABreak »

What brand is the new injector?
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Getting fed up!

Post by Gibbo2286 »

Seimens
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Getting fed up!

Post by GiveMeABreak »

Ok, so is it the same class as the one you removed? These should be either class 4, 5 or 6 and cannot be mixed, unless replacing all of the injectors with the same class.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Getting fed up!

Post by GiveMeABreak »

Some like yours, should just have the classification and this is all you need to code it: Classification 4, 5 or 6 as per the table below for the Siemens ECU. Other ECUs can be different and some require par of a code to be input, but no yours.
4Minimum
5Nominal
6Maximum
Gibbo Injector.PNG
So the marking shown as 'e' should correspond to the table above - and you should just need to enter the single classification. But as said, it must correspond to the same classification as the existing ones. Mixing classification types will stuff the particle filter system.
Please Don't PM Me For Technical Help

Marc
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: Getting fed up!

Post by bobins »

My advice would be to take as good a photo of the numbers as you can, then blow the image up on a screen to try and work out what they are.
Sadly no longer a C5 owner :(
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Getting fed up!

Post by Gibbo2286 »

No joy with any of that, the new (recon) injector throws up all sorts of faults and puts the car into limp mode so for now I've put the original one back in.

It runs sweetly but still weeps slightly at the thread, I've fitted a new washer and tightened it as tight as I dare.

No fault codes showing on my scanner or on the dash.

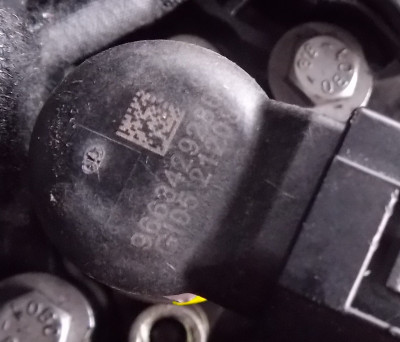

Got a couple of photos, two of the originals and the recon one supplied, I checked and double checked with the supplier before buying and was assured it's correct and with a 12 month warranty

The originals with the FA prefix, the recon with G
Attachments
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Getting fed up!

Post by GiveMeABreak »

Well from what I can see what he's sent you aint right! :roll:

Citroen part number indicates 1980J9, a class 7 injector and that matches up with the

9660334880 injector as shown on your originals from your picture.

Example of a VDO here:
https://www.buycarparts.co.uk/vdo/7515477

What he's sent you is a 9663429286 which for all accounts is for a 1.4 HDi engine!

There are several injector parts for your VIN:

The one above that I mentioned, plus:
1980Z5 - Class 7 one here:
https://www.pfjones.co.uk/citroen-c5-ii ... 13552.html

I won't list the others as they are different classes. But both these fit both the 96 and the OEM number and should not need to be coded if you keep the class as the same.
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Getting fed up!

Post by Gibbo2286 »

Thanks Marc, I've just done a return request on Ebay.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
daviemck2006
(Donor 2020)
Posts: 4989
Joined: 04 Dec 2010, 18:45
Location: Macduff
My Cars: Far too many good ones to remember. Many BL, Vauxhall, Ford, Renault, Citroen, Peugeot, and now VAG
x 487

Re: Getting fed up!

Post by daviemck2006 »

I hate that from ebay sellers. I've lost count of the times I have got wrong parts, especially when I had the activa. It's also one of the reasons I a8m done having old cars. So far I have not bought one single part for the leon, and that's in 10 months and 6000 miles, or for the c1, 3 months and 3000 miles. I hope you get the correct injector and get the car running properly
Skoda Karoq 1.6tdi 2018
Citroen relay camper 2012
In the family
Seat Leon 1.5tsi tourer 2019 daughter 1
C1 vtr+ 2010 daughter 2
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Getting fed up!

Post by Gibbo2286 »

All sorted now, running fine and no leaks.

Just popped down to the MOT man and got a pass with a couple of advisories on the rear tyres worn on the outer edges but good for a few more miles
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Getting fed up!

Post by GiveMeABreak »

Super.

And add that seller to your blacklist no doubt in room 101.....
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Getting fed up!

Post by Gibbo2286 »

GiveMeABreak wrote: 16 Oct 2019, 13:46 Super.

And add that seller to your blacklist no doubt in room 101.....
I'll give him the benefit of the doubt as finding the correct part for some of this stuff is nearly always a nightmare and I got an immediate refund of the money as soon as the part arrived back at his place.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
