Why are my brakes so sh**e ?

Post by Martinez »

I’ve put new shoes in back, replaced compensator spring, stripped front calipers and checked everything, so why are my brakes still s**t ?
Brake pedal does go down if you hold your foot on it n start the engine, so vacuum seems to be working. When driving the pedal feels like the engine is stopped so to stop suddenly you need to virtually stand on it. What should I check next ?
I’ve consulted the Haynes Book of Lies, but it only mentions the servo and non return valve but doesn’t even say where they are !
HELP
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Why are my brakes so s**t ?

Post by GiveMeABreak »

Have you changed the brake fluid and bled the system?
Please Don't PM Me For Technical Help

Marc
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Why are my brakes so s**t ?

Post by xantia_v6 »

I would suggest that you might have the wrong grade of brake pad fitted, especially if someone has fitted "high performance" pads. High performance pads typically have a harder material which has less grip, but work better when the disks are near red-hot, which does not happen very often on a road car.

If you don't know what is fitted, I would suggest fitting a set of genuine pads, or some with oem-spec friction material.
User avatar
Doo
(Donor 2022)
Posts: 459
Joined: 09 Sep 2019, 16:53
Location: Inverness
My Cars: 2000 Range Rover V8 4.0
2004 Jaguar XK8 4.2
2007 Citroen C4 1.6hdi SX
2012 Berlingo Multispace e-hdi XTR (nice drive :-)
2016 Suzuki Burgman AN650 Executive
I miss my Renault 5 Gordini Turbo....
x 116

Re: Why are my brakes so s**t ?

Post by Doo »

Martinez wrote: 11 Sep 2019, 19:20 I’ve put new shoes in back, replaced compensator spring, stripped front calipers and checked everything, so why are my brakes still s**t ?
Brake pedal does go down if you hold your foot on it n start the engine, so vacuum seems to be working. When driving the pedal feels like the engine is stopped so to stop suddenly you need to virtually stand on it. What should I check next ?
I’ve consulted the Haynes Book of Lies, but it only mentions the servo and non return valve but doesn’t even say where they are !
HELP
Are you saying the pedal goes hard soon as you press it in normal driving conditions?

I would suggest either a broken/leaking vacuum pipe or a worn vacuum pump.

I believe there may be a one way valve to the servo on these, but can't be certain as not enough time spent on the marque.

But I would start with the vacuum pipe in case it has split.
Has anyone seen the plot? :?
Martinez
Posts: 90
Joined: 06 May 2019, 16:58
Location: Wolves
My Cars: Pug 407 2.0 hdi sport
Berlingo Nu Venture Surf 2.0 hdi
x 6

Re: Why are my brakes so s**t ?

Post by Martinez »

Yes the pedal feels like you’re pressing down on wood. There’s no feel to them and no progression in the pedal. The discs n pads are good on the front, bit of a glaze on the discs and the pads look like shiny graphite. There’s just no bite. I was going to check the system but can’t see where the servo and the valve are, no pictures in manual either.
While I’m here, there’s no caps on the driveshaft nuts either, is this the norm ?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Why are my brakes so s**t ?

Post by GiveMeABreak »

Is the brake compensator working correctly and you didn't specify if you bled or checked the condition of the brake fluid / filter.

To be honest we need a VIN so we know exactly what we are dealing with.
Please Don't PM Me For Technical Help

Marc
Martinez
Posts: 90
Joined: 06 May 2019, 16:58
Location: Wolves
My Cars: Pug 407 2.0 hdi sport
Berlingo Nu Venture Surf 2.0 hdi
x 6

Re: Why are my brakes so s**t ?

Post by Martinez »

viewtopic.php?t=62519
My vin was in a previous post as above. I was thinking of changing the fluid, but tbh I doubt it’s enough on its own to cause this problem. Motorway driving is scary. And it doesn’t seem possible to lock the brakes. It reminds me a little of when the rear calipers seized on my old Pug and I was standing on the brakes but it just wasn’t slowing down (the abs didn’t help either) good job there was a filter lane on the right for me to escape down.
Ive replaced the spring on the compensator after freeing it up, but I’ve also fitted spring assisters at the rear as it’s a campervan. Mot tester said all brakes passed ok, but they’ve never been good.
I’ve tried to get the compensator adjusted but nobody seems able to do it, so I set the spring as per instructions with spring assisters. I’ve suspected this is where my problem lies, but I’ve no real idea !
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Why are my brakes so s**t ?

Post by GiveMeABreak »

Ok, I'll have a look now I have the VIN.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Why are my brakes so s**t ?

Post by GiveMeABreak »

Ok, so I'm not sure what facilities / equipment you have, but this is the method used to check the brake compensator:
Berlingo Brake 1.PNG
Brake Pressure Checking Equipment (4140-T)
Preparation
Vehicle in running order.
Brake system bled.
Place the vehicle on a four-column lift.
Connection of the checking equipment [1].

Connect:
The front pressure gauge to one of the front brakes
The rear pressure gauge to one of the rear brakes
Replace the bleed screws with the sensors.
Bleed the equipment (refer to the equipment instructions).
Chock the front wheels.
Place the rear wheels on scales.

Checking
The corrector is checked in relation to the weight on the axle (see the table below).

If the vehicle is heavier (see the table below): Raise the vehicle, by the body, using a hydraulic lift or a jack.
If the vehicle is lighter: Load the vehicle or pull on the body to obtain this load.
Press the brake pedal to obtain 100 bars on the front brakes.
The cut-off on the rear brake should take place at the pressure indicated in the table.
From the table, select the value which is closest to the actual weight on the vehicle axle checked and adapt this weight to the value in the table.
Pressure on the front brakes: 100 bars.
Vehicle typeWeight on
the rear axle (kg)
Pressure on the rear
brakes (in bars)
Utility vehicle : 475 kg40925
54026
67558
Utility vehicle : 600 kg41725
59627
77570
Utility vehicle : 800 kg41825
64432
87081
Adjustment

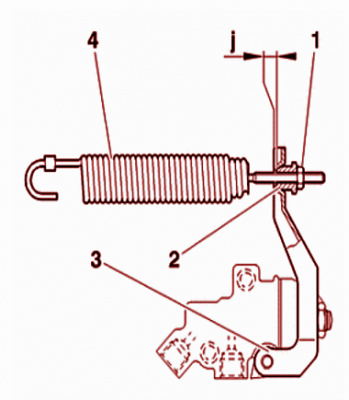

Berlingo Brake 2.PNG
Unscrew nut (1).
Load the suspension to the load which corresponds to 1 person(people) + 5 litres of fuel.
Establish a pressure of 20 bars minimum in the compensator.
Screw the adjusting nut ( 2) to the stop on the lever (3) while ensuring that the spring (4) is not under stress.
To do this, a shim will be used to set a clearance ( j) of 1 ± 0,5 mm between the nut (2) and the lever (3).
Support the adjusting nut ( 2) and lock it in position using the locknut (1).
Please Don't PM Me For Technical Help

Marc
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Why are my brakes so s**t ?

Post by Gibbo2286 »

I think as mentioned earlier in the thread you have a failed servo, usually caused by damaged vacuum hose or pump but occasionally the diaphragm split in the servo itself, I very much doubt it is caused by your compensator or by the quality of the fluid.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
Doo
(Donor 2022)
Posts: 459
Joined: 09 Sep 2019, 16:53
Location: Inverness
My Cars: 2000 Range Rover V8 4.0
2004 Jaguar XK8 4.2
2007 Citroen C4 1.6hdi SX
2012 Berlingo Multispace e-hdi XTR (nice drive :-)
2016 Suzuki Burgman AN650 Executive
I miss my Renault 5 Gordini Turbo....
x 116

Re: Why are my brakes so s**t ?

Post by Doo »

Any time I have happened upon a compensator problem it rears it's ugly head by being jammed fully open or fully closed.

It's only job is to divert fluid to the rear brakes.

The more weight you apply to the back of the vehicle, the more the suspension will sink, thus allowing the compensator valve to provide more braking force to the rear wheels.

If the compensator gets jammed with a lot of weight over the rear axle, then that weight is removed, sudden hard application of brakes will almost always cause the rear wheels to lock up.

If the compensator never has any real weight over the axle, it can fail to provide sufficient braking force to the rear axle which shows up as inefficient braking force on the brake rollers.

Either way, a bad compensator will not cause a rock hard pedal because the majority of the braking is done by the front brakes in most unladed vehicles cases.

Lack of servo assistance will cause a hard pedal and can be fatal.

I bought a BMW 535i a few years ago and was giving it large loud pedal and had to brake once, then again in rapid succession. The second time I applied the brake, the force required to push the pedal had me straining my leg as it was solid.

Turned out the brake pressure accumulator was on it's last legs. It was fine under gentle driving conditions, but when I really needed it, it surrendered :oops:

So, I would check the vacuum hose from the pump to the servo as they tend to get brittle or the rubber seal rots away and allows the vacuum to escape.

As the PPI Arnold tank says, Do it! Do it nowww :-D
Has anyone seen the plot? :?
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: Why are my brakes so s**t ?

Post by myglaren »

PP Arnold didn't say that at all :)
ekjdm14
(Donor 2020)
Posts: 1810
Joined: 19 Jan 2015, 17:42
Location: Congleton
Lexia Available: Yes
My Cars: '95 Xantia 1.9D automatic - 109k one of two remaining
'03 206 GTi180 - 97k in pieces being brought back up to snuff
'03 206 1.9TD - home-built veg-fuelled B-road bruiser
'99 306 SE 2.0i cabriolet - 92k awaiting service work ready for next summer
'97 306 XS 1.6i 3 door, Bianca White, from dead 12 years & seized solid to road legal in 7 days
x 212

Re: Why are my brakes so s**t ?

Post by ekjdm14 »

Another vote for lack of servo assistance here, could well be a split pipe that's building vacuum at rest but separating and dumping vacuum when on the move. Definitely focus your attentions on the servo/pipework and vac pump IMO. Another rough test is to run the engine & then switch off and let it sit for a few minutes, then try the pedal & see how many applications you get (if any) before it goes solid again. Usually it should give you a few good servo'd applications if all is well but if there's a leak it'll be rock hard from the get go.

Not sure on your vehicle, but the master cylinder and servo should be easily visible under the bonnet, sometimes on the left side being French. If you've checked your brake fluid you've looked right at the servo as it'll be behind/under the fluid reservoir.
'95 Xantia LX 1.9D-auto, Black, 109k
'03 206 GTi180 94k in surgery
'03 206 1.1S XUD9TE/veg project :mrgreen:
'99 306 2.0SE cabriolet 95k summer toy
'97 306 XS 1.6i 99k sat 12 years, fixed in 7 days, 150mile maiden voyage :rofl2:
Gibbo2286
(Donor 2020)
Posts: 7171
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Why are my brakes so s**t ?

Post by Gibbo2286 »

I should have said earlier it's possible that the internal lining of the vacuum pipe has collapsed and is blocking the flow.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
Doo
(Donor 2022)
Posts: 459
Joined: 09 Sep 2019, 16:53
Location: Inverness
My Cars: 2000 Range Rover V8 4.0
2004 Jaguar XK8 4.2
2007 Citroen C4 1.6hdi SX
2012 Berlingo Multispace e-hdi XTR (nice drive :-)
2016 Suzuki Burgman AN650 Executive
I miss my Renault 5 Gordini Turbo....
x 116

Re: Why are my brakes so s**t ?

Post by Doo »

myglaren wrote: 12 Sep 2019, 12:34 PP Arnold didn't say that at all :)
Well, not in the meaning of brakes, but the ones I saw, he was trundling along on his tank base and his head told me to "Do it! Do it naowwwwww!" :rofl2:
Has anyone seen the plot? :?
Post Reply
