Citroen AX 1.1 water temp gauge

Post by Brendan »

Hi,

I'd like to fit a water temperature gauge to my Citroen AX.
Would one fit in the same hole as the Overheating Light sender ?
Thanks.
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: Citroen AX 1.1 water temp gauge

Post by mickthemaverick »

Hello and welcome to the forum. Assuming you already have the guage in mind that you wish to use then all you will need is a temperature sensor screwed into the radiator, quite possibley in the existing overheating sensor's hole. You can get sensors in various sizes, see
https://www.ebay.co.uk/itm/Aftermarket- ... qtxO3xSAVw
as an example. Just take out yours and measure it and away you go. Good luck :)
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
Brendan
Posts: 4
Joined: 04 Sep 2019, 20:07
Location: Brittany
My Cars: Citroen AX TRS 1991

Re: Citroen AX 1.1 water temp gauge

Post by Brendan »

Thanks for that.

Brendan
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Citroen AX 1.1 water temp gauge

Post by xantia_v6 »

The existing overheating sensor won't be fitted to the radiator (as it would be useless in the event of a loss of coolant). There is a good chance that the engine already has a hole for a gauge sensor, as the same engine would have been fitted to cars with temperature gauges.

If someone can pull up the correct parts listing diagram, all should become obvious.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Citroen AX 1.1 water temp gauge

Post by white exec »

AX water outlet+sensors.JPG
click to enlarge

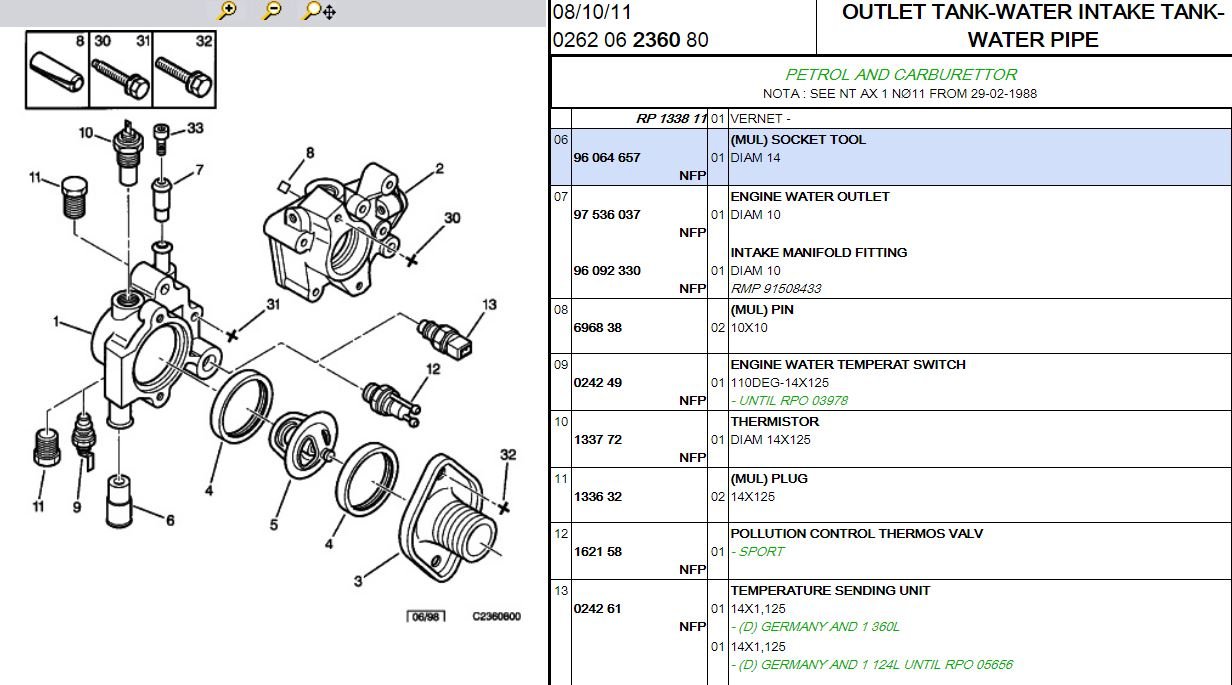

This diagram is for carburettor AX, where both gauge sender (#10) and temp warning switch (#9) are fitted. The monopoint injection arrangement is similar.

Do post your VIN, and I might be able to hit exactly the right parts diagram.
Chris
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Citroen AX 1.1 water temp gauge

Post by xantia_v6 »

What you are looking for is either of the #11 in the diagram (there are 2 shown), they are blanking plugs that can be removed to fit a standard threaded sensor.
Brendan
Posts: 4
Joined: 04 Sep 2019, 20:07
Location: Brittany
My Cars: Citroen AX TRS 1991

Re: Citroen AX 1.1 water temp gauge

Post by Brendan »

Thanks for the diagram - it says it all!

The voltage changes according to the load (headlamps, heater blower, etc.)
Will this affect the temperature reading on the gauge ?

Thanks

Brendan
User avatar
mickthemaverick
Donor 2024
Posts: 13523
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6011

Re: Citroen AX 1.1 water temp gauge

Post by mickthemaverick »

The temperature sensor is a thermister which is simply a device whose resistance changes with temperature. The car's voltage does not change significantly with load, it is the current drawn which increases with loading so the voltage across the thermister will be pretty constant, assuming the battery and alternator are in good health, then as the thermister warms up its resistance drops to allow an increased current flow in the guage circuit. This increased current causes a bigger deflection on the guage and thus shows a higher reading. If you have an electronic guage then its internals will convert the measured current changes to alter the reading. :)
