Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by GiveMeABreak »

Sounds reasonable Steve - and the key thing here is that they obviously have experience of repairing these specific units. A no-brainer to me.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by GiveMeABreak »

If it helps, I will put up the EPB removal / fitting guide for you shortly, just to avoid any potential issues removing it - link below:

C5 X7 Electronic Parking Brake Removal / Fitting Guide
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Paul-R »

What repair to the EBP might there be in addition to just replacing the cable?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by GiveMeABreak »

Our Polish friends have undertaken repairs it seems from this link - the pictures show some of the replaved parts:

https://allegro.pl/oferta/linka-hamulec ... 7441098760

From the looks of it, good old reliable plastic gearing again - completely shredded :roll: Unless he's shaven the plastic with the knife in the picture:
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Paul-R »

If he has a source for replacement plastic gearing then that's quite impressive. OTOH if i's just a cable needed then, if I were in such a position, I'd be doing the rounds of cable manufacturers.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
Y Cymro
Posts: 118
Joined: 11 Sep 2017, 11:36
Location: Swansea
My Cars: Citroen C5 Tourer 2.0hdi Exclusive Auto
x 7

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Y Cymro »

Whilst the car was on the ramp at a Lloyds we managed to remove the cover from the EPB unit. It’s sealed with an adhesive as well as screwed so use of a heat gun was required
Removing the cover allowed the broken cable to be seen and the remaining cables removed so the unit could be taken off the car.

When removed, it could be seen that a retainer supporting the drive screw had broken, potentially allowing misalignment which caused (or helped) the cable to break.
Here’s the drive screw showing the snapped nearside cable. It isn’t a simple matter of unscrewing the hexagon.

Whilst I’m prepared to try our Polish friend I don’t know whether he can repair the housing (I’ve sent photos asking this). The timing is unfortunate as it’s a Bank Holiday so nothing’s going to happen until Tuesday, the MOT expired today and I need the car for holidays on a September 2nd, so I may be forced to buy a Citroen part. C’est la vie as we say in Wales.

On the bright side, I hope the photos and the contact with the Pole will be useful to someone: lincar@op.pl
Attachments
Last edited by Y Cymro on 24 Aug 2019, 00:23, edited 1 time in total.
2013 Citroen C5 Exclusive Tourer, 2.0 HDI Automatic with Techno pack
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by GiveMeABreak »

Crikey, what a mess Steve!

If you're going for an OEM part - give them a call at the earliest (parts usually open before 12 on Saturday), as sometimes they have to order parts in from France directly - so could be a wait there. Or try one of the others I linked to that was slightly cheaper.
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Paul-R »

Y Cymro wrote: 23 Aug 2019, 18:39Here’s the drive screw showing the snapped nearside cable. It isn’t a simple matter of unscrewing the hexagon.
That hexagon looks like a crimp holding the inner cable onto a moving part. It's a bit difficult to make out much more as the Photobucket watermark obscures so much!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
Y Cymro
Posts: 118
Joined: 11 Sep 2017, 11:36
Location: Swansea
My Cars: Citroen C5 Tourer 2.0hdi Exclusive Auto
x 7

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Y Cymro »

Paul-R wrote: 23 Aug 2019, 18:54 That hexagon looks like a crimp holding the inner cable onto a moving part. It's a bit difficult to make out much more as the Photobucket watermark obscures so much!
Thanks to Myglaren I’ve posted better photos. Should be a little more legible now without the Photobucket ransom watermark
2013 Citroen C5 Exclusive Tourer, 2.0 HDI Automatic with Techno pack
Y Cymro
Posts: 118
Joined: 11 Sep 2017, 11:36
Location: Swansea
My Cars: Citroen C5 Tourer 2.0hdi Exclusive Auto
x 7

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Y Cymro »

The new genuine EPB unit has arrived from Citroen but it has only 2 handbrake cables - which run to the wheels. There isn't included the forward cable which acts as an emergency release. There is a blanking plug in the unit where this cable would be expected.

Can anyone please confirm whether Citroen has done away with the emergency release, or that my existing release should be fitted to the new unit after first removing the blanking plug.
thanks
2013 Citroen C5 Exclusive Tourer, 2.0 HDI Automatic with Techno pack
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by GiveMeABreak »

Hi Steve - no Citroen have not (and cannot do away with it) - it's integral to the system and is required.

The cable should reconnect to the unit - I will put up some info shortly... - temporarily locked whilst formatting
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by GiveMeABreak »

Procedure for removing and refitting the Electronic Parking Brake in the Citroen C5 X7

Note: Diagbox or a suitable diagnostic tool is recommended to place the handbrake in the removal position (for removing procedure) and again after refitting for the Calibration Procedure.

Removing
  • Slacken the parking brake.
  • Raise and support the vehicle, with the rear wheels hanging free. (Warning: Refer to correct Lifting Procedure where wheels will be hanging freely:
    LDS Tank / Lifting Warning
  • Place the electric parking brake in the removal position, using a diagnostic tool.
  • Disconnect the Battery (danger of automatic re-application during removal procedure)
X7 EPB A.PNG
X7 EPB B.PNG
Remove the glove box (1).
Unclip The gear lever gaiter (2).
Remove:
  • The centre console fascia trim (3)
  • The oddments tray trim (4)
Pull the handle (5).
Immobilise the electrically controlled
parking brake manual unlock cable (6) (at "a"), using universal pliers .
Uncouple the handle (5) from the electric parking brake
manual release cable (6), by means of a screwdriver.
X7 EPB C.PNG

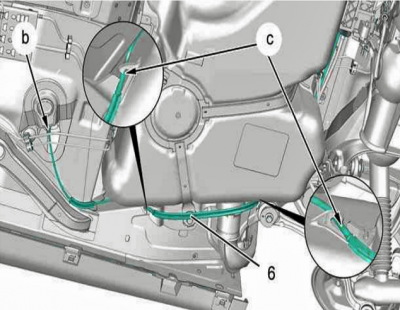

X7 EPB D.PNG
Remove the under body protections (7), (8).Extract the electrically controlled
parking brake manual unlock cable (6) from its housing (at "b").
Unclip the electrically controlled parking brake
manual unlock cable (6) from the fuel tank (at "c").
X7 EPB E.PNG
X7 EPB F.PNG
On each side:
  • Uncouple the handbrake cable from its housing (7) ( as "d")
  • Unclip the parking brake cable guides (7) (at "e", "f")
  • Remove bolts (8)
  • Release the parking brake cable (7) from the guides
Remove the protector (9).
Disconnect the connector (at "g").

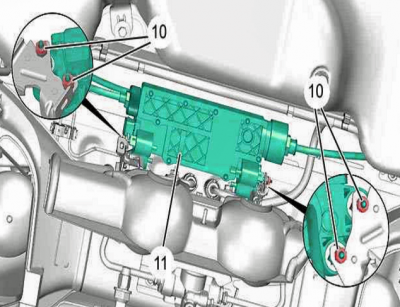

X7 EPB G.PNG
Unscrew the nuts (10).
Remove: The electric secondary brake unit (11).
Refitting

Refit: The electric secondary brake unit (11).
Tighten the nuts (10) to 0,8 ± 0,2 daN.m.
Connect the connector (at "g").
Refit the protector (9).

Caution: Respect the routing of the manual unlock cable (6) and of the parking brake cables (7).

On each side:
  • Position: The handbrake cable (7)
  • Clip the guide of the parking brake cable (7) (at "e", "f")
  • Couple the parking brake cable (7) (at "d")
  • Refit bolt (8) ; Tighten to 0,8 ± 0,2 daN.m
Clip the electrically controlled parking brake manual unlock cable (6) to the fuel tank (at "c").
Engage the electrically controlled parking brake manual unlock cable (6) in its housing (at "b").
Immobilise the electrically controlled parking brake manual unlock cable (6) (at "a") ; Using universal pliers .
Couple that handle the (5) to the electrically controlled parking brake manual unlock cable (6).

Refit: The underbody protectors (8) and (7).
Return the vehicle to its wheels.
Refit:
  • The oddments tray trim (4)
    The centre console fascia trim (3)
[*]Clip in place : The gear lever gaiter (2).
Refit: The glove box (1).
Reconnect the battery.

Caution: Before carrying out the handbrake calibration procedure, ensure that the ferrules of the hand brake cables (7) are correctly positioned in the caliper levers (at "d").

Carry out the electric parking brake calibration procedure, using a diagnostic tool.
Activate the electric handbrake control.
Check the immobilisation of the wheels.

Perform the operations to be carried out following reconnection of the battery.
Please Don't PM Me For Technical Help

Marc
Y Cymro
Posts: 118
Joined: 11 Sep 2017, 11:36
Location: Swansea
My Cars: Citroen C5 Tourer 2.0hdi Exclusive Auto
x 7

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Y Cymro »

Thanks Marc
The problem is that the new EPB unit has only the two handbrake cables that run to the callipers, but doesn’t include the “electrically controlled
parking brake manual unlock cable” which runs from the EPB to the glove box (where the emergency manual pull release is connected to it). As the original part had 3 cables then I assumed the replacement should have the same 3 cables - because there doesn’t appear to be a way to connect my original release cable to the EPB unit (I don’t mean connecting the yellow coloured manual pull release in the glovebox to the release cable that runs back to the EPB unit)

I’m wondering whether the Indie has ordered or received the wrong part? I can check the part number with him later. He reckons that Citroen has changed the design and done away with the unlock cable, but that can’t be true as there’d be no alternative way to release the handbrake - with a flat battery for example.
2013 Citroen C5 Exclusive Tourer, 2.0 HDI Automatic with Techno pack
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by RichardW »

It does look like they have deleted the manual release cable. Here is the latest item on e-bay, showing only the brake cables: EPB Mech

In the parts list it says with the latest unit that you should also take this item: 73

6983 43

01
(MUL) CLOSER
DIAM 10,5 HAUT 15

Which is presumably a plug to put in the hole where the cable no longer is - it's not shown on the parts dia for the handbrake - but I found it on the body blanking dia, item 3:
In the handbook for later cars, there is no mention of the manual release. So it would appear that it is so reliable that it never needs a manual release :lol: And if the battery goes flat, then you're stuffed - unless you chop the cables off and front up another grand to PSA :roll:
Richard W
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C5 X7 2.0 hdi auto electronic parking brake problem

Post by Paul-R »

I think there must be two ways of releasing the EPB on early X7s. This, now deleted, cable going to the glovebox (which I presume is electronic) and the manual release that you can access at the rear of the centre console, between the two front seats. This is the one that has to be available to use in an emergency.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
Post Reply
