Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

This unit is the NG4 system, made by Harman Becker.
Main Features: DVD, Voice Commands, HighRes Display, 3D Mapping, Bluetooth Hands Free, Independent Phone with MDS Module, SD Card, USB, Jukebox.

Moderator: GiveMeABreak

Post Reply
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

Sorry to hear that - it's another reason why I have my hard disk intact and packed away safely, whilst using the CF card for everyday use. It's more of a preventative measure than anything, but of course can't help the system if there is a hardware failure. They can be re-flashed, but the kit is expensive to buy. Fingers crossed for your new one anyway.
Please Don't PM Me For Technical Help

Marc
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

Excellent guide!
Unfortunately, even my hard drive has problems. I tried to clone it with HDD Guru; the copy worked, but there are some sectors that are not repairable and so even with the cloned CF card the NG4 behaves in the same way (the voice commands do not work and there are many other anomalies).
In a message you said that you could insert a blank formatted CF card and proceed to upgrade the firmware (NG4-N42c) with a USB key.
Ok I will try to proceed this way.
The question is: what kind of formatting should be given to the CF card. Is the FAT32 OK, or do I have to proceed in a different way?
Thank you so much for the guide and for the help
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

Ciao Geo5.

So you have probably already cloned the errors from the Hard Disk. In this case, the best way to proceed is just format the CF card with FAT32. Put the blank CF card back in and user the latest firmware update on the USB drive. It should format and partition the CF card for you with the correct sized partitions and the software.

You will loose you settings of course, but that is expected and it really doesn't take too long to set these up again.

You may find once you have set everything up, that the system may restart a few times and the settings settings will reset again - stick with it and it should settle down.

I strongly recommend that you don't use the Jukebox feature and do not copy music to the CF card using this function - it is better in my opinion to use the SD card slot on the front to copy MP3 folders / albums and files to, and play these from the SD card. It is less for the CF card to handle and should keep the heat down.

I rarely get any resets now - about one or two a year, but I can live with those!
Please Don't PM Me For Technical Help

Marc
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

Thanks Marc, I'll try this way. I'll let you know how it went.
Good evening
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

Unfortunately, it seems that the firmware upgrade on the CF card is not working. The process reaches up to 67%, goes off, restarts and then provides this error: "software update error - error code 0x3019 - internal error".
Then it asks me to reinsert the usb key and try to upgrade again.
I repeated the operation three times in a row but I always got the same result.
:-(
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

Ok, let me have a think.....

Can you clarify exactly what you did?

You have extracted the latest firmware onto a USB key, making sure onlybthe extracted folder and files are on the key and nothing else? A screenshot of the file contents might help.

Did you actually remove the CF card and format it in your PC using a card reader as FAT32?
Please Don't PM Me For Technical Help

Marc
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by Hell Razor5543 »

I might be inclined to reformat the CF card (FAT32, as Marc said), and then run Scandisk on it, just to check for any errors with the card. That way you can eliminate a possible cause for the problem.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

Let's recap:
1) The problems with my NG4 started about a month ago, when voice recognition started to malfunction; the phone didn't work anymore (neither internal nor via bluetooth), and the navigator worked jerky;
2) as a result of these problems I have attempted to install the firmware upgrade (NG4-N42c) via USB key;
3) installation of the upgrade has never been successful. He always stopped at 67% and then he didn't go further. (To interrupt the process I had to disconnect the battery);
4) I cloned the hard disk on a CF card and in the cloning procedure the HDDGURU software completed the work, but says that there are some sectors with non-repairable errors;
5) so I formatted the CF card in FAT 32, inserted it in the NG4 instead of the hard disk and started the upgrade from the USB key
6) the upgrade process always stops at the same point (67%) with the message: "error code 0x3019, internal error" and still requires the USB key to try again; I repeated this attempt 5 times, always with the same result.
7) I removed the CF card and checked it on the PC. The system has not made any partition and the CF card is the same as when it was inserted.
CF fdopo 5 tentativi di upgrade.JPG
8) I checked the status of the CF card with the windows 7 scan disc, which tells me that everything is fine
analisi cf.JPG
It seams the system cannot write to the CF card. Maybe you need to format it differently, or should you not format it and leave it without any partition?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

Several possibilities:

1) It is possible that your N42C firmware upgrade file is corrupt and not written properly, so it cannot read from the USB. Use another copy of the file. I can supply this if you need it - let me know.

2) You have created a fault in the unit by disconnecting the battery - which must NEVER be done when performing a firmware update as it can risk corrupting the unit.

Soo first of all I would get another completely different copy of the firmware update, format the USB key with FAT 32 and then try again. PLease then copy a screen shot of the USB key once you have put the new files on.
Please Don't PM Me For Technical Help

Marc
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

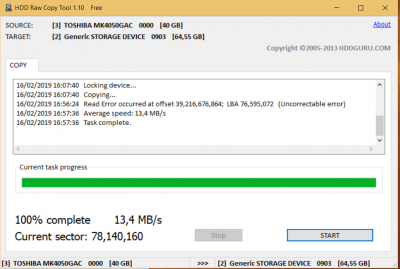

This is the screenshot of the copy of the upgrade I used
If you can, send me another copy so I'll try.

Perhaps there would be another way: I could try to clone the CF card with the image of a working hard drive, since mine doesn't work.
Clone HDD C5.PNG
Could you send me a copy of the image of your HD?

Ivano
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

I'll send you a Private Message shortly Ivano. But looking at that screenshot - it does seem that the disk has some unrecoverable errors, which are affecting the copy.
Please Don't PM Me For Technical Help

Marc
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

Ok,
I tried again with the new firmware, but the result is always the same.
At 67% of the upgrade, the system restarts and gives me the usual error message (error code 0x3019, internal error).
I checked to have correctly inserted the CF card with the adapter.
I checked with the dock station that the CF card is readable with the adapter ... OK.
In any case, the system did not partition the CF card. After extracting it from the NG4 I checked it on the PC and it results a single partition (60 GB) formatted in FAT32.
It is as if the system could not write to the CF card.
Last attempt: I could try to clone the CF card with the image of a working hard drive, since mine doesn't work.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

Ivano, do you have the link for the CF to IDE card adapter you are using? I want to see the exact adapter you are using if possible - a link to the actual one will be fine....

I have a suspicion that the upgrade is writing some of the files to the internal chips as part of the firmware upgrade, but when it comes to creating and writing to the CF card it cannot communicate or write to the card - which is what you also suspect. I know that some of these adapters will not work / or the configuration of jumpers and pins need to be exactly correct.

As per my guide, the NG4 has the internal DVD set as the MASTER device, so you must have a CF card adapter that is configurable as a SLAVE, otherwise the NG4 will not be able to write to it.
Please Don't PM Me For Technical Help

Marc
geoc5
Posts: 12
Joined: 10 Mar 2019, 16:24
Location: Trento (IT)
My Cars: Citroen C5 (2011)
Citroen Berlingo (2019)
x 1

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by geoc5 »

Marc,
this is the adapter I'm using
https://www.amazon.it/gp/product/B00S5W ... UTF8&psc=1
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Guide to Replacing the NG4 Navidrive 3D Hard Drive with a CF Card

Post by GiveMeABreak »

Ok, so are you 100% sure you have the jumper setting correct? What I would do is move the jumper on the CF card to the other position and try again.
Please Don't PM Me For Technical Help

Marc
