Magneti Marelli rt 4 problem

This unit is the RT4 and RT5 system and is made by Magneti Marelli
Main differences between RT4 & RT5 - RT5 has Bluetooth Hands Free, faster Navigation calculation and on C4 & C4 Picasso only, USB ports and a High-Res screen.

Moderator: GiveMeABreak

Post Reply
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Magneti Marelli rt 4 problem

Post by Bibiqn »

Hi guys.My name is Boyan and i'm from Bulgaria.Nice forum .I want help for my device.have a big trouble.The device go to reatart.I see only logo on the screen and then restart.I held up the 2 small white buttons for reset system.,then screen ask for upgrade cd

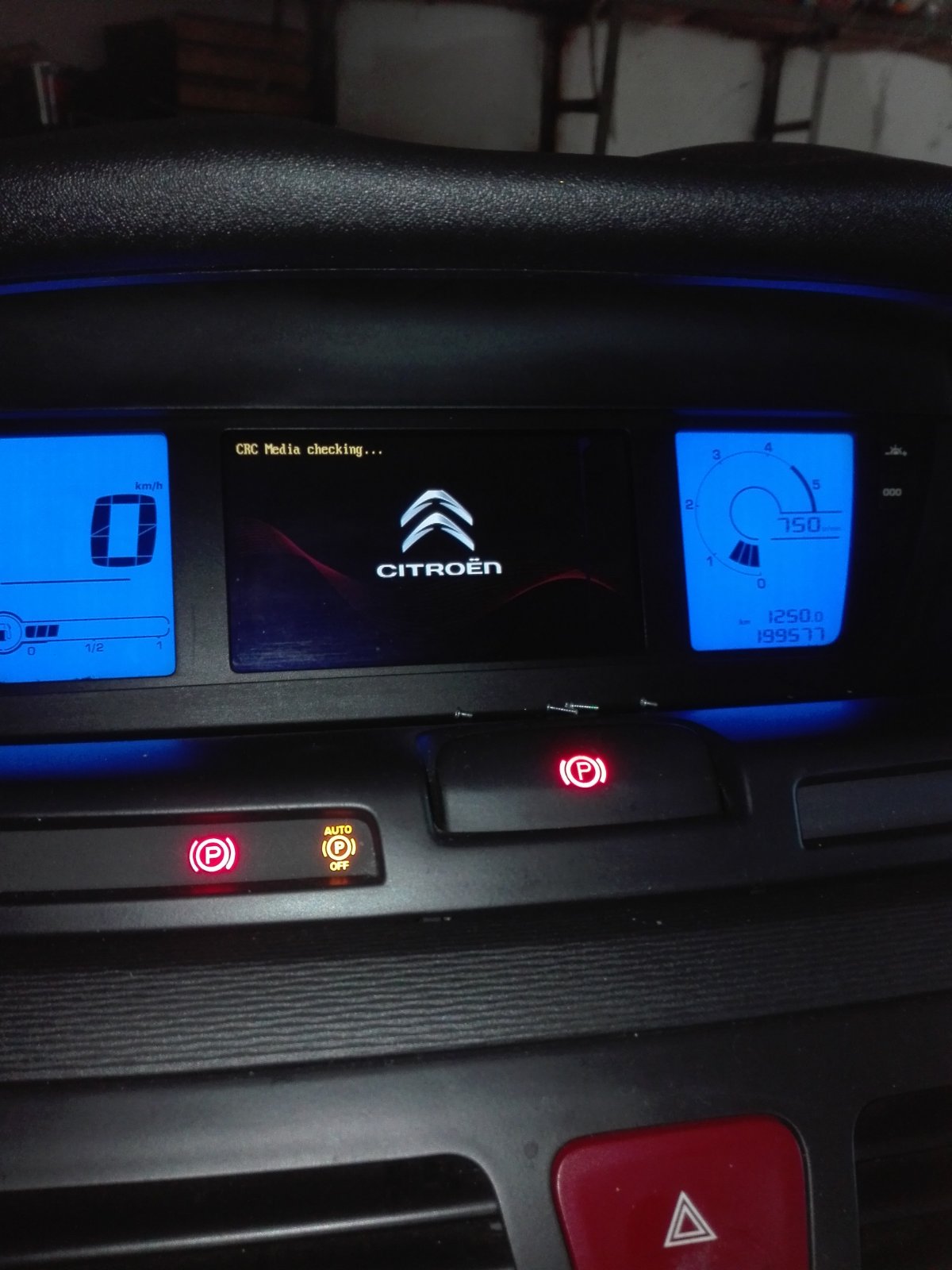

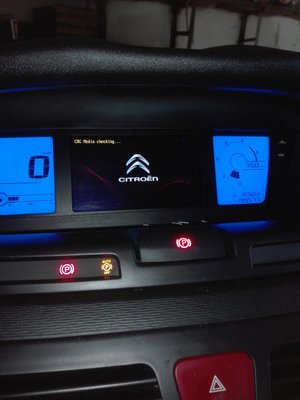

I put on the sw 8.31 but the system writes crc media .checking and do nothing
After some minutes device crashed.i don know what to do.I try change hdd with other 30gb p ata hdd and make image of the old hdd but no change
Help me what to do.Or the device is dead and i search second hand other rt 4.pls help me.

Thanks.excuse me for my bad english
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Magneti Marelli rt 4 problem

Post by GiveMeABreak »

Hi and welcome.

I suspect that you need to burn the firmware CD again - but use a different CD-R and burn it at not more than 4X speed. The CRC means there are problems with the data file and it cannot read it most likely.

When you have done hat and finalised the disk, do the same thing by restarting it with the 2 white buttons held in as you have done.

See how you get on with that.
Please Don't PM Me For Technical Help

Marc
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

I thank you for your reply.i burn image on 4x speed.i try to update with 1gb usb memory stick but it same.when i buy the car softwear was 7.1
I successfully update ro ver 8.31
One year i no have trouble.a few days i loose any sound.after that the system go to restart.when i put on the white buttons device ask for upgrade cd.i put on same cd who i use before one year.but sytem screen wrire crc media check and crashed.i doubt the mainboard is dead.
Last edited by Bibiqn on 23 Apr 2018, 20:33, edited 2 times in total.
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

I search old version 8.1 or 8.20 to try but i dont find nowhere.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Magneti Marelli rt 4 problem

Post by GiveMeABreak »

You won’t be able to downgrade the firmware to a lower version - even if it is not working with the higher version, because it already has the higher version written into the chip.

Try inserting the CD, take the unit out, leave it connected, then allow the car to go to sleep (let the BSI shut down for a few minutes), then disconnect the Quadlock connector (don’t disconnect he screen cable). Wait a few minutes, then with the white buttons firmly held down, reconnect the quadlock, and keep the buttons held down for up to 2 minutes.

See if that gets it out of the loop.

Best to try with the CD, but make sure you
Please Don't PM Me For Technical Help

Marc
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

When i put the white button the device reset and go to please upgrade cd .i put cd and tha same again and again.crc media checking ..
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

I will try today this method are any changed.
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

Today i try this but nothing.i put the cd in.when device start the cd rom turn around and stop spin.write insert cd upgrade but not spin to read the disk.cd with 8.31 is in.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Magneti Marelli rt 4 problem

Post by EDC5 »

In my experience the RT4 is very sensitive to the type of CD-R.
I myself have only got it to recognise a Verbaitim brand CD-R. I'm sure there are others that work but I would buy a few Verbaitim CDs and try again with that.
Also, for some reason the RT4 doesn't always recognise the two white buttons being pressed down, I have had to try a few times in a row to get it to actually boot from CD.
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

EDC5 wrote: 24 Apr 2018, 09:56 In my experience the RT4 is very sensitive to the type of CD-R.
I myself have only got it to recognise a Verbaitim brand CD-R. I'm sure there are others that work but I would buy a few Verbaitim CDs and try again with that.
Also, for some reason the RT4 doesn't always recognise the two white buttons being pressed down, I have had to try a few times in a row to get it to actually boot from CD.

Ok i understand.but what those mean crc media checking.where check?hdd,flash ,cd rom,mainboard.Every time when i press white buttons the system restart and try to boot .but stop on this checking.
Thanks to you reply.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Magneti Marelli rt 4 problem

Post by EDC5 »

CRC is cyclic redundancy check. It's basically checking the installation media for errors before writing it to the hard drive to ensure it's not writing a corrupted firmware.
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

EDC5 wrote: 24 Apr 2018, 11:36 CRC is cyclic redundancy check. It's basically checking the installation media for errors before writing it to the hard drive to ensure it's not writing a corrupted firmware.

Ok.i understand you.if i have problem with cd rom how can to instal soft at usb stick.
I format usb on fat 32.next i mount image file with daemon tool and copy all files and paste all in usb.
Do i do it correctly?
Because its not help me this method.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Magneti Marelli rt 4 problem

Post by GiveMeABreak »

Ok check:
  • Make sure you did not use a MAC to format or copy the files to the USB (incompatibility with the configuration files).
  • Make sure you remove any SIM card first - any interruption (phone call) can cause a failure while updating.
  • You mentioned you have replaced the HDD after copying the partitions back - if this has not been done correctly, it can also cause issues, so it may be worth trying to remove the partitions and reformat the drive as FAT16 and start again. The Firmware CD will recreate the partition information for you again. Sometimes this is a better solution if there are errors on the old drive, to prevent copying them over.
At this stage I don't think you have anything to lose as it is obviously not working.

I would still make sure you create a new firmware CD using a Verbatim CD-R. Make sure you are not selecting Multisession and use the ISO 9660 + Joliet system and finalise the disk. BUT, better still, buy the original firmware CD from your Peugeot / Citroen dealer. They should be able to get this for you for a few Euros - there have been issues with copies of the original firmware CD!

Then once you have the HDD back in and connected up insert the CD. I would then switch the vehicle off, wiat for the BSI to sleep (clicking of relay), disconnect the battery for 5 minutes, connect it back up and leave it for 3 minutes without opening any doors. Then start the engine and try the upgrade again - with or without holding in the 2 white buttons.

Failing all of this I can't suggest anything else - the EPROM chip may be corrupt due to a previous interruption / failed attempt / or if the power was shut off during a previous attempt at upgrading.
Please Don't PM Me For Technical Help

Marc
Bibiqn
Posts: 25
Joined: 23 Apr 2018, 19:06
Location: Ruse.bulgaria
My Cars: C4 picasso 1.6 hdi

Re: Magneti Marelli rt 4 problem

Post by Bibiqn »

GiveMeABreak wrote: 24 Apr 2018, 13:55 Ok check:
  • Make sure you did not use a MAC to format or copy the files to the USB (incompatibility with the configuration files).
  • Make sure you remove any SIM card first - any interruption (phone call) can cause a failure while updating.
  • You mentioned you have replaced the HDD after copying the partitions back - if this has not been done correctly, it can also cause issues, so it may be worth trying to remove the partitions and reformat the drive as FAT16 and start again. The Firmware CD will recreate the partition information for you again. Sometimes this is a better solution if there are errors on the old drive, to prevent copying them over.
At this stage I don't think you have anything to lose as it is obviously not working.

I would still make sure you create a new firmware CD using a Verbatim CD-R. Make sure you are not selecting Multisession and use the ISO 9660 + Joliet system and finalise the disk. BUT, better still, buy the original firmware CD from your Peugeot / Citroen dealer. They should be able to get this for you for a few Euros - there have been issues with copies of the original firmware CD!

Then once you have the HDD back in and connected up insert the CD. I would then switch the vehicle off, wiat for the BSI to sleep (clicking of relay), disconnect the battery for 5 minutes, connect it back up and leave it for 3 minutes without opening any doors. Then start the engine and try the upgrade again - with or without holding in the 2 white buttons.

Failing all of this I can't suggest anything else - the EPROM chip may be corrupt due to a previous interruption / failed attempt / or if the power was shut off during a previous attempt at upgrading.

Ok.Thank you.I will try and write here.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Magneti Marelli rt 4 problem

Post by GiveMeABreak »

Good luck - if this fails, your only other option is to send it to MM for a repair or find a specialist who can reprogramme the EEPROM chip for you and do the update.
Please Don't PM Me For Technical Help

Marc
