Citroen, DS Automobiles and Peugeot Official Part Number Requests

[GiveMeABreak]

I've responded in the original thread Alasdair, as he'll need to upgrade his membership for this service.

[GORAX]

https://www.bandel-online.de/neue-artik ... uro-6.html

Hi all!

is this the right spare part for my car? To change my FAP/DPF

VF7**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

(16) New Citroen Genuine Particle Filter , part: 1609929980, £1735.56
Standard Exchange Particle Filter, part: 1610146080, £727.33

[508c5]

(1) Engine Mounting Bracket, part: 9673585680, £149.63
(2) Engine Mounting Bracket, part: 9820296280, £194.57
(4) Engine Mounting Bracket Left, part: 1610975280, £97.32
(6) Anti Torque Link, part: 9808838680, £103.87
(8) Engine Mounting Bracket Left, part: 9673773080, £99.74
(10) Engine Flexible Mounting Left, part: 9673768480 , £192.62

Hi Marc

Can you share the "protocol" for the replacement of the transmission mount on this one?

Thx

[GiveMeABreak]

Sorry, I don't have that.

[dylan26__]

Could I please have the part number for the anti roll bar on VF7**************[VIN obfuscated, can be read by forum staff] . Somehow manage to bend mine

Thank you:)

[GiveMeABreak]

(1) Front ARB, part: 5084P3, £390.25
(4) ARB Rod, Part: 1646621980, £72.35

[renel]

Hi, my vin is: VF7**************[VIN obfuscated, can be read by forum staff], GC4P 1.6HDI EGS.
On this car, with this trim, the rear gate window kan be opened and therefore the wipermotor is fitted to the gate and a wiperconsole is fitted to the window and they are connected by a pin when the window is closed. Sorry, this is the only way that I can describe the part I am looking for...the p/n of the console itself is what I need, the bush is worn so water gets inside through the worn bush and worn o-ring.
René

[GiveMeABreak]

Hi René

Have a look at the rear washer diagram below, and let me know the item numbers you require part numbers for.

[renel]

Exactly right Marc;-)..I have a Polish partscatalog from CatCar and could not find it. I need part no´s 2, 20, 71 and 5, all is a part of the window latch.
Thanks René

[GiveMeABreak]

I'd forget those other catalogues - they 11 years out of date and Citroen don't provide these free - so they are using out of date info!
Here you are:

(2) Bearing, Rear Windscreen Wiper Shaft, part: 6405EE, £190.03
(5) Wiper Shaft Cap, part: 6405EG, £5.02
(20) Wiper Motor Spacer, part: 9810590380, £7.73
(71) MUL Flanged Nut, part: 450343, £2.33

[darbuck]

Hi Marc, can you give me a part number for a heater core for my 508 please.

[GiveMeABreak]

(1) Car Heater, part: 6448W9, £216.62

[darbuck]

Thanks Marc

[GORAX]

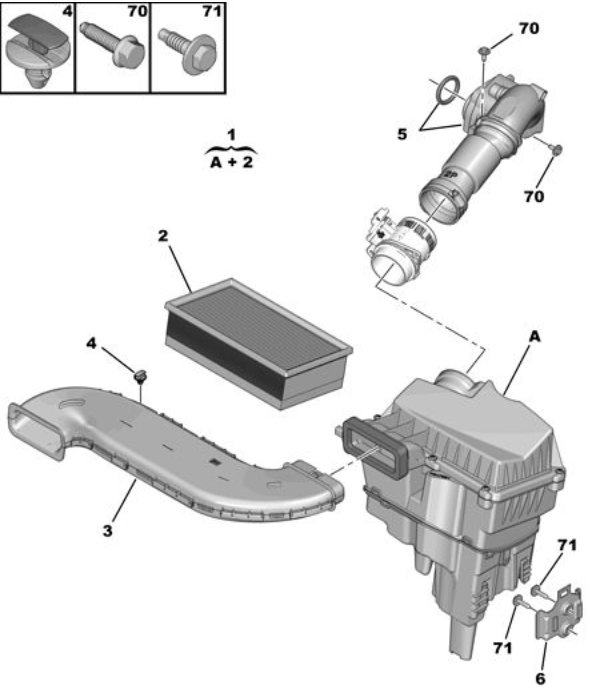

(3) Is the Air Intake Pipe and this may be hidden under the trim, but it has the simple plastic rivet-clips (4) shown top left, part: 1622749580. So maybe this has come loose or broken off causing the noise?

I have now bought the spare parts. I have now installed it too. But it's a kind of clip connection? To the air filter Box? For part 6
