Sphere specs
Can someone help me with this one...
Traditional (pre-C5) spheres carried a spec something like
450/50/0.7
where the last figure is the diameter of the damping orifice in mm.
C5 spheres are spec'd differently, eg
385/57/1.9-1.3
- two figures for the damping
What do the two figures relate to? Could it be fluid in and fluid out - i.e. bump and rebound?
Traditional (pre-C5) spheres carried a spec something like
450/50/0.7
where the last figure is the diameter of the damping orifice in mm.
C5 spheres are spec'd differently, eg
385/57/1.9-1.3
- two figures for the damping
What do the two figures relate to? Could it be fluid in and fluid out - i.e. bump and rebound?
Chris
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Sphere specs
I think it still refers to the diameter - the older systems (pre C5) operated on a high pressure system, but IIRC the newer Hydractive C5 systems user a low (or lower pressure) system with the slim line spheres - so I'm guessing they would need to be wider. Some of the Sphere sites actually show the last figure as 1.5 - so somewhere in the middle of what you have quoted at 1.3-1.9.
Please Don't PM Me For Technical Help
Marc
Marc
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Sphere specs
Not convinced, Marc.
Other C5 mushroom spheres' damping figures are 1.75/1.3, 0.7/0.48, 0.9/0.48 1.4/0.94 . . .
Don't see why Citroen would suddenly have gone all approximate with respect to these apertures.
As tolerances, the variance is huge - eg 0.9/0.48 - that's getting on for twice the diameter, ie four times the damping area.
C.
Other C5 mushroom spheres' damping figures are 1.75/1.3, 0.7/0.48, 0.9/0.48 1.4/0.94 . . .
Don't see why Citroen would suddenly have gone all approximate with respect to these apertures.
As tolerances, the variance is huge - eg 0.9/0.48 - that's getting on for twice the diameter, ie four times the damping area.
C.
Chris
- myglaren
- Forum Admin Team
- Posts: 25459
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4917
Re: Sphere specs
Is it possible that the inlet and outlet damping is different?
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Sphere specs
Well, one way to find out for sure - email the sphere shop...
http://www.sphere-shop.co.uk/
On the XM with Hydractive II, front and rear regulator sphere damping holes were 1.1mm - double the the diameter of the suspension spheres (0.6 Front 0.5 Rear).
http://www.sphere-shop.co.uk/
On the XM with Hydractive II, front and rear regulator sphere damping holes were 1.1mm - double the the diameter of the suspension spheres (0.6 Front 0.5 Rear).
Please Don't PM Me For Technical Help
Marc
Marc
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Sphere specs

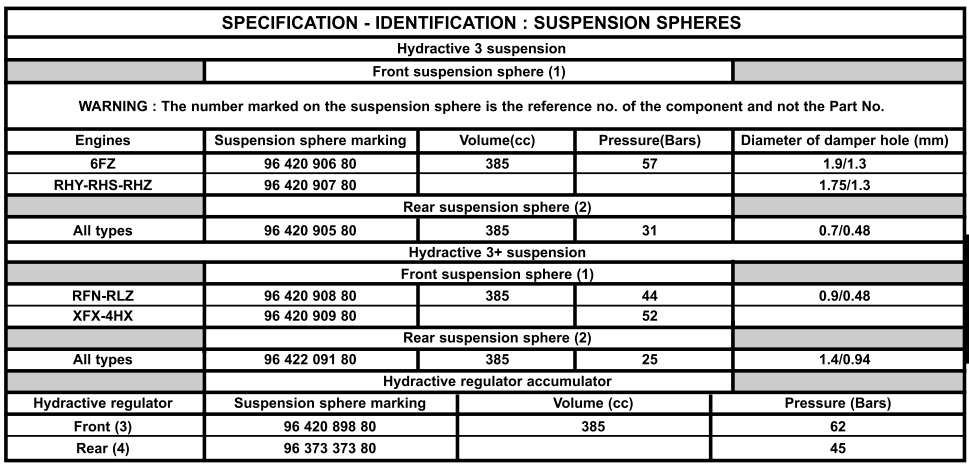

Well, I dug this up from my archives and as you can see for the front C5 (2002) Slimline spheres, the diameter is very near to the figures you've shown and these are listed under the Diameter of Damper Hole column: So they do seem to vary significantly based on the Engine type.white exec wrote:Not convinced, Marc.
Other C5 mushroom spheres' damping figures are 1.75/1.3, 0.7/0.48, 0.9/0.48 1.4/0.94 . . .
Don't see why Citroen would suddenly have gone all approximate with respect to these apertures.
As tolerances, the variance is huge - eg 0.9/0.48 - that's getting on for twice the diameter, ie four times the damping area.C.
Please Don't PM Me For Technical Help
Marc
Marc
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Sphere specs
Yes, that's exactly where I got my figures from - the 2002 Private Cars C5-Synergie booklet.
All I'm trying to establish is what the two damping figures for each sphere actually mean.
On older spheres (eg XM) only one figure appears.
All I'm trying to establish is what the two damping figures for each sphere actually mean.
On older spheres (eg XM) only one figure appears.
Chris
-
- (Donor 2022)
- Posts: 246
- Joined: 27 Oct 2005, 20:42
- Location: Berkshire,'tween Reading+Bracknell
- My Cars: C5 2.0 (163) diesel Exclusive Tourer 2010
Xantia Exclusive HDI Estate - x 27
Re: Sphere specs
Could the different damper hole sizes be anything to do with differences between Hydractive 3 and Hydractive 3+ ?
Just wild speculation really 'cos I don't fully understand the difference between the 2 systems but when you look at sphere specs for the Xantia there is a marked diffference between Hydractive and non Hydractive damper hole diameters.
Doh. just re-read the table and it identifies Hyd 3 and Hyd 3+
Just wild speculation really 'cos I don't fully understand the difference between the 2 systems but when you look at sphere specs for the Xantia there is a marked diffference between Hydractive and non Hydractive damper hole diameters.
Doh. just re-read the table and it identifies Hyd 3 and Hyd 3+
Ted
2010 C5 2.0 diesel(163) Exclusive Tourer (119,290miles)
1999 Xantia Exclusive Estate 110 Hdi Mauritius Blue with self peeling lacquer finish (276,174miles)
1991 XM Prestige 2.0 Auto(157,000 miles) gone but not forgotten
2010 C5 2.0 diesel(163) Exclusive Tourer (119,290miles)
1999 Xantia Exclusive Estate 110 Hdi Mauritius Blue with self peeling lacquer finish (276,174miles)
1991 XM Prestige 2.0 Auto(157,000 miles) gone but not forgotten
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Sphere specs
Don't want to go too off topic here, but looking into this Sphere issue - I was interested to find a couple of links to pictures of inside the Saucer spheres - in this case comparing an IFHS Sphere with a Citroen Original Sphere.

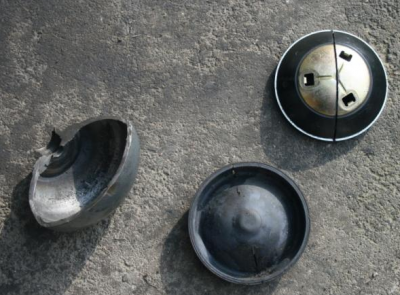

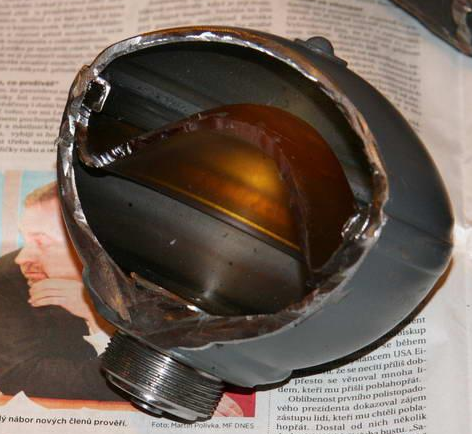

Inside an IFHS Sphere Inside a Citroen Original
The point being that according to the C6 guys the IFHS, MONROE and SUPPLEX saucer spheres are the same inside as the old green LHM spheres in terms of membranes and don't last as long as they still suffer with the nitrogen slowly escaping.
The Citroen genuine spheres have the newer membranes which seal better, reducing nitrogen seepage and allows Citroen to guarantee them for 5 years / 200k Km.
Guess I know which ones I'll be replacing mine with!
And back to the topic - no extra damping holes inside the sphere as far as I can see.
Inside an IFHS Sphere Inside a Citroen Original
The point being that according to the C6 guys the IFHS, MONROE and SUPPLEX saucer spheres are the same inside as the old green LHM spheres in terms of membranes and don't last as long as they still suffer with the nitrogen slowly escaping.
The Citroen genuine spheres have the newer membranes which seal better, reducing nitrogen seepage and allows Citroen to guarantee them for 5 years / 200k Km.
Guess I know which ones I'll be replacing mine with!
And back to the topic - no extra damping holes inside the sphere as far as I can see.
Last edited by GiveMeABreak on 14 May 2016, 18:24, edited 1 time in total.
Please Don't PM Me For Technical Help
Marc
Marc
- Stickyfinger
- (Donor 2016)
- Posts: 10433
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1289
- Contact:
Re: Sphere specs
So ?.....no "Spike" then
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Sphere specs
The spikes component may have been removed to show the membrane better - here's another pic showing the dreaded spikes!Stickyfinger wrote:So ?.....no "Spike" then
Please Don't PM Me For Technical Help
Marc
Marc
- Stickyfinger
- (Donor 2016)
- Posts: 10433
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1289
- Contact:
Re: Sphere specs
ahhh-ha.....little tinkers
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Re: Sphere specs
Is it possible the dampers are tapered holes?
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Sphere specs
3 and 3+ ? Think not; the table above relates only to Hydractive 3. In addition, a single sphere with a single part number carries the two diameter figures.
Bearing in mind that these mushroom spheres have been around for years now, I'm amazed their workings and specs are not better understood.
The detail about genuine Citroen and pattern membranes above is very interesting, and certainly points towards which spheres ought to be used, if sphere life is a deciding factor.
One irksome thing about the new mushrooms is the lack of a readily removable threaded plug, which enables a Tecnosir valve to be easily installed. Tecnosir do offer a 'C5' valve, but fitting it involves drilling and threading the sphere crown, something which Citroen prohibit, and many folk would baulk at. Maybe the trade-off is the proffered long life of the new spheres.
The mystery of the damping diameters remains...
Maybe, but I can't see that affecting fluid flow in each direction by much - limiting factor is the smallest diameter.elma wrote:Is it possible the dampers are tapered holes?
Bearing in mind that these mushroom spheres have been around for years now, I'm amazed their workings and specs are not better understood.
The detail about genuine Citroen and pattern membranes above is very interesting, and certainly points towards which spheres ought to be used, if sphere life is a deciding factor.
One irksome thing about the new mushrooms is the lack of a readily removable threaded plug, which enables a Tecnosir valve to be easily installed. Tecnosir do offer a 'C5' valve, but fitting it involves drilling and threading the sphere crown, something which Citroen prohibit, and many folk would baulk at. Maybe the trade-off is the proffered long life of the new spheres.
The mystery of the damping diameters remains...
Chris
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Sphere specs
Not that it's relevant now, but H3+ is in the table about half way down.
Although I've seen comfort spheres for the C5 Mk 1 & 2, I haven't seen any for the X7, and I suspect it could have a negative impact on the vehicle with a 7 sphere setup on the latest system.
I saw the saucer sphere thread replacement too but don't fancy that!
Although I've seen comfort spheres for the C5 Mk 1 & 2, I haven't seen any for the X7, and I suspect it could have a negative impact on the vehicle with a 7 sphere setup on the latest system.
I saw the saucer sphere thread replacement too but don't fancy that!
Please Don't PM Me For Technical Help
Marc
Marc
