Citroen fleet update AX, ID and CX

Post by jsp »

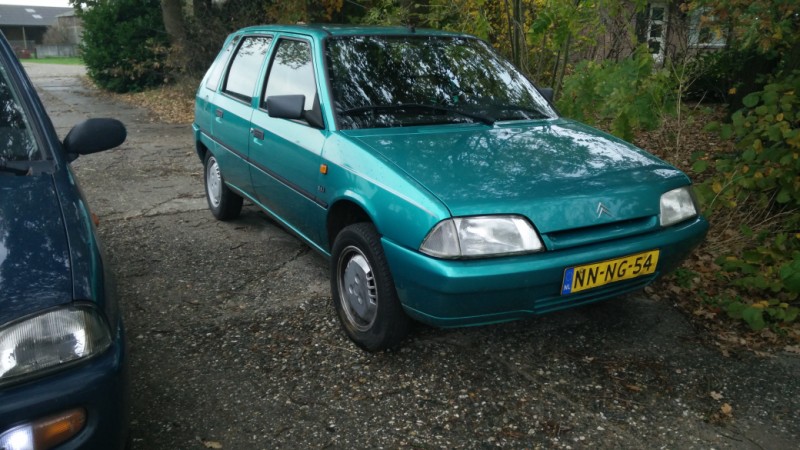

hi, just started a project. 1994 Citroen AX 1.4 TGS E2 with electric windows and sunroof about 200k km.

Some of the Citroens I have at the moment:

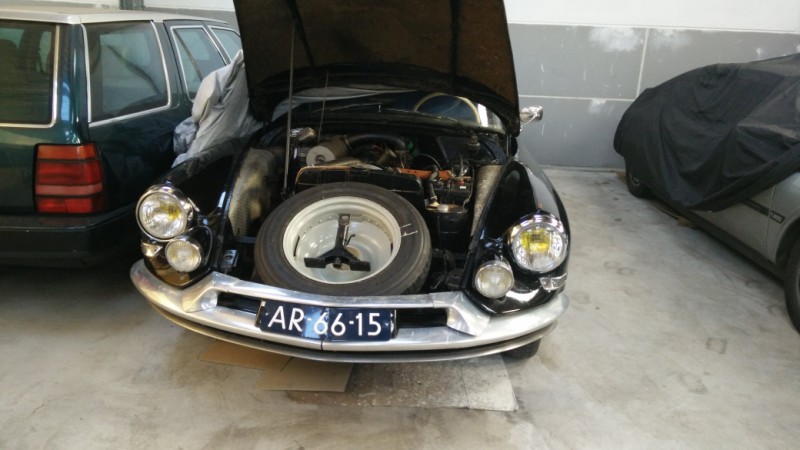

1960 ID:

1987 CX GTI Turbo 2:


1984 CX GTI Turbo 2 and Citroen AX 1.1 spot 1996

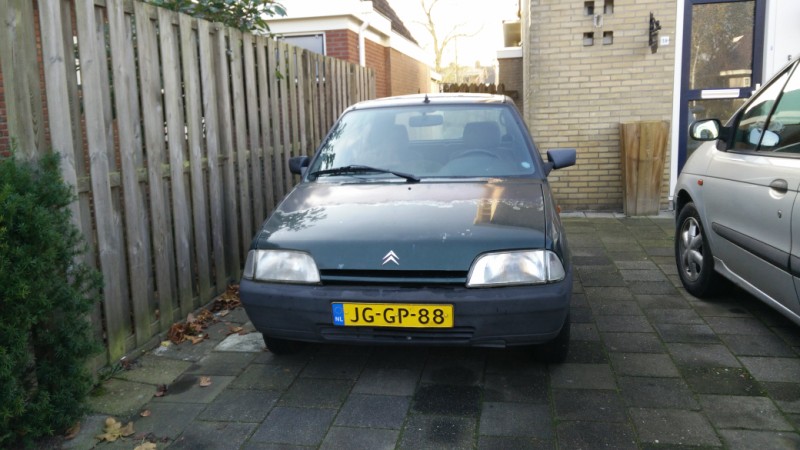

And Another AX 1.1 spot 1996:


Picked her up 160mls from my house:



Oops towcar in front flipped had to stay 50min in the congestion:

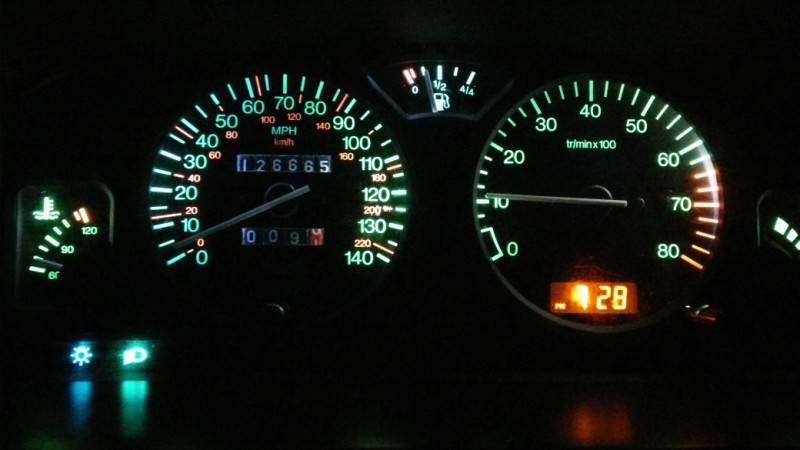

Bought a MPH dash through a good acquaintance:

Last edited by jsp on 15 Dec 2014, 03:04, edited 1 time in total.
User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

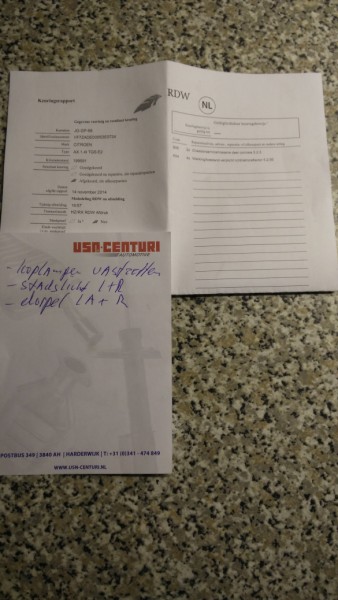

It's been moted (it failed)

Headlight not attached correctly.

sills both sides L + R.

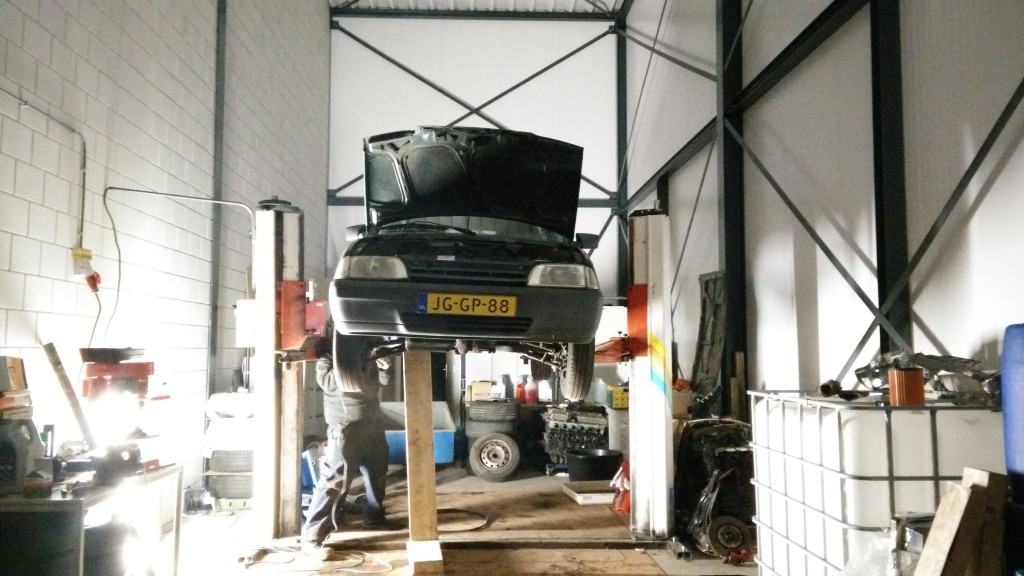

After MOT a few days later we started fixing the sills by welding new pieces into it:

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

After welding the sills it passed the MOT:

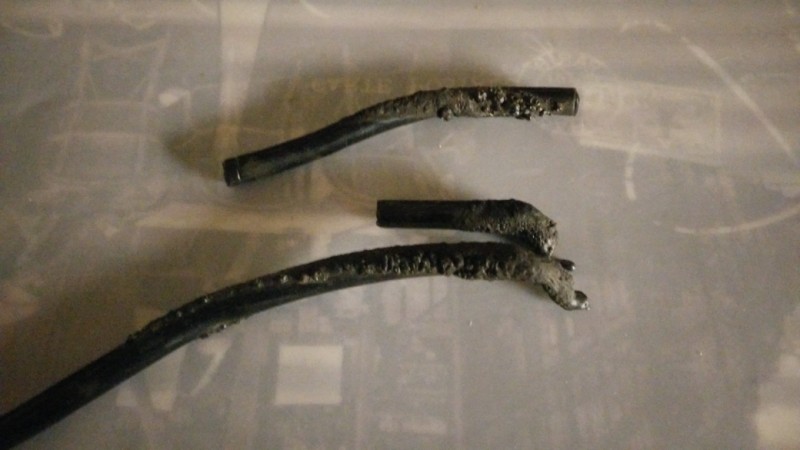

Oops:


During welding the sills so had to redo the whole fuel system.
User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

Sorted the white smoke issue:



citronut
Posts: 10937
Joined: 29 Apr 2005, 00:46
x 92

Re: Citroen fleet update AX, ID and CX

Post by citronut »

jsp wrote:
Oops:


During welding the sills so had to redo the whole fuel system.
very lucky she didnt go up in flames there then,

would definitely been a hot hatch
Regards, malcolm.

current ride a BX 1.7 TZD estate
1986 MK1 BX 1.9na D Auto(in Mothman Andy's stable )
layed up roppy 1.9TD XANT estate, now gone to meet her maker
purple and lilac metalic 2CV(VIOLET)registered to her in doors
1972 DS special been layed up aprox 31 years
User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

citronut wrote:
jsp wrote:
Oops:


During welding the sills so had to redo the whole fuel system.
very lucky she didnt go up in flames there then,

would definitely been a hot hatch
Used a fire extinguisher to be safe.
User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

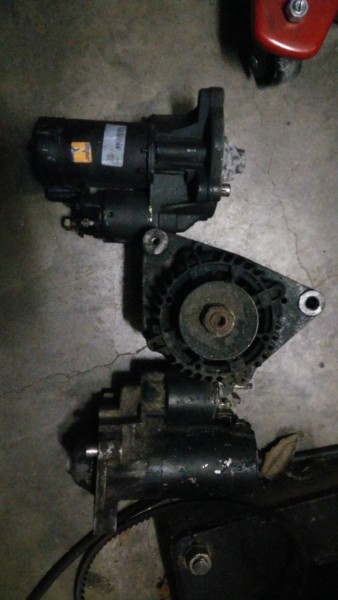

Upgraded my Dark green AX alternator to 70A and starter to a valeo one. Starts much better and less weight.


User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

Dark green AX.

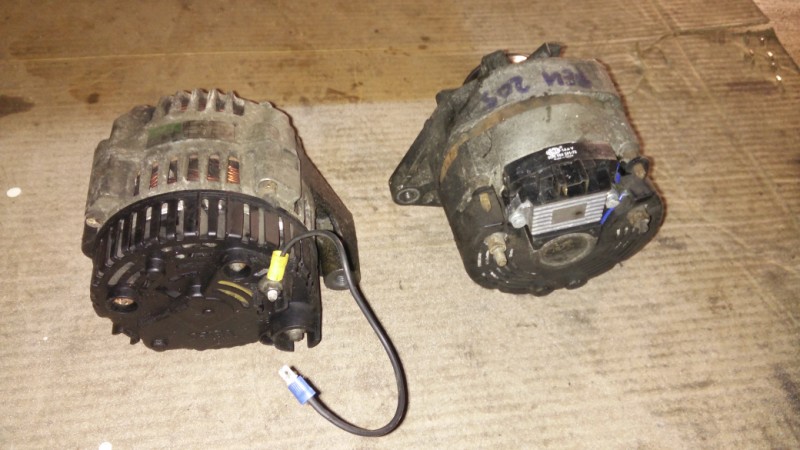

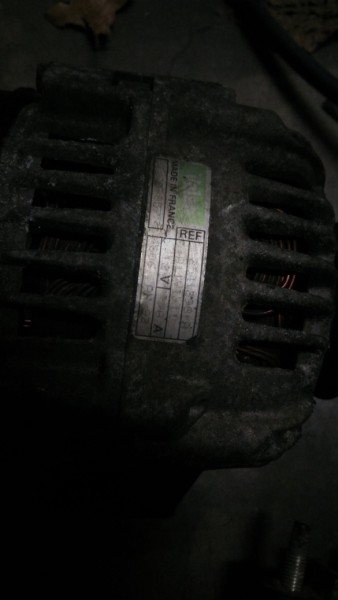

Well it seems the old alternator almost ran till his end of life:

Old one measure only 12.9V

New one 14.5V

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

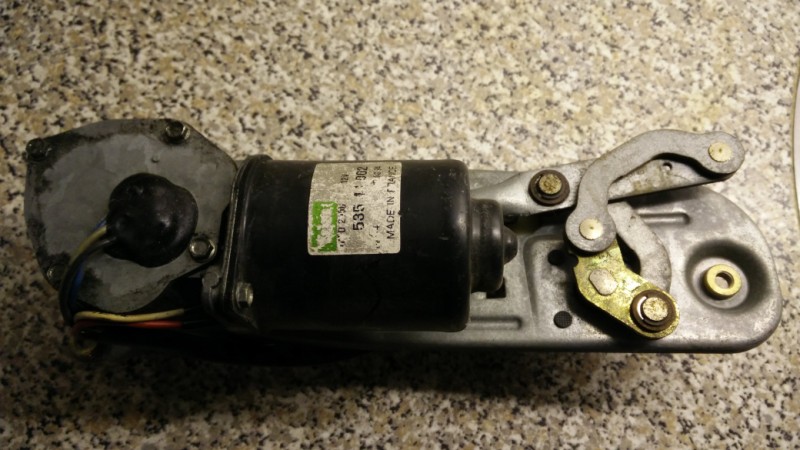

My wiper motor went slower and slower and gave up yesterday. I couldn't drive the car until it has been fixed as it has been raining the whole week:

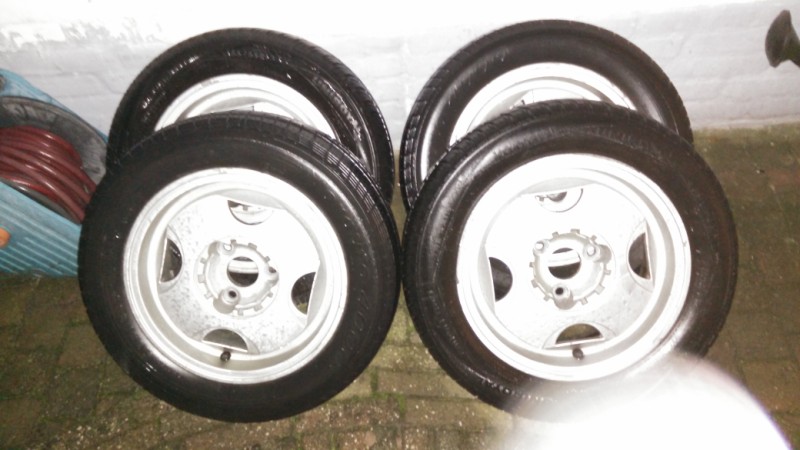

And also found some AX GT wheels for spares:

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

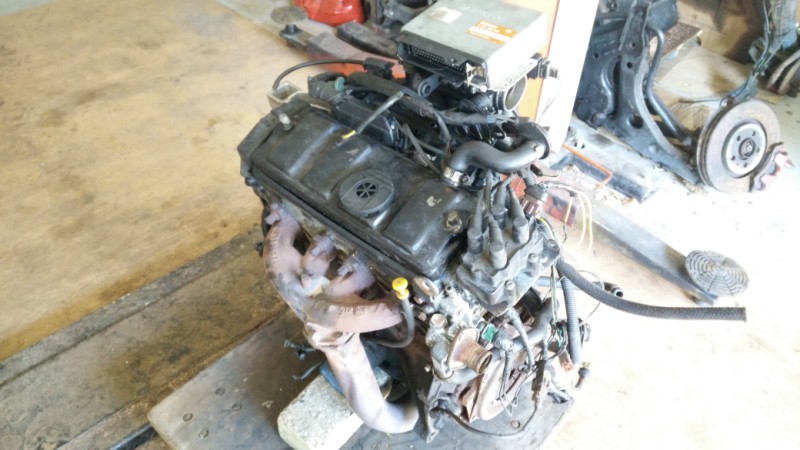

Got my GTI block last Saturday:

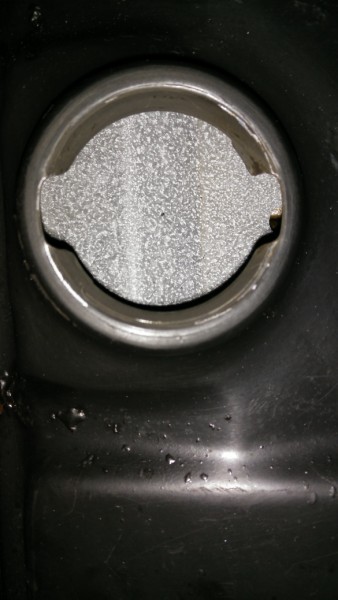

No sludge in this engine:

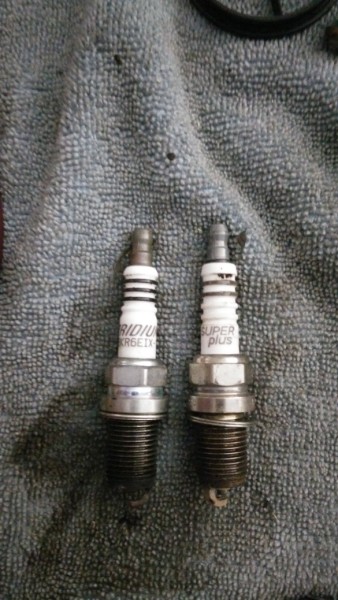

Some almost new spark plugs:

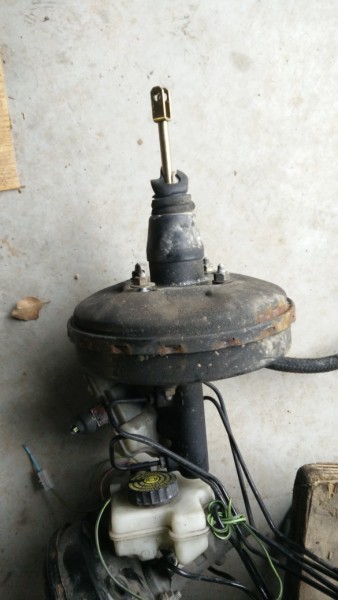

Got a AX GTI brake booster:

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

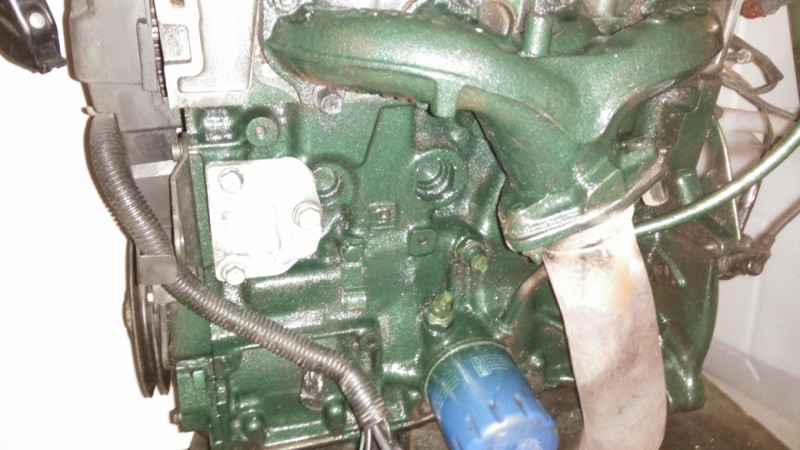

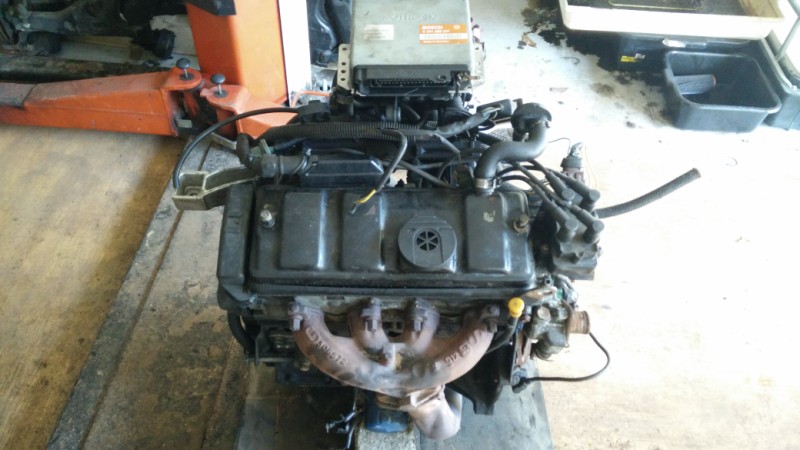

Some progress on the GTI Engine (degreased and hammerited it):



Degreasing the rest aswell:

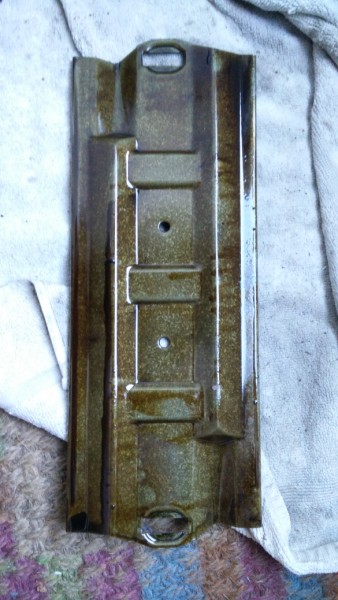

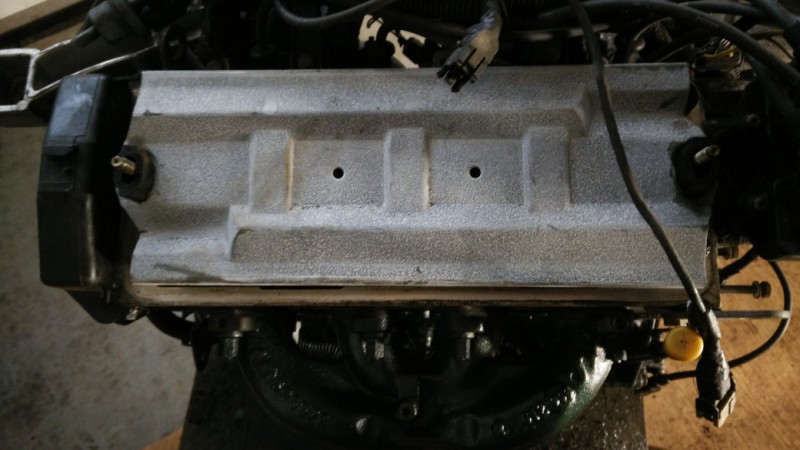

Degreased baffle plate:

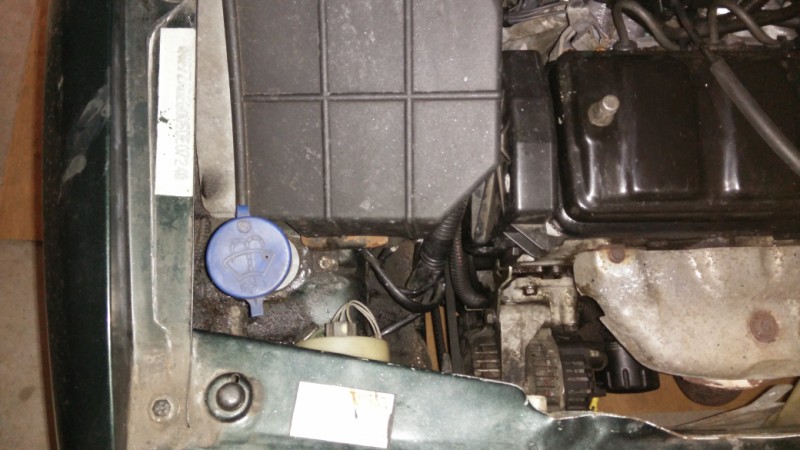

Washerbottle neck changed to a Saxo one:

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

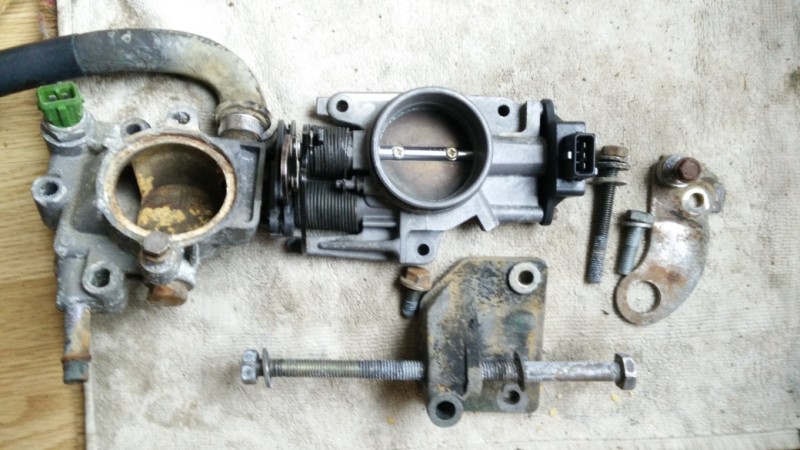

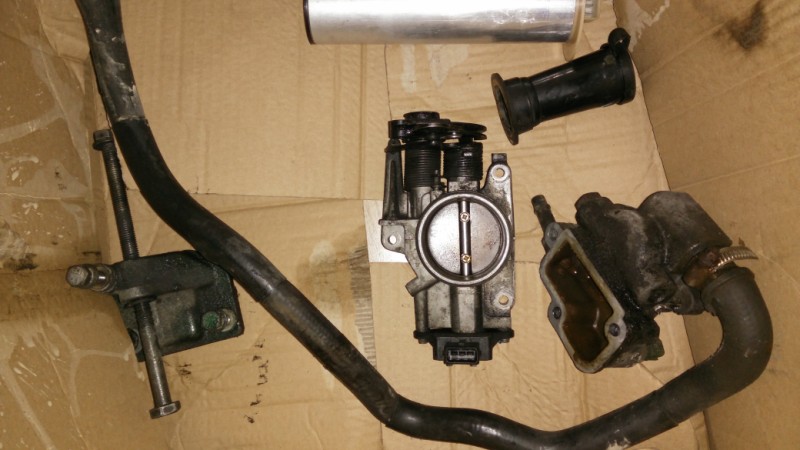

Parts degreased:

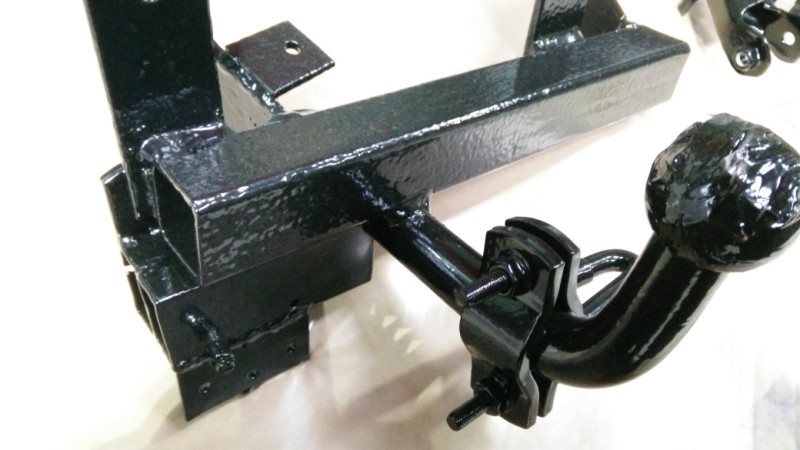

Tow hook rust removed using sandblasting and recoated against rust:


User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

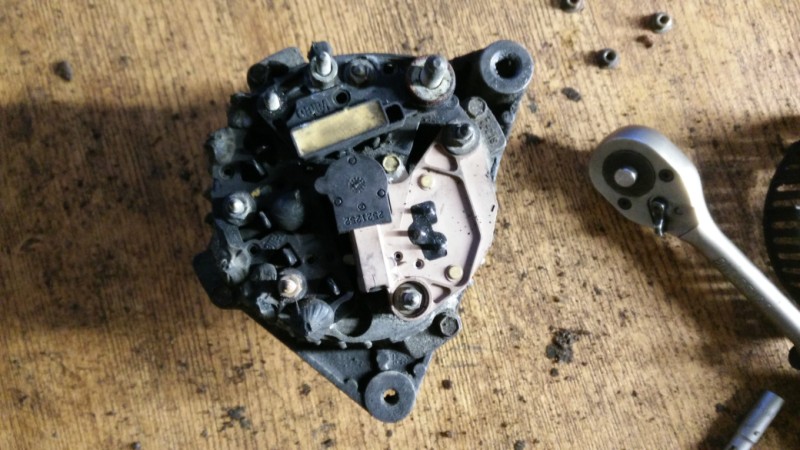

While exchanging the engine I replaced the voltage regulator aswell on the alternator:


Degreased baffle plate:

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

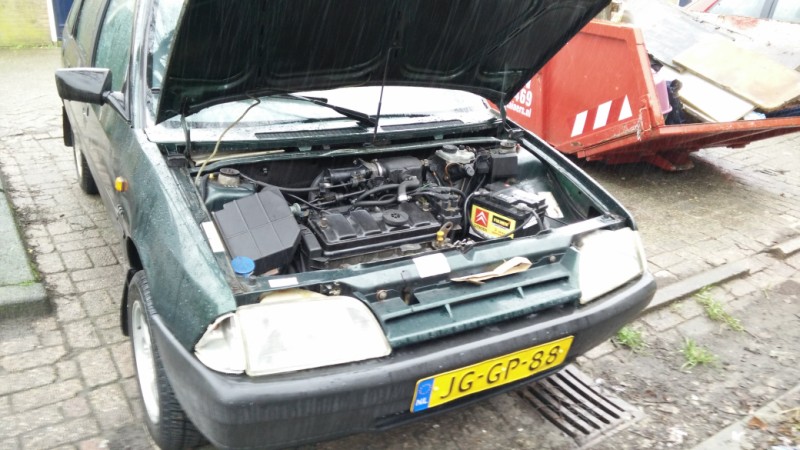

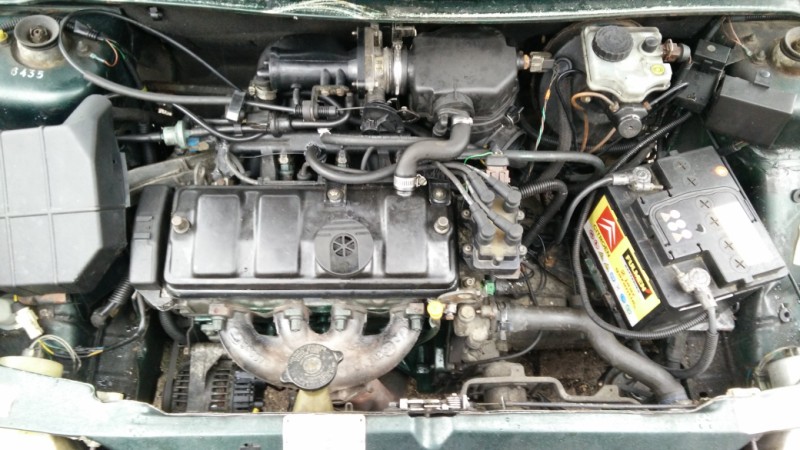

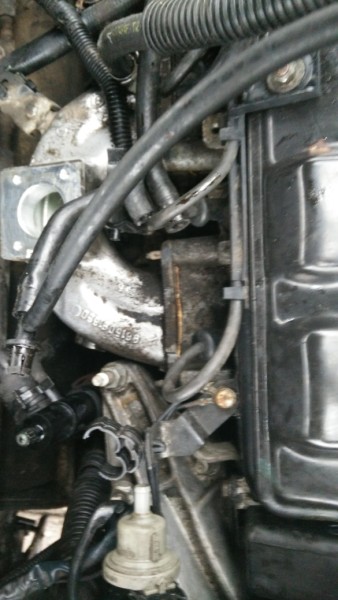

Engine is swapped:

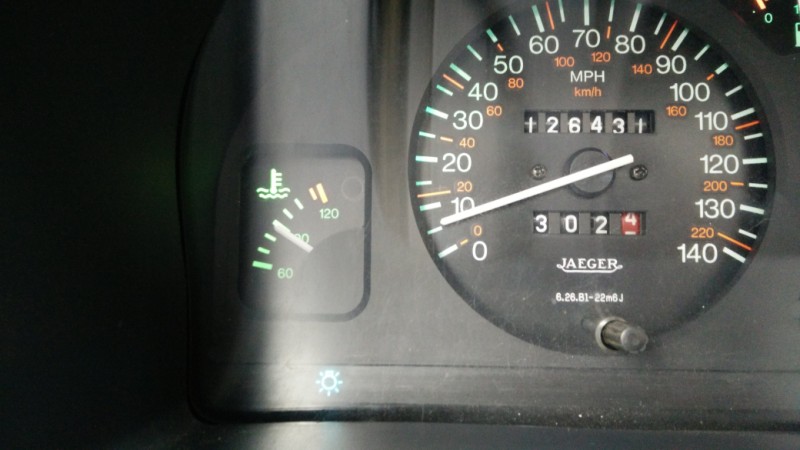

Temprature correct without thermostat:


New wiper to replace the temporary wiper:


Need to fix this gauge aswell:

User avatar
jsp
Posts: 327
Joined: 04 Dec 2014, 03:05
x 12

Re: Citroen fleet update AX, ID and CX

Post by jsp »

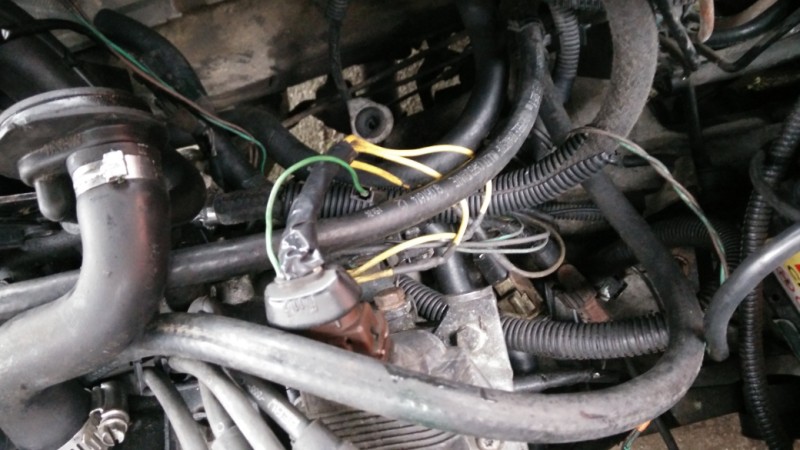

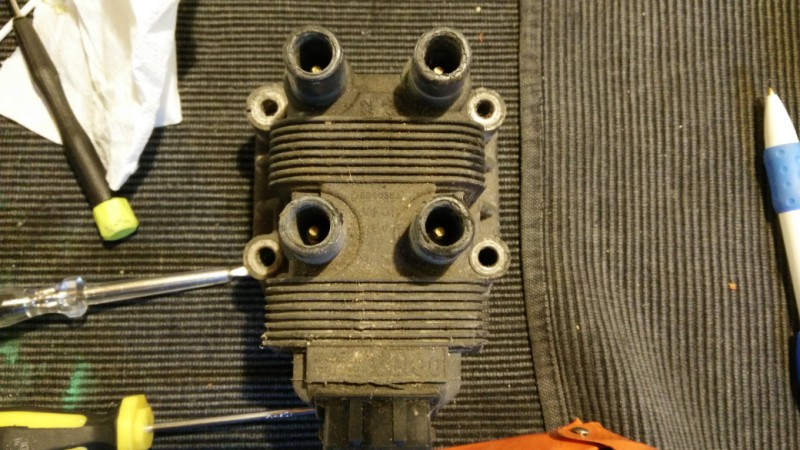

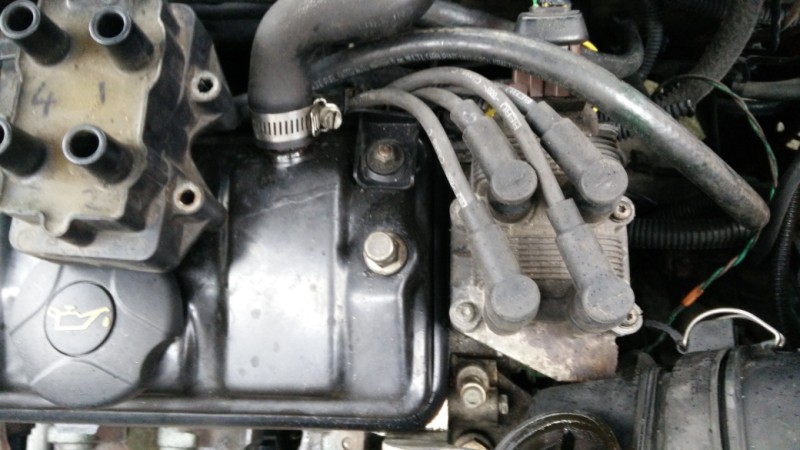

Fixed another ignition module for the CEL. It's staying off now:



Radio is zooming without this:


GTI interior bits:

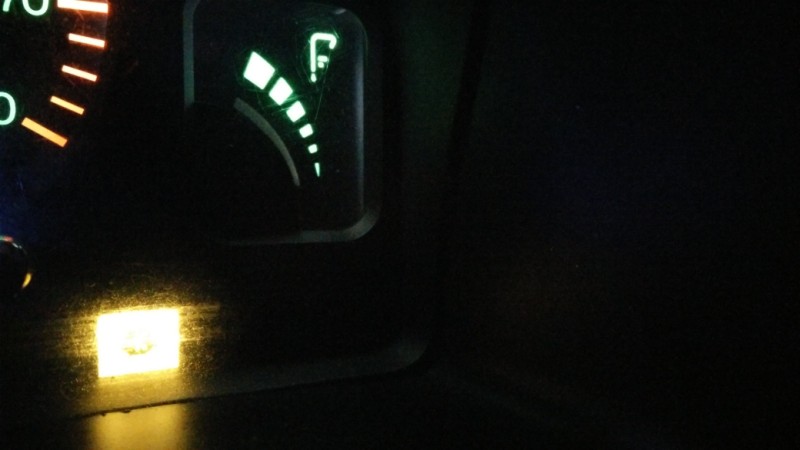

Changed the clock lamp to yellow:
